C26-020-2420B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> C26-020-2420B

C26-020-2420B: DescriptionTelecom and Datacom Connector, 20 Contact(s), Male, Plug; CategoryThe connector The connector; File Size238KB，4 Pages; ManufacturerMitsumi Electric Co., Ltd.

Download Datasheet Parametric Compare View All

C26-020-2420B Overview

Telecom and Datacom Connector, 20 Contact(s), Male, Plug

C26-020-2420B Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	C26
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Total number of contacts	20
Base Number Matches	1

Preview

Download Datasheet

View All

MITSUMI

Rectangular Connectors

IAM-C26 · D01 · D02 · C48, CAM-C27 · C68

Connectors

FEATURES

1.These are external interface connectors for 20

pins. IAM-C26 a cable assembly straight type

plug. IAM-D01 and D02 are cable assembly

type L plugs (D01 : right out ; D02 : left out).

IAM-C48 is a junction socket. There are two

types of sockets: CAM-C27, the angle dip

type, and CAM-C68, the angle SMT type.

2.The coupling/decoupling cycle life is 10,000

times and a one-touch locking mechanism is

used. The unit is also thin and the area

occupied by the circuit board is small.

Occupation ratio : Approx. 63% (MITSUMI

comparison).

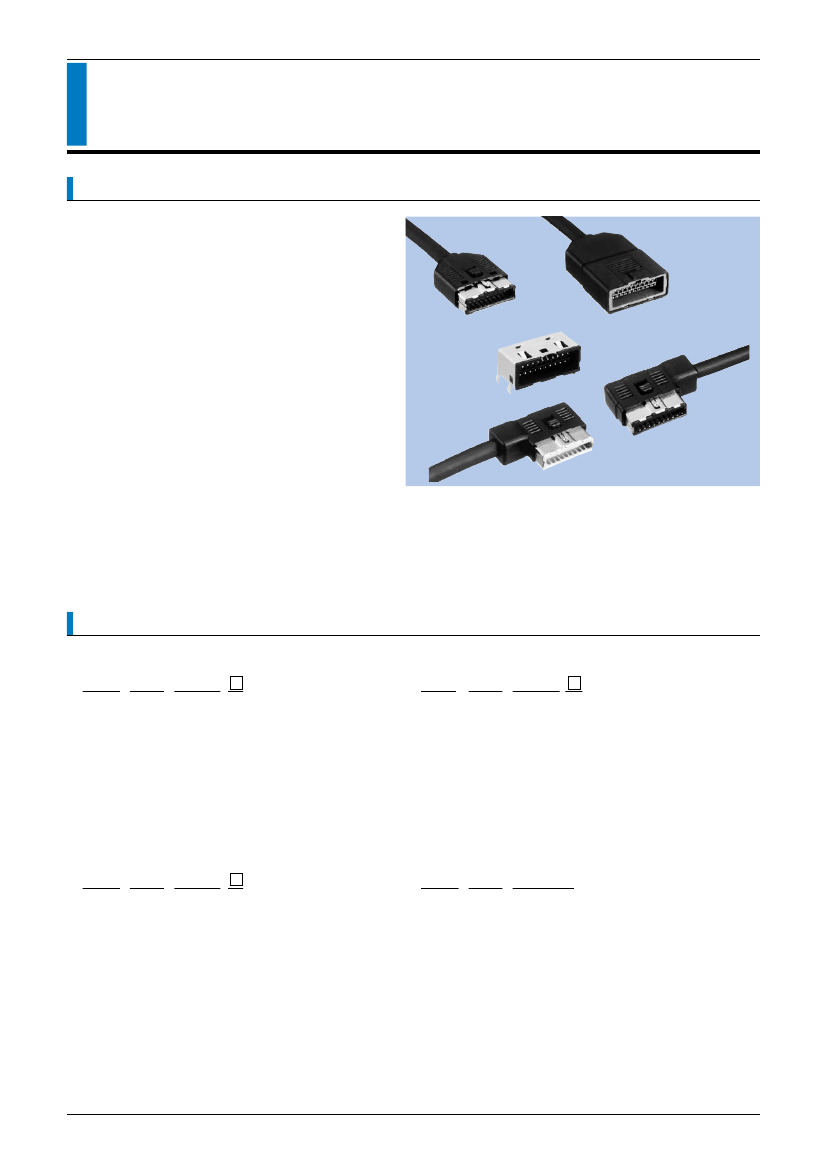

IAM-C26(20pins)

IAM-C48(20pins)

CAM-C27(20pins)

IAM-D02

IAM-D01

HOW TO ORDER

1. IAM-C26

2. IAM-D01

C26-020-2420

Series No.

No. of contacts (020 : 20pins)

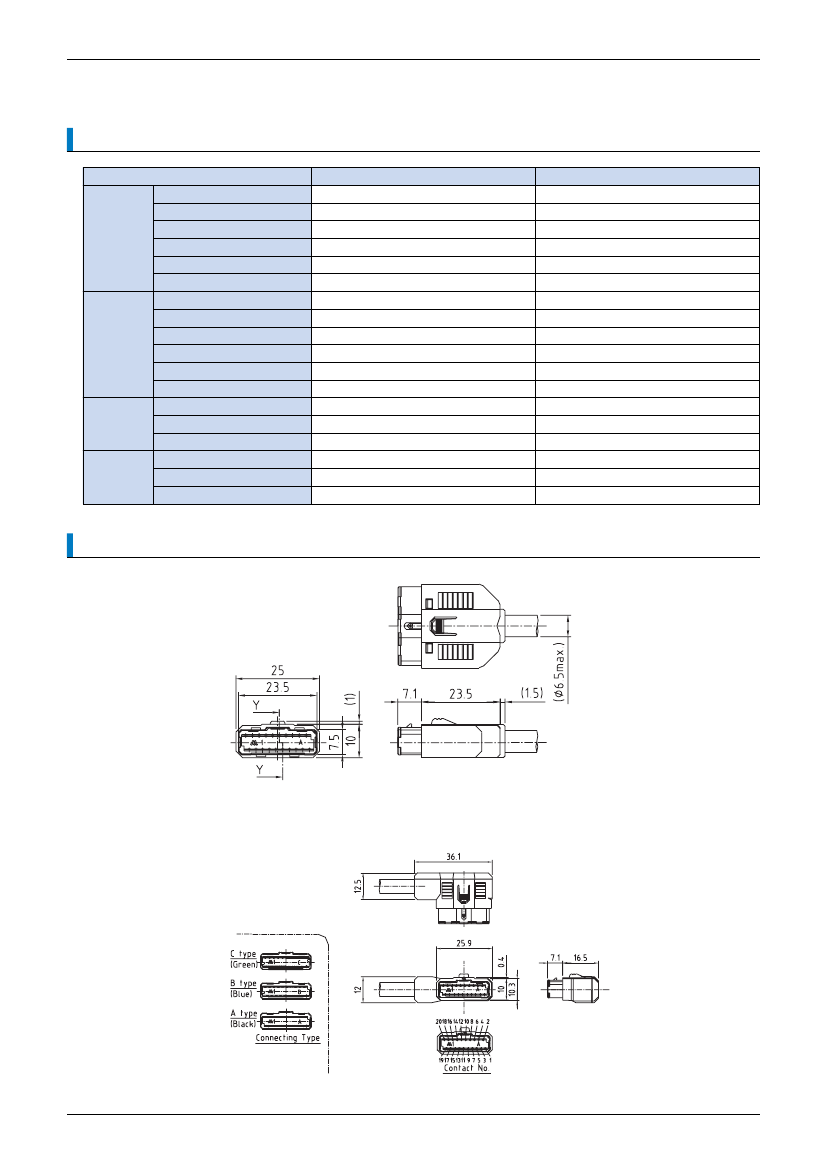

Product Specifications

Housing Color (A : Black, B : Sky blue, C : Green)

D01-020-2063

Series No.

No. of contacts (020 : 20pins)

Running No. assigned by us

Housing Color (A : Black, B : Sky blue, C : Green)

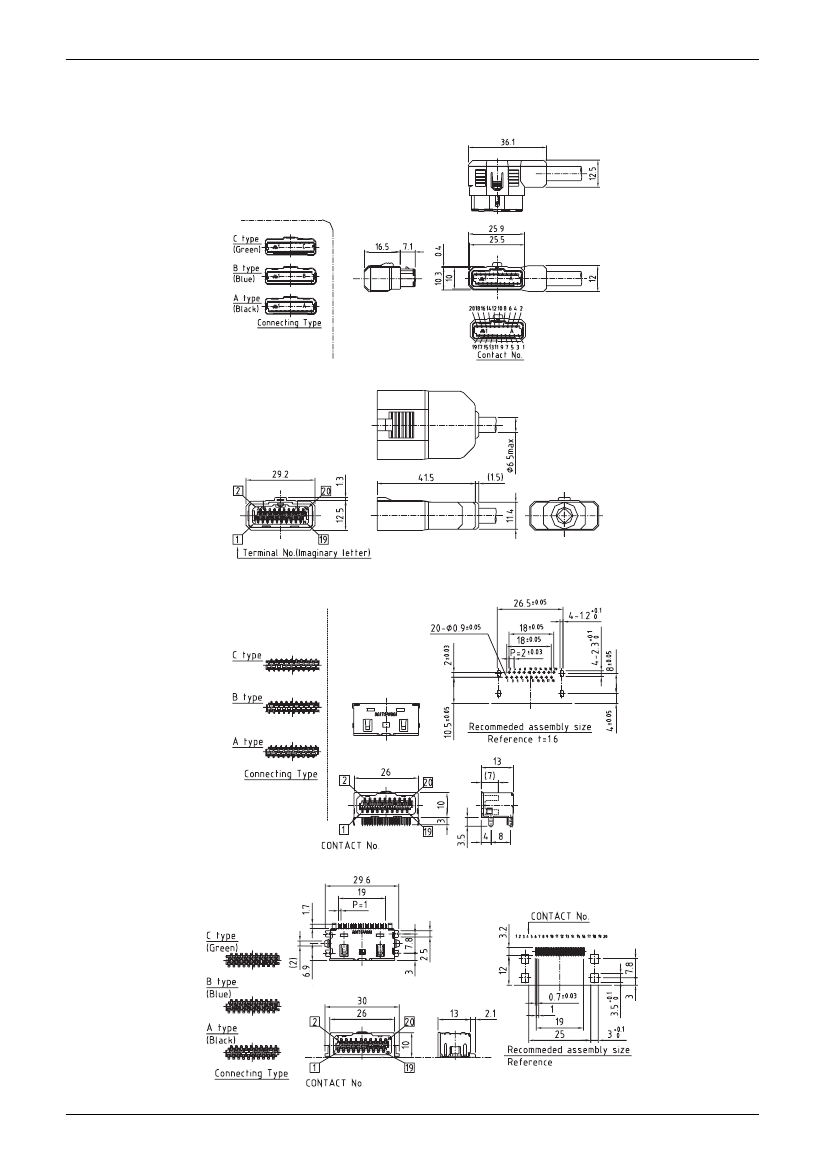

3. IAM-D02

4. IAM-C48

D02-020-2022

Series No.

No. of contacts (020 : 20pins)

Running No. assigned by us

Housing Color (A : Black, B : Sky blue, C : Green)

C48-020-2541A

1 Series No.

2 No. of contacts (020 : 20pins)

3 Running No. assigned by us

color are

The connector shape andall types ofType E (color :

gray) and connects with

IAM-C26, D01

and D02.

C26-020-2420B Related Products

	C26-020-2420B	C26-020-2420A	C26-020-2420C	C48-020-2541A
Description	Telecom and Datacom Connector, 20 Contact(s), Male, Plug	Telecom and Datacom Connector, 20 Contact(s), Male, Plug	Telecom and Datacom Connector, 20 Contact(s), Male, Plug	Telecom and Datacom Connector, 20 Contact(s), Female, Socket
Reach Compliance Code	unknown	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	PLUG	SOCKET
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	FEMALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	C26	C26	C26	C48
Mixed contacts	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Total number of contacts	20	20	20	20
Base Number Matches	1	1	1	1
