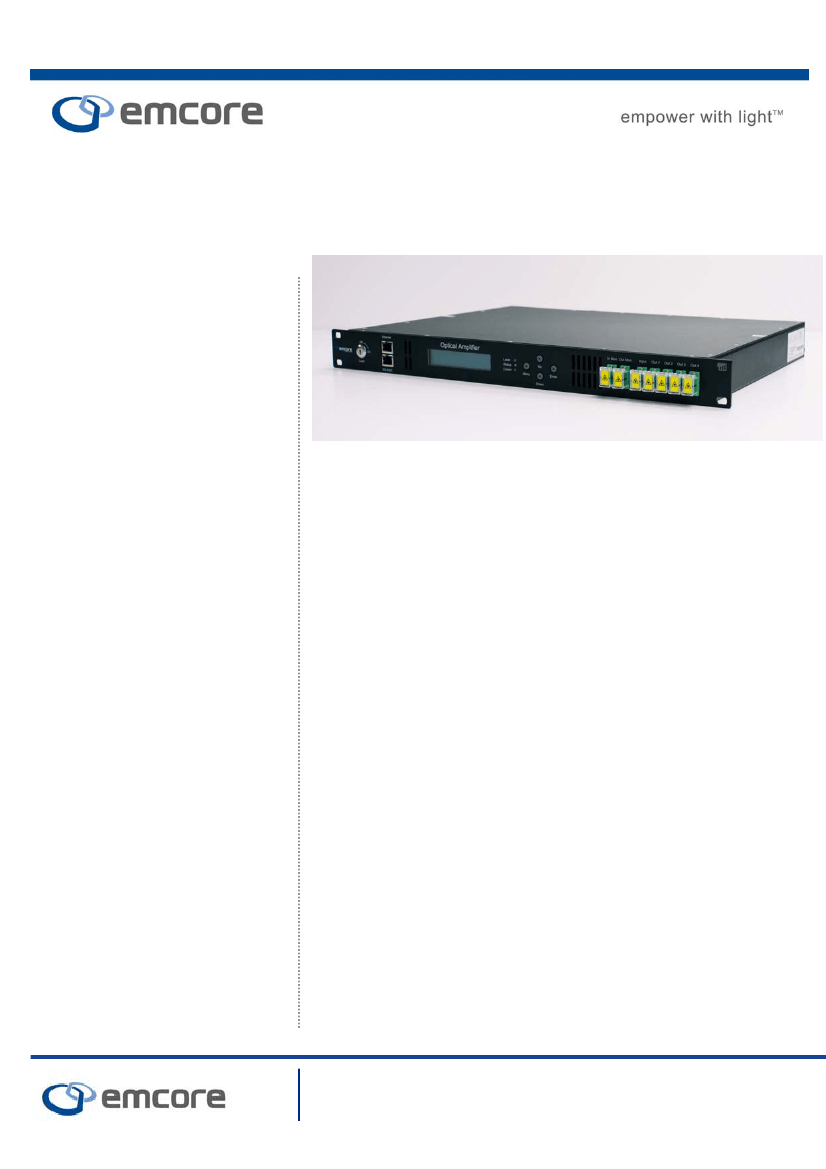

The NMOA8100 series product line is a family of state-of-the-art
high performance CATV erbium doped fiber amplifiers (EDFA).
Packaged in a convenient 1RU housing, this line of fiber amplifiers
uses the latest DSP technology at the core of electrical control
circuitry resulting in superior output power stability & exceptionally
low noise figures demanded by CATV applications.
The NMOA8100 provides very stable optical outputs over a wide
operating temperature range. Internally it is supported with input
and output isolators for enhanced system stability and
performance. Optical power is continuously monitored at the input
and output for automatic power control during operation over a
wide operating temperature range.
The NMOA8100 offers a rich set of features. These include remote
management capability through SNMPv2 and telnet. The
NMOA8100 also supports MIBs specified by SCTE (Society of
Cable Television Engineers) for this product class. Additionally, the
front panel’s LCD and button provides the operator with the option
to both monitor the status of the amplifier and control/operate the
amplifier locally.
1 of 4
For more information on this and other products:
Contact Sales at EMCORE 626-293-3400, or visit www.emcore.com.
NMOA8100 Series Fiber Amplifier
PRELIMINARY DATA SHEET | OCTOBER 9, 2008
Optional Features
•
•
•
Automatic power control and/or automatic
gain control modes.
Port count, optical power, and connector
style options
Gain flattened options for WDM applications
Monitors and Alarms
•
•
•
•
•
•
•
Loss of input signal
Loss of output power
Pump laser diode bias current
Pump LD Temperature
Case Temperature
Redundant Power Supplies
Redundant Fans
Electrical Characteristics
PROPERTY
AC Power Supply Voltage
DC Power Supply
Voltage
Power Consumption
Note 1
SYMBOL
V
AC
V
DC
P
TOT
MIN
85
-36
-48
TYP
MAX
265
-72
10
UNIT
V
AC
V
DC
W
Note 1: 10 W valid at 0 dBm input and 14 dBm output power within specified operating temperature range. Contact Emcore Sales for specific model datasheets.
General Optical Characteristics
PROPERTY
SYMBOL
MIN
TYP
MAX
UNIT
Wavelength Range
Input Power
Total Output Power Options
Note 1
Output Power Delta to Nominal
Output Port Count Options (SC)
Notes 1, 2
Noise Figure
Note 3
Optical Isolation
Input Power Alarm
Input Monitor Loss
Output Monitor Loss
Note 2: Model types are specified by output power per port
Note 3: Test Condition with Input Power = 0 dBm (@ 1550nm)
Note 4: Specifications valid within operating temperature range.
V
AC
P
IN
P
OUT
P
OUTΔ
-
NF
ISO
LOS
I
MON
O
MON
1528
-10
14
-0.5
1
1550
0
1562
12
27
0.5
10
5.0
nm
dBm
dBm
dB
dB
dB
30
-12
22
19
-11
23
20
-10
24
21
dBm
dB
dB
Note 1: Total output power and number of ports varies by model type. Contact Emcore Sales for model specific datasheets
Absolute Maximum Ratings
PROPERTY
Operating Temperature Range
Storage temperature Range
Relative Humidity
SYMBOL
TO
TS
H
MIN
0
-40
0
TYP
MAX
50
85
95
UNIT
o
o
C
C
%
2 of 4
EMCORE Broadband
2015 West Chestnut Street
Alhambra, California 91803-1542
Tel: 626-293-3400
Fax: 626-293-3428
www.emcore.com
Copyright 2008. EMCORE Corporation
NMOA8100 Series Fiber Amplifier
PRELIMINARY DATA SHEET | OCTOBER 9, 2008

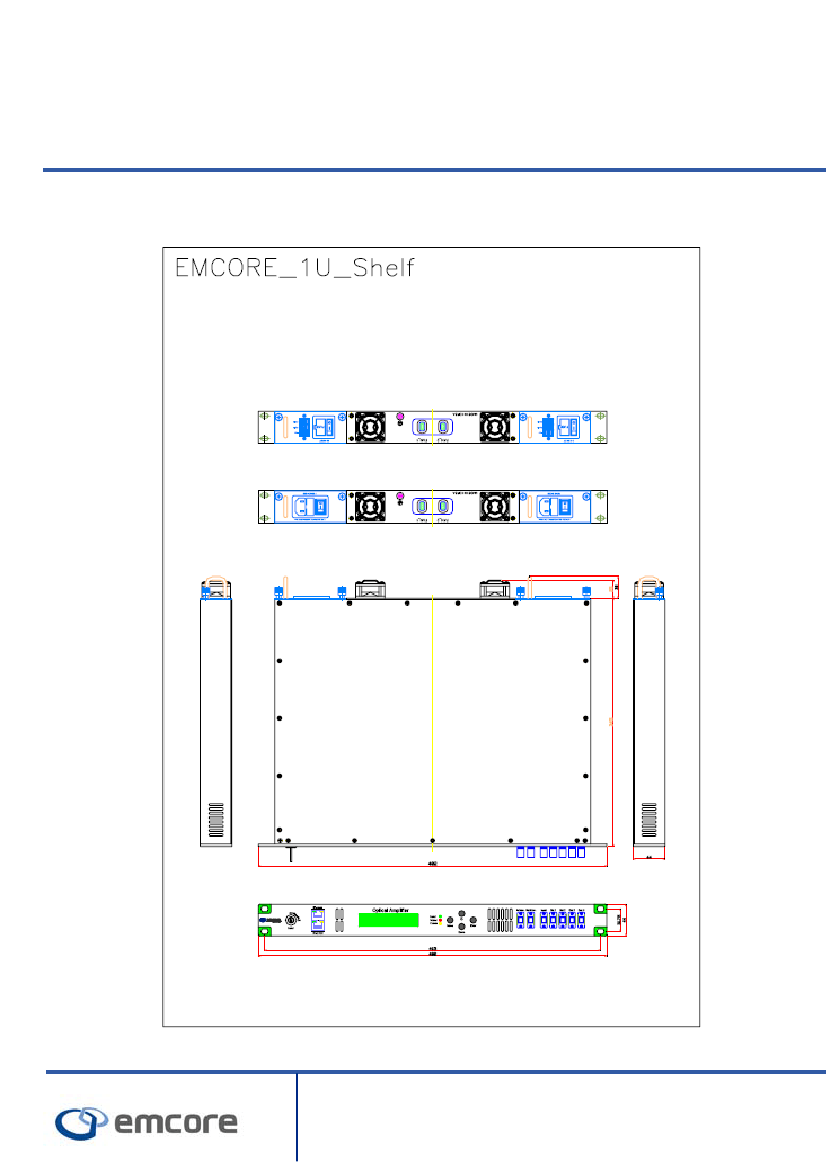

Outline Drawing
3 of 4
EMCORE Broadband
2015 West Chestnut Street
Alhambra, California 91803-1542
Tel: 626-293-3400
Fax: 626-293-3428
www.emcore.com
Copyright 2008. EMCORE Corporation
NMOA8100 Series Fiber Amplifier
PRELIMINARY DATA SHEET | OCTOBER 9, 2008
Model Number Information
NMOA8100
Integrated WDM
□□□
–
□□□□
–
□
0
□□
Number of
Output
Ports
01
– 1 port
02
– 2 ports
04
– 4 ports
08
– 8 ports
10
– 10 ports
Optics
Output
Location
0
– Front
1
– Rear
Power Supply
1
– SC/APC
2
– FC/APC
4
– SC/UPC
5
– FC/UPC
Output Power per
Port
xx
– xxdBm/port
(Maximum: xx =
27dBm for 1 port)
BLANK
– None
GFF
– Gain
Flattened Filter
for DWDM
applications
1
– AC primary
2
– DC primary
3
– AC primary, AC
secondary
4
– AC primary, DC
secondary
5
– DC primary, DC
secondary
Note 1: Not all configurations are available; please contact your EMCORE Sales representative.
e.g. NMOA8100-1401-1005 (14 dBm per port, 1 port, SC/APC, front fiber, dual DC)
e.g. NMOA8100-1708-1003 (17 dBm per port, 8 ports, SC/APC, front fiber, dual AC)
Laser Safety Information
FDA/CDRH Class IIIb and IEC 60825 Class 3B laser product
All versions are Class 3B laser products per IEC 60825-1:1993
Caution: Use of controls, adjustment and procedures other than those specified heirin may result in hazardous
laser radiation exposure.
Information contained herein is deemed to be reliable and accurate as of issue date. EMCORE reserves the right to change the design or specifications of
the product at any time without notice. EMCORE, and the EMCORE logo are trademarks of EMCORE Corporation.
