CLH-145-F-D-BE-K datasheet, PDF

Datasheet> All Categories > The connector> The connector> CLH-145-F-D-BE-K

CLH-145-F-D-BE-K: DescriptionBoard Connector, 90 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,; CategoryThe connector The connector; File Size616KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

CLH-145-F-D-BE-K Overview

Board Connector, 90 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,

CLH-145-F-D-BE-K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	CLH
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	90
Base Number Matches	1

Preview

Download Datasheet

View All

F-211

CLH–108–F–D–DV–P

CLH–110–F–D–DV

(2,54mm) .100"

CLH SERIES

CLH–120–F–D–BE

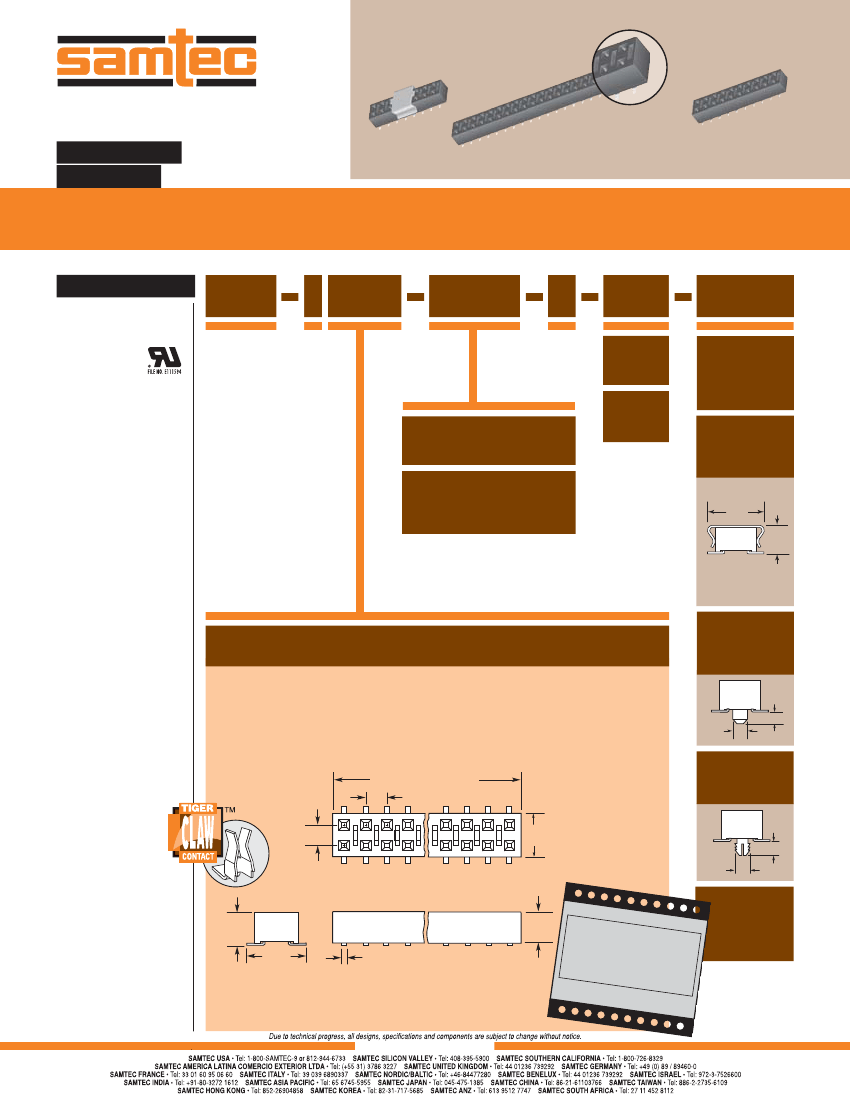

SMT LOW PROFILE SOCKET

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?CLH

Insulator Material:

Black Liquid

Crystal Polymer

Contact Material:

Phosphor Bronze

Operating Temp Range:

-65°C to +125°C with Gold

-65°C to +105°C with Tin

Plating:

Au or Sn over

50µ" (1,27µm) Ni

Contact Resistance:

10 mΩ max

Insertion Depth:

(2,67mm) .105" to

(3,43mm) .135"

plug from top, (3,18mm) .125"

min plus board thickness plug

from bottom

Insertion Force:

4.0oz (1,11N) average

Normal Force:

50 grams (0,48N)

Withdrawal Force:

1.1oz (0,31N) average

Max Cycles:

100 with 10µ" (0,25µm) Au

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10mm) .004" max

CLH

NO. PINS

PER ROW

PLATING

OPTION

ENTRY

OPTION

OTHER

OPTION

Mates with:

TSW, MTSW, HW, DW,

EW, ZW, TLW, TSM,

MTLW

–DV

= Top

Entry

–K

= (6,50mm) .256"

DIA Polyimide ﬁlm

Pick & Place Pad

(3 positions min.)

–BE

–F

= Pre-plated Gold ﬂash on contact,

75µ" (1,91µm) Matte Tin on tail

= Bottom

Entry

–P

= Pick & Place Pad

(3 positions

minimum)

–L

= Pre-plated 10µ" (0,25µm)

Gold on contact,

75µ" (1,91µm) Matte Tin on tail

Note:

Other Gold plating

options available.

Contact Samtec.

(7,11) .280

(5,71) .225

(3,86)

.152

Not always necessary

for auto placement.

Call Samtec.

Processing:

02 thru 50

== Tape & Reel

Alignment Pin

(4 positions

Packaging

minimum)

(–DV only)

(1,22)

.048

(1,60)

.063

DIA

–A

–TR

–LC

No. of Positions x (2,54) .100

(2,54)

.100

= Locking

Clip

(1,27)

.050

(2,54)

.100

(5,08)

.200

(1,42)

.056

TAPE & R

(3,66)

.144

(7,11)

.280

(0,51)

.020

(3,56)

.140

ITY

No to

Minimum o oling charges.

a full ree rder is the lesse

Order any l quantity or 125 pier of

In-house d antity above minimus.

esign, man

ufac

Quick turn

-around. ture.

Call Sa

mtec

and orderi for specifications

ng informa

tion.

EEL AVAIL

–TR

ABIL

= Tape & Reel

Packaging

(29 positions

maximum)

Note:

Some lengths,

styles and options are

non-standard, non-returnable.

WWW.SAMTEC.COM
