D7580ZOV271RA550 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> D7580ZOV271RA550

D7580ZOV271RA550: DescriptionRESISTOR, VOLTAGE DEPENDENT, 360V, 550J, CHASSIS MOUNT, RADIAL LEADED; CategoryPassive components The resistor; File Size132KB，1 Pages; ManufacturerMaida Development Company

Download Datasheet Parametric View All

D7580ZOV271RA550 Overview

RESISTOR, VOLTAGE DEPENDENT, 360V, 550J, CHASSIS MOUNT, RADIAL LEADED

D7580ZOV271RA550 Parametric

Parameter Name	Attribute value
package instruction	Radial,
Reach Compliance Code	compliant
Other features	PCB MOUNTABLE
Circuit maximum DC voltage	360 V
Circuit RMS maximum voltage	270 V
Maximum energy absorption capacity	550 J
JESD-609 code	e3
Manufacturer's serial number	D7580ZOV271RA550
Installation features	CHASSIS MOUNT
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	DISK PACKAGE
Package form	Radial
Rated power dissipation(P)	2 W
Resistor type	VARISTOR
surface mount	NO
technology	METAL OXIDE FILM
Terminal surface	TIN
Terminal location	RADIAL
Terminal shape	LUG
Base Number Matches	1

Preview

Download Datasheet

View All

Date:

2/18/2008

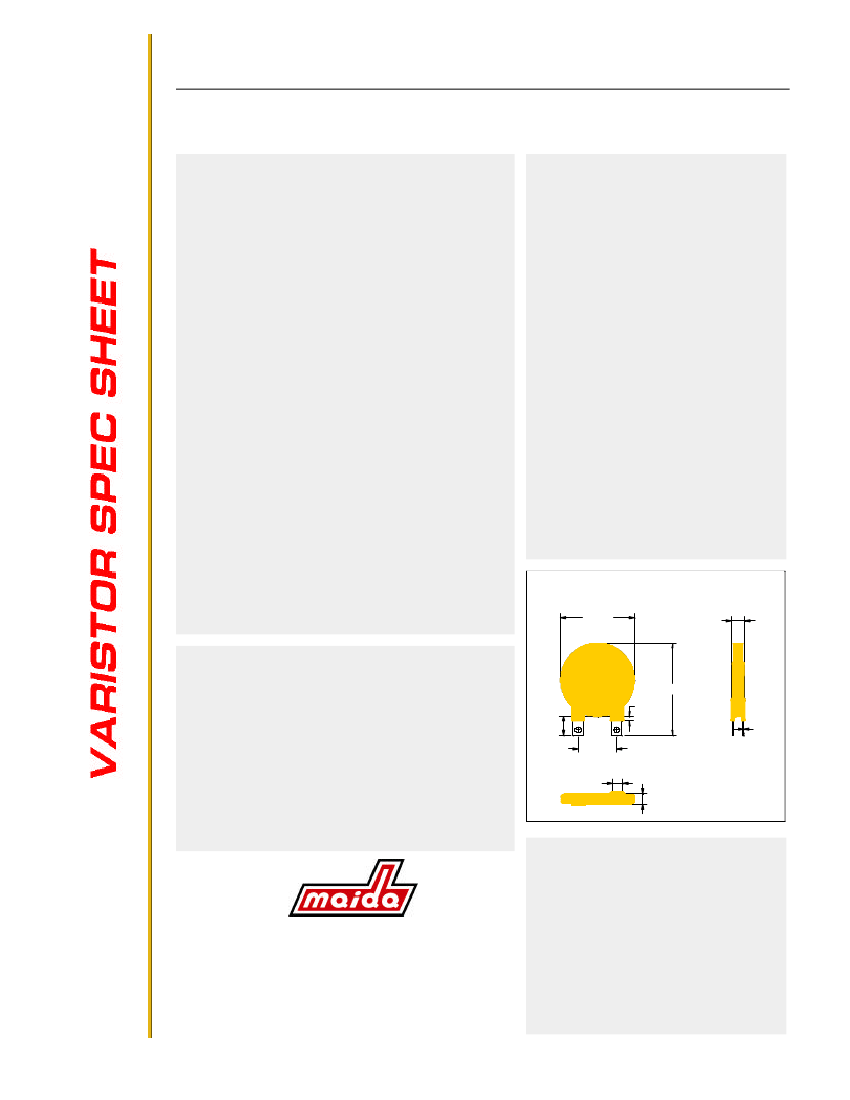

VARISTOR

SPECIFICATION SHEET

D7580ZOV271RA550

MAIDA STYLE NUMBER

CONTACT

HIGH ENERGY SERIES

Electrical Specifications

Continuous AC Voltage

Continuous DC Voltage

Maximum DC Leakage @ Rated VDC

Low Varistor Voltage Limit

High Varistor Voltage Limit

Nominal Varistor Voltage

Current for Varistor Voltage

Maximum Clamp Voltage

Maximum Clamp Voltage Test Current

Peak Current Rating (1 Pulse)

Peak Current Rating (2 Pulse)

Energy Rating (8X20us)

Energy Rating (10X1000us)

Typical Capacitance

Impulse Response Time

Minimum Hipot of Coating

Minimum I.R. of Coating

Physical Specifications

270

VAC

Lead Style

Z Nominal

Z Tolerance

Lead Length Nominal

Lead Length Tolerance

Y Nominal

Y Tolerance

d Nominal

Wire Gauge

Minimum Marking

Nominal Disk Size

D Maximum

T Maximum

H Maximum

165

in.

0.02

in.

360

VDC

200

382

VDC

466

VDC

424

VDC

0.14

in.

0.04

in.

710

300

0.02

in.

AWG

40000

Z271-550UL

1.89

in.

550

3200

0.294

in.

2.37

in.

2500

VDC

1000

ΜΩ

D MAX.

T MAX.

Thermal Specifications

Minimum Operating Temperature

Maximum Operating Temperature

Varistor Voltage Temperature Coeff

Minimum Storage Temperature

Maximum Storage Temperature

Current/Energy Derating Above 85°C

-40

°C

H MAX.

C TYP.

L TYP.

Z NOM.

W NOM.

d NOM.

°C

-0.05

%/°C

-50

°C

125

°C

-2.5

%/°C

Y NOM.

* Contact Maida for a more detailed configuration drawing.

Safety Agency Recognitions

UL 1449 File Number

UL 1414 File Number

DEVELOPMENT COMPANY

20 Libby Street

P.O. Box 3529

Hampton, Virginia 23663

(757) 723-0785

Fax (757) 722-1194

E86730

E38785

UL 497B File Number

CSA File Number

VDE File Number

SEV File Number

LR33468
