DM54LS365AW: DescriptionBus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CDFP16, CERPACK-16; Categorylogic logic; File Size143KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

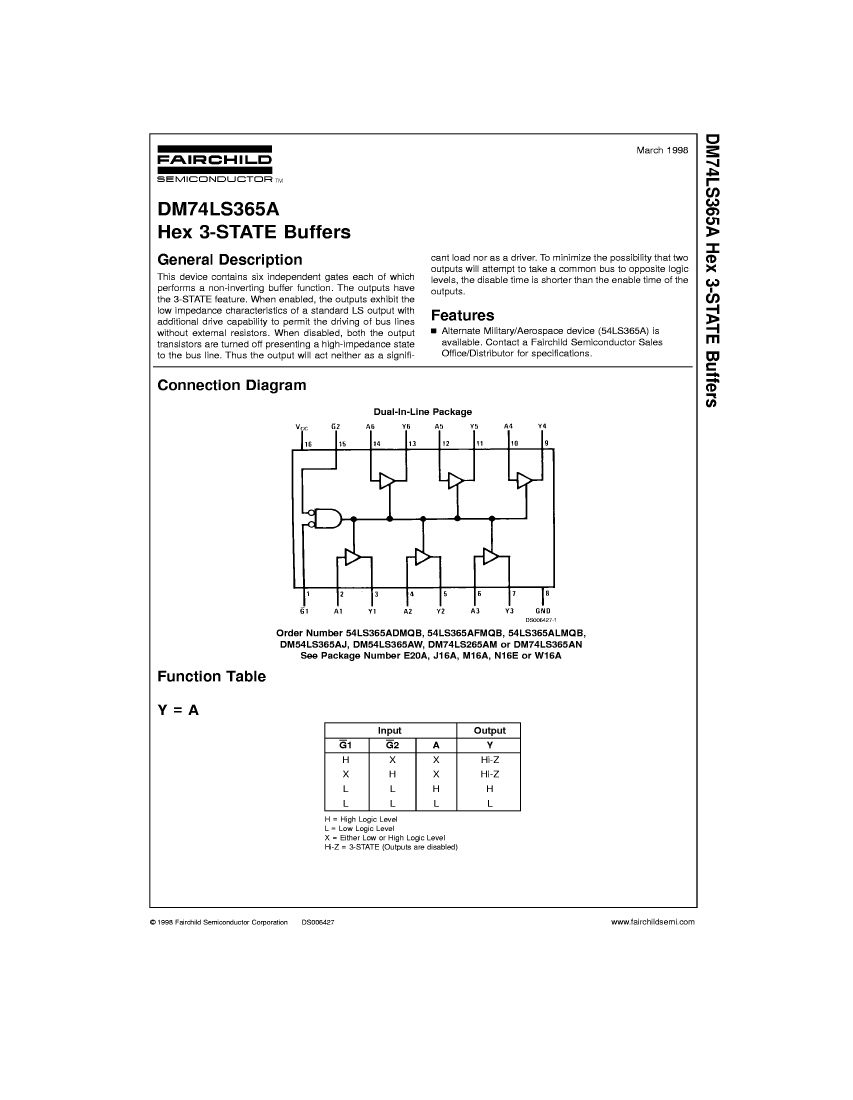

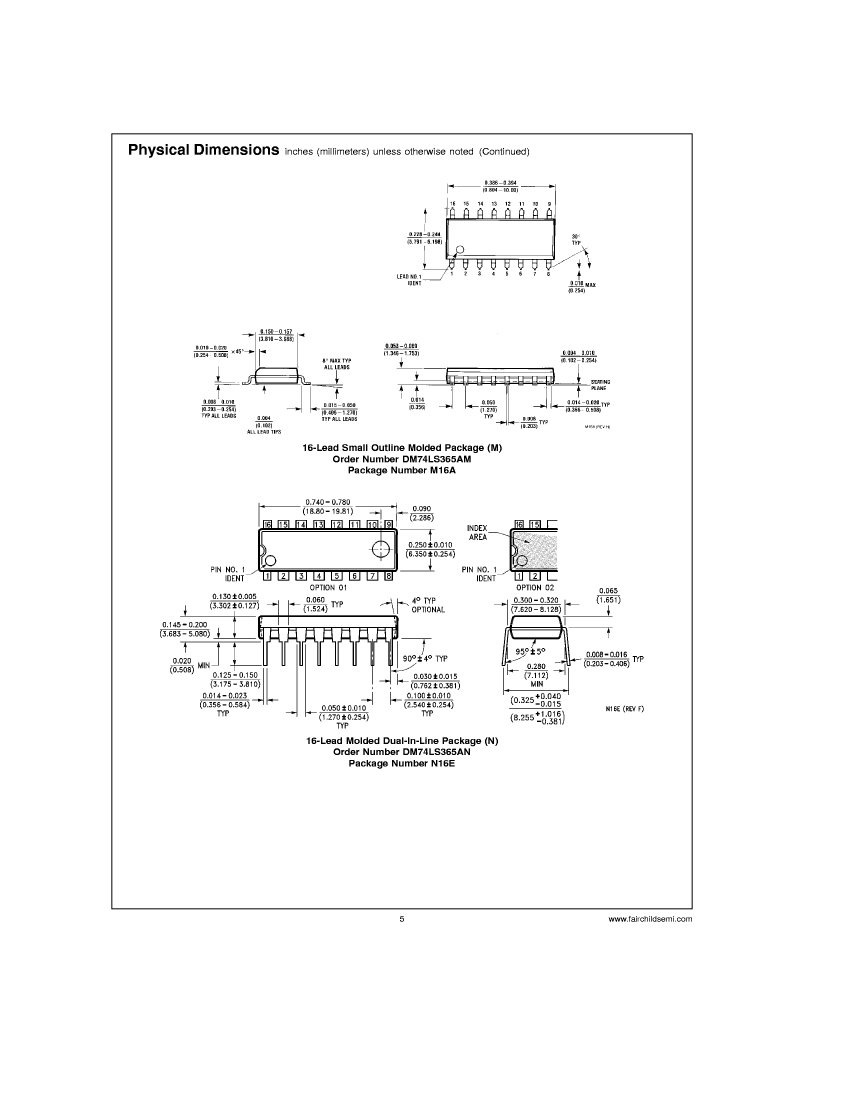

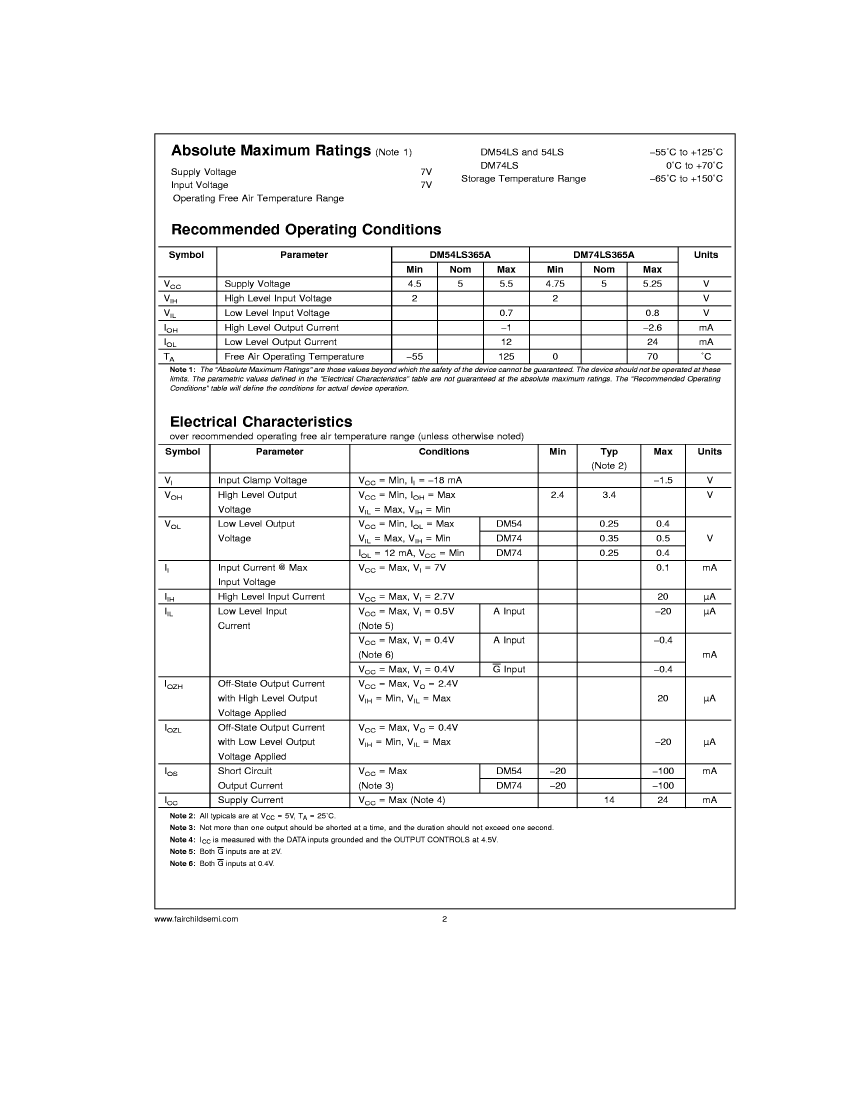

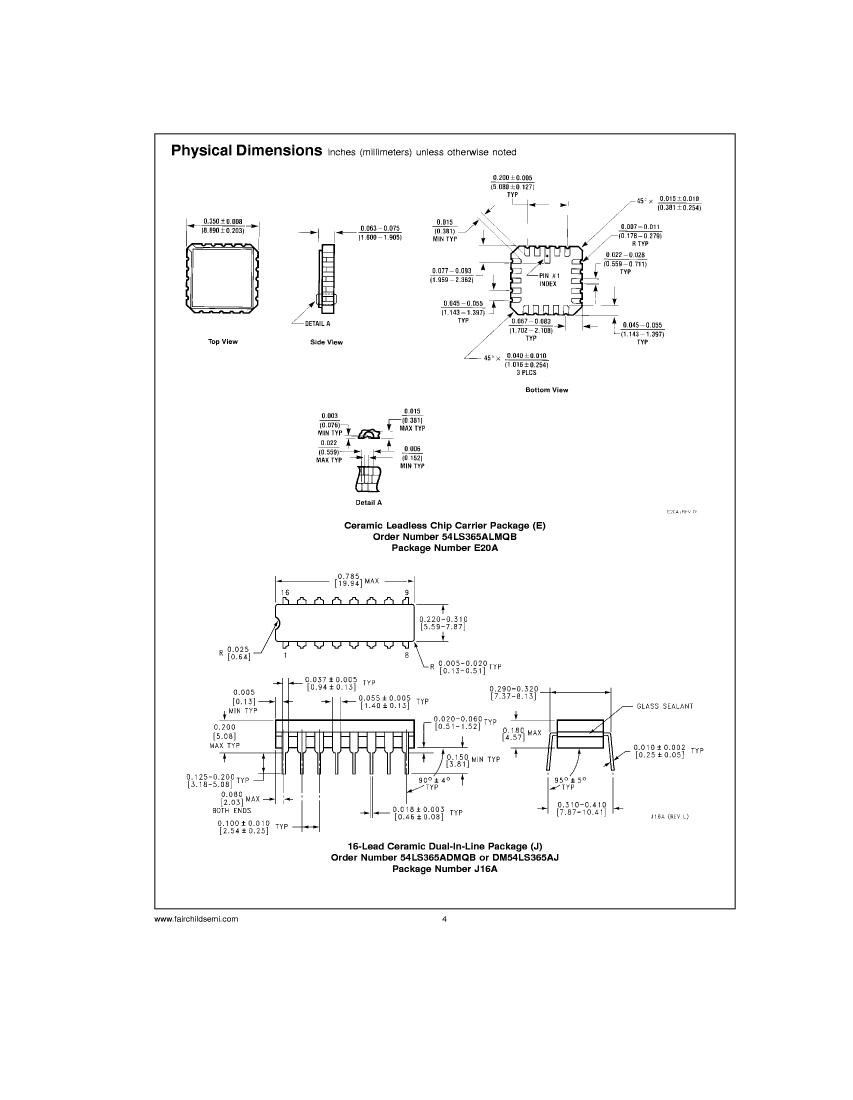

DM54LS365AW Overview

Bus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CDFP16, CERPACK-16

DM54LS365AW Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DFP
package instruction	DFP, FL16,.3
Contacts	16
Reach Compliance Code	unknown
Other features	WITH DUAL OUTPUT ENABLE
Control type	ENABLE LOW
series	LS
JESD-30 code	R-GDFP-F16
JESD-609 code	e0
length	9.6645 mm
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.012 A
Number of digits	6
Number of functions	1
Number of ports	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	24 mA
Prop。Delay @ Nom-Sup	16 ns
propagation delay (tpd)	25 ns
Certification status	Not Qualified
Maximum seat height	2.032 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.604 mm
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

DM54LS365AW Related Products

	DM54LS365AW	54LS365ADMQB	54LS365AFMQB	54LS365ALMQB	DM54LS365AJ
Description	Bus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CDFP16, CERPACK-16	Bus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CDIP16, CERAMIC, DIP-16	Bus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CDFP16, CERPACK-16	Bus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20	Bus Driver, LS Series, 1-Func, 6-Bit, True Output, TTL, CDIP16, CERAMIC, DIP-16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DFP	DIP	DFP	QLCC	DIP
package instruction	DFP, FL16,.3	DIP, DIP16,.3	DFP, FL16,.3	QCCN, LCC20,.35SQ	DIP, DIP16,.3
Contacts	16	16	16	20	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE	WITH DUAL OUTPUT ENABLE
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW
series	LS	LS	LS	LS	LS
JESD-30 code	R-GDFP-F16	R-GDIP-T16	R-GDFP-F16	S-CQCC-N20	R-GDIP-T16
JESD-609 code	e0	e0	e0	e0	e0
length	9.6645 mm	19.43 mm	9.6645 mm	8.89 mm	19.43 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.012 A	0.012 A	0.012 A	0.012 A	0.012 A
Number of digits	6	6	6	6	6
Number of functions	1	1	1	1	1
Number of ports	2	2	2	2	2
Number of terminals	16	16	16	20	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DIP	DFP	QCCN	DIP
Encapsulate equivalent code	FL16,.3	DIP16,.3	FL16,.3	LCC20,.35SQ	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	FLATPACK	IN-LINE	FLATPACK	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	24 mA	24 mA	24 mA	24 mA	24 mA
Prop。Delay @ Nom-Sup	16 ns	16 ns	16 ns	16 ns	16 ns
propagation delay (tpd)	25 ns	25 ns	25 ns	25 ns	25 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.032 mm	5.08 mm	2.032 mm	1.905 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	NO
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	FLAT	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	6.604 mm	7.62 mm	6.604 mm	8.89 mm	7.62 mm
Base Number Matches	1	1	1	1	-
Filter level	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-
