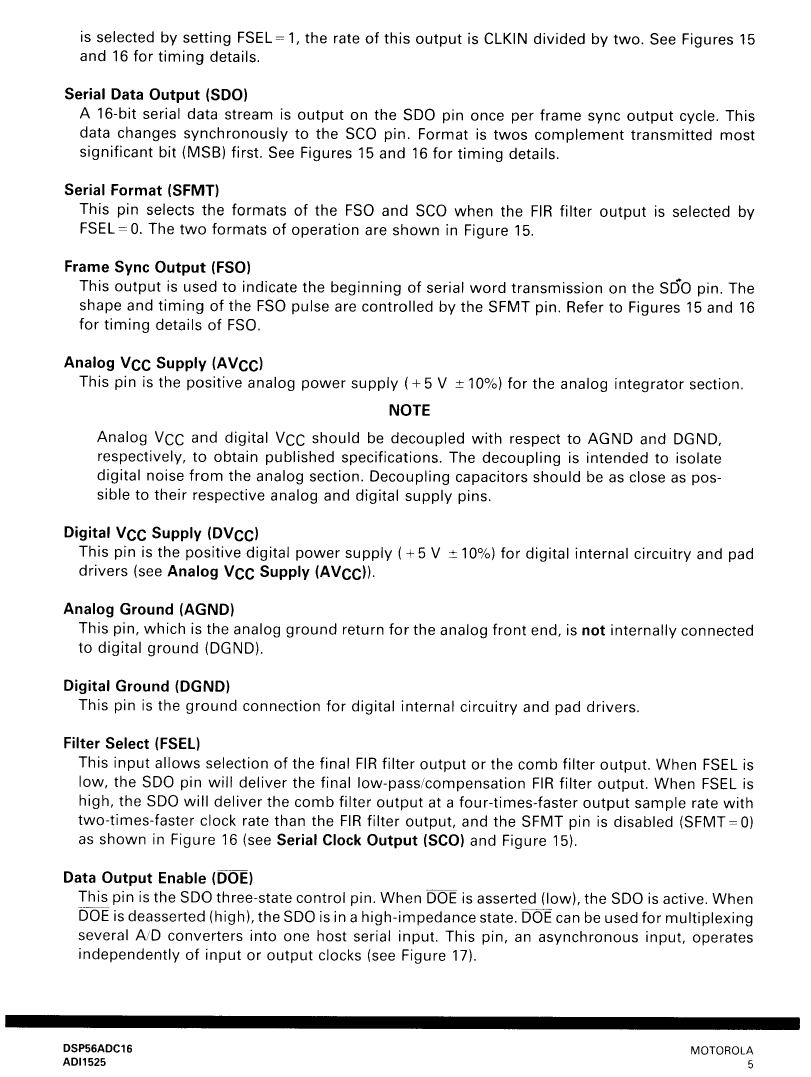

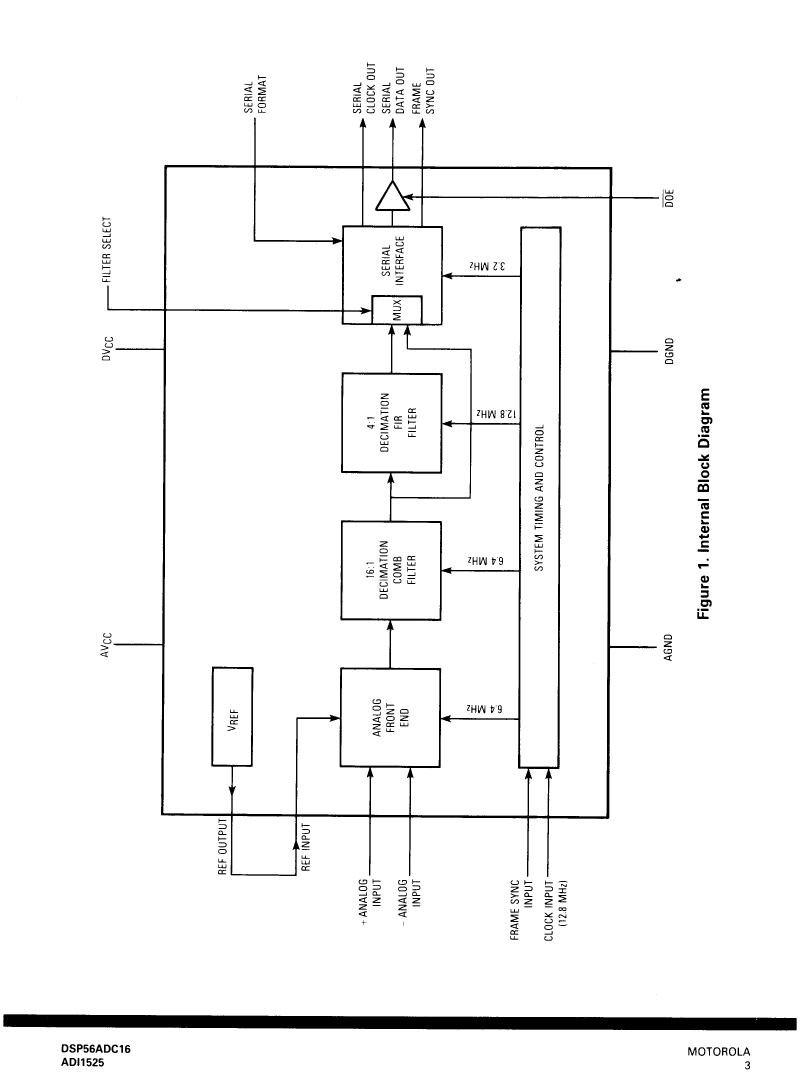

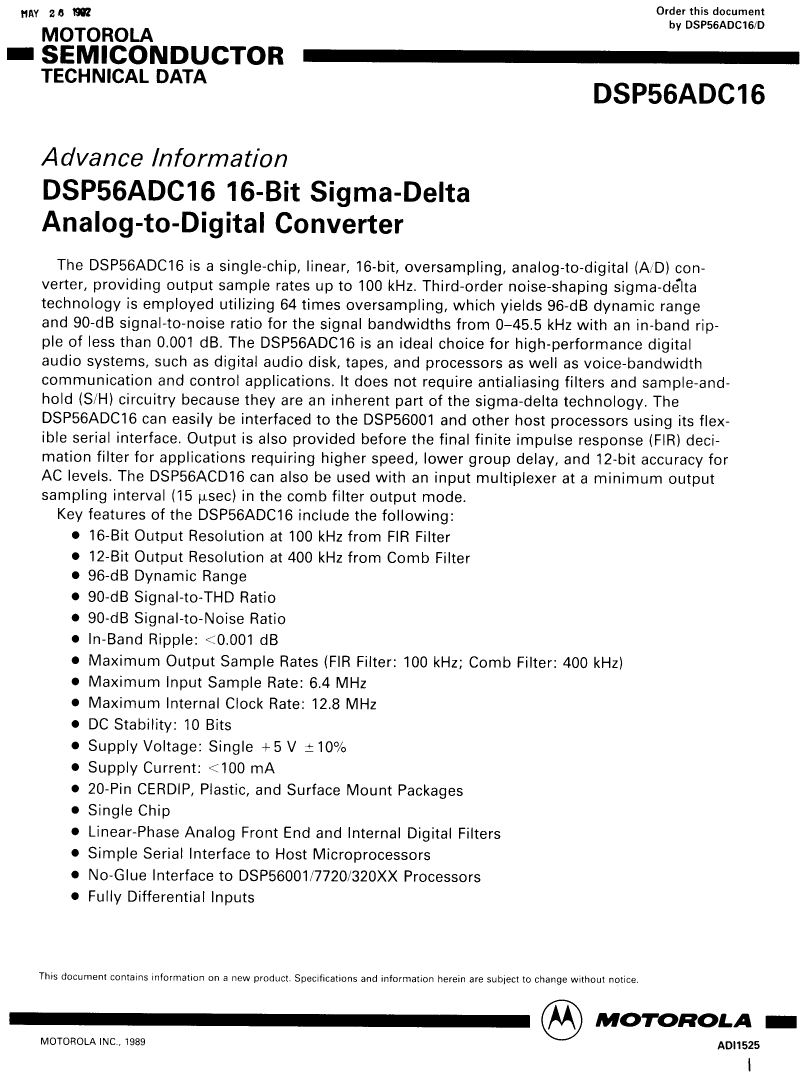

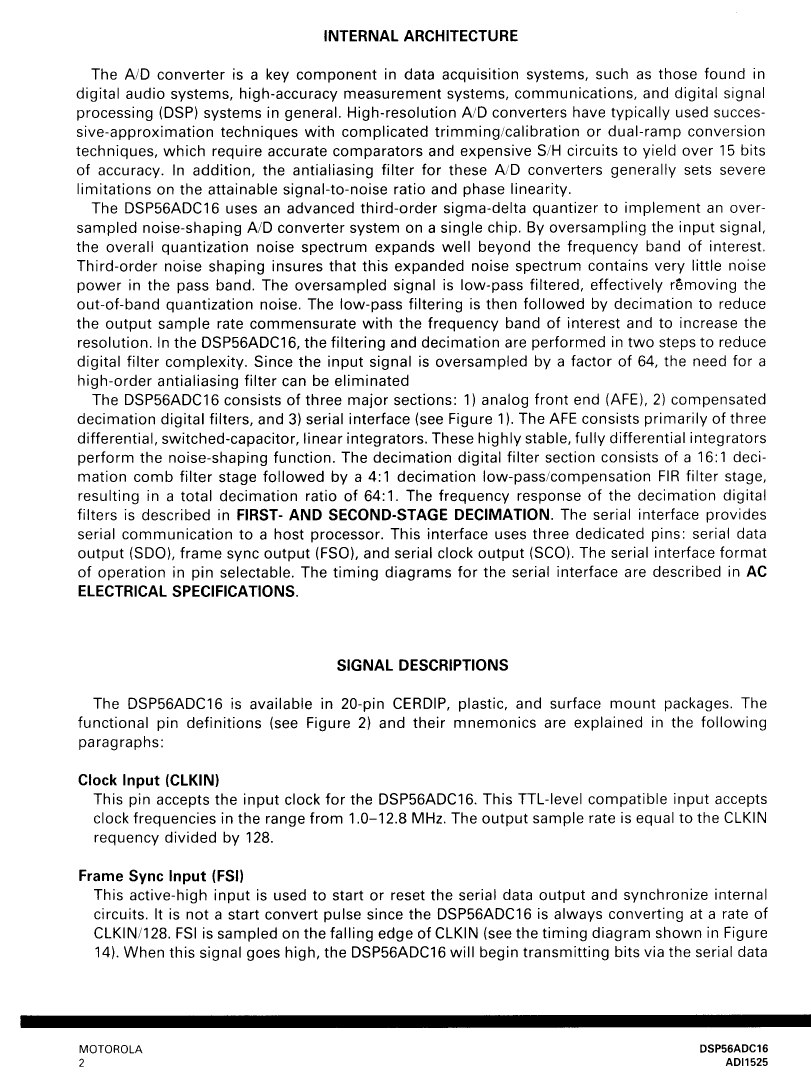

DSP56ADC16D Overview

A/D Converter, 16-Bit, 1 Func, CMOS, PDSO20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	SOJ, SOJ20/26,.34
Reach Compliance Code	unknown
Maximum analog input voltage	2 V
Converter type	A/D CONVERTER
JESD-30 code	R-PDSO-J20
JESD-609 code	e0
Number of digits	16
Number of functions	1

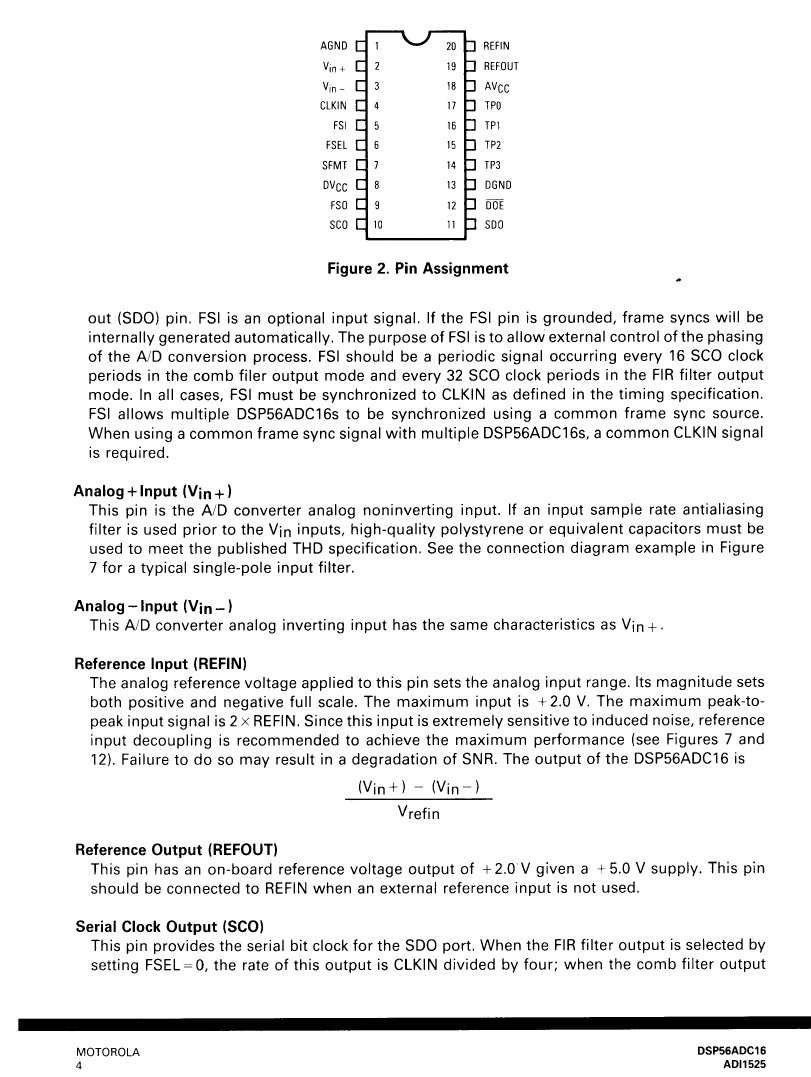

Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output bit code	2'S COMPLEMENT BINARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ20/26,.34
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

	DSP56ADC16D	DSP56ADC16L
Description	A/D Converter, 16-Bit, 1 Func, CMOS, PDSO20	A/D Converter, 16-Bit, 1 Func, CMOS, CDIP20
Is it Rohs certified?	incompatible	incompatible
package instruction	SOJ, SOJ20/26,.34	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown
Maximum analog input voltage	2 V	2 V
Converter type	A/D CONVERTER	A/D CONVERTER
JESD-30 code	R-PDSO-J20	R-XDIP-T20
JESD-609 code	e0	e0
Number of digits	16	16
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output bit code	2'S COMPLEMENT BINARY	2'S COMPLEMENT BINARY
Package body material	PLASTIC/EPOXY	CERAMIC
encapsulated code	SOJ	DIP
Encapsulate equivalent code	SOJ20/26,.34	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
