D31C7110: DescriptionDry Reed Relay, SPDT, Momentary, 0.011A (Coil), 24VDC (Coil), 264mW (Coil), 0.25A (Contact), 30VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size326KB，2 Pages; ManufacturerCELDUC; Websitehttp://www.celduc-relais.com/uk/index.asp

Download Datasheet Parametric Compare View All

D31C7110 Overview

Dry Reed Relay, SPDT, Momentary, 0.011A (Coil), 24VDC (Coil), 264mW (Coil), 0.25A (Contact), 30VDC (Contact), DC Input, DC Output, Through Hole-Straight Mount

D31C7110 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH DIODE
body width	6.6 mm
body height	6.4 mm
Body length or diameter	19.1 mm
Maximum coil current (DC)	0.011 A
Coil operating voltage (DC)	18 V
Coil power	264 mW
Coil release voltage (DC)	2 V
Coil resistance	2150 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Maximum contact current (DC)	0.25 A
Contact (DC) maximum rated R load	.25A@30VDC
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	DC
Electrical life	2000000 Cycle(s)
Manufacturer's serial number	D31C
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	1.5 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
physical size	19.1mm x 6.6mm x 6.4mm
Relay action	MOMENTARY
Relay function	SPDT
Relay type	DRY REED RELAY
release time	2 ms
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

D/SEC/D31C*1*0/H/08/09/2014

page 1 / 2 F/GB

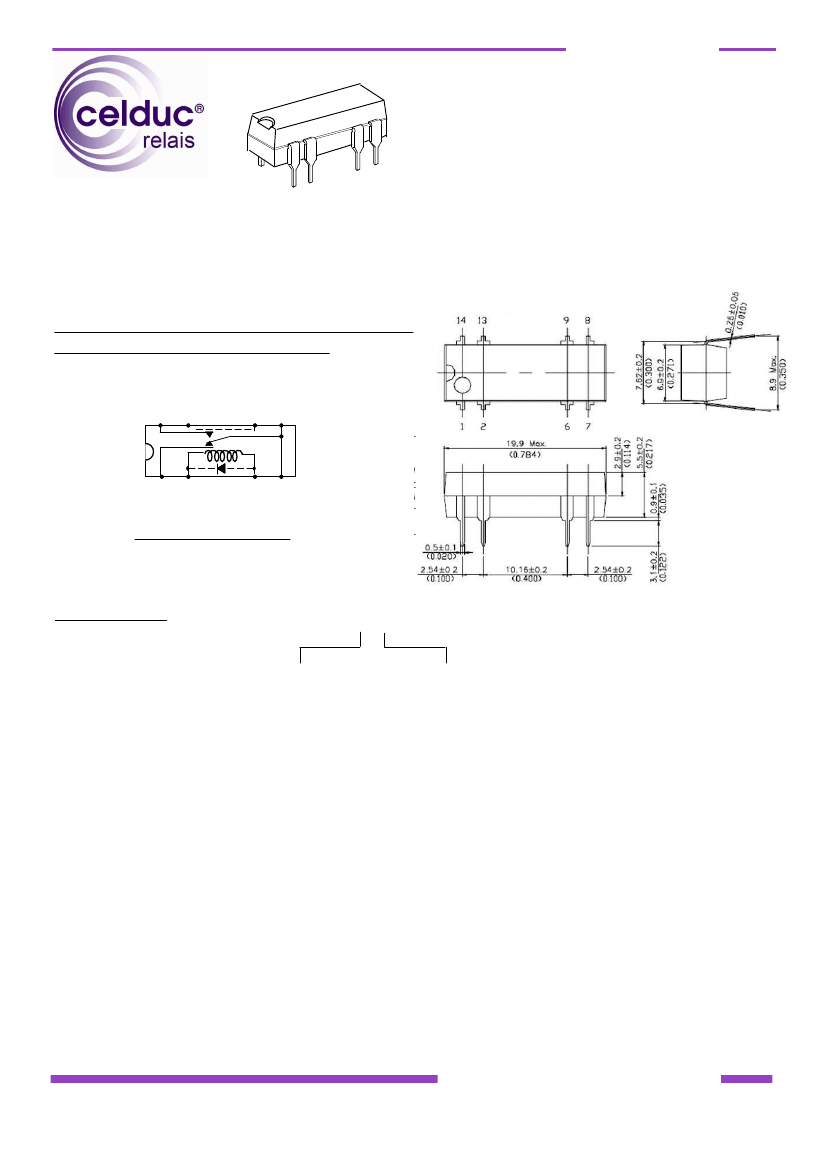

D31C . 1 . 0

RELAIS REED DUAL IN LINE / un contact inverseur

DUAL IN LINE REED RELAY / 1 contact changeover

SCHEMA DE BORNAGE - ENCOMBREMENT/

PIN CONFIGURATION - DIMENSIONS

19,1

14 13

E

6,6

9

8

1

2 +

6 - 7

3,3

D

6,4

vue de dessus /

up view

2,54

0,51

15,24

0,25

7,6

9,5

max

REFERENCES

D31C . 1 . 0

Tension

nominale

Nominal input

Options

2

--> 5 V =

5-->

12 V =

7

--> 24 V =

0

--> sans /

without option

1

--> diode ( D )

Références disponibles

/

Available references

D31C2100 - D31C2110

D31C5100 - D31C5110

D31C7100 - D31C7110

Pour d'autres types ou utilisations , nous consulter /

For others, please contact us

Proud to serve you

All technical caracteristics are subject to change without previous notice.

Caractéristiques sujettes à modifications sans préavis.
