DG181AL: DescriptionSGL POLE SGL THROW SWITCH; CategoryAnalog mixed-signal IC The signal circuit; File Size82KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric View All

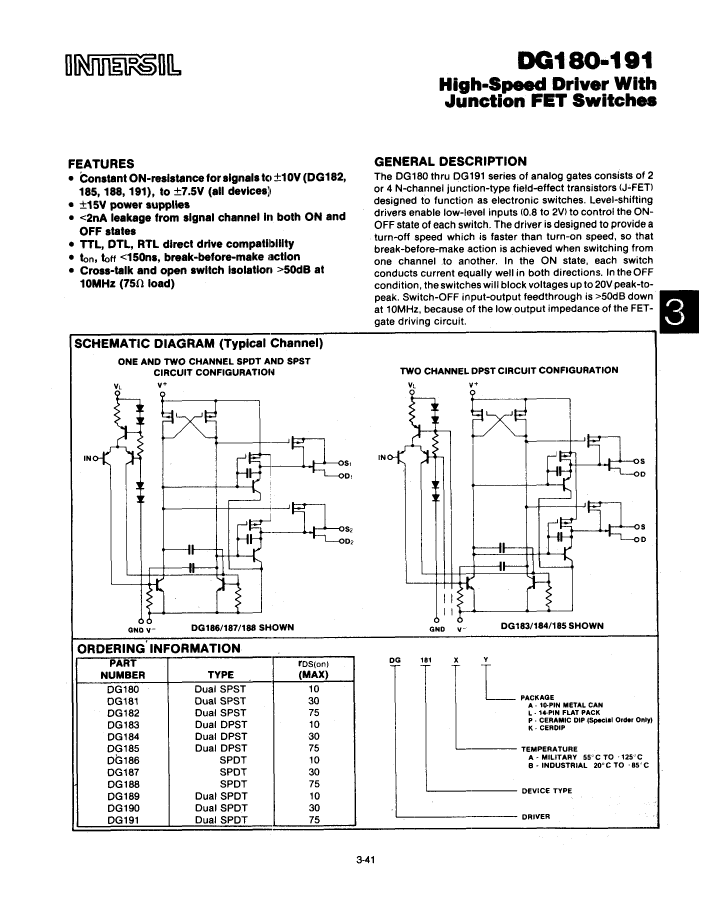

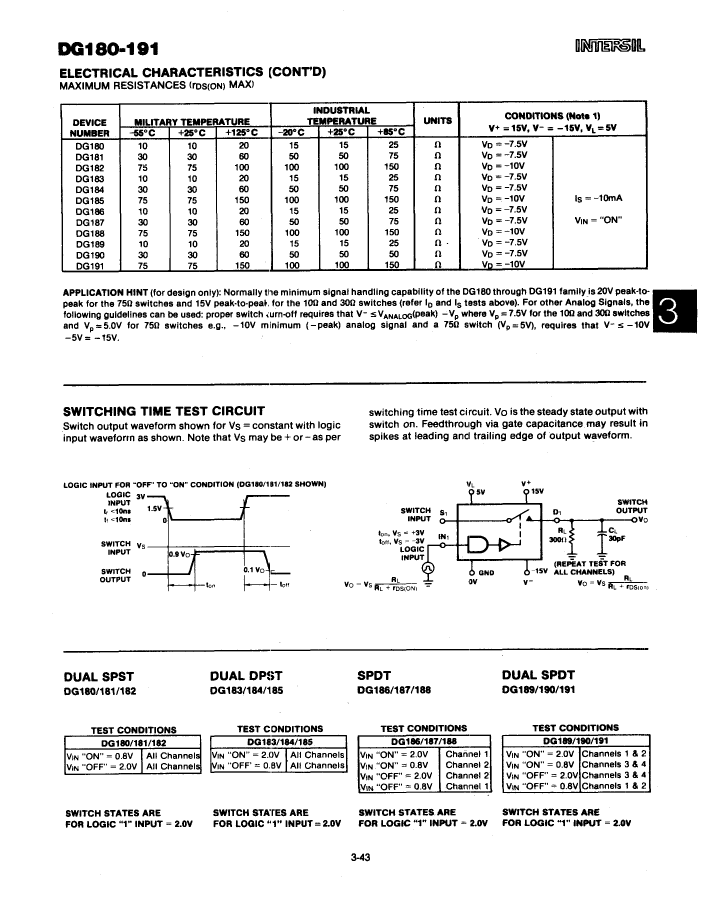

DG181AL Overview

SGL POLE SGL THROW SWITCH

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	not_compliant
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-XDFP-F14
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
normal position	NC
Number of functions	2
Number of terminals	14
Maximum on-state resistance (Ron)	30 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
output	SEPARATE OUTPUT
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	+-15 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum connection time	300 ns
switch	MAKE-BEFORE-BREAK
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1
