DM54LS132J datasheet, PDF - EEWORLD Datasheet

DM54LS132J: DescriptionNAND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14; Categorylogic logic; File Size110KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

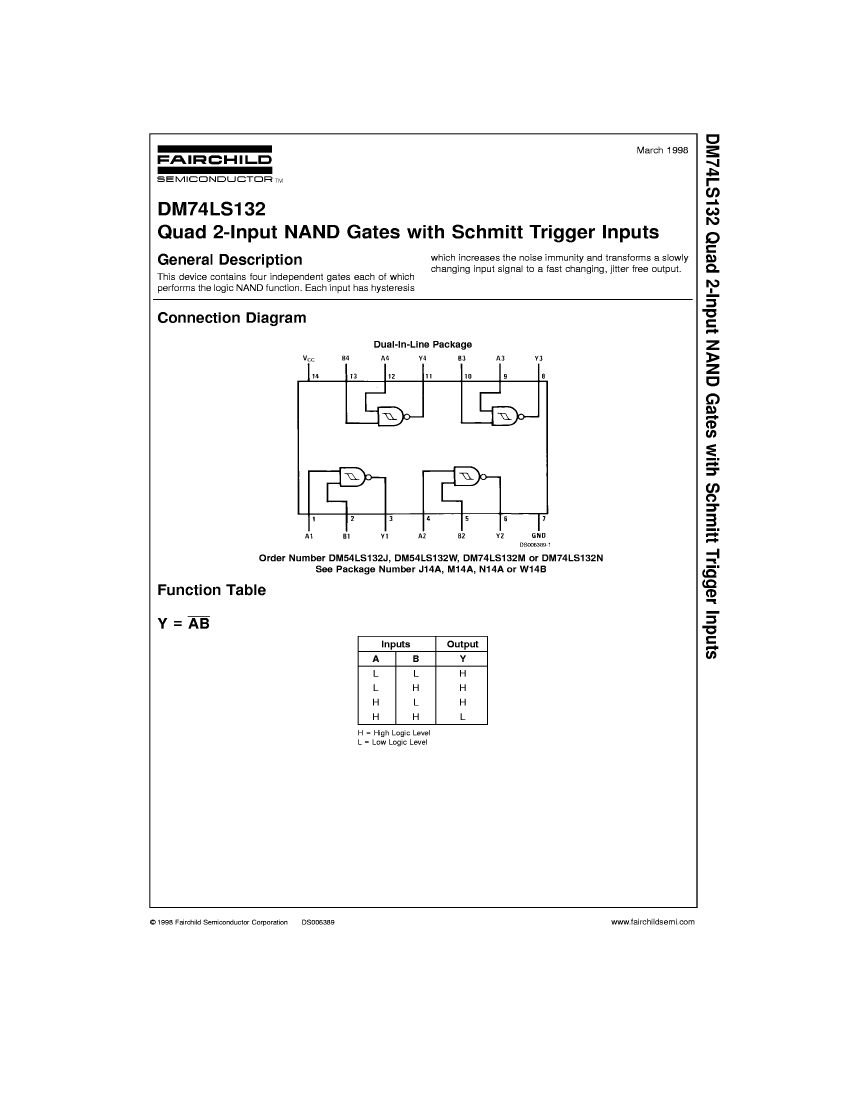

DM54LS132J Overview

NAND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14

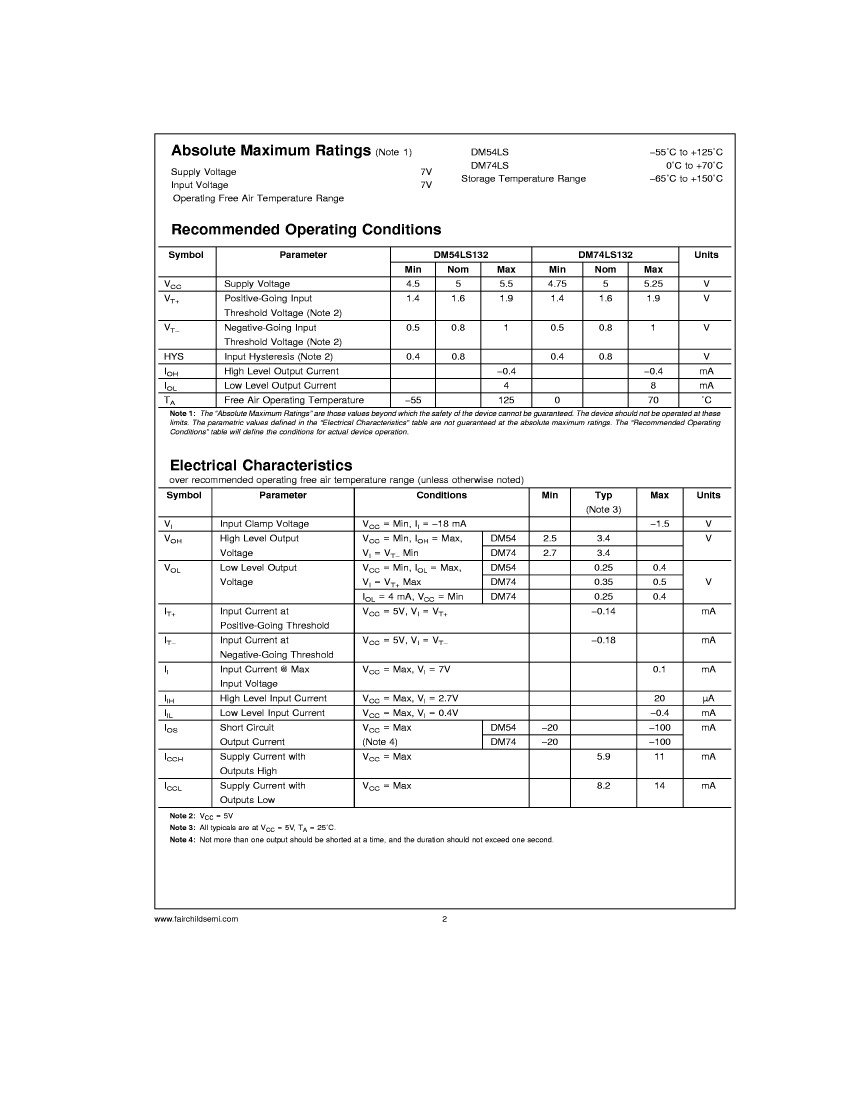

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-GDIP-T14
JESD-609 code	e0

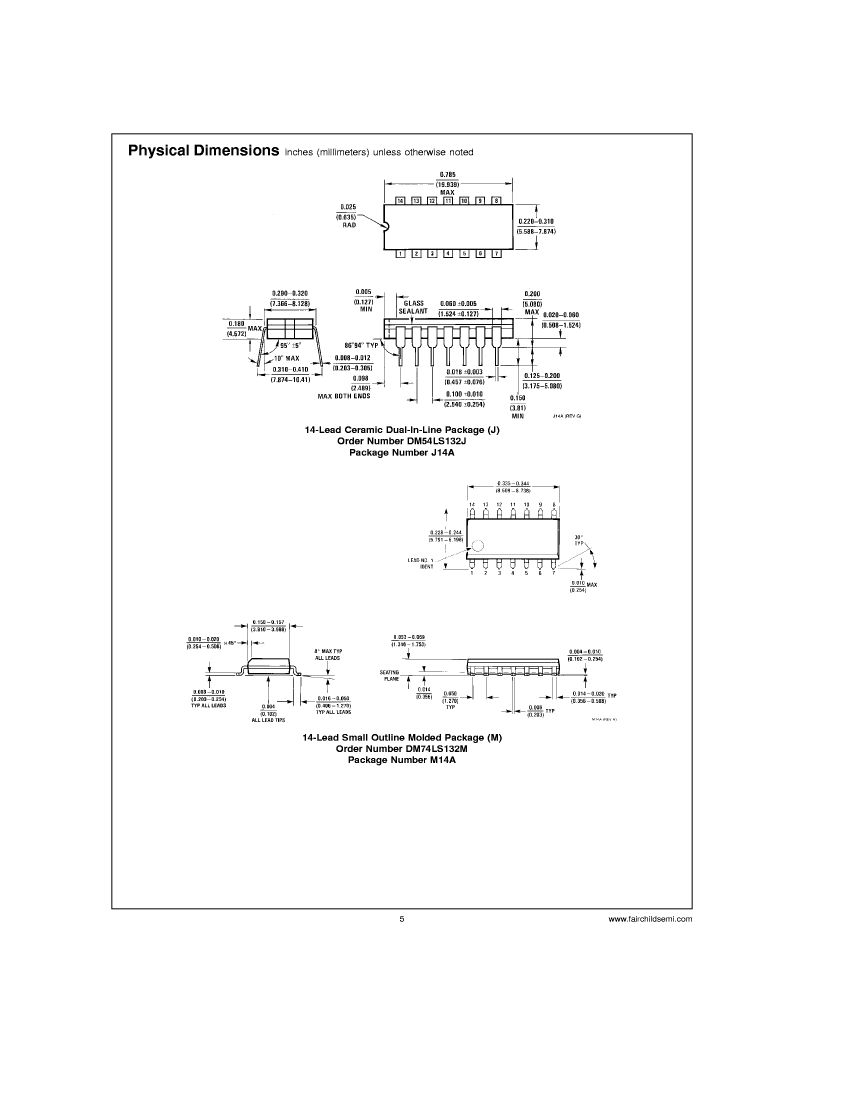

length	19.43 mm
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.004 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	14 mA
Prop。Delay @ Nom-Sup	33 ns
propagation delay (tpd)	33 ns
Certification status	Not Qualified
Schmitt trigger	YES
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	DM54LS132J	DM54LS132W
Description	NAND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14	NAND Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	DIP	DFP
package instruction	DIP, DIP14,.3	DFP, FL14,.3
Contacts	14	14
Reach Compliance Code	unknown	unknown
series	LS	LS
JESD-30 code	R-GDIP-T14	R-GDFP-F14
JESD-609 code	e0	e0
Logic integrated circuit type	NAND GATE	NAND GATE
MaximumI(ol)	0.004 A	0.004 A
Number of functions	4	4
Number of entries	2	2
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DFP
Encapsulate equivalent code	DIP14,.3	FL14,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Maximum supply current (ICC)	14 mA	14 mA
Prop。Delay @ Nom-Sup	33 ns	33 ns
propagation delay (tpd)	33 ns	33 ns
Certification status	Not Qualified	Not Qualified
Schmitt trigger	YES	YES
Maximum seat height	5.08 mm	2.032 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	6.2865 mm
