DC-206R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> DC-206R

DC-206R: DescriptionDC-DC Regulated Power Supply Module, 2 Output, Hybrid, DIL-24/12; CategoryPower/power management The power supply circuit; File Size95KB，2 Pages; ManufacturerYCL Electronics Co., Ltd.

Download Datasheet Parametric View All

DC-206R Overview

DC-DC Regulated Power Supply Module, 2 Output, Hybrid, DIL-24/12

DC-206R Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ADDITIONAL -12 VOLT OUTPUT ALSO AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-PDMA-P12
length	31.75 mm
Maximum load regulation	5%
Number of functions	1
Output times	2
Number of terminals	12
Maximum operating temperature	71 °C
Minimum operating temperature	-25 °C
Maximum output voltage	12.6 V
Minimum output voltage	11.4 V
Nominal output voltage	12 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Maximum seat height	10.41 mm
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL EXTENDED
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Fine-tuning/adjustable output	NO
width	20.32 mm
Base Number Matches	1

Preview

Download Datasheet

View All

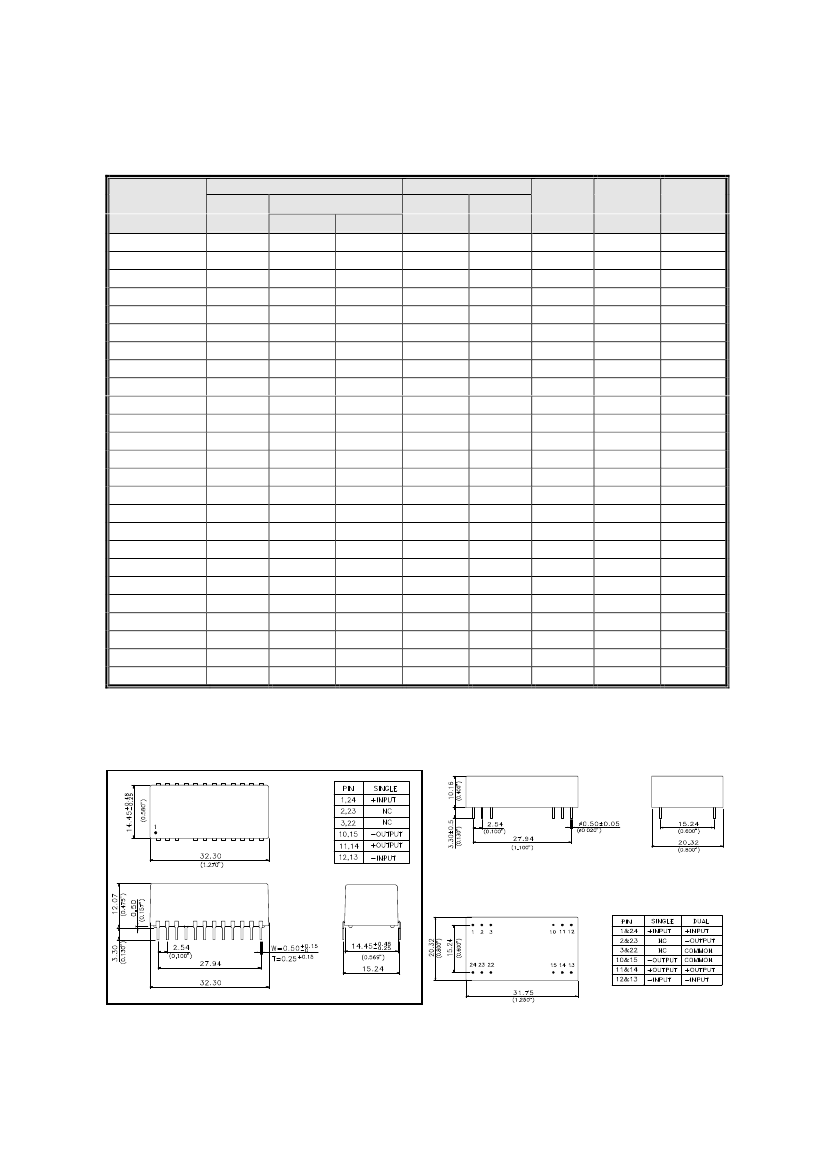

1.8watt 24pins DIP/DIL package

100/200 series

Feature:

Low Cost

Miniature DIP/DIL Package

500Vdc Input/Output Isolation

Single and Dual Outputs

No External Components required

Low Profile and Compact Size

YCL

Specifications: At 25°C

Input Specifications:

Input Voltage Range: ± 10%

Input Filter: Internal Capacitor

General Specifications:

Isolation Voltage: 500Vdc

Efficiency: see table

Switching Frequency: 25KHz typical

Isolation Resistance: 1000M ohm

Output Specifications:

Output Voltage & Current: see table

Voltage Accuracy: +5 % max

Line Regulation(at full load): ± 1% max

Load Regulation (at full load to 1/4 load):

± 5% max

Temperature Coefficient: + 0.05%/°C max

Ripple & Noise(20Mhz BW): 1% p-p max

Short Circuit Protection: Momentary

Environmental Specifications:

Operating Temperature: -25 to + 71°C

Storage Temperature: -40 to +105°C

Cooling: Free air convection

Derating: See Derating Curve

Humidity Non-Condensing: 20 to 95% RH

Physical Specifications:

Case Material: Non-conductive plastic case

Weight: 12grams typical

Power Derating Curve

2.1

1.8

Simplified Schematic

Vin

Control

Po(W)

1.5

1.2

0.9

0.6

0.3

-25 -15 -5

10 20 30 40 50 60 71 80 90 100

Vout

TA°

Date: Jan 01, 2000.
