DECLDL-2-17 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DECLDL-2-17

DECLDL-2-17: DescriptionActive Delay Line, 2-Func, 1-Tap, Complementary Output, ECL, 0.325 INCH HEIGHT, DIP-12/8; Categorylogic logic; File Size951KB，2 Pages; ManufacturerEngineered Components Co.

Download Datasheet Parametric Compare View All

DECLDL-2-17 Overview

Active Delay Line, 2-Func, 1-Tap, Complementary Output, ECL, 0.325 INCH HEIGHT, DIP-12/8

DECLDL-2-17 Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	QIP, DIP12,.7
Contacts	12/8
Reach Compliance Code	unknown
Other features	BURNED-IN TO LEVEL B OF MIL-STD-883; TYP. ICC = 155MA; MAX TEMP. COEFF. CAPTURED
series	100K
JESD-30 code	R-XDIP-P8
length	22.225 mm
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	2
Number of taps/steps	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature
Output characteristics	OPEN-EMITTER
Output polarity	COMPLEMENTARY
Package body material	UNSPECIFIED
encapsulated code	QIP
Encapsulate equivalent code	DIP12,.7
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	-4.5 V
programmable delay line	NO
Prop。Delay @ Nom-Sup	17 ns
Certification status	Not Qualified
Maximum seat height	8.255 mm
surface mount	NO
technology	ECL
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	17 ns
width	17.78 mm
Base Number Matches	1

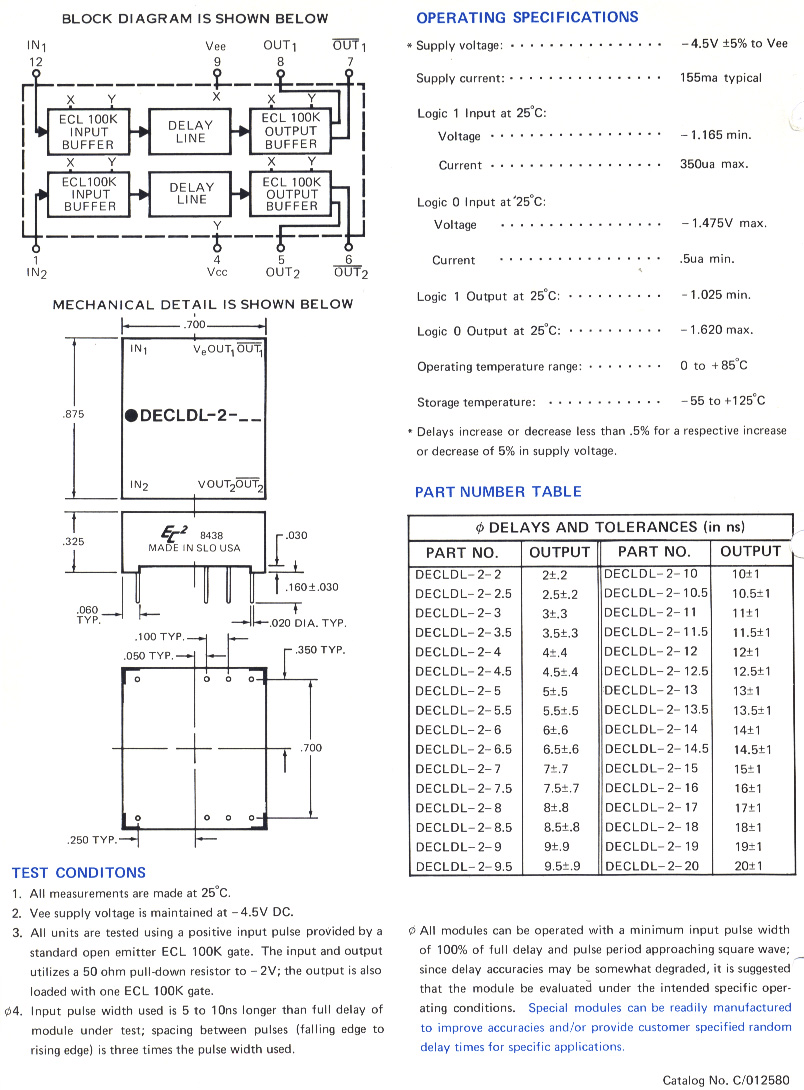

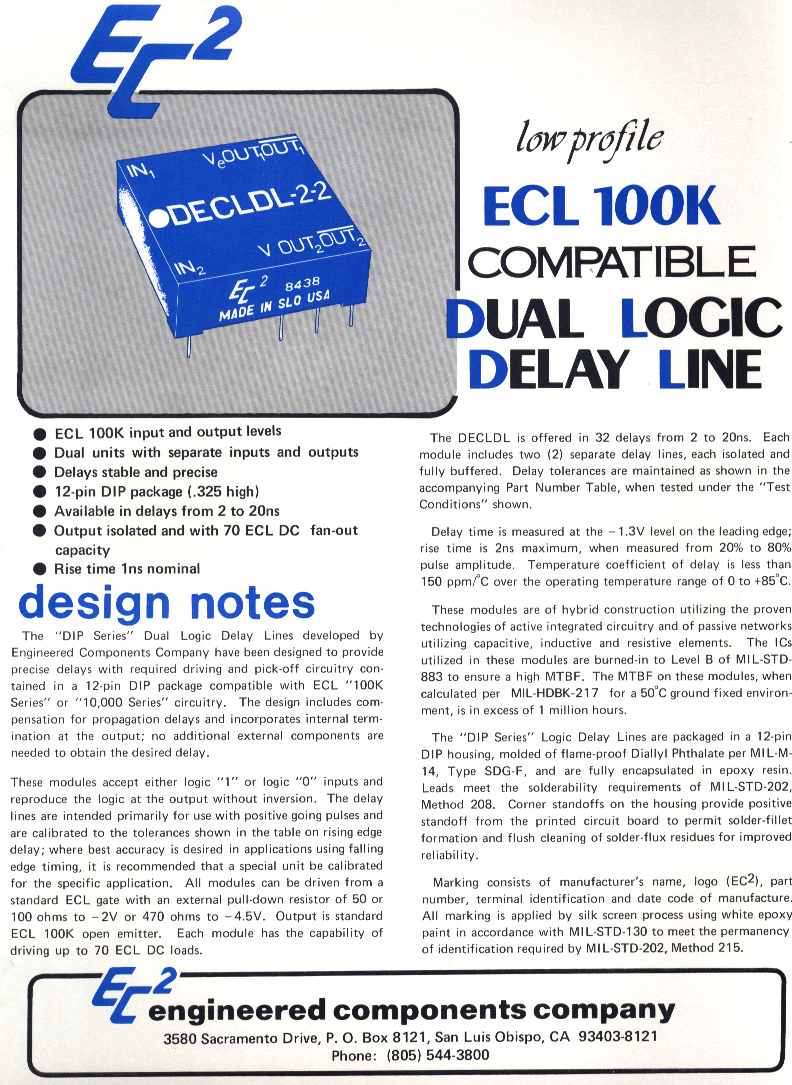

Preview

Download Datasheet

View All

DECLDL-2-17 Related Products

	DECLDL-2-17	DECLDL-2-13.5	DECLDL-2-13	DECLDL-2-10	DECLDL-2-10.5	DECLDL-2-11	DECLDL-2-12.5	DECLDL-2-14	DECLDL-2-14.5
Description	Active Delay Line, 2-Func, 1-Tap, Complementary Output, ECL, 0.325 INCH HEIGHT, DIP-12/8	Active Delay Line, 2-Func, 1-Tap, Complementary Output, ECL, 0.325 INCH HEIGHT, DIP-12/8	Active Delay Line, 2-Func, 1-Tap, Complementary Output, ECL, 0.325 INCH HEIGHT, DIP-12/8	Active Delay Line, 2-Func, 1-Tap, Complementary Output, ECL, 0.325 INCH HEIGHT, DIP-12/8	Active Delay Line, 2-Func, 1-Tap, Complementary Output, ECL, 0.325 INCH HEIGHT, DIP-12/8	Active Delay Line, 2-Func, 1-Tap, Complementary Output, ECL, 0.325 INCH HEIGHT, DIP-12/8	Active Delay Line, 2-Func, 1-Tap, Complementary Output, ECL, 0.325 INCH HEIGHT, DIP-12/8	Active Delay Line, 2-Func, 1-Tap, Complementary Output, ECL, 0.325 INCH HEIGHT, DIP-12/8	Active Delay Line, 2-Func, 1-Tap, Complementary Output, ECL, 0.325 INCH HEIGHT, DIP-12/8
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	QIP, DIP12,.7	QIP, DIP12,.7	QIP, DIP12,.7	QIP, DIP12,.7	QIP, DIP12,.7	QIP, DIP12,.7	QIP, DIP12,.7	QIP, DIP12,.7	QIP, DIP12,.7
Contacts	12/8	12/8	12/8	12/8	12/8	12/8	12/8	12/8	12/8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	BURNED-IN TO LEVEL B OF MIL-STD-883; TYP. ICC = 155MA; MAX TEMP. COEFF. CAPTURED	BURNED-IN TO LEVEL B OF MIL-STD-883; TYP. ICC = 155MA; MAX TEMP. COEFF. CAPTURED	BURNED-IN TO LEVEL B OF MIL-STD-883; TYP. ICC = 155MA; MAX TEMP. COEFF. CAPTURED	BURNED-IN TO LEVEL B OF MIL-STD-883; TYP. ICC = 155MA; MAX TEMP. COEFF. CAPTURED	BURNED-IN TO LEVEL B OF MIL-STD-883; TYP. ICC = 155MA; MAX TEMP. COEFF. CAPTURED	BURNED-IN TO LEVEL B OF MIL-STD-883; TYP. ICC = 155MA; MAX TEMP. COEFF. CAPTURED	BURNED-IN TO LEVEL B OF MIL-STD-883; TYP. ICC = 155MA; MAX TEMP. COEFF. CAPTURED	BURNED-IN TO LEVEL B OF MIL-STD-883; TYP. ICC = 155MA; MAX TEMP. COEFF. CAPTURED	BURNED-IN TO LEVEL B OF MIL-STD-883; TYP. ICC = 155MA; MAX TEMP. COEFF. CAPTURED
series	100K	100K	100K	100K	100K	100K	100K	100K	100K
JESD-30 code	R-XDIP-P8	R-XDIP-P8	R-XDIP-P8	R-XDIP-P8	R-XDIP-P8	R-XDIP-P8	R-XDIP-P8	R-XDIP-P8	R-XDIP-P8
length	22.225 mm	22.225 mm	22.225 mm	22.225 mm	22.225 mm	22.225 mm	22.225 mm	22.225 mm	22.225 mm
Logic integrated circuit type	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE
Number of functions	2	2	2	2	2	2	2	2	2
Number of taps/steps	1	1	1	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Output characteristics	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	QIP	QIP	QIP	QIP	QIP	QIP	QIP	QIP	QIP
Encapsulate equivalent code	DIP12,.7	DIP12,.7	DIP12,.7	DIP12,.7	DIP12,.7	DIP12,.7	DIP12,.7	DIP12,.7	DIP12,.7
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V
programmable delay line	NO	NO	NO	NO	NO	NO	NO	NO	NO
Prop。Delay @ Nom-Sup	17 ns	13.5 ns	13 ns	10 ns	10.5 ns	11 ns	12.5 ns	14 ns	14.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	8.255 mm	8.255 mm	8.255 mm	8.255 mm	8.255 mm	8.255 mm	8.255 mm	8.255 mm	8.255 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	ECL	ECL	ECL	ECL	ECL	ECL	ECL	ECL	ECL
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Total delay nominal (td)	17 ns	13.5 ns	13 ns	10 ns	10.5 ns	11 ns	12.5 ns	14 ns	14.5 ns
width	17.78 mm	17.78 mm	17.78 mm	17.78 mm	17.78 mm	17.78 mm	17.78 mm	17.78 mm	17.78 mm
Base Number Matches	1	1	1	1	1	1	1	1	1
Maker	-	Engineered Components Co.	Engineered Components Co.	Engineered Components Co.	Engineered Components Co.	Engineered Components Co.	-	-	-
