DB154S-W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DB154S-W

DB154S-W: DescriptionBridge Rectifier Diode,; CategoryDiscrete semiconductor diode; File Size93KB，7 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/

Download Datasheet Parametric Compare View All

DB154S-W Overview

Bridge Rectifier Diode,

DB154S-W Parametric

Parameter Name	Attribute value
package instruction	R-PDSO-G4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL LISTED
Minimum breakdown voltage	400 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PDSO-G4
Maximum non-repetitive peak forward current	60 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	400 V
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

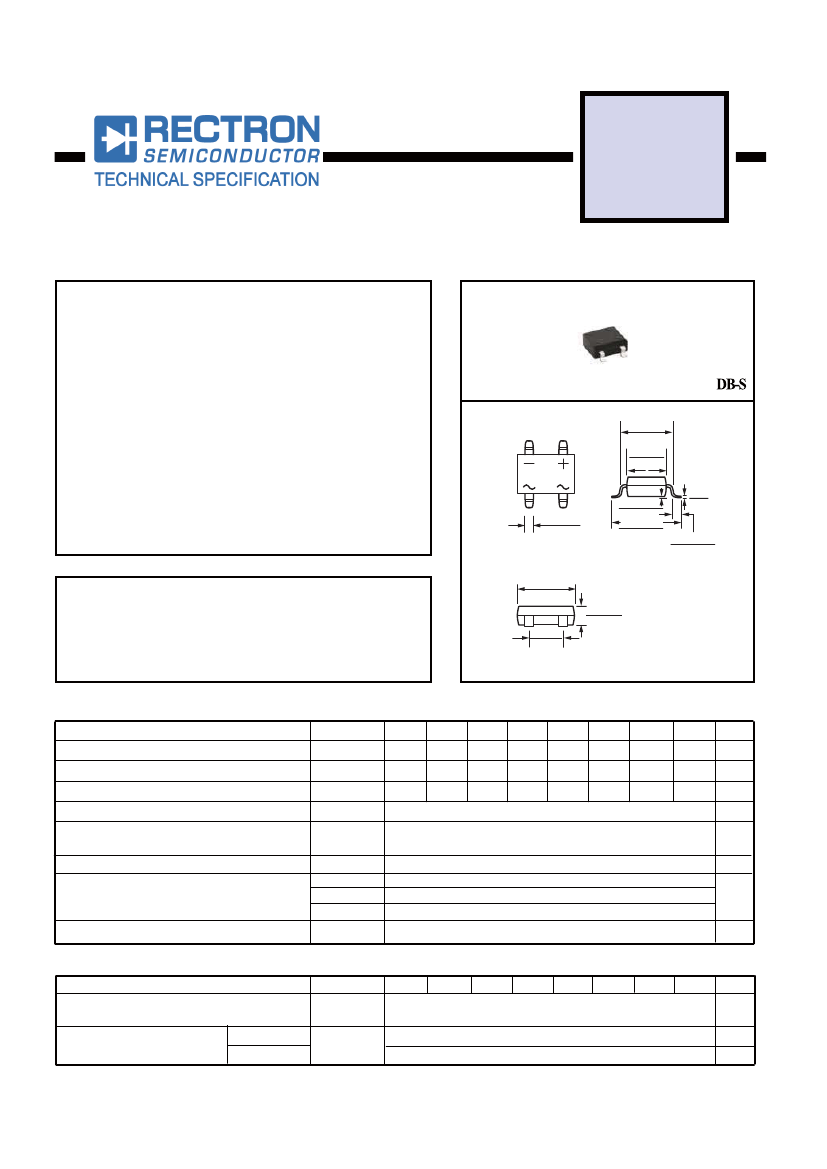

DB151S

THRU

SINGLE-PHASE GLASS PASSIVATED

SILICON BRIDGE RECTIFIER

VOLTAGE RANGE 50 to 1200 Volts CURRENT 1.5 Ampere

FEATURES

Surge overload rating - 60 amperes peak

Ideal for printed circuit board

Reliable low cost construction utilizing molded

Glass passivated device

Polarity symbols molded on body

Mounting position: Any

Weight: 1.0 gram

.310 (7.9)

.290 (7.4)

.255 (6.5)

.245 (6.2)

DB1512S

MECHANICAL DATA

* Epoxy : Device has UL flammability classification 94V-0

* UL listed the recognized component directory, file #E94233

.042 (1.1)

.038 (1.0)

.013 (.330)

.003 (.076)

.410 (10.4)

.360 (9.4)

.009

(9.4)

.060 (1.524)

.040 (1.016)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

.335 (8.51)

.320 (8.13)

.135 (3.4)

.115 (2.9)

.205 (5.2)

.195 (5.0)

Dimensions in inches and (millimeters)

MAXIMUM RATINGS

(At T

= 25 C unless otherwise noted)

RATINGS

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Bridge Input Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Output Current at T

= 40 C

Peak Forward Surge Current 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

FSM

Typical thermal resistance

Operating and Storage Temperature Range

STG

SYMBOL

RRM

RMS

DB151S DB152S DB153S DB154S DB155S DB156S DB157S DB1512S

UNITS

100

200

140

200

400

280

400

600

420

600

800

560

800

1000

700

1000

1200

840

1200

Volts

Amps

1.5

14.94

-55 to + 150

Typical Current Squared Time

C/ W

ELECTRICAL CHARACTERISTICS

(At T

= 25

C unless otherwise noted)

CHARACTERISTICS

Maximum Forward Voltage Drop per Bridge

Element at 1.5A DC

Maximum Reverse Current at rated

DC Blocking Voltage per element

= 25 C

= 125 C

SYMBOL

DB151S DB152S DB153S DB154S DB155S DB156S DB157S DB1512S UNITS

1.0

0.05

Volts

uAmps

mAmps

2016-09

REV: B

NOTE: Suffix “-s” Surface Mount for Dip Bridge.

DB154S-W Related Products

	DB154S-W	DB155S-W	DB157S-W	DB151S-W	DB152S-W	DB153S-W
Description	Bridge Rectifier Diode,	Bridge Rectifier Diode,	Bridge Rectifier Diode,	Bridge Rectifier Diode,	Bridge Rectifier Diode,	Bridge Rectifier Diode,
package instruction	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	UL LISTED	UL LISTED	UL LISTED	UL LISTED	UL LISTED	UL LISTED
Minimum breakdown voltage	400 V	600 V	1000 V	50 V	100 V	200 V
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Maximum non-repetitive peak forward current	60 A	60 A	60 A	60 A	60 A	60 A
Number of components	4	4	4	4	4	4
Phase	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum repetitive peak reverse voltage	400 V	600 V	1000 V	50 V	100 V	200 V
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	1	1	1
