2.5mm Pitch connector for full lock and discrete wire connection
DF1E Series
Full lock function
added
Inner-lock system
full lock mechanism
Mis-insertion
prevention
sFeatures

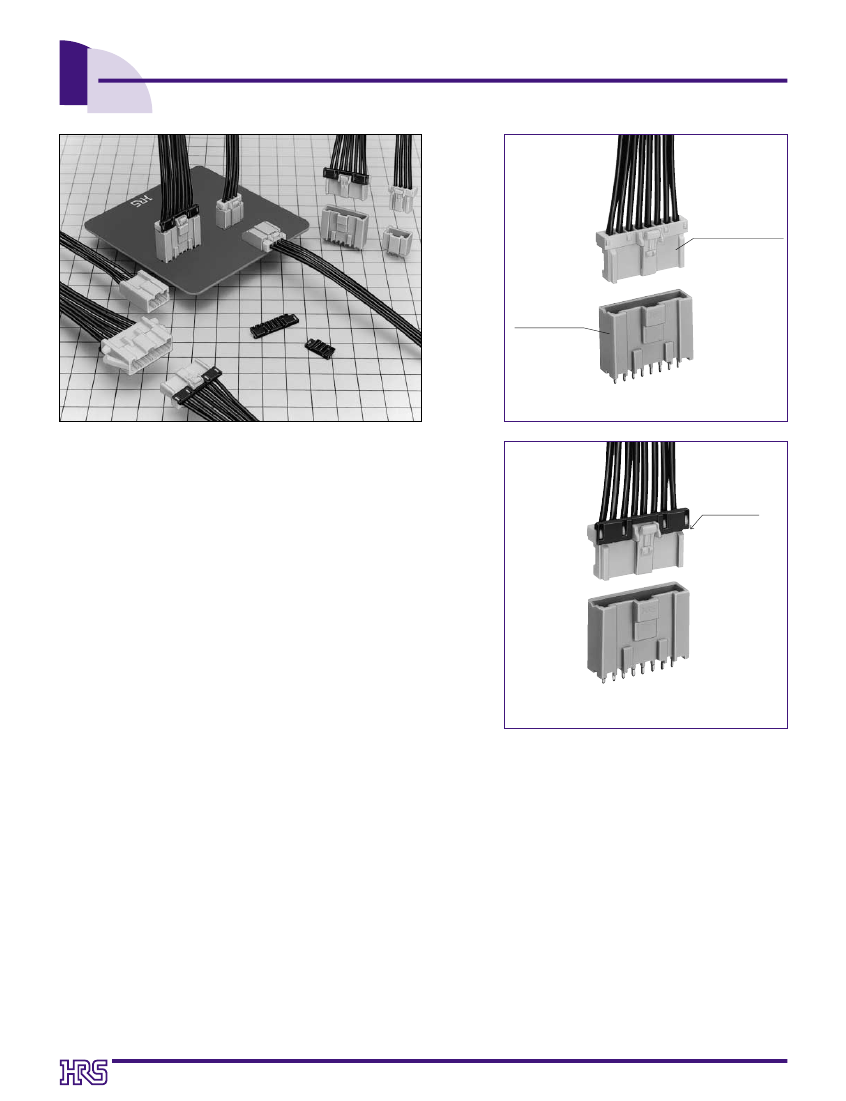

1. Full lock function added
The inner lock system adopts a full lock mechanism.
This mechanism prevents disengagement to occur due to
an unexpected external shock.
Double lock
engaged
Double lock
engaged
2. Increase in crimping contact fixation force and
semi-insertion prevention
The double lock is activated for the use method to give a
stress to the cable, to increase crimping contact fixation
force, and to prevent the semi-insertion of the crimping
contact.
3. Mold lance adopted
Since the contact lance may be deformed involving in the
contact after the crimping process, the mold lance has been
adopted.
4. Mis-insertion prevention
Equipped with the mechanism to completely prevent reverse
insertion and insertion between dissimilar contacts.
5. Means to prevent solder crack
The glass enforcement resin is adopted for the pin header to
prevent a solder crack to occur due to heat compression.
8. Correspond to automatic insertion machine
The radial tape packaging is provided for 2 to
8 contacts on the straight pin header side, in
order to correspond to mass production.
9. Various applications
With the same series, various applications can
be used for the board solder dip type and in-
line.
6. Correspond to potting
Corresponding to potting, the pin header is provided for
product variations.
Corresponding to potting up to 8mm and mounting height
19.8mm (no retainer), the low profile is achieved.
7. Production facility cost reduction
The female crimping contact uses the DF1B series crimping
contact, which has been conventionally marketed.
Investment for new facilities isn't needed. However, if the
retainer is installed in the cable with AWG#22 or more wire,
use the DF1E crimping contact. The female crimping
contact for in-line is used together with the DF1B applicator.
Therefore, no investment is needed for new facilities.
s
Applications
Electronic equipment, office machines,
industrial equipment, and consumer
equipment, and so on
1
sProducts
specifications
Rated current note 1.
3A
AWG#20~24 :
26 :
2A
28 :
1A
30 : 0.5A
Rated voltage AC250V
Rating
Operating temperature range
-35~+85ç
Note 2.
Operating moisture range
-40~80%
Storage temperature range
-10~+60ç
note 3.
Storage moisture range
-40~70%
Item
1. Contact resistance
2. Insulation resistance
3. Withstand voltage
4. Single insertion/extraction force
5. Operating life
6. Vibration
7. Shock
8. Moisture resistance
9. Temperature cycle
10. Resistance to soldering heat
30mø max.
1000Mø min.
Specification
Condition
Measured at 20mV max. and 1mA
Measured at 500V DC
150V AC energized for 1 minute
Measured at the square steel pin with 0.635±0.002
30 cycles of insertions/extractions
10~55Hz and single amplitude 0.75mm in 3 directions for 2 hours, respectively.
490m/s and 11ms, sin/cosine 3 directions, 3 times, respectively
Exposed to temperature
40±2ç
and humidity 90~95% for 96 hours
(-55ç: 30 minutes-> 5~35ç: 5 minutes-> 85ç: 30 minutes-> 5~35ç: 5 minutes) 5 cicles
Reflow: 250ç: 20 seconds
Manual soldering: soldering iron temperature: 300ç for 3 seconds
Neither short or breakdown
MIN 0.4N, MAX 4.4N
30mø max
Electrical discontinuity, 1µS max.
Electrical discontinuity, 1µS max.
30mø max
30mø max.
Neither deformation on the appearance nor remarkable contact backlash is found.
Note 1 : Temperature rise included when energized
Note 2 : This storage indicates a long-term storage state for the unused product before the board mounted.
The operating temperature and moisture ranges are applied to the non-energized state after the connector has been installed to the board.
Note 3 : The above standards represent this series. Individual formal agreement should be based on the "Specification".
sMaterial
Product
Socket
Header
In-line Plug
retainer
Crimping contact
Part
Insulator
Insulator
Contact
Insulator
Insulator
Contact
Material
Polyamide
Polyamide
Brass
Polyamide
Polyamide
Phosphor copper
Treatment
White
Beige
Solder plating
White
Black
Tin plating
Remarks
UL94V-0
UL94V-0
–––––––
UL94V-0
UL94V-0
–––––––
Note : The whisker method is implemented for HRS tin plating.
2
sOrdering
information
qPin
header
DF 1E C -
π
P - 2.5 DSA
q
w
e
r
t
y
u
q
Series name : DF
w
Series No. : 1E
e
Hold Types
Standard Product
With Boss
C
Without Boss
G
Potting
With Boss
Without Boss
r
Number of Contacts : 2 to 15 contacts
t
Connector Type
P : Pin Header
y
Contact Pitch : 2.5mm
u
Form type
DSA : Straight Dip
DS : Right Angle Type
Note 1 : The right angle pin header has no symbol.
Note 2 : The potting header has 2 to 10 contacts.
qSocket
DF 1E -
π
S - 2.5 C
q
w
e
r
t
y
q
Series name : DF
w
Series No. : 1E
e
Number of Contacts : 2 to 15 contacts
r
Connector type
S: Socket
t
Contact Pitch : 2.5mm
y
Form Type
C : Crimping socket
qIn-line
plug
DF 1E A -
π
EP - 2.5 C
q
w
e
r
t
y
u
q
Series name : DF
w
Series No. : 1E
e
In-line Plug type
None: With Panel mount Lock
A : Without Panel mount Lock
r
Number of Contacts : 2 to 10 contacts
t
EP : In-line plug
y
Contact Pitch : 2.5mm
u
Form Type
C : Crimping socket
qCrimping
contact
DF 1E -
ππ
SCF
q
w
e
r
q
Series name : DF
w
Series No.
Socket side
Plug side
:
: 1B (Note 1)
1E (Note 1)
: 1E
e
Applicable Cable Size
2022 : AWG#20~#22
2428 : WG#24~#28
30
: AWG#30
r
Packaging Type
SCF : Female contact : Reel
SF
PC
: Female contact : Bag
: Male contact : Bag
PCF : Male contact : Reel
Note 1 : When the retainer is used, use DF1E-2022SC(F), DF1B-
2428SC(F), and DF1B-30SC(F) contacts.
Note 1 :
When no retainer is used, all DF1B-ππSC(F) and DF1E-
2022SC(F) contacts can be used.
qRetainer
DF 1E -
π
RS/P - 2.5
q
w
e
r
t
q
Series name : DF
w
Series No. : 1E
e
Number of Contacts : 2 to 10 contacts
r
Connector Type
RS/P : Retainer
Commonly used for socket and in-line plug
t
Contacts Pitch:2.5mm
3

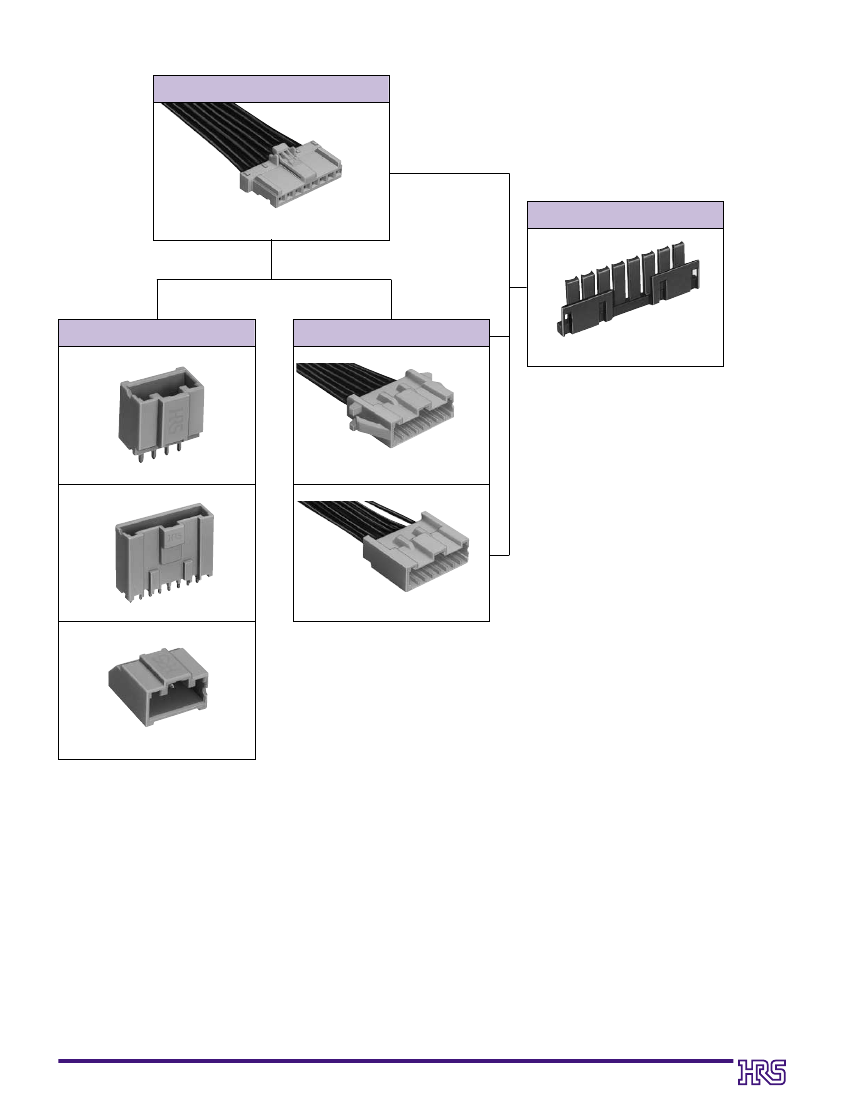

sApplication
pattern
Socket
Retainer
Photo : Contact Inserted
Pin header
qStraight
type
Relay plug
qIn-line
plug (panel mount lock type)
Photo: contact Inserted
qStraight
potting type
qIn-line
plug
Photo: contact Inserted
qRight
angle type
4

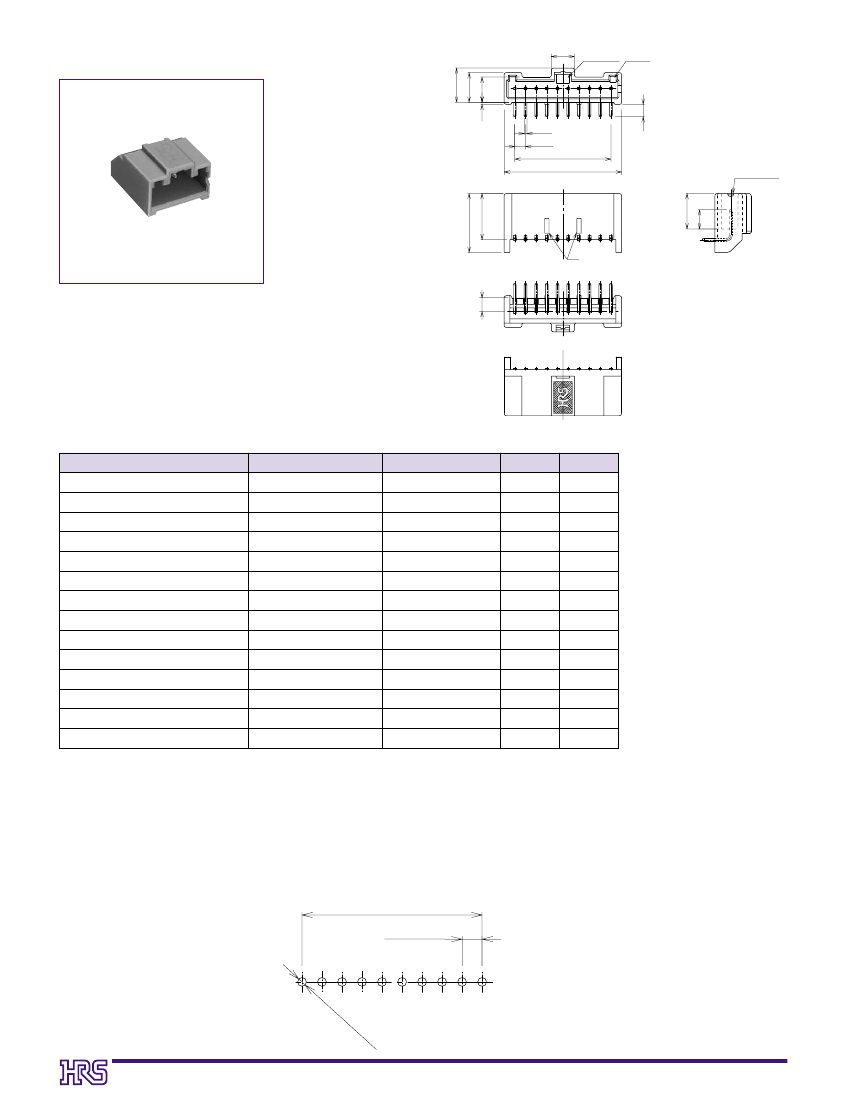

sRight
angle pin header
8
6.95
5.9
5.4
Contact No. mark
Mold Cavity
No. mark
10
A
0.5
M
0.64
P = 2.5
A
B
Contact No.1 indicated
2.9
10.8
8.3
Note 2
13.8
3.2
Product No.
DF1E –02P–2.5DS(ππ)
DF1E –03P–2.5DS(ππ)
DF1E –04P–2.5DS(ππ)
DF1E –05P–2.5DS(ππ)
DF1E –06P–2.5DS(ππ)
DF1E –07P–2.5DS(ππ)
DF1E –08P–2.5DS(ππ)
DF1E –09P–2.5DS(ππ)
DF1E –10P–2.5DS(ππ)
DF1E –11P–2.5DS(ππ)
DF1E –12P–2.5DS(ππ)
DF1E –13P–2.5DS(ππ)
DF1E –14P–2.5DS(ππ)
DF1E –15P–2.5DS(ππ)
HRS No.
CL541 – 0985– 0 –ππ
CL541 – 0986– 3 –ππ
CL541 – 0987– 6 –ππ
CL541 – 0988– 9 –ππ
CL541 – 0989– 1 –ππ
CL541 – 0990– 0 –ππ
CL541 – 0991– 3 –ππ
CL541 – 0992– 6 –ππ
CL541 – 0993– 9 –ππ
CL541 – 0994– 1 –ππ
CL541 – 0995– 4 –ππ
CL541 – 0996– 7 –ππ
CL541 – 0997– 0 –ππ
CL541 – 0998– 2 –ππ
Number of Contacts
2
3
4
5
6
7
8
9
10
11
12
13
14
15
A
02.5
05.0
07.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
32.5
35.0
B
07.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
27.5
30.0
32.5
35.0
37.5
40.0
The symbol
ππ
included in
HRS No. and the product spec
No. indicates the Specific No.
Note 1. : A packaging quantity is delivered by the bag unit (100 pcs.). If needed, please order the products per bag. However, the quantity
for delivery will be changed according to the Specific No.
Note 2. : The 2 to 4 contacts differ in two convex portions from those in above figures. The 2 and 3 contacts are not contained, but the 4
contact connector is contained in the center at one point.
Note 3. : Styles of 2 to 4 contact connectors partially differ from those in above figures.
BPCB
footprints (board thickness t = 1.6
±
0.1)
A±0.1
P = 2.5±0.05
π
–
Ø1
.1
0
+
0.
1
5
4.5
