CTF SERIES PLASTIC D SUBMINIATURE SHELL (ACCESSORIES)
General
HIROSE CTF series plastic D subminiature shells offer
the highest quality of mechanical design and
appearance. Available to fit 9, 15, 25, and 37 position
connectors and most competitors products. LN
mounts allow for design flexibility.
Features
(1) Standard screw type locking mechanism provides
a strong and secure lock.
(2) ABS resin molding material offers light weight,
sturdy construction.
(3) Easy to assemble and service because the case is
split at the center of the cable inlet and few screws
are used.
(4) Two types of locking devices are available, rec-
tangular and hexagonal, to meet different panel
mounting complies.
(5) The 25-contact model complies with the the mod-
em plug case specified in JIS-C-6361.
(6) Can easily incorporate solderling (HD) and crimping.
Application
Modems in communications equipment such as com-
puters, peripherals and terminal eqipment, control
equipment, measuring instruments, and export equip-
ment.
04/2009
79
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
Materials
Part
Plug case
Locking device
Material
ABS resin
Steel or zinc
alloy die casting
Finish
2.5PB 6/2
（color）
Nickel plating
Ordering Informations
Plug case
HD
B
−
CT
F
※
1
※
2
(1)
(2)
(3) (4) (5)
(8)
Locking device
HD
−
LN
A
※
2
(1)
(6)
(7) (8)
(1) Connector series
(2) Connector size: E (9 contacts), A (15 contacts), B (25 contacts), C (37 contacts)
Note: Not available for 50pos. cover.
(3) Type of plug case
CT: Plug case with a vertical cable inlet opening
(4) Serial sign for series
F: Plug case made of plastic
(5) Locking screws
No sign: To be locked with a screwdriver
1: To be locked by hand
(6) Locking device
LN: screw type locking device
(7) Type of locking device
Provided with a sequence of upper-case alphabe-tic charactors.
No sign: Rectangular
A: Hexagonal
(8) Type of screw
Provided with a sequence of Arabic numerls.
No sign: M2.6
(4-40): inch
80
04/2009
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

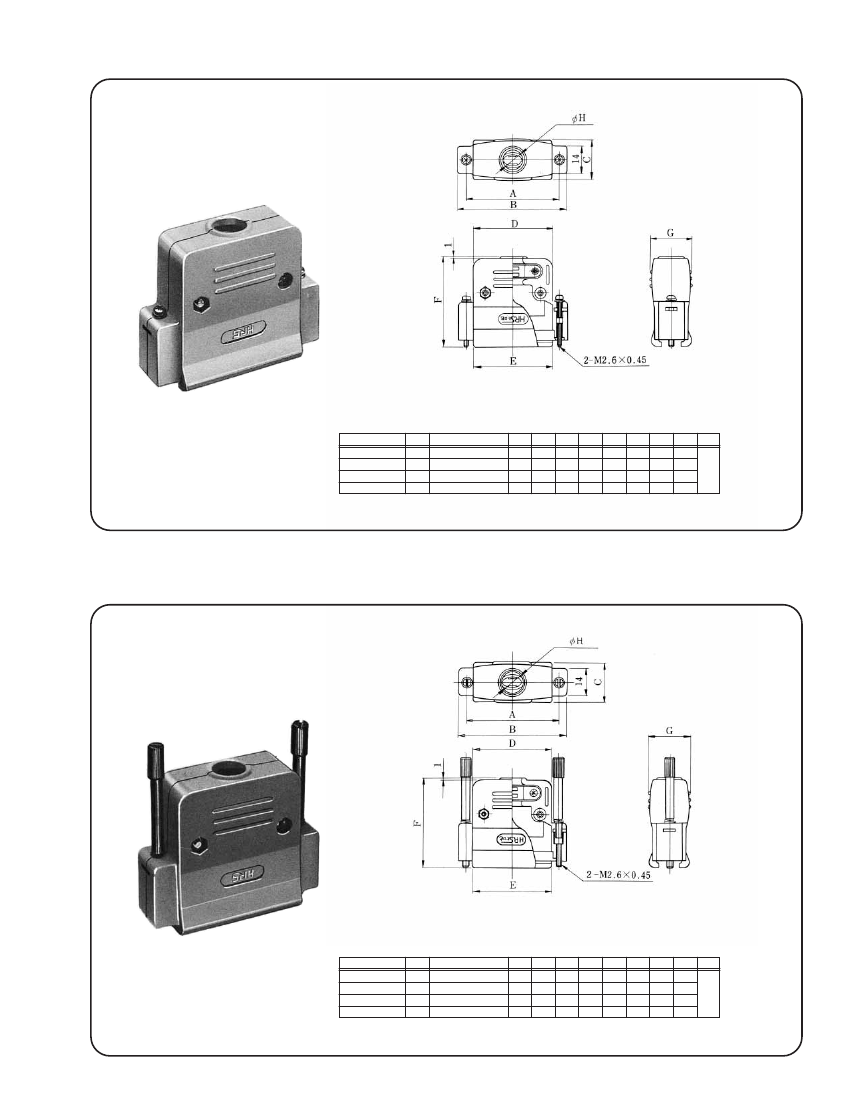

Dataphone shell (To be locked with a screwdriver)
HDB-CTF
（50）
HRS No
CL211-0159-8-50
CL211-0160-7-50
CL211-0139-0-50
CL211-0161-0-50
No.of pin
9
15
25
37
Part No.
HDE-CTF
（50）
HDA-CTF
（50）
HDB-CTF
（50）
HDC-CTF
（50）
A
24.99
33.32
47.04
63.5
B
33.2
41.2
55
72.2
C
18
18
20
20
D
19.3
27.2
40
50.2
E
19.2
27.2
40
57
F
40.2
43.2
46
51.2
G
19.6
19.6
20.8
24
Unit: mm
H
7
9
10
12
RoHS
YES
Dataphone Shell (To be locked by hand)
Unit: mm
HDB-CTF1
（50）
HRS No
CL211-0168-9-50
CL211-0350-2-50
CL211-0166-3-50
CL211-0328-3-50
No.of pin
9
15
25
37
Part No.
HDE-CTF1
（50）
HDA-CTF1
（50）
HDB-CTF1
（50）
HDC-CTF1
（50）
A
24.99
33.32
47.04
63.5
B
33.2
41.2
55
72.2
C
18
18
20
20
D
19.2
27.2
40
50.2
E
19.2
27.2
40
57
F
40.2
43.2
46
51.2
G
19.6
19.6
20.8
24
H
7
9
10
12
RoHS
YES
04/2009
81
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

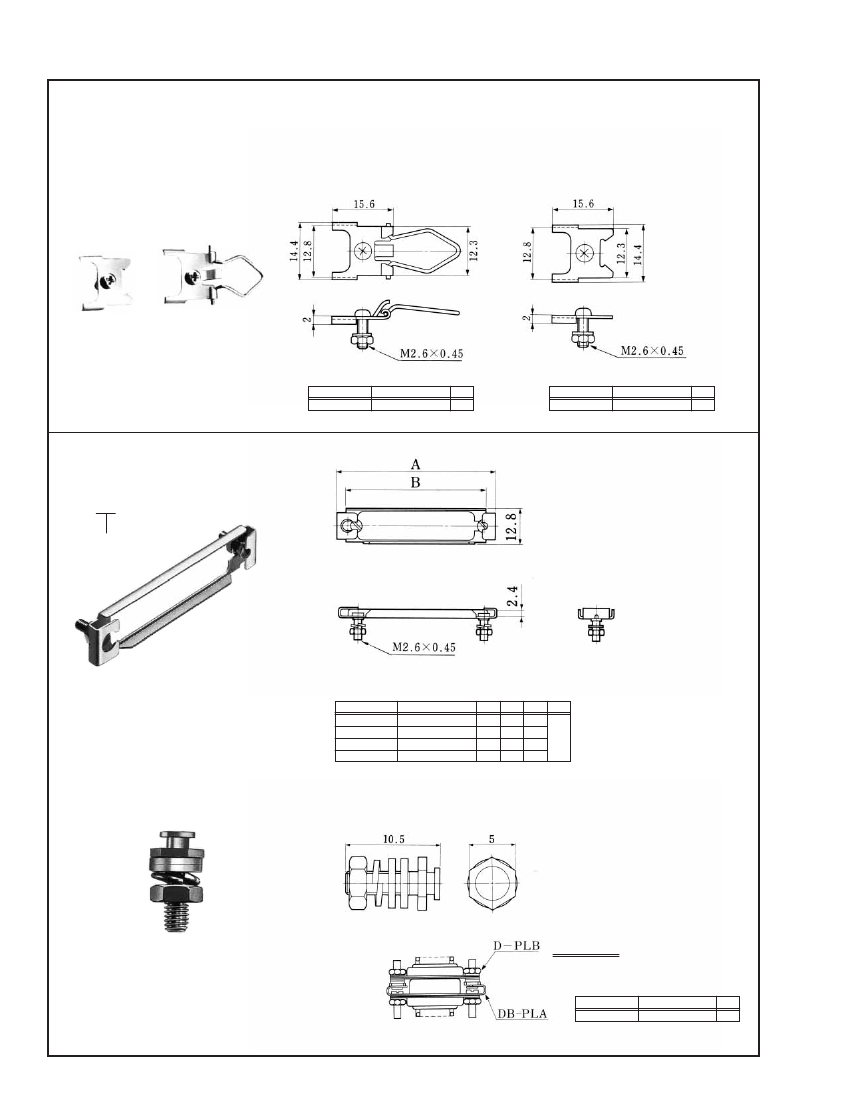

SM Series (D SUB) Accessory
Spring lock
Material
Body:
Screws:
Finish
Screws:
Stainless steel
Steel
Treated with
dichromate over
zinc plating
HRS No
CL211-0122-8-50
Part No.
DA-L
（50）
RoHS
YES
HRS No
CL211-0123-0-50
Part No.
DA-LP
（50）
RoHS
YES
Spring lock
D※−PLA
（50）
(1)
Material
Body:
Screws:
Finish
Screws:
Stainless steel
Steel
Nickel plating
Unit: mm
（1）Connector
size: E
（9contacts）
A
（15contacts）
B
（25contacts）
C
（37contacts）
HRS No
CL211-0679-8-50
CL211-0680-7-50
CL211-0681-0-50
CL211-0682-2-50
Part No.
DE-PLA
（50）
DA-PLA
（50）
DB-PLA
（50）
DC-PLA
（50）
A
B
No.of pin RoHS
9
15
25
37
35.37 28.51
43.7 36.84
57.42 50.56
73.88 67.02
YES
D−PLA
（05）
Material: Steel
Body
Finish:
Nickel plating
Screws
Setup View
Notes（1）Minimum ordering quantity is one
package, which contains two un-
its.
（2）Applicable
for any size of our
connectors.
HRS No
CL211-0732-9-05
Part No.
D-PLB
（05）
RoHS
YES
82
04/2009
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

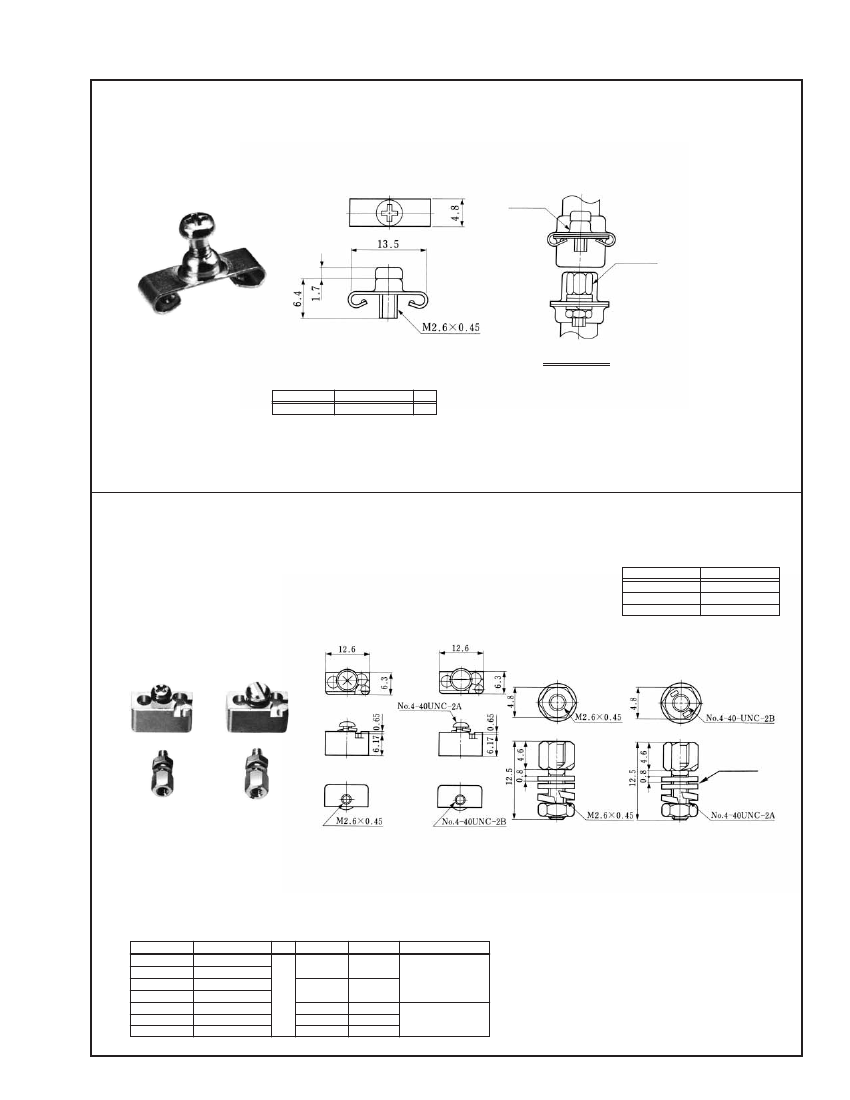

SM Series (D SUB) Accessory
Screw lock (for HD-LNA)
Note: Minimum ordering quantity is one package, which contains two units.
Material
Body: Steel
Finish
Nickel plating
D-SLA
（50）
HD-LNA
（05）
Setup View
HRS No
CL211-0307-3-50
Part No.
D-SLA
（50）
RoHS
YES
Before mounting the D-SLA, loosen the screw slightly
Note（1）Applicable for 9 to 37 contacts.
（2）Minimum
ordering quantity is one package which contains two units.
