DH2C-B3AA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> DH2C-B3AA

DH2C-B3AA: DescriptionSNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 0.5A, 30VDC, 0.3mm, THROUGH HOLE-RIGHT ANGLE; CategoryMechanical and electronic products switch; File Size214KB，2 Pages; ManufacturerThe Cherry Corporation

Download Datasheet Parametric View All

DH2C-B3AA Overview

SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 0.5A, 30VDC, 0.3mm, THROUGH HOLE-RIGHT ANGLE

DH2C-B3AA Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Actuator angle
Actuator material	THERMOPLASTIC
Actuator stroke	0.3 mm
Actuator type	BUTTON TYPE
Other features	LIGHT WEIGHT
body width	6.02 mm
Body color	BROWN
body height	2.69 mm
Body length or diameter	8.2 mm
center contact material	BERYLLIUM COPPER
Center contact plating	GOLD
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@30VDC
Contact function	ON-(ON)
contact time	SNAP ACTION
Maximum contact voltage (DC)	30 V
Electrical life	30000 Cycle(s)
End contact material	BERYLLIUM COPPER
End contact plating	GOLD
Shell material	POLYESTER
insulator material	POLYESTER
JESD-609 code	e4
Manufacturer's serial number	DH
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating force	0.88 N
work location	0.213 inch
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
PCB hole count	5
Maximum pre-travel	0.2 mm
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal surface	SILVER
Terminal length	0.122 inch
Terminal material	BRASS
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

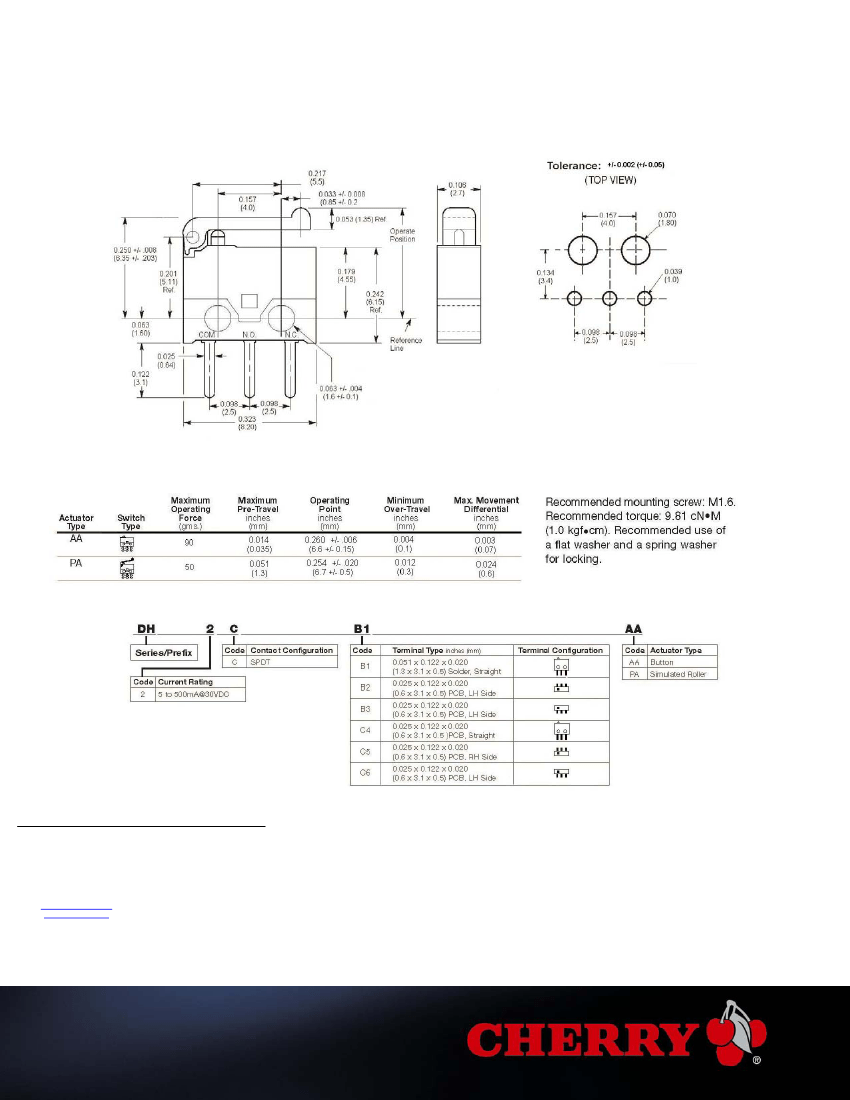

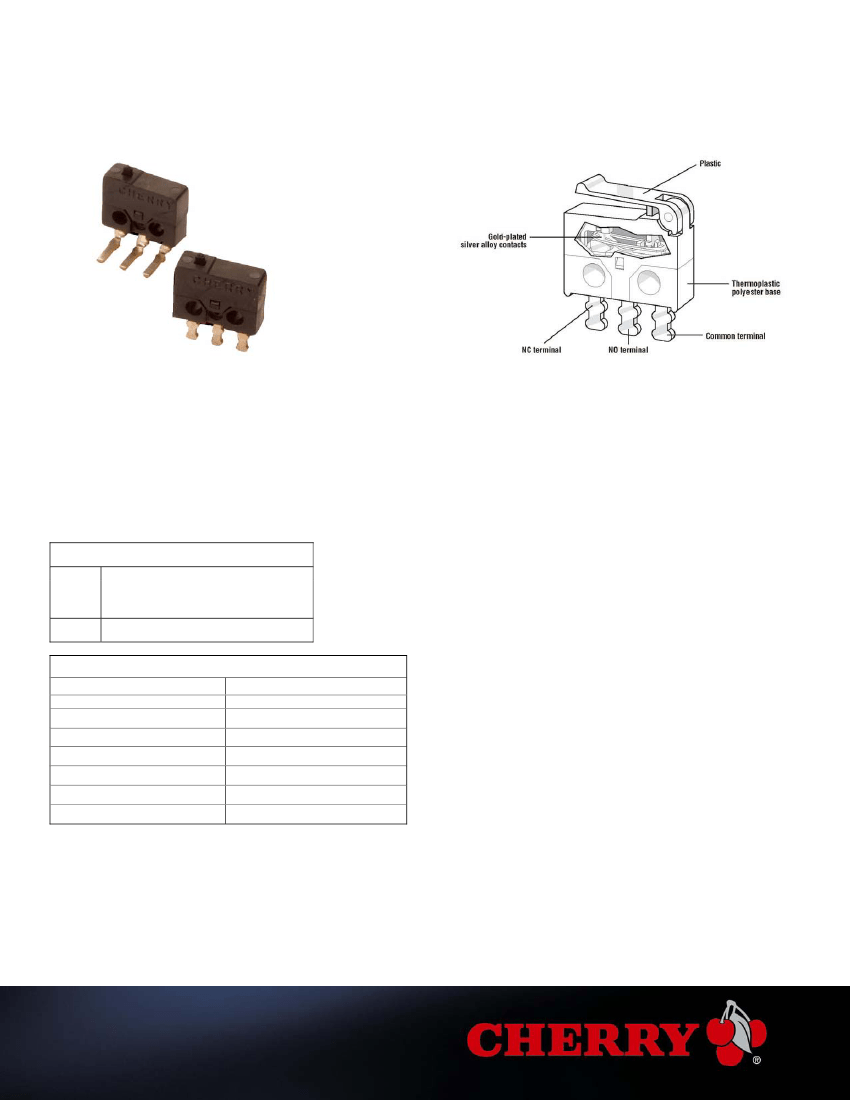

DH Series

Subminiature

Features



Ultraminiature dimensions – just 0.323” x 0.106”

X 0.244” (8.2mm x 2.7mm x 6.2mm)



Specially designed for low switching currents



Available with or without auxiliary actuator



Can be assembled to circuit boards in upright

position or horizontally with formed terminals

Electrical Ratings

Switch

Series

DH2

Electrical Rating

5-500 mA @ 30 VDC

Material Specifications

Base:

Button:

Cover:

Auxiliary Actuator:

Terminals:

Contacts:

Temperature Rating:

Flammability Rating:

PPS

PBT

Silver Plated Brass

Silver Alloy (Gold Flash)

-25°C to + 70°C

UL94V-0

Specifications subject to change without notice.
