DCC-37S-FO: DescriptionD Type Connector, 37 Contact(s), Female, Hole .112-.124, Plug; CategoryThe connector The connector; File Size625KB，7 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric Compare View All

DCC-37S-FO Overview

D Type Connector, 37 Contact(s), Female, Hole .112-.124, Plug

DCC-37S-FO Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
body width	0.496 inch
subject depth	0.441 inch
body length	2.728 inch
Body/casing type	PLUG
Contact point gender	FEMALE
contact mode	STAGGERED
Contact resistance	2.7 mΩ
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	RED
insulator material	GLASS FILLED NYLON
MIL compliance	YES
Manufacturer's serial number	DCC
Installation option 1	HOLE .112-.124
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Guideline	UL
reliability	MIL-C-24308
Shell surface	ZINC/YELLOW CHROMATE
Shell material	STEEL
Total number of contacts	37
Base Number Matches	1

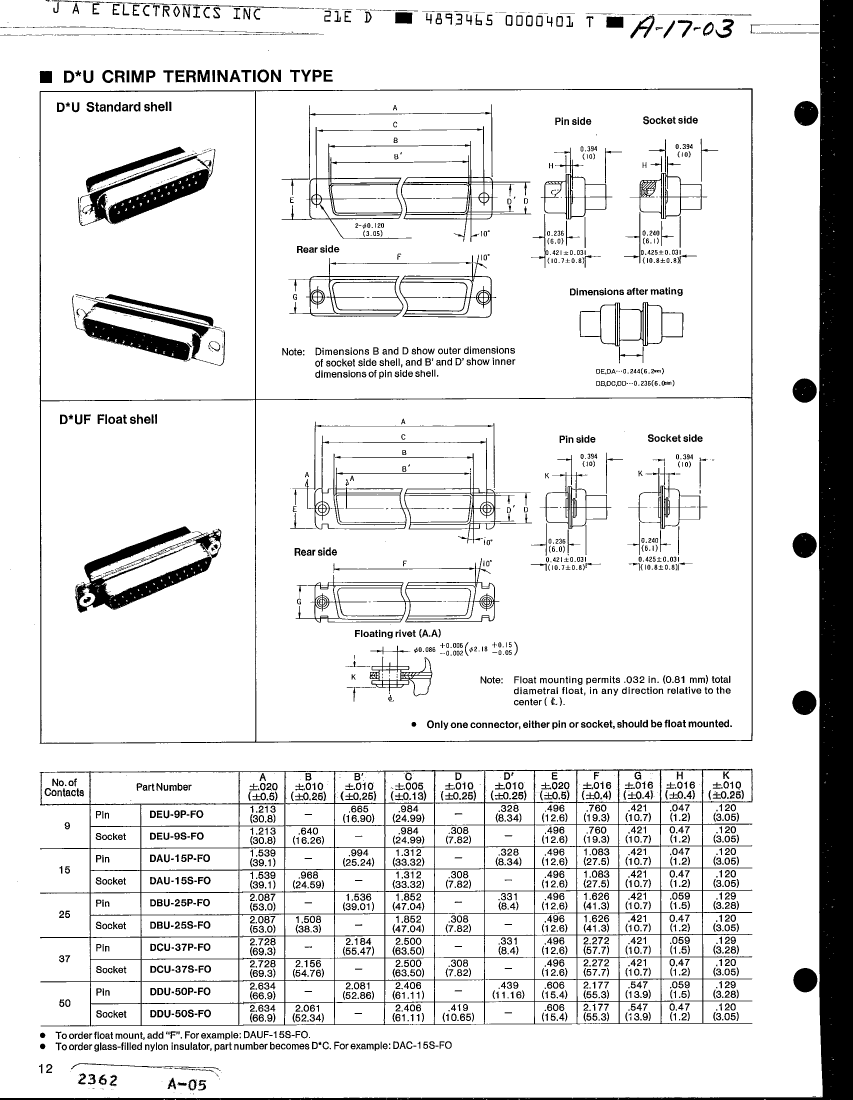

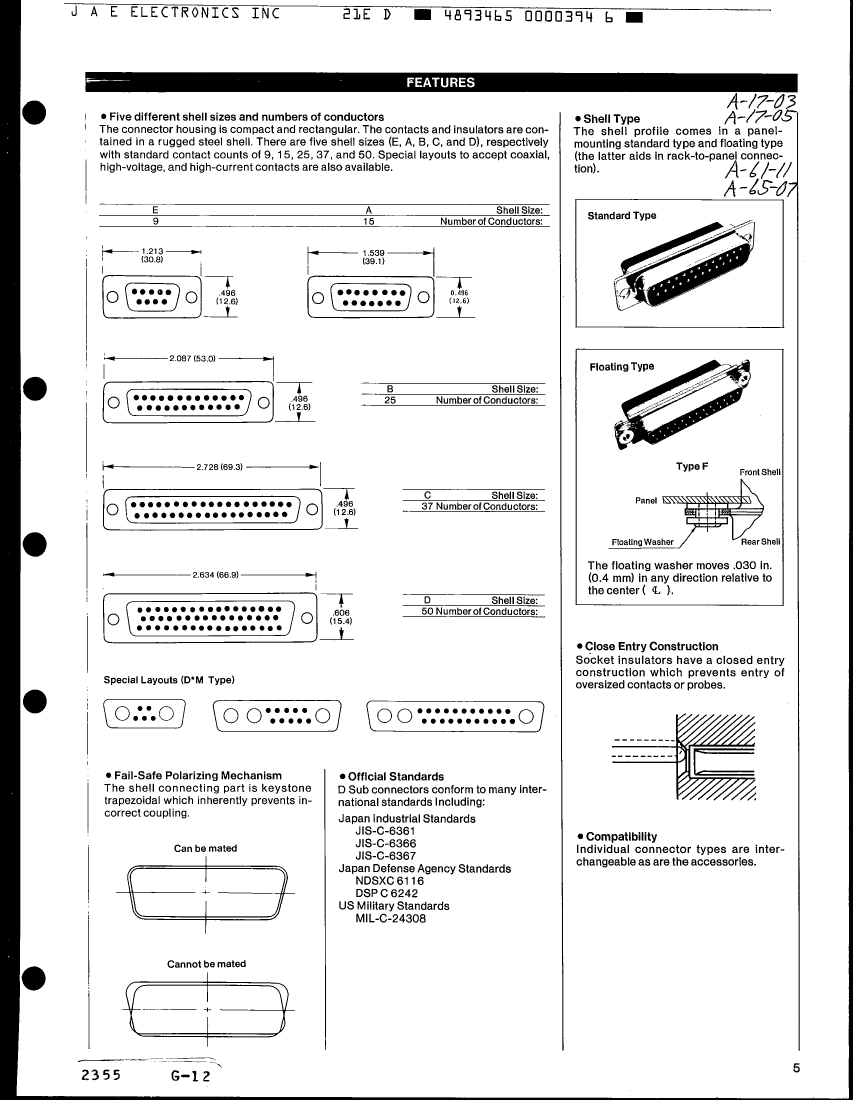

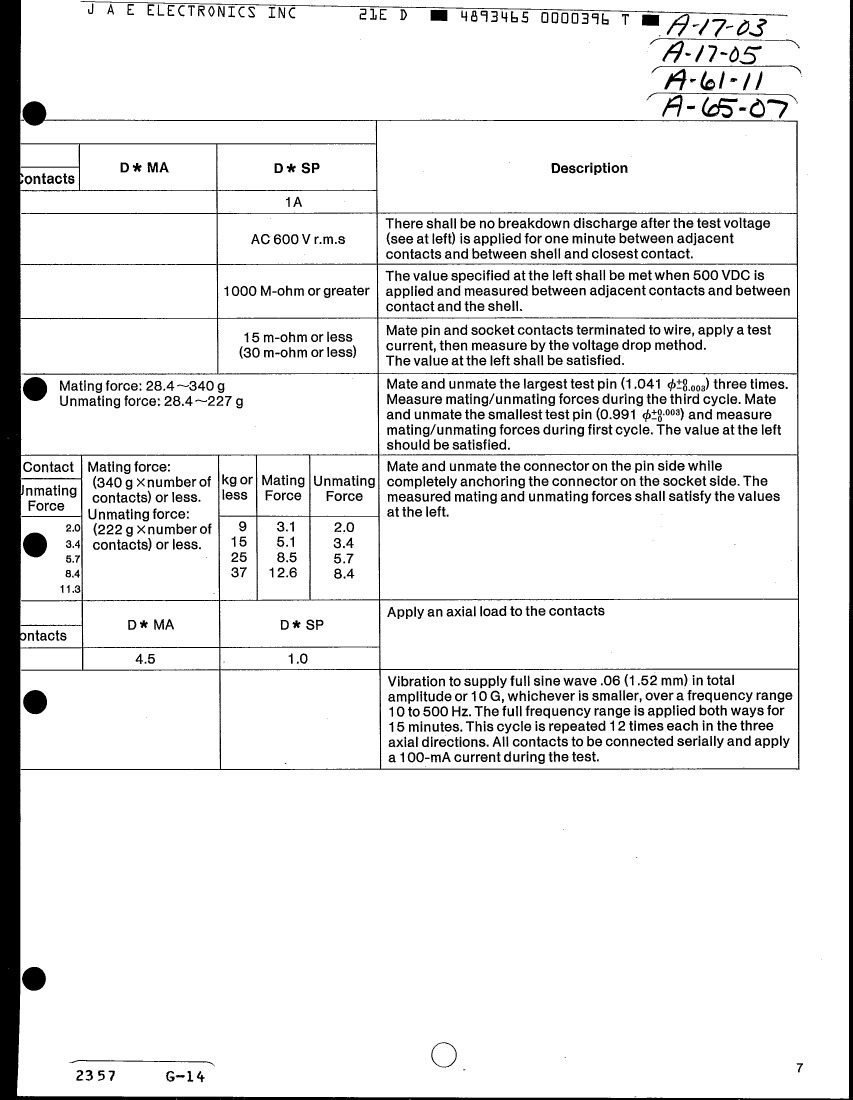

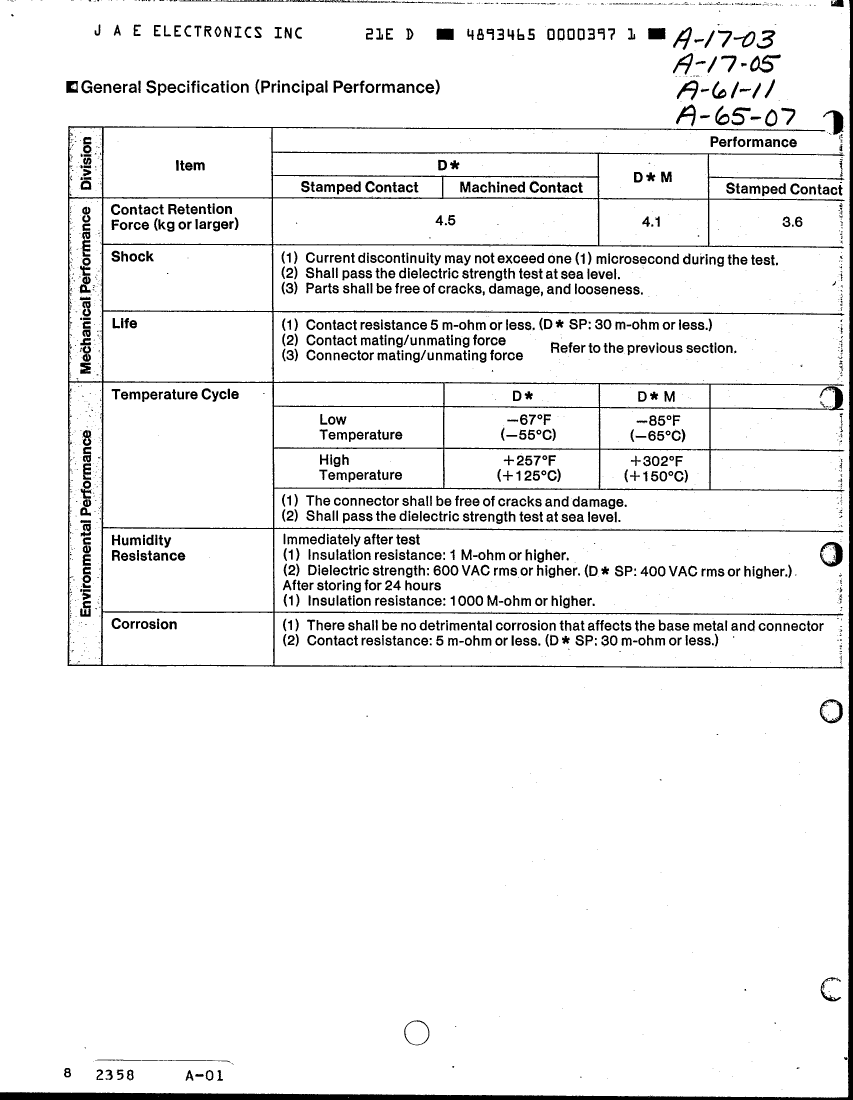

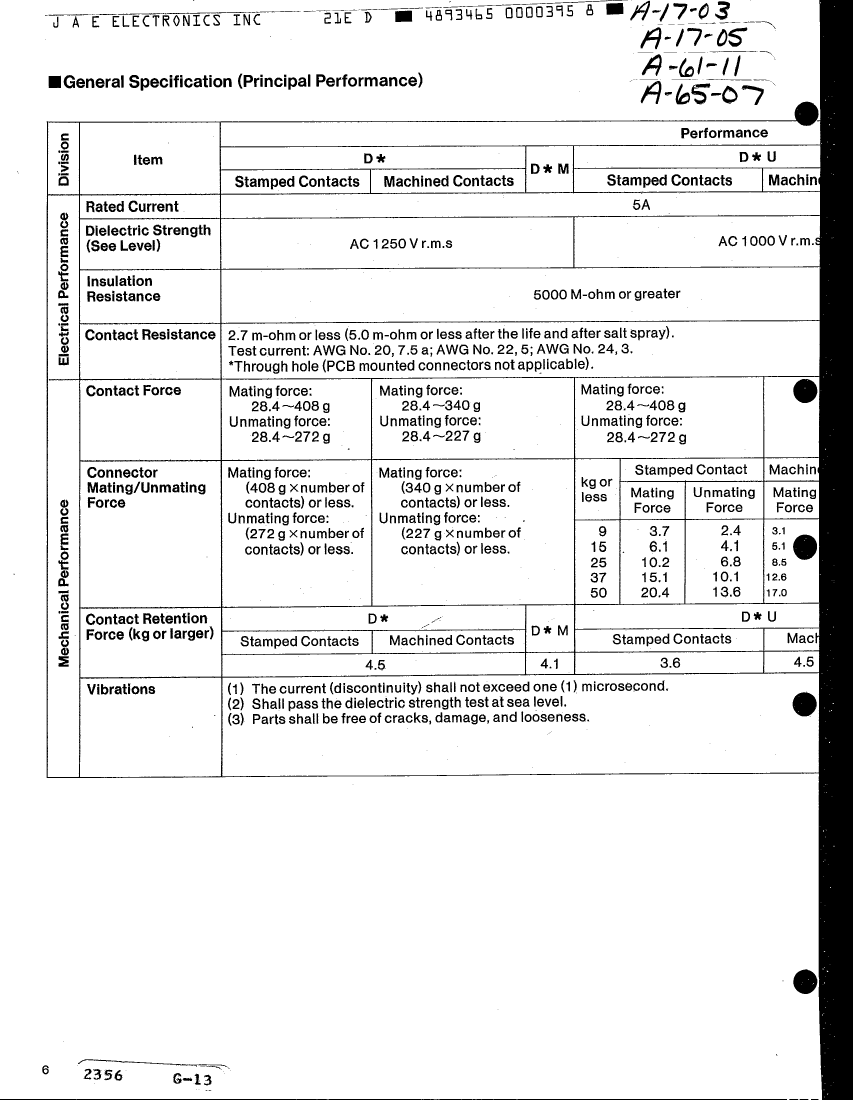

Preview

Download Datasheet

View All

DCC-37S-FO Related Products

	DCC-37S-FO	DCC-37P-FO	DAC-15S-FO	DDC-50S-FO	DEC-9S-FO	DBC-25P-FO	DAC-15P-FO
Description	D Type Connector, 37 Contact(s), Female, Hole .112-.124, Plug	D Type Connector, 37 Contact(s), Male, Hole .112-.124, Receptacle	D Type Connector, 15 Contact(s), Female, Hole .112-.124, Plug	D Type Connector, 50 Contact(s), Female, Hole .112-.124, Plug	D Type Connector, 9 Contact(s), Female, Hole .112-.124, Plug	D Type Connector, 25 Contact(s), Male, Hole .112-.124, Receptacle	D Type Connector, 15 Contact(s), Male, Hole .112-.124, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.496 inch	0.496 inch	0.496 inch	0.606 inch	0.496 inch	0.496 inch	0.496 inch
subject depth	0.441 inch	0.453 inch	0.441 inch	0.441 inch	0.441 inch	0.453 inch	0.441 inch
body length	2.728 inch	2.728 inch	1.539 inch	2.634 inch	1.213 inch	2.087 inch	1.539 inch
Body/casing type	PLUG	RECEPTACLE	PLUG	PLUG	PLUG	RECEPTACLE	RECEPTACLE
Contact point gender	FEMALE	MALE	FEMALE	FEMALE	FEMALE	MALE	MALE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	2.7 mΩ	2.7 mΩ	2.7 mΩ	2.7 mΩ	2.7 mΩ	2.7 mΩ	2.7 mΩ
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	RED	RED	RED	RED	RED	RED	RED
insulator material	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON
MIL compliance	YES	YES	YES	YES	YES	YES	YES
Manufacturer's serial number	DCC	DCC	DAC	DDC	DEC	DBC	DAC
Installation option 1	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
Number of rows loaded	2	2	2	3	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	MIL-C-24308	MIL-C-24308	MIL-C-24308	MIL-C-24308	MIL-C-24308	MIL-C-24308	MIL-C-24308
Shell surface	ZINC/YELLOW CHROMATE	ZINC/YELLOW CHROMATE	ZINC/YELLOW CHROMATE	ZINC/YELLOW CHROMATE	ZINC/YELLOW CHROMATE	ZINC/YELLOW CHROMATE	ZINC/YELLOW CHROMATE
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Total number of contacts	37	37	15	50	9	25	15
