TTDM71L23J datasheet, PDF - EEWORLD Datasheet

TTDM71L23J: DescriptionMultiplexer, 4-Func, 2 Line Input, TTL, CDIP16; Categorylogic logic; File Size260KB，6 Pages; ManufacturerTwilight Technology Inc.

Download Datasheet Parametric View All

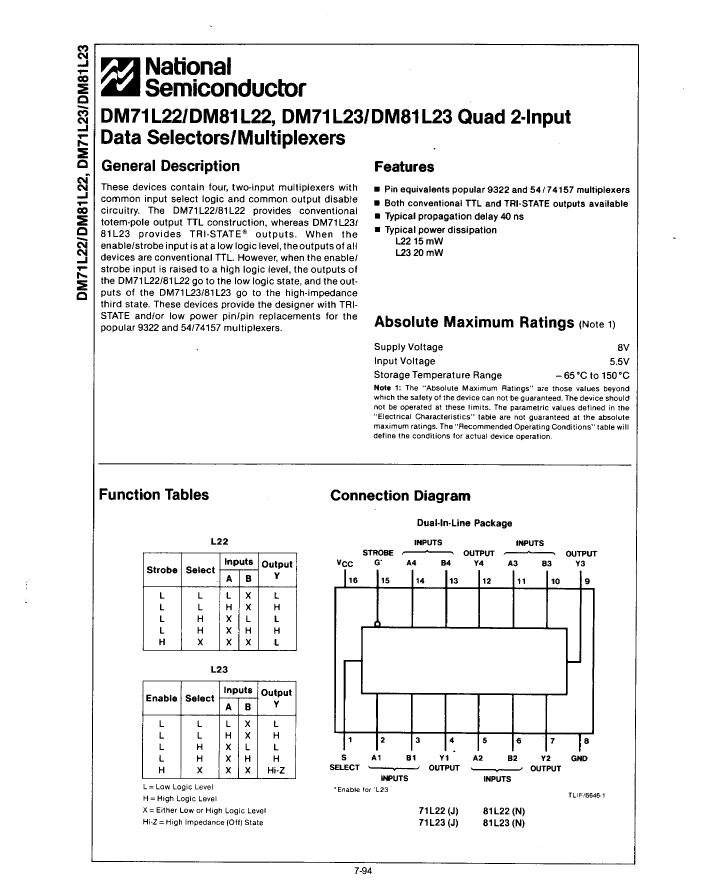

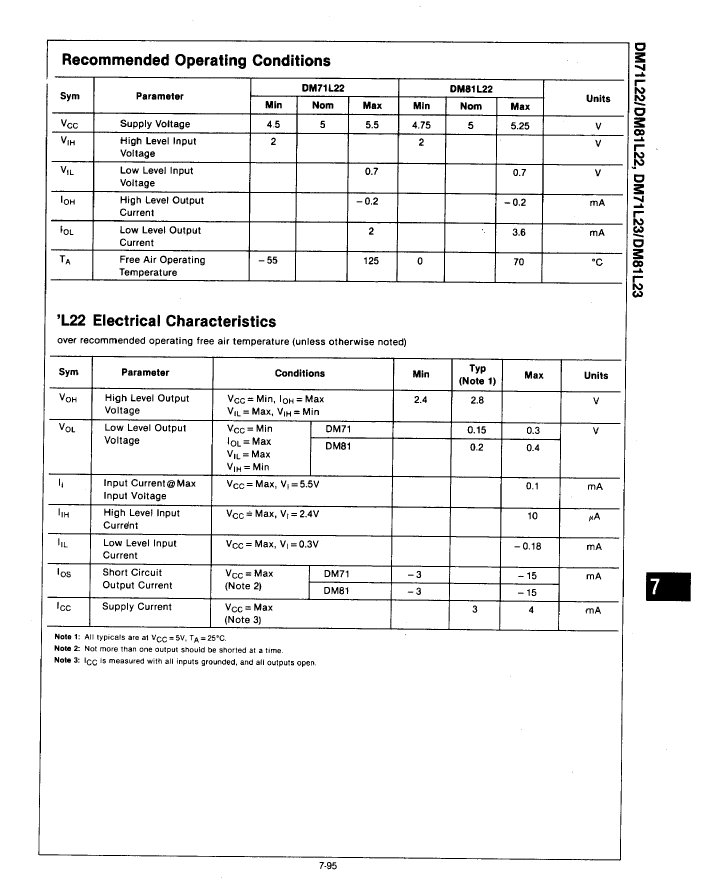

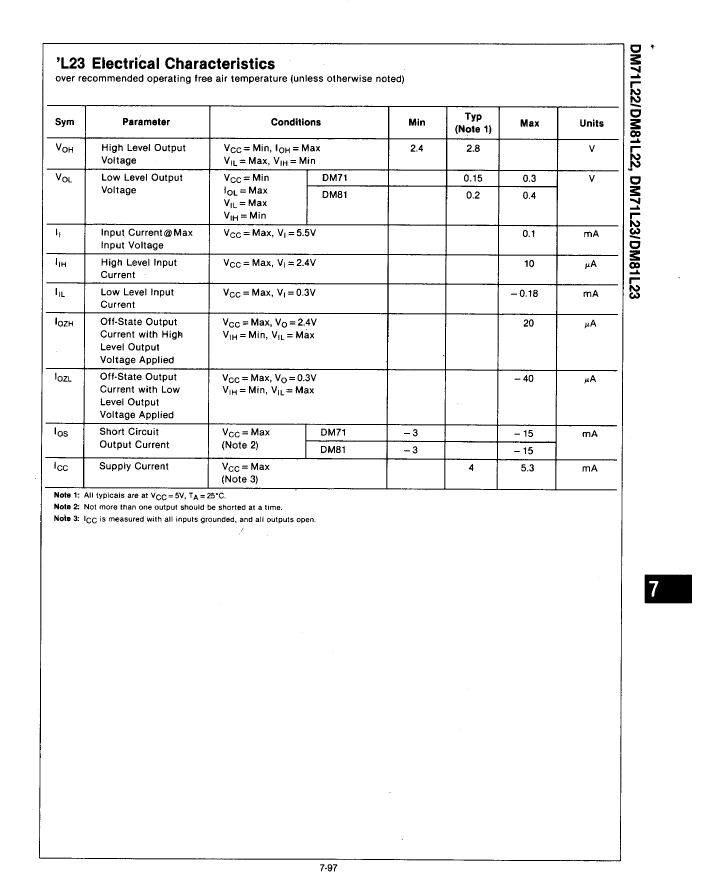

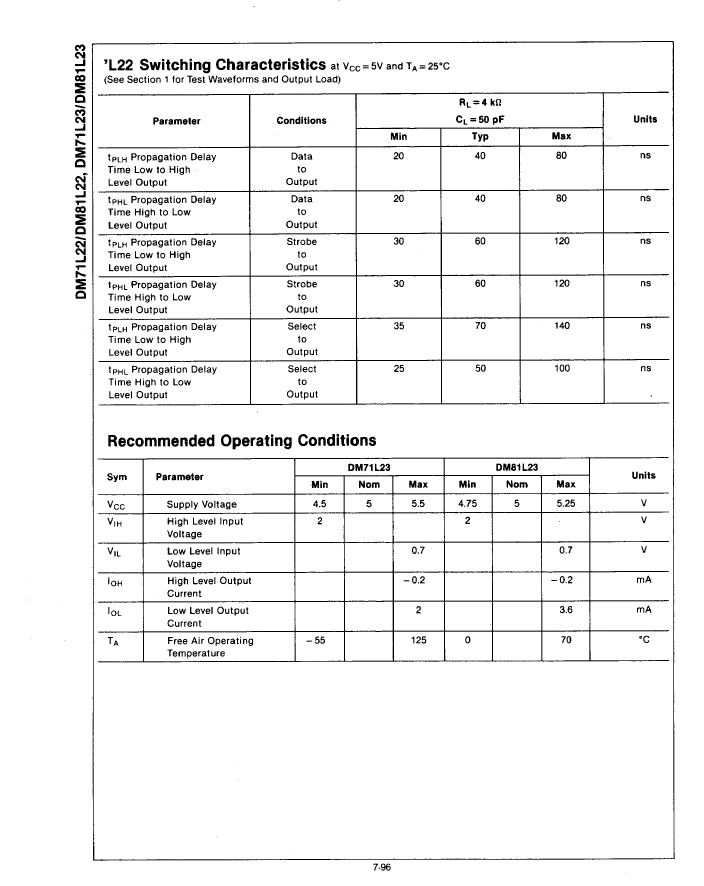

TTDM71L23J Overview

Multiplexer, 4-Func, 2 Line Input, TTL, CDIP16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T16
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.002 A
Number of functions	4
Number of entries	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	5.3 mA

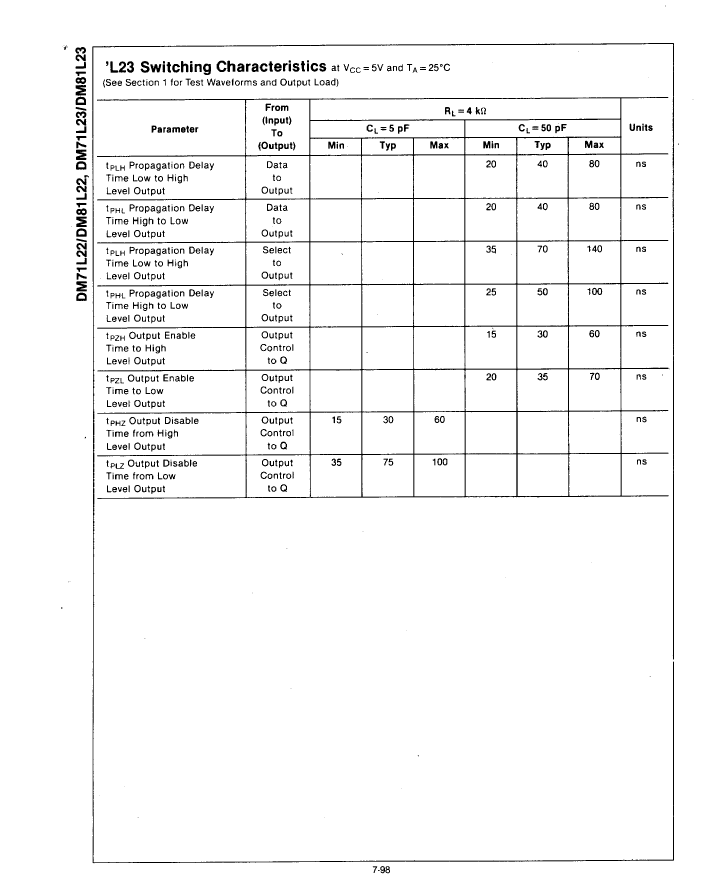

Prop。Delay @ Nom-Sup	140 ns
Certification status	Not Qualified
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1
