D5FB40Z4002L20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> D5FB40Z4002L20

D5FB40Z4002L20: DescriptionBridge Rectifier Diode, Avalanche, 1 Phase, 4.4A, Silicon,; CategoryDiscrete semiconductor diode; File Size335KB，2 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

D5FB40Z4002L20 Overview

Bridge Rectifier Diode, Avalanche, 1 Phase, 4.4A, Silicon,

D5FB40Z4002L20 Parametric

Parameter Name	Attribute value
package instruction	O-PBCY-W4
Reach Compliance Code	unknown
ECCN code	EAR99
Minimum breakdown voltage	400 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V
JESD-30 code	O-PBCY-W4
Maximum non-repetitive peak forward current	120 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	4.4 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Maximum reverse current	10 µA
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	BOTTOM
Base Number Matches	1

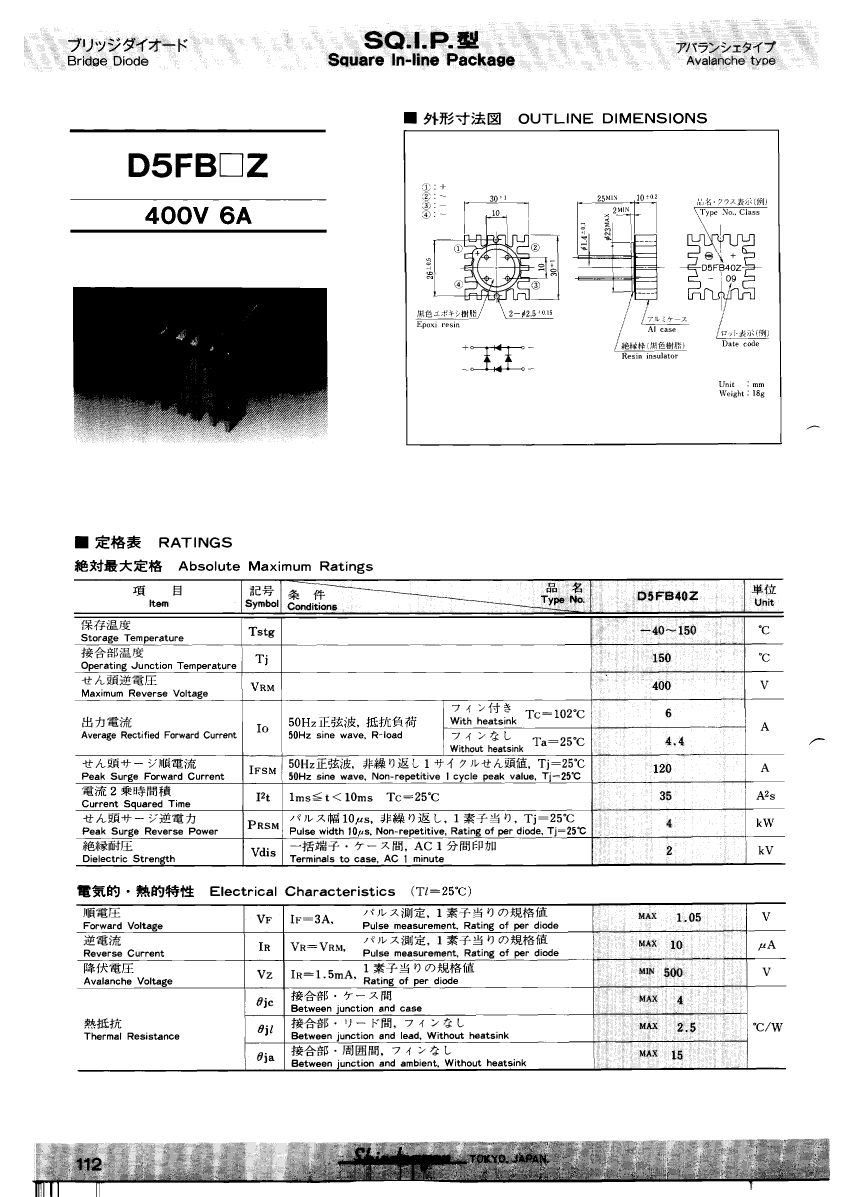

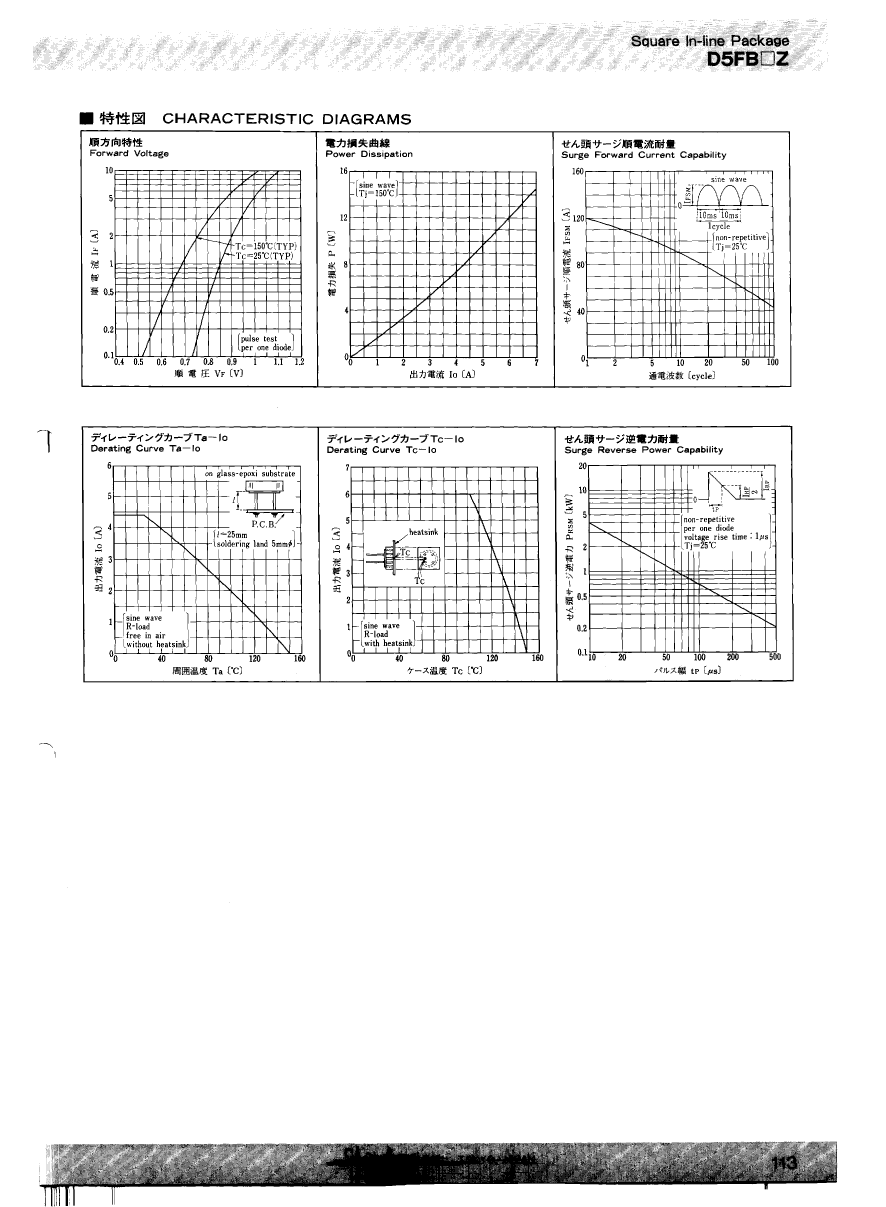

Preview

Download Datasheet

View All

D5FB40Z4002L20 Related Products

	D5FB40Z4002L20	D5FB40Z4003L7.5	D5FB40Z4003L15	D5FB40Z4002L15	D5FB40Z4002L10	D5FB40Z4003L20	D5FB40Z-4000	D5FB40Z4003L10
Description	Bridge Rectifier Diode, Avalanche, 1 Phase, 4.4A, Silicon,	Bridge Rectifier Diode, Avalanche, 1 Phase, 4.4A, Silicon,	Bridge Rectifier Diode, Avalanche, 1 Phase, 4.4A, Silicon,	Bridge Rectifier Diode, Avalanche, 1 Phase, 4.4A, Silicon,	Bridge Rectifier Diode, Avalanche, 1 Phase, 4.4A, Silicon,	Bridge Rectifier Diode, Avalanche, 1 Phase, 4.4A, Silicon,	Bridge Rectifier Diode, Avalanche, 1 Phase, 4.4A, Silicon,	Bridge Rectifier Diode, Avalanche, 1 Phase, 4.4A, Silicon,
package instruction	O-PBCY-W4	O-PBCY-W4	O-PBCY-W4	O-PBCY-W4	O-PBCY-W4	O-PBCY-W4	O-PBCY-W4	O-PBCY-W4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Minimum breakdown voltage	400 V	400 V	400 V	400 V	400 V	400 V	400 V	400 V
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V	1.05 V	1.05 V	1.05 V	1.05 V	1.05 V	1.05 V	1.05 V
JESD-30 code	O-PBCY-W4	O-PBCY-W4	O-PBCY-W4	O-PBCY-W4	O-PBCY-W4	O-PBCY-W4	O-PBCY-W4	O-PBCY-W4
Maximum non-repetitive peak forward current	120 A	120 A	120 A	120 A	120 A	120 A	120 A	120 A
Number of components	4	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	4.4 A	4.4 A	4.4 A	4.4 A	4.4 A	4.4 A	4.4 A	4.4 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA	10 µA
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Base Number Matches	1	1	1	1	1	1	-	-
