HDS308-01GGRTV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> HDS308-01GGRTV

HDS308-01GGRTV: DescriptionIC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder; CategoryThe connector socket; File Size118KB，1 Pages; ManufacturerAdvanced Interconnections Corp.

Download Datasheet Parametric Compare View All

HDS308-01GGRTV Overview

IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder

HDS308-01GGRTV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITH RTV SEALENT
body width	0.4 inch
subject depth	0.165 inch
body length	0.4 inch
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	BRASS
Contact style	RND PIN-SKT
Device slot type	IC SOCKET
Type of equipment used	DIP8
Shell material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	HDS
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	8
Maximum operating temperature	260 °C
Minimum operating temperature	-60 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

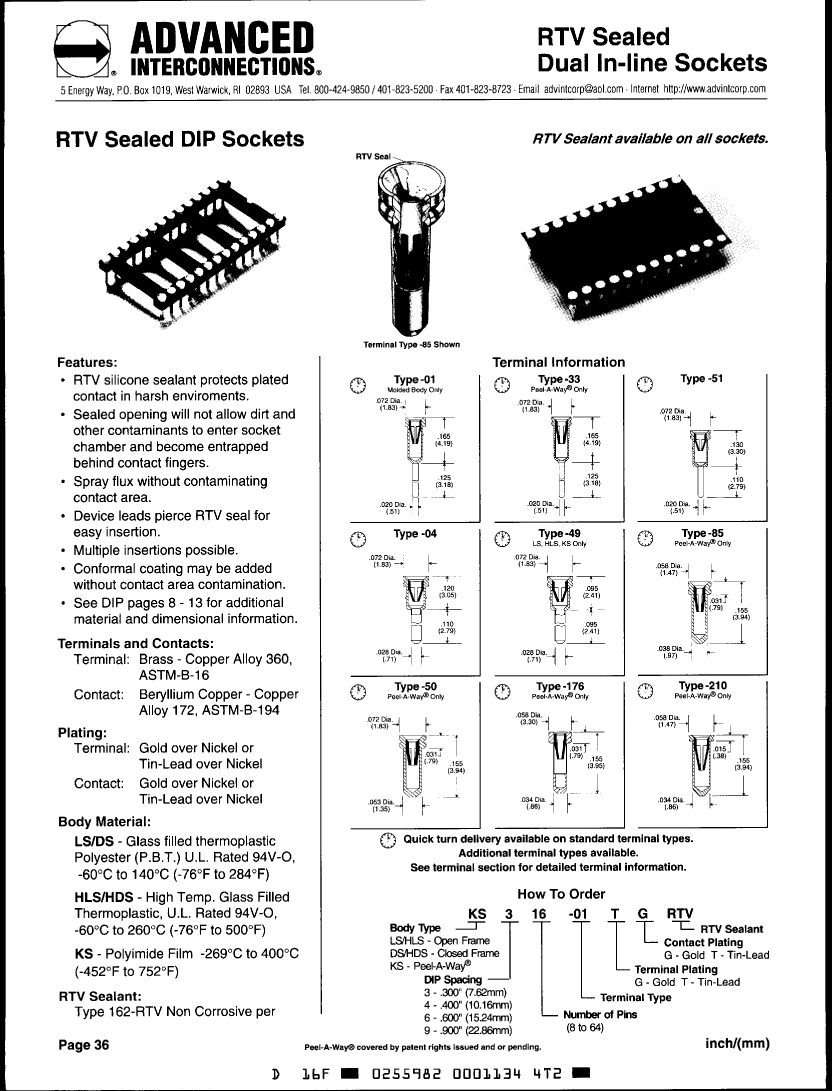

Preview

Download Datasheet

View All

HDS308-01GGRTV Related Products

	HDS308-01GGRTV	HDS308-01GTRTV	HDS308-01TGRTV	HDS308-01TTRTV	HLS308-49GGRTV	HLS308-49TGRTV	HLS308-49GTRTV	HLS308-49TTRTV	HLS318-04GTRTV
Description	IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP18, 18 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compli	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	WITH RTV SEALENT	WITH RTV SEALENT	WITH RTV SEALENT	WITH RTV SEALENT	WITH RTV SEALENT	WITH RTV SEALENT	WITH RTV SEALENT	WITH RTV SEALENT	STANDARD: UL 94V-0, LOW PROFILE
body width	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch
subject depth	0.165 inch	0.165 inch	0.165 inch	0.165 inch	0.095 inch	0.095 inch	0.095 inch	0.095 inch	0.12 inch
body length	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.9 inch
Contact to complete cooperation	AU ON NI	SN-PB ON NI	AU ON NI	SN-PB ON NI	AU ON NI	AU ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrier
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP8	DIP8	DIP8	DIP8	DIP8	DIP8	DIP8	DIP8	DIP18
Shell material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	POLYETHYLENE
JESD-609 code	e4	e4	e0	e0	e4	e0	e4	e0	e4
Manufacturer's serial number	HDS	HDS	HDS	HDS	HLS	HLS	HLS	HLS	HLS
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	8	8	8	8	8	8	8	8	18
Maximum operating temperature	260 °C	260 °C	260 °C	260 °C	260 °C	260 °C	260 °C	260 °C	260 °C
Minimum operating temperature	-60 °C	-60 °C	-60 °C	-60 °C	-60 °C	-60 °C	-60 °C	-60 °C	-60 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Maker	-	Advanced Interconnections Corp.	-	Advanced Interconnections Corp.	Advanced Interconnections Corp.	Advanced Interconnections Corp.	Advanced Interconnections Corp.	Advanced Interconnections Corp.	-
