DF3Z-14P-2H(21) datasheet, PDF

Datasheet> All Categories > The connector> The connector> DF3Z-14P-2H(21)

DF3Z-14P-2H(21): DescriptionBoard Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,; CategoryThe connector The connector; File Size244KB，2 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric Compare View All

DF3Z-14P-2H(21) Overview

Board Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,

DF3Z-14P-2H(21) Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (39) OVER COPPER (20)
Contact completed and terminated	TIN (39) OVER COPPER (20)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	DF3Z
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	14
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

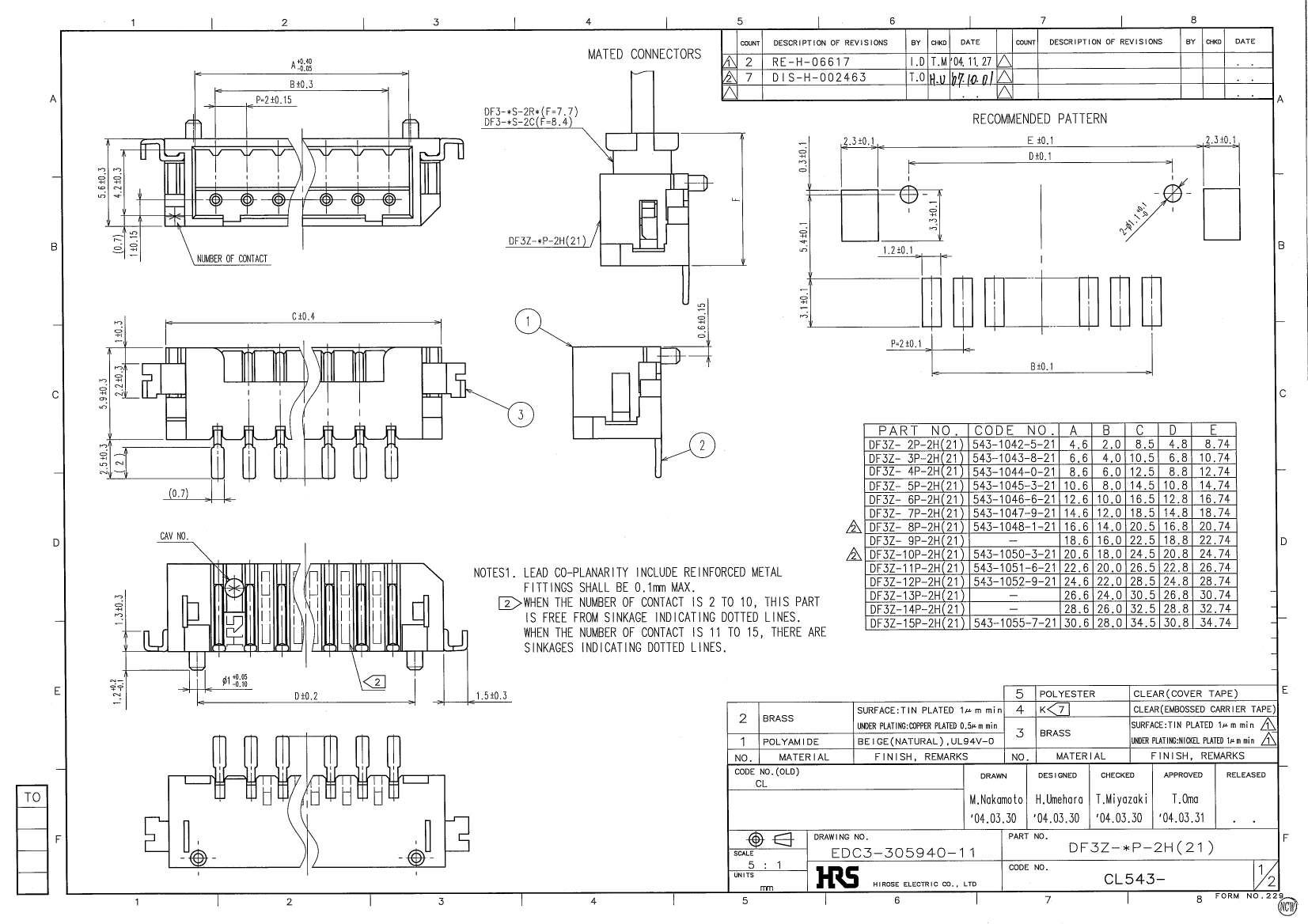

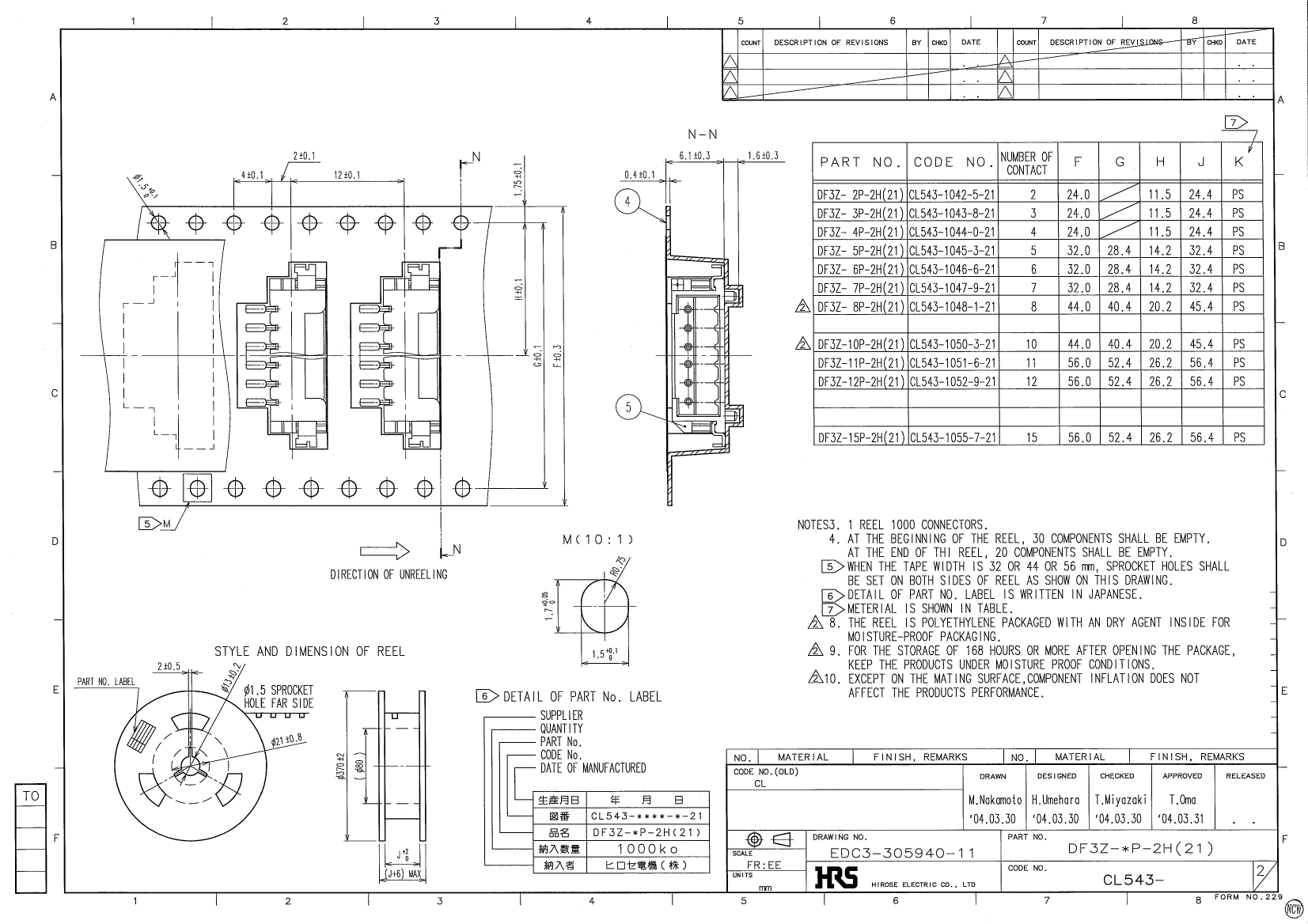

DRAWING FOR REFERENCE: This is subject to change without notice

08/11/2012

DF3Z-14P-2H(21) Related Products

	DF3Z-14P-2H(21)	CL543-1047-9-21	CL543-1042-5-21	CL543-1045-3-21	CL543-1043-8-21	CL543-1048-1-21	CL543-1044-0-21	CL543-1050-3-21	DF3Z-13P-2H(21)	DF3Z-9P-2H(21)
Description	Board Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,	Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal	Board Connector, 2 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal	Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,	Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal	Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal	Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal	Board Connector, 10 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal	Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,	Board Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)
Contact completed and terminated	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)	TIN (39) OVER COPPER (20)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	DF3Z	CL543	CL543	CL543	CL543	CL543	CL543	CL543	DF3Z	DF3Z
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	14	7	2	5	3	8	4	10	13	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Base Number Matches	1	1	1	1	1	1	1	1	1	-
Maker	-	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose	-	Hirose
