DS15-SFT-A-01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DS15-SFT-A-01

DS15-SFT-A-01: DescriptionD Subminiature Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle; CategoryThe connector The connector; File Size23KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

DS15-SFT-A-01 Overview

D Subminiature Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle

DS15-SFT-A-01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.21 inch
body length	1.541 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.146 inch
Termination type	SOLDER
Total number of contacts	15
Base Number Matches	1

Preview

Download Datasheet

View All

SPECIFICATIONS

Current rating:

Voltage rating:

Contact material:

Contact plating:

Contact resistance:

Insulator material:

Insulation resistance:

Shell material:

Shell plating:

Capacitance:

Operating temperature:

5 amps max.

500VDC

Phosphor bronze

Gold over nickel in contact area

Gold flash on solder pins

20 milliohms max.

Polybutylene Terephthalate (PBT)

Glass reinforced, UL94V-0

1,000 megohms min. at 1,000 volts AC

Steel

Tin

2 pF max between adjacent contacts

-50ºC to +100ºC

RoHS compliant

Rev.

Description

Date

Approved

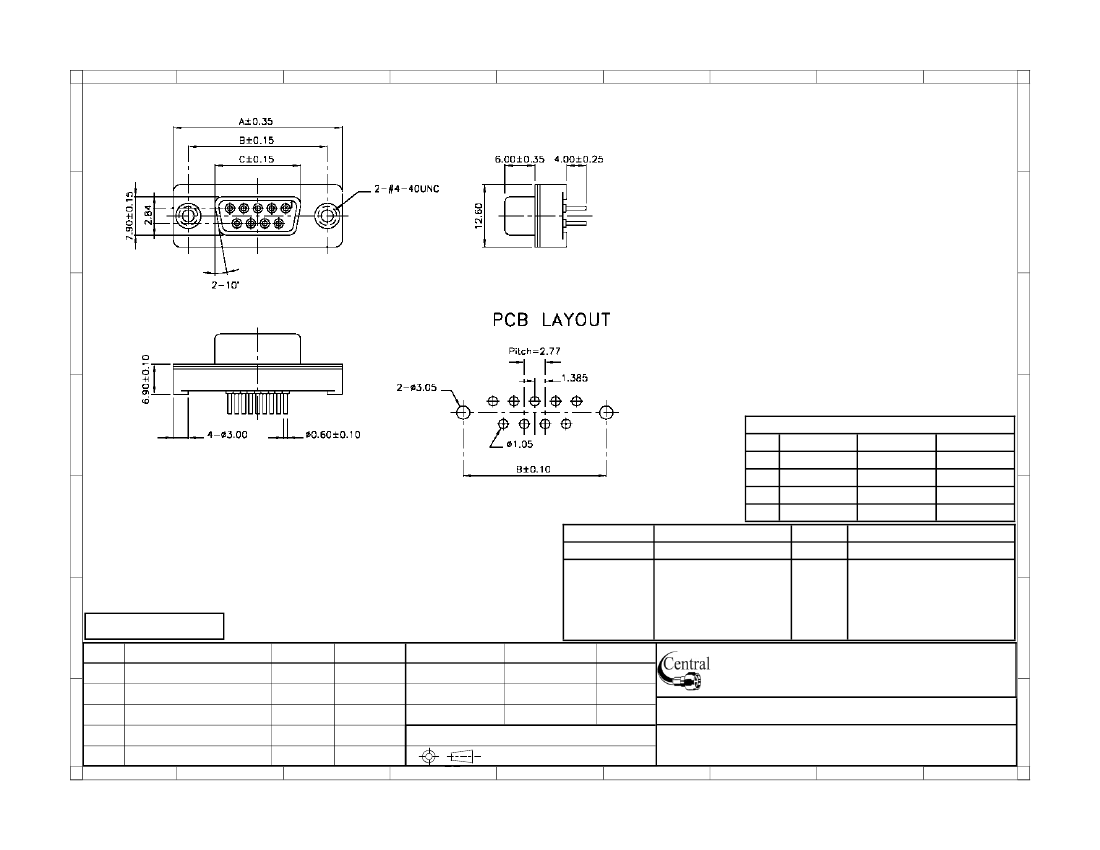

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Dimensions in/(mm)

Pos.

9 1.213 (30.80) 0.984 (24.99) 0.642 (16.30)

15 1.541 (39.15) 1.312 (33.32) 0.970 (24.65)

25 2.087 (53.00) 1.852 (47.04) 1.512 (38.40)

37 2.728 (69.30) 2.500 (63.50) 2.157 (54.80)

Series

Type

Tail

Mounting Face Options

DSXX

SXXX

D-sub connector SMT=Flush mount male Standard 01=.120” thru holes

XX=Pins

SFT=Flush mount female

02=#4-40 threaded inserts

09, 15, 25, 37 SMTA=High profile male

03=Inserts and board locks

SFTA=High profile female

04=Jackscrews

05=Jackscrews and board locks

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

DSXX-SFT-A-01

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: D-sub connector, flush mount, female, through hole

DS15-SFT-A-01 Related Products

	DS15-SFT-A-01	DS37-SFT-A-01	DS25-SFT-A-01
Description	D Subminiature Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle	D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle	D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.494 inch	0.494 inch	0.494 inch
subject depth	0.21 inch	0.21 inch	0.21 inch
body length	1.541 inch	2.73 inch	2.088 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	STAGGERED	STAGGERED	STAGGERED
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4	e4	e4
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch
Installation option 1	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
Installation option 2	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
Rated current (signal)	5 A	5 A	5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL
Terminal length	0.146 inch	0.146 inch	0.146 inch
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	15	37	25
Base Number Matches	1	1	1
