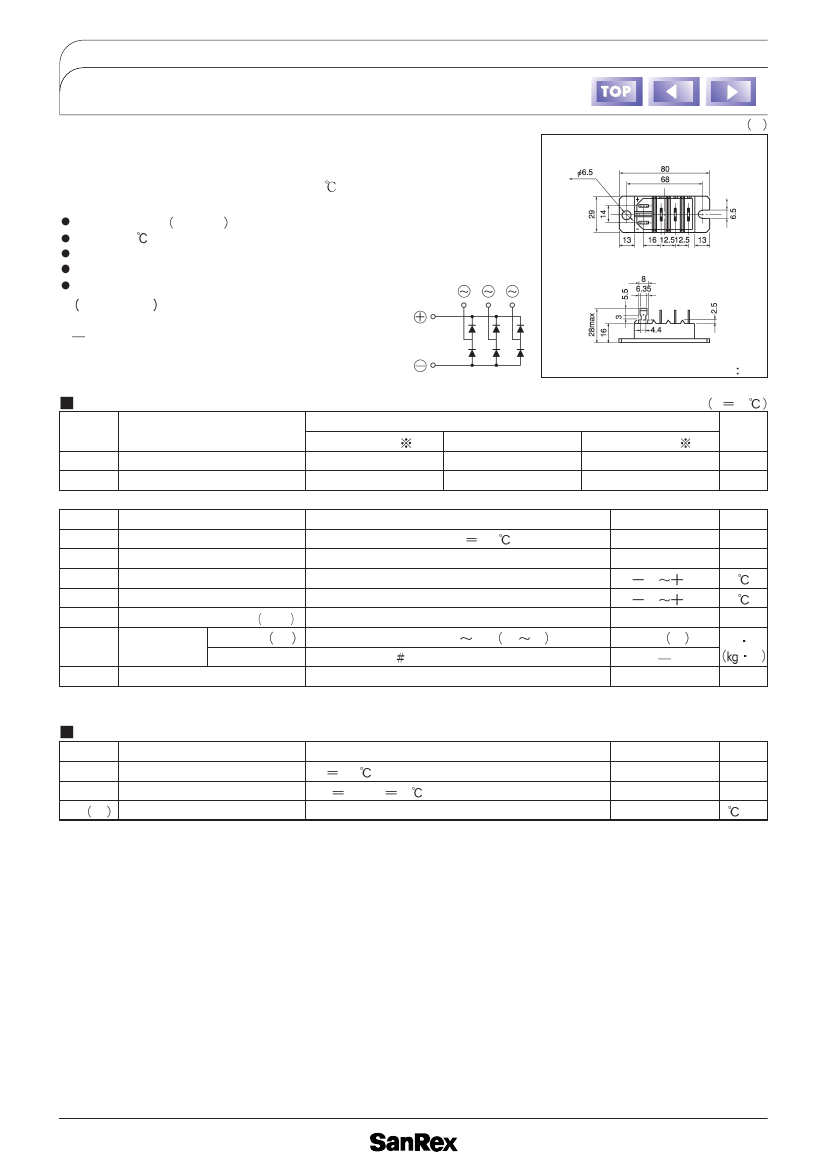

DIODE
(THREE PHASES BRIDGE TYPE)
DF30CA80/120/160
UL;E76102 M
Power Diode Module
DF30CA
is designed for three phase full wave rectification, which
has six diodes connected in a three phase bridge configuration. The mounting base of the
module is electrically isolated from semiconductor elements for simple heatsink
construction output DC current is 30Amp (Tc=122 ) Repetitive peak reverse voltage is
up to 1,600V.
IFSM=775/850A 50/60Hz
TjMax=150
Isolated Mounting Base
High reliability by unique glass passivation
Easy Assemble by the #250 terminal Tab
Applications
AC. DC Motor Drive/AVR/Switching
for three phase rectification
Unit
a
Maximum Ratings
Symbol
V
RRM
V
RSM
Symbol
I
D
I
FSM
Tj
Tstg
V
ISO
Item
Repetitive Peak Reverse Voltage
Non-Repetitive Peak Reverse Voltage
Item
Output current (D.C.)
Surge Forward Current
Junction Temperature
Storage Temperature
Isolation Breakdown Voltage R.M.S.
Mounting
Torque
Mass
Mounting M6
Terminal
Main Terminal to case 1minute
Recommended Value 2.5 3.9 25 40
Tub Terminal
Typical Value
250
90
Ratings
DF30CA80
800
960
Conditions
Three phase. full wave. T
C
122
1 cycle, 50/60H
Z
, peak value, non-repetitive
DF30CA120
1200
1300
DF30CA160
1600
1700
Ratings
30
775/850
40
150
40
125
2500
4.7 48
Tj 25
Unit
V
V
Unit
A
A
V
N m
f
B
g
Electrical Characteristics
Symbol
I
RRM
V
FM
Rth j-c
Item
Repetitive Peak Reverse Current, max.
Forward Voltage Drop, max.
Thermal Impedance, max.
Tj 150
I
FM
30A, Tj 25
Junction to case
Conditions
at V
RRM
Inst. measurement
Ratings
12.0
1.1
0.42
Unit
mA
V
/W
