DF100AA120 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DF100AA120

DF100AA120: DescriptionBridge Rectifier Diode, 100A, 1200V V(RRM),; CategoryDiscrete semiconductor diode; File Size265KB，2 Pages; ManufacturerSanRex; Websitehttp://www.ecomallbiz.com/sanrex

Download Datasheet Parametric Compare View All

DF100AA120 Overview

Bridge Rectifier Diode, 100A, 1200V V(RRM),

DF100AA120 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	BRIDGE, 6 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
Maximum non-repetitive peak forward current	1000 A
Number of components	6
Maximum operating temperature	150 °C
Maximum output current	100 A
Maximum repetitive peak reverse voltage	1200 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

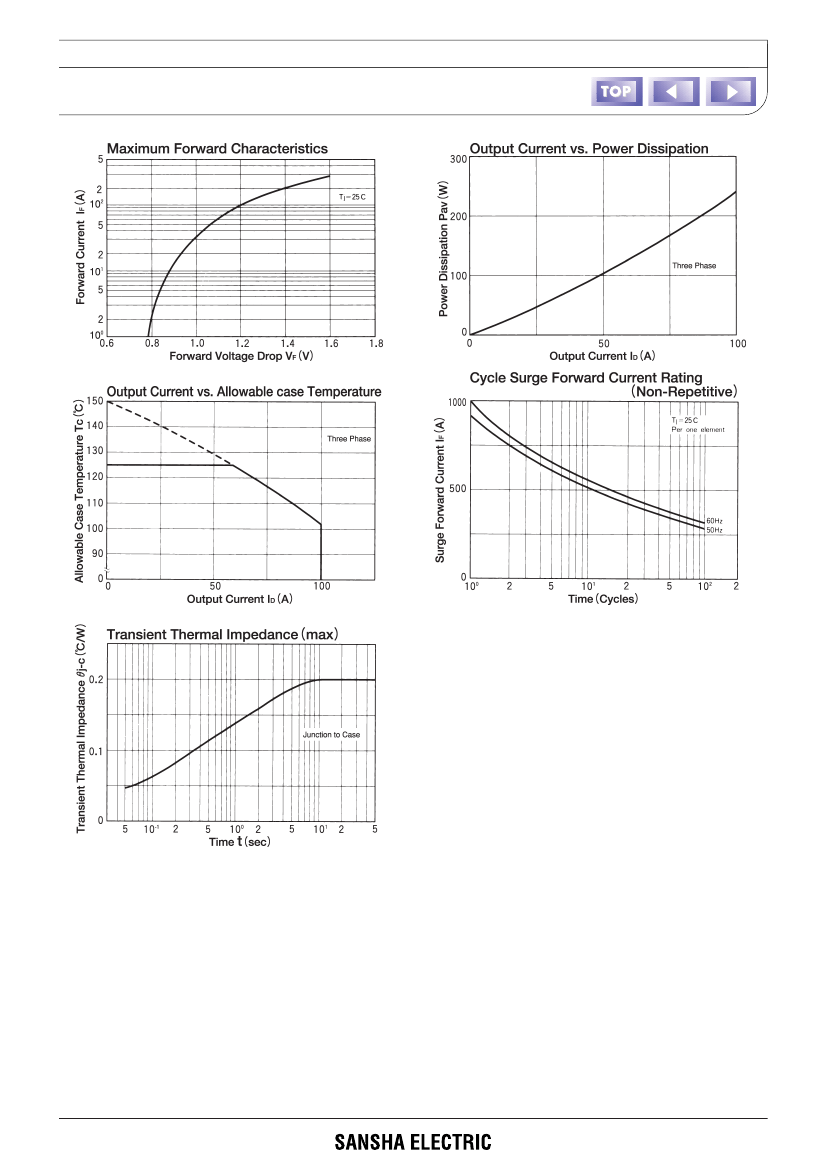

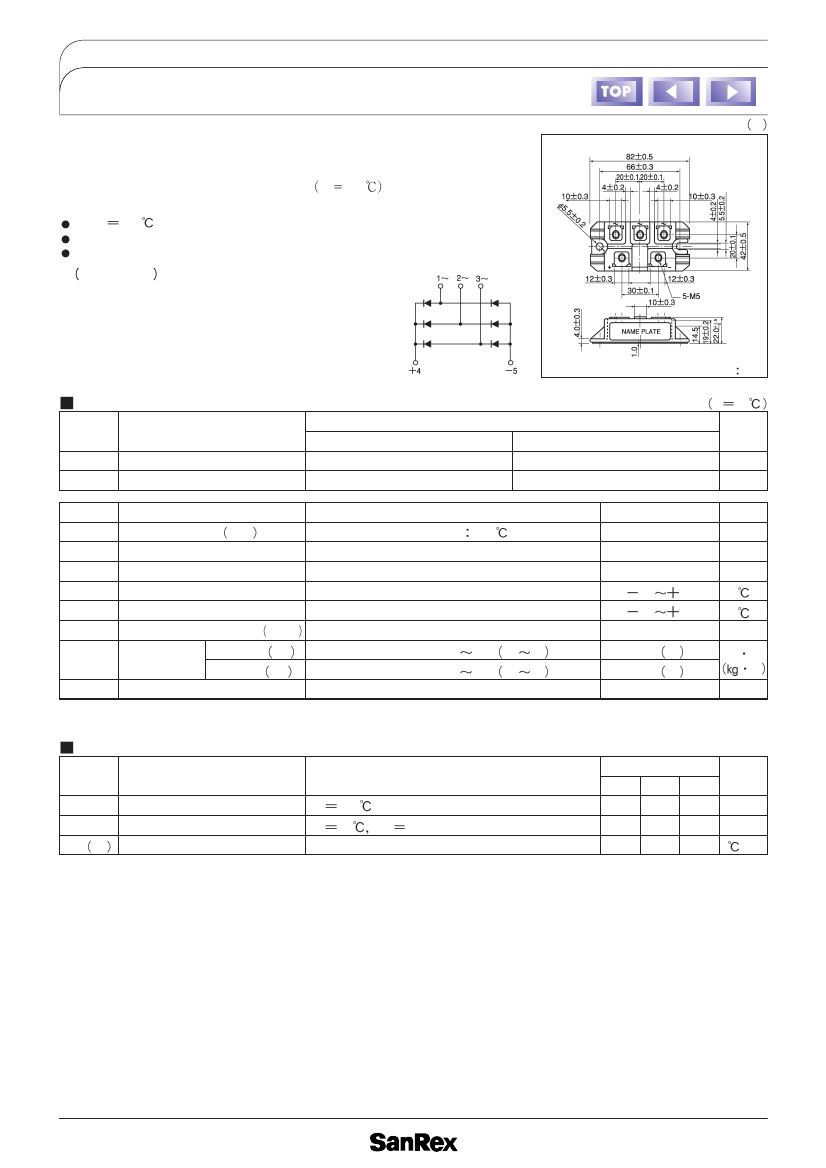

DIODE

(THREE PHASES BRIDGE TYPE)

DF100AA120/160

UL;E76102 M

Power Diode Module

DF100AA

is designed for three phase full wave rectification, which

has six diodes connected in a three phase bridge configuration. The mounting base of the

module is electrically isolated from semiconductor elements for simple heatsink

Repetitive peak reverse

construction. Output DC current is 100Amp Tc 102

voltage is up to 1,600V.

TjMax 150

Isolated mounting base

High reliability by unique glass passivation

Applications

AC, DC Motor Drive/AVR/Switching

-for three phase rectification

Unit

Maximum Ratings

Symbol

RRM

RSM

Symbol

FSM

Tj 25

Item

Ratings

DF100AA120

1200

1300

Conditions

Three phase full wave. T

102

1cycle, 50/60H

, peak value, non-repetitive

Value for one cycle of surge current

DF100AA160

1600

1700

Ratings

100

910/1000

4100

A.C. 1 minute

Recommended Value 1.5 2.5 15 25

Typical Value

150

N m

125

2500

2.7 28

160

Unit

Repetitive Peak Reverse Voltage

Non-Repetitive Peak Reverse Voltage

Item

Output Current D.C.

Surge Forward Current

Operating Junction Temperature

Storage Temperature

Isolation Breakdown Voltage R.M.S.

Mounting

Torque

Mass

Mounting M5

Terminal M5

Tstg

ISO

Electrical Characteristics

Symbol

RRM

Rth j-c

Item

Repetitive Peak Reverse Current

Forward Voltage Drop

Thermal Impedance

150

Conditions

at V

RRM

Ratings

Min.

Typ. Max.

1.2

0.2

Unit

100A, Inst. measurement

Junction to case

143

DF100AA120 Related Products

	DF100AA120	DF100AA160
Description	Bridge Rectifier Diode, 100A, 1200V V(RRM),	Bridge Rectifier Diode, 100A, 1600V V(RRM),
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Configuration	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	1.2 V
Maximum non-repetitive peak forward current	1000 A	1000 A
Number of components	6	6
Maximum operating temperature	150 °C	150 °C
Maximum output current	100 A	100 A
Maximum repetitive peak reverse voltage	1200 V	1600 V
surface mount	NO	NO
Base Number Matches	1	1
