DCR-37ST-F179 datasheet, PDF - EEWORLD Datasheet

DCR-37ST-F179: DescriptionD Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Wire Wrap Terminal, Hole .087-.098, Plug,; CategoryThe connector The connector; File Size201KB，3 Pages; ManufacturerBel Fuse

Download Datasheet Parametric View All

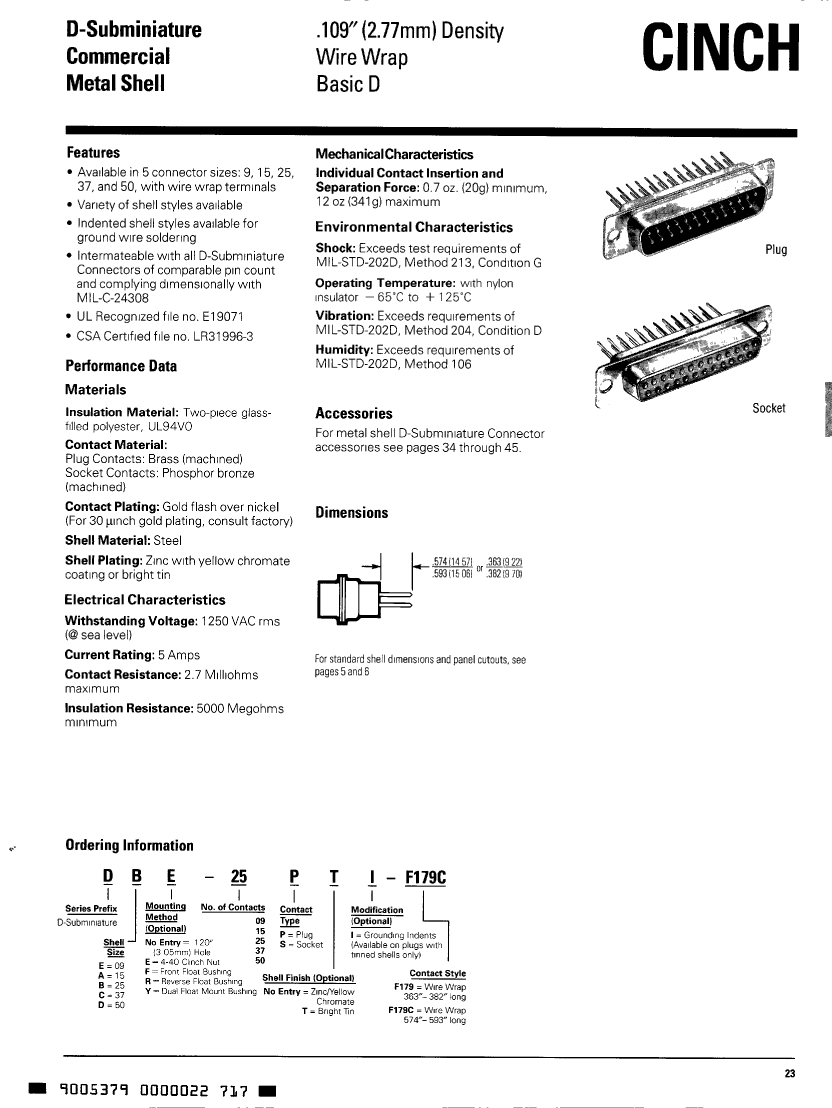

DCR-37ST-F179 Overview

D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, Wire Wrap Terminal, Hole .087-.098, Plug,

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
body length	2.729 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	2.7 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1250VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	YES
Manufacturer's serial number	D
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch

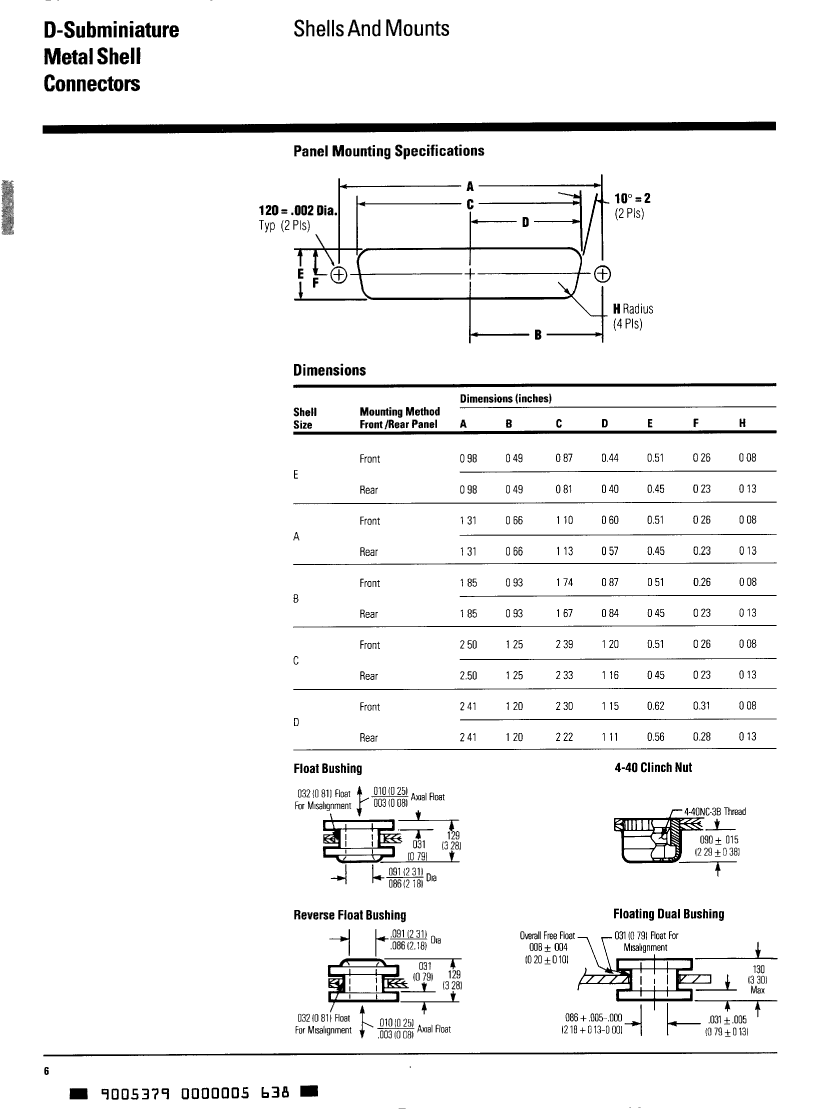

Installation option 1	HOLE .087-.098
Installation option 2	REV FLOAT BUSHING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	MIL-C-24308
Shell surface	TIN
Shell material	STEEL
Terminal length	0.363 inch
Terminal pitch	2.7686 mm
Termination type	WIRE WRAP
Total number of contacts	37
Evacuation force-minimum value	.1946 N
Base Number Matches	1
