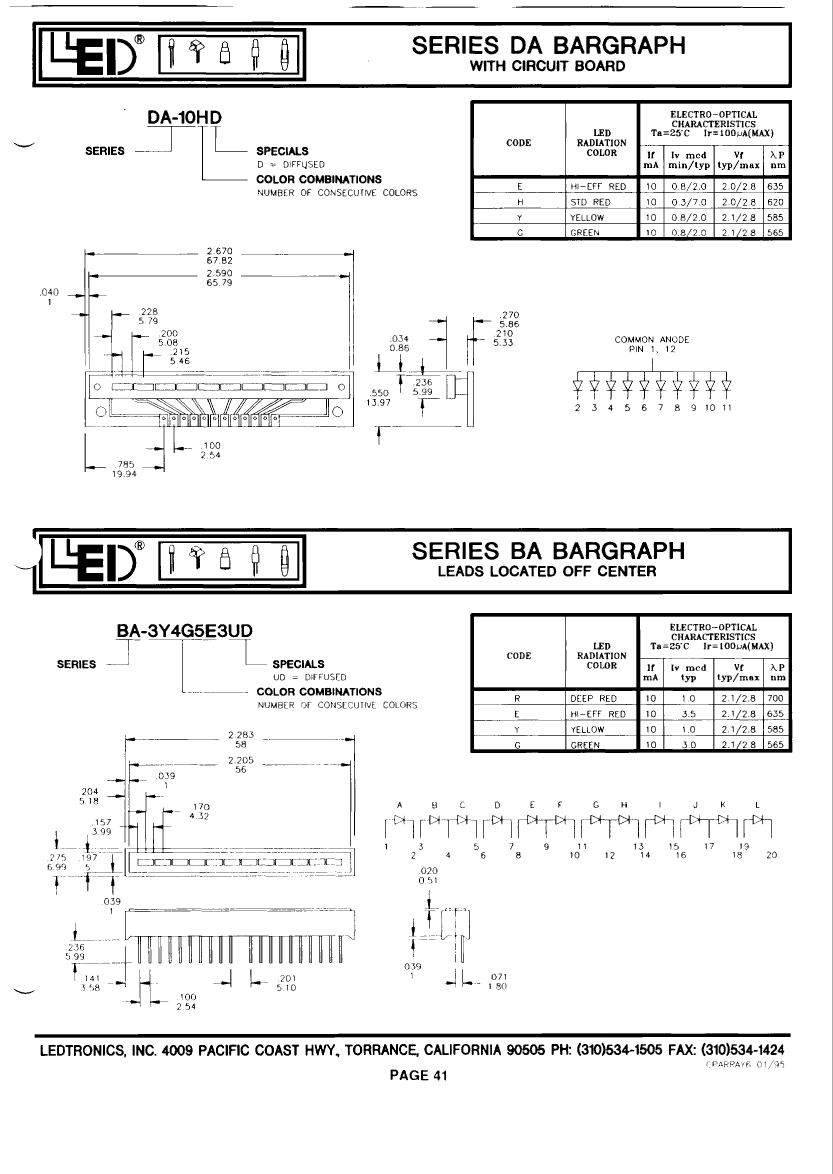

DA-10HD: DescriptionSingle Color LED Array, Standard Red, Diffused, 3.99mm, 12 PIN; CategoryLED optoelectronic/LED photoelectric; File Size37KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric Compare View All

DA-10HD Overview

Single Color LED Array, Standard Red, Diffused, 3.99mm, 12 PIN

DA-10HD Parametric

Parameter Name	Attribute value
package instruction	12 PIN
Reach Compliance Code	unknown
color	STANDARD RED
Configuration	COMMON ANODE, 10 ELEMENTS
Maximum forward current	0.01 A
Lens type	DIFFUSED
Nominal luminous intensity	7 mcd
Installation features	SURFACE MOUNT
Number of functions	10
Number of terminals	12
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	5.33 mm
method of packing	BULK
peak wavelength	620 nm
shape	RECTANGULAR
size	3.99 mm
surface mount	YES
Terminal pitch	2.54 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DA-10HD Related Products

	DA-10HD	DA-10ED	BA-3Y4R5E3UD	BA-3Y4E5E3UD	BA-3Y4G5E3UD	BA-3Y4Y5E3UD
Description	Single Color LED Array, Standard Red, Diffused, 3.99mm, 12 PIN	Single Color LED Array, High Efficiency Red, Diffused, 3.99mm, 12 PIN	Single Color LED Array, Deep Red, Diffused, 5.08mm, 20 PIN	Single Color LED Array, High Efficiency Red, Diffused, 5.08mm, 20 PIN	Single Color LED Array, Green, Diffused, 5.08mm, 20 PIN	Single Color LED Array, Yellow, Diffused, 5.08mm, 20 PIN
package instruction	12 PIN	12 PIN	20 PIN	20 PIN	20 PIN	20 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
color	STANDARD RED	HIGH EFFICIENCY RED	DEEP RED	HIGH EFFICIENCY RED	GREEN	YELLOW
Configuration	COMMON ANODE, 10 ELEMENTS	COMMON ANODE, 10 ELEMENTS	COMPLEX	COMPLEX	COMPLEX	COMPLEX
Maximum forward current	0.01 A	0.01 A	0.01 A	0.01 A	0.01 A	0.01 A
Lens type	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	7 mcd	2 mcd	1/3.5 mcd	3.5/1 mcd	3.5/1/3 mcd	3.5/1 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	10	10	12	12	12	12
Number of terminals	12	12	20	20	20	20
Optoelectronic device types	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY
method of packing	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	620 nm	635 nm	700/635/585 nm	635/585 nm	635/585/565 nm	635/585 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	3.99 mm	3.99 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
surface mount	YES	YES	NO	NO	NO	NO
Maker	-	-	LEDtronics	LEDtronics	LEDtronics	LEDtronics
