DUG57C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> DUG57C

DUG57C: DescriptionSmart/Normal 7 Seg Numeric LED Display, Green, 56.9mm, ROHS COMPLIANT PACKAGE-10; CategoryLED optoelectronic/LED photoelectric; File Size189KB，5 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

DUG57C Overview

Smart/Normal 7 Seg Numeric LED Display, Green, 56.9mm, ROHS COMPLIANT PACKAGE-10

DUG57C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-10
Reach Compliance Code	compliant
ECCN code	EAR99
color	GREEN
Configuration	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display height	56.9 mm
Maximum forward current	0.025 A
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

Part Number:

www.SunLED.com

DUG57C

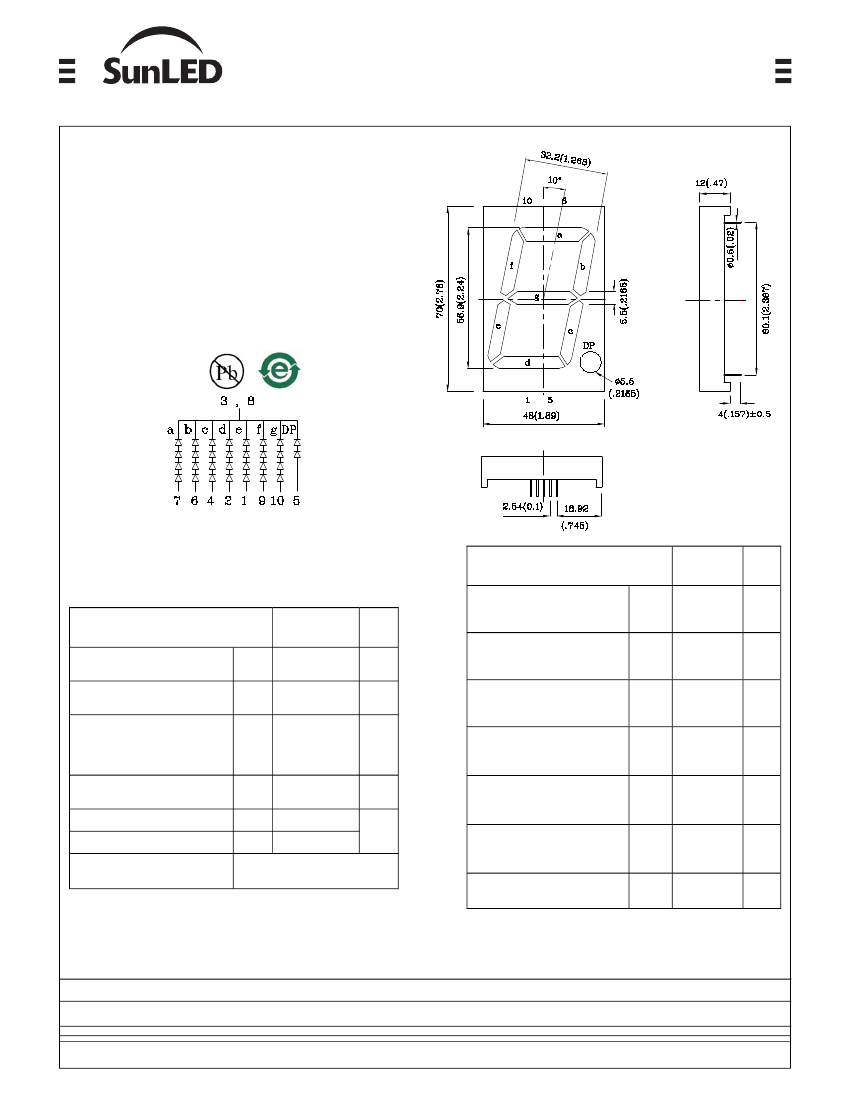

56.9mm (2.3”) SINGLE DIGIT NUMERIC DISPLAY

Features

2.3 INCH DIGIT HEIGHT.

LOW CURRENT OPERATION.

EXCELLENT CHARACTER APPEARANCE.

HIGH LIGHT OUTPUT.

EASY MOUNTING ON P.C.BOARDS OR SOCKETS.

MULTICOLOR AVAILABLE.

MECHANICALLY RUGGED.

STANDARD : GRAY FACE, WHITE SEGMENT.

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3.Specifications are subject to change without notice.

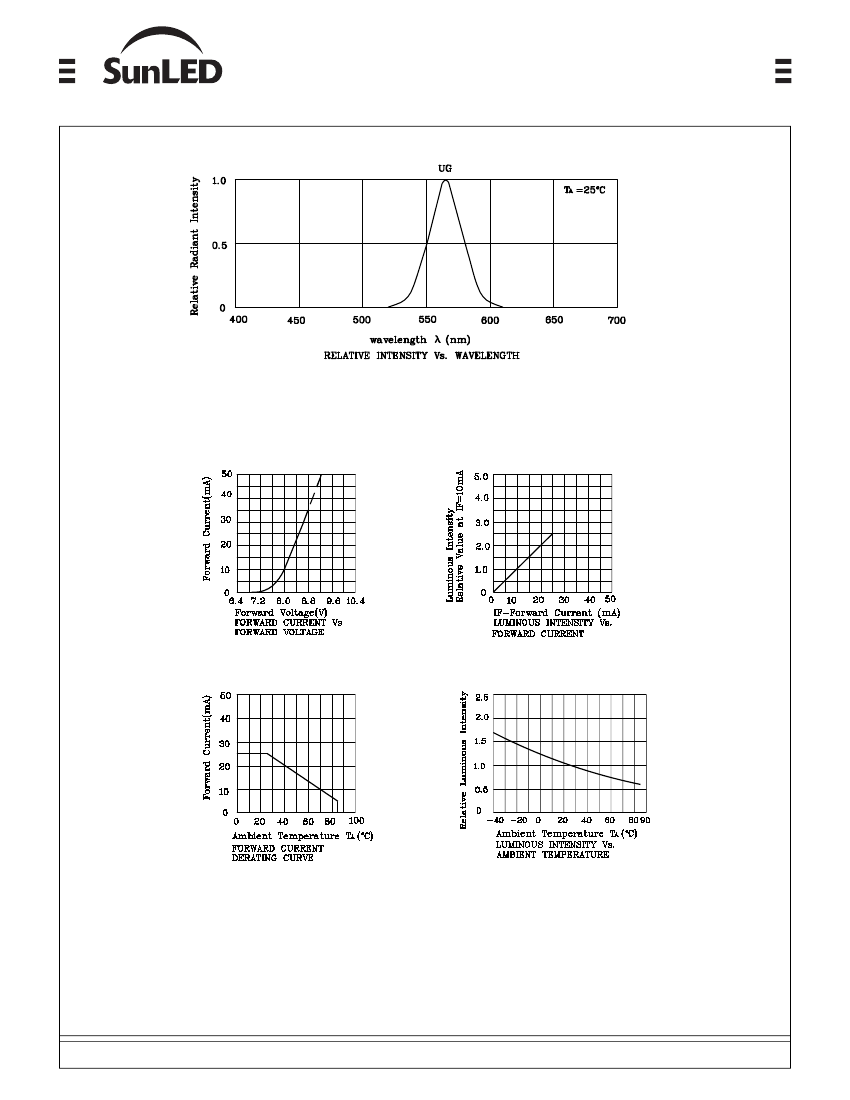

Operating Characteristics

(TA=25°C)

Forward Voltage (Typ.)

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Per Segment Or ( DP)

(GaP)

8.0(4.0)

Unit

(GaP)

20(10)

25(25)

Unit

(IF=10mA)

Forward Voltage (Max.)

Per Segment Or ( DP)

(IF=10mA)

Reverse Current

Per Segment Or (Dp)

10.0(5.0)

Forward Current

Per Segment Or ( DP)

Forward Current (peak)

Per Segment Or ( DP)

(VR=20(10)V)

140

Wavelength Of Peak

Emission (Typ.)

(IF=10mA)

Wavelength Of Dominant

Emission (Typ.)

(IF=10mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

(IF=10mA)

Capacitance (Typ.)

(VF=0V, f=1MHz)

Luminous

Intensity

(IF=10mA)

ucd

min.

typ.

52990

565

Wavelength

1/10Duty Cycle

0.1ms Pulse Width

Power Dissipation

Per Segment Or ( DP)

565

Tstg

250(125)

-40 ~ +85

°C

568

Operating Temperature

Storage Temperature

Lead Solder Temperature

[2mm Below Package Base]

Δλ

260°C For 3~ 5 Seconds

Part

Number

Emitting

Color

Emitting

Material

Description

DUG57C

Green

GaP

12000

Common Cathode, Rt. Hand Decimal

Checked : Shin Chi

P.1/5

Published Date : MAR 04, 2008

Drawing No : SDSA2168
