DF4GD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> DF4GD

DF4GD: DescriptionSingle Color LED, Green, Diffused, 13.4mm,; CategoryLED optoelectronic/LED photoelectric; File Size161KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com

Download Datasheet Parametric Compare View All

DF4GD Overview

Single Color LED, Green, Diffused, 13.4mm,

DF4GD Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IC COMPATIBLE
color	GREEN
Configuration	SEPARATE, 4 ELEMENTS
Maximum forward current	0.025 A
Lens type	DIFFUSED
Nominal luminous intensity	52.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	11.2 mm
method of packing	BULK
peak wavelength	565 nm
shape	SQUARE
size	13.4 mm
surface mount	NO
Terminal pitch	12.55 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

15mmx15mm LIGHT BARS

DE4ID HIGH EFFICIENCY RED

DE4SRD SUPER BRIGHT RED

DE4SGD SUPER BRIGHT GREEN

DE4GD GREEN

DE4YD YELLOW

Features

UNIFORM

EASILY

Description

LIGHT EMITTING AREA.

The High Efficiency Red source color devices are made with

Gallium Arsenide Phosphide on Gallium Phosphide Orange

Light Emitting Diode.

The Green and Super Bright Green source color devices are

made with Gallium Phosphide Green Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

RUGGED.

Emitting Diode.

The Super Bright Red source color devices are made with

Gallium Aluminum Arsenide Red Light Emitting Diode.

MOUNTED ON P.C. BOARDS OR

MOUNTABLE.

ON/OFF CONTRAST.

INDUSTRY STANDARD SOCKETS.

FLUSH

EXCELLENT

CAN

BE USED WITH PANELS AND LEGEND

MOUNTS.

MECHANICALLY

I.C.

COMPATIBLE.

BRIGHT RED AVAILABLE.

SUPER

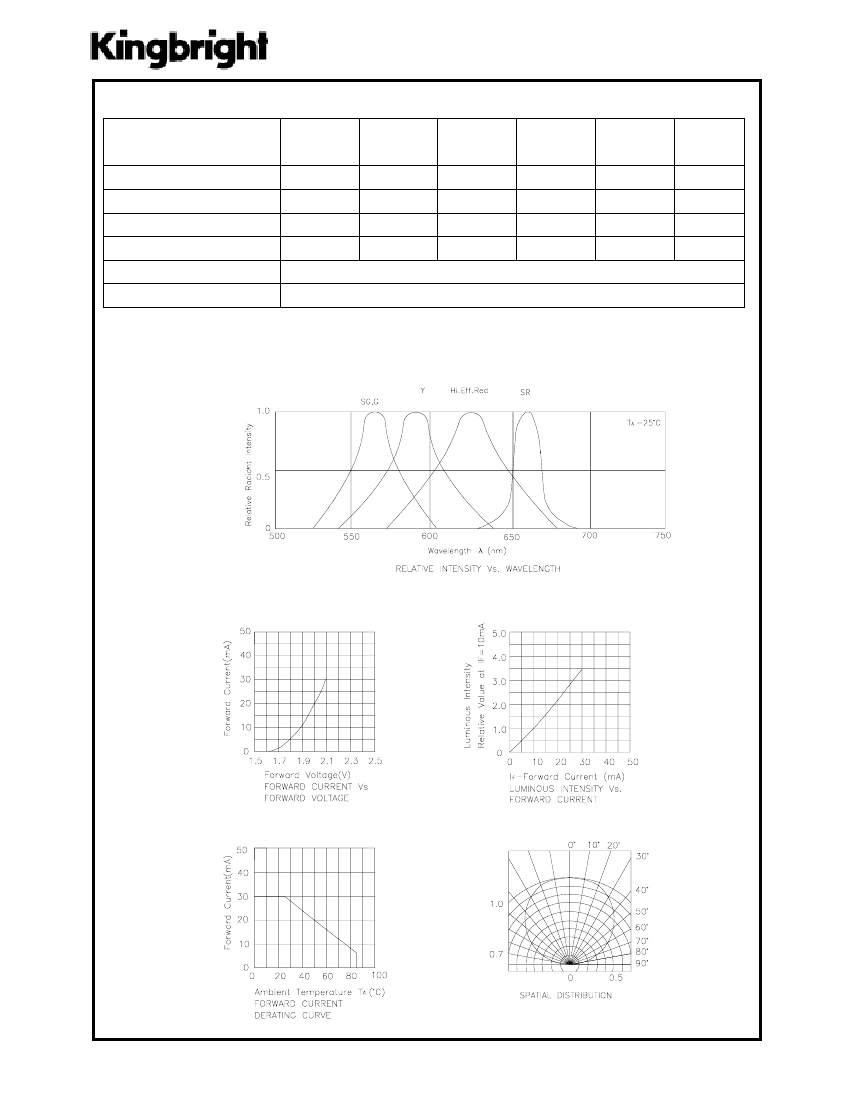

Package Dimensions & Internal Circuit Diagram

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: CDA0827

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: NOV/18/2001

DRAWN: R.X.Jin

PAGE: 1 OF 5

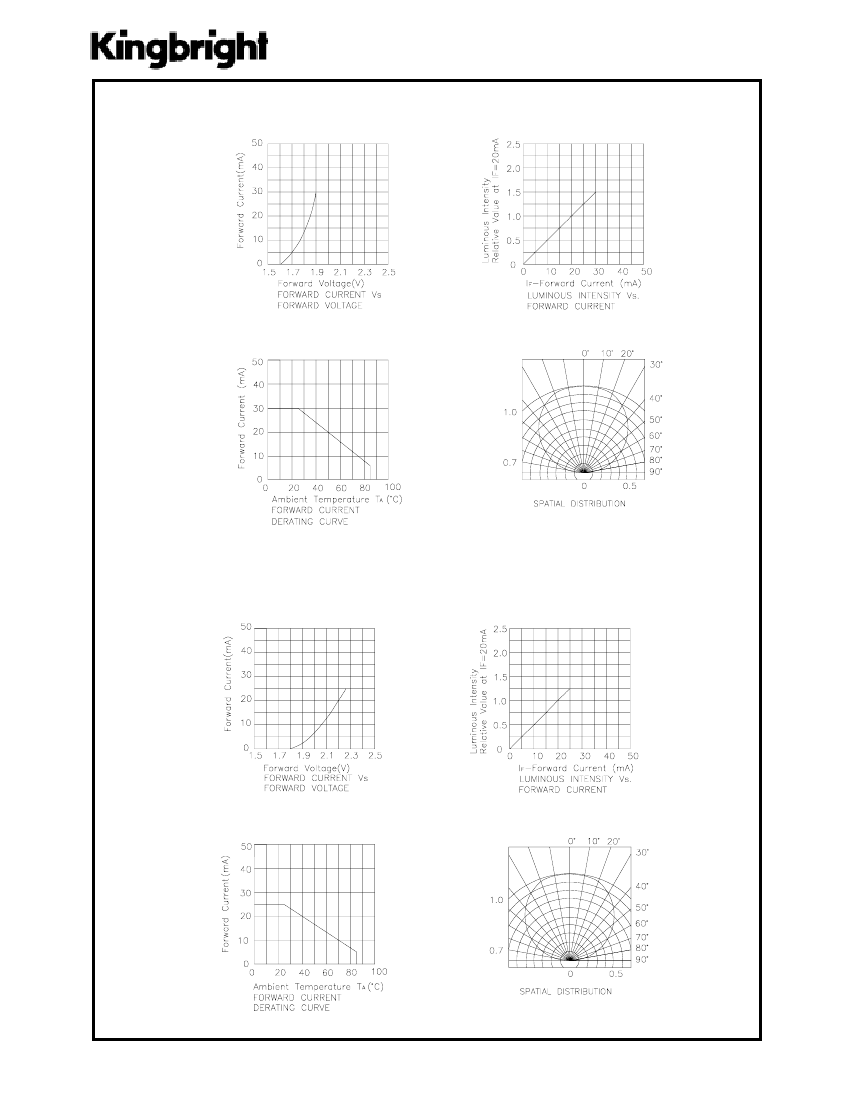

DF4GD Related Products

	DF4GD	DF4SGD	DF4ID	DF4SRD	DF4YD
Description	Single Color LED, Green, Diffused, 13.4mm,	Single Color LED, Super Bright Green, Diffused Green, 13.4mm,	Single Color LED, High Efficiency Red, Diffused Red, 13.4mm,	Single Color LED, Super Bright Red, Diffused Red, 13.4mm,	Single Color LED, Yellow, Diffused, 13.4mm,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE
color	GREEN	SUPER BRIGHT GREEN	HIGH EFFICIENCY RED	SUPER BRIGHT RED	YELLOW
Configuration	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS
Maximum forward current	0.025 A	0.025 A	0.03 A	0.03 A	0.03 A
Lens type	DIFFUSED	DIFFUSED GREEN	DIFFUSED RED	DIFFUSED RED	DIFFUSED
Nominal luminous intensity	52.0 mcd	100.0 mcd	31.0 mcd	300.0 mcd	31.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1
Number of terminals	8	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	11.2 mm	11.2 mm	11.2 mm	11.2 mm	11.2 mm
method of packing	BULK	BULK	BULK	BULK	BULK
peak wavelength	565 nm	565 nm	627 nm	660 nm	590 nm
shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
size	13.4 mm	13.4 mm	13.4 mm	13.4 mm	13.4 mm
surface mount	NO	NO	NO	NO	NO
Terminal pitch	12.55 mm	12.55 mm	12.55 mm	12.55 mm	12.55 mm
perspective	120 deg	120 deg	120 deg	120 deg	120 deg
Base Number Matches	1	1	1	-	-
