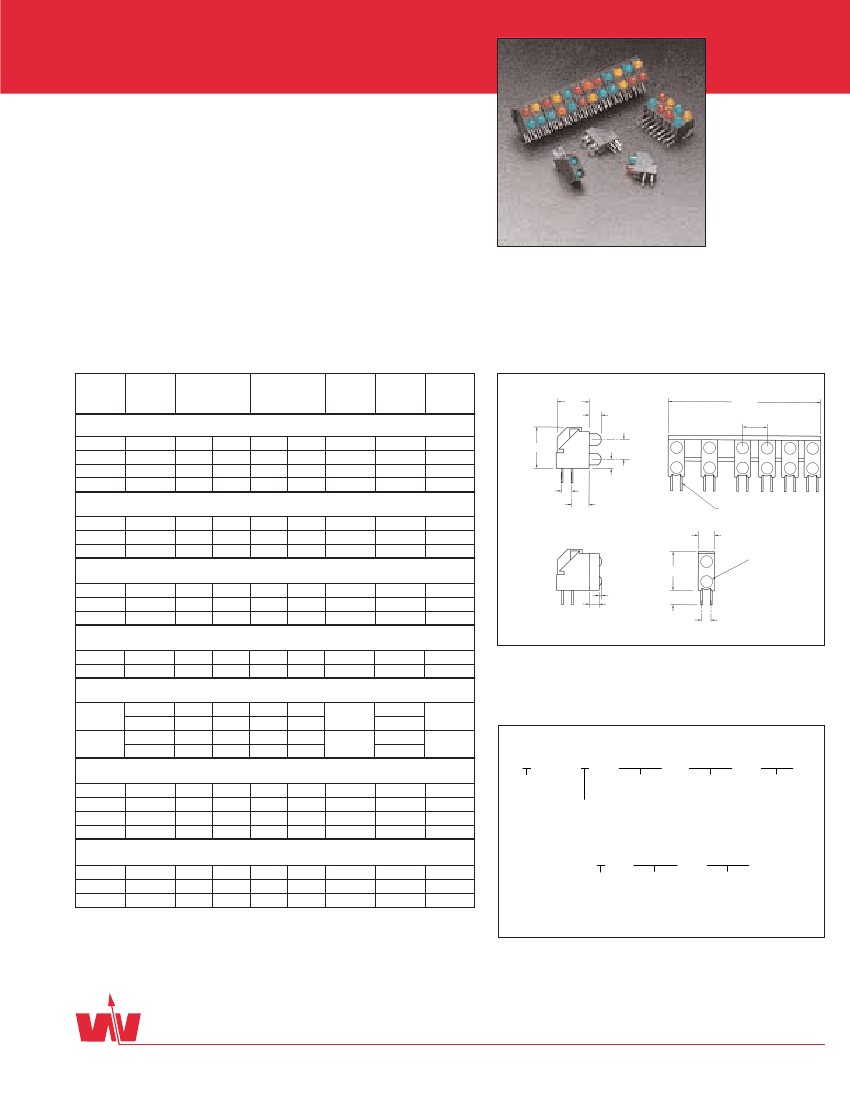

DRA/DRS Series T1

Right Angle LED Bar*

Special Features

*Patented

• Bilevel design saves PC board space

• Customized to your specifications without tooling charges

Variable LED spacing, minimum .170˝, maximum bar length 6˝

Variable color sequence

• Shrouded version available for backlighting

• Bar provides consistent alignment for multiple LED mounting

• Available with a variety of LEDs

• Bottom standoff facilitates board washing

• Wave solderable and chemically cleanable

• Housing and bar material UL 94V-0 rated

3mm PC Board Mount LEDs

Electrical and Optical Characteristics (TA=25°C)

LED

Part#

Color

Luminous

Intensity (mcd)

Typ.@IF(mA)

VF Typ.@IF (mA)

Viewing

Angle

2Θ

Peak

Wavelength LED Data

(mm)

Page#

Package Dimensions

.330

(8.4)

.125 REF

(3.2)

.200

(5.0)

.100 (2.5)

.100

(2.5)

.175

(4.4)

CATHODE LEAD (TYP.)

(Red/Yellow cathode

for bicolor)

.170 TYP.

(4.3)

.120 DIA.

(3.0)

.400 REF (10.2)

6.0 MAX

(152.4)

.170 MIN

(4.3)

HIGH EFFICIENCY

1300

1301

1302

1313

Yellow

Red

Green

Orange

6.0

5.5

5.0

5.5

2.0

1.9

2.1

1.9

60°

583

635

565

600

.430 MAX

(10.9)

LOW CURRENT

1303

1304

1305

Red

Yellow

Green

2.1

1.6

2.1

1.8

1.9

1.8

50°

635

583

565

5V INTERNAL RESISTOR

1307

1308

1309

Red

Yellow

Green

8.0

5.0

60°

635

583

565

.024 REF

(0.6)

.100

(2.5)

WITH SHROUD

.135 MIN (3.4)

.100 (2.5)

BLUE

8310

8311

Blue

25.0

55.0

4.5

60°

20°

430

All Dimensions are in inches (mm)

Standard Polarity shown in drawing: Cathode right

BICOLOR

8901

8903

Red

Green

Yellow

Green

20.0

10.0

20.0

2.0

2.2

2.1

2.2

60°

625

565

590

565

How To Order

MULTIPLE DRA/DRS LEDs ON A BAR

x — DR x — x x x x — x x x x — x x x

# of Modules

Per Bar

Standard = A

Shrouded = S

Top Pos.

See LED Lamp

Chart for Part #

(use MCOO for

multiple colors)

Bottom Pos.

See LED Lamp

Chart for Part #

(use MCOO for

multiple colors)

Center to Center

spacing of LEDs

in inches

(If spacing varies,

use SPL)

ULTRA BRIGHT

1310

1311

1312

1315

Red

Yellow

Green

Red

45.0

1.9

2.1

2.2

1.8

45°

60°

635

583

565

645

INDIVIDUAL DRA/DRS LEDs

SUPER ULTRA BRIGHT

8306

8312

8313

Green

Yellow

Red

200.0

700.0

800.0

2.2

2.0

1.85

50°

565

595

660

DR X — X X X X — X X X X

Standard = A

Shrouded = S

Top Pos.

See LED

Lamp Chart

for Part #

Bottom Pos.

See LED

Lamp Chart

for Part #

Note: Consult factory if your color sequence and/or spacing varies.

WILBRECHT

ELECTRONICS, INC.

LEDCO

DIVISION

1400 Energy Park Drive, Suite 18 • St. Paul, MN 55108-5248 • (651) 659-0919 • Toll free (888) 323-8751 • FAX (651) 659-9204 • www.wilbrecht.com
