D10AA10Z1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> D10AA10Z1

D10AA10Z1: DescriptionFixed Attenuator, 0MHz Min, 3000MHz Max, SURFACE MOUNT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size816KB，2 Pages; ManufacturerAnaren; Websitehttp://www.anaren.com/

Download Datasheet Parametric Compare View All

D10AA10Z1 Overview

Fixed Attenuator, 0MHz Min, 3000MHz Max, SURFACE MOUNT PACKAGE

D10AA10Z1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Nominal attenuation	10 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	38.45 dBm
Maximum operating frequency	3000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

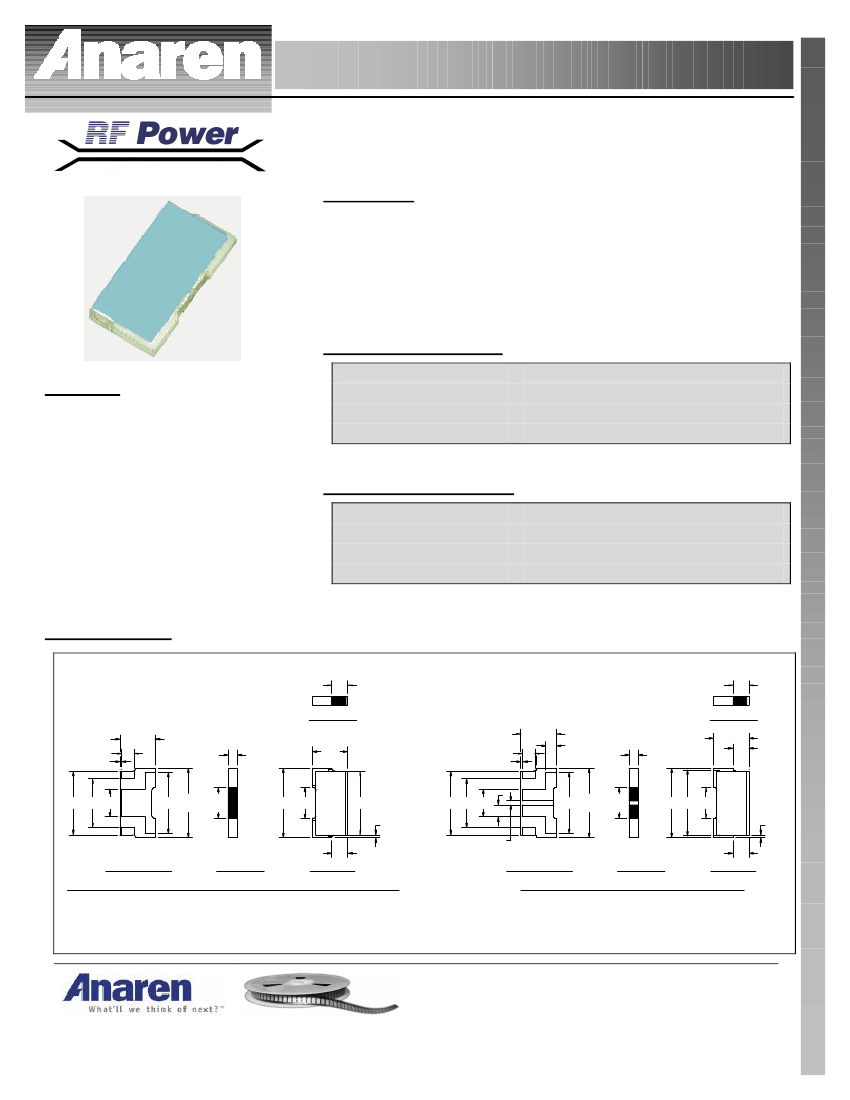

Model D10AAXXZ1

Surface Mount Attenuator

10 Watts

Description

The D10AAXXZ1 is high performance Alumina (Al2O3) surface mount

attenuator intended as a lower cost alternative to Aluminum Nitride (AlN)

and Beryllium Oxide (BeO). The attenuator is well suited to all cellular

frequency bands such as; AMPS, GSM, DCS, PCS, PHS and UMTS. The

high power handling makes the part ideal for inter-stage matching,

directional couplers, and for use in isolators.

General Specifications

Features:

•

10 Watts

•

Lowest Cost

•

True Surface Mount

•

Alumina Ceramic

•

Non-Nichrome Resistive

Element

•

Low VSWR

•

100% Tested

Resistive Element

Substrate

Terminal Finish

Operating Temperature

Thick film

Alumina Ceramic

Thick film Silver

-55 to +125°C (see chart)

Tolerance is

±0.010”,

unless otherwise specified. Designed to meet of exceed

applicable portions of MIL-E -5400. All dimensions in inches.

Electrical Specifications

Attenuation Value:

Power:

Frequency Range:

V.S.W.R.:

1 – 6, 9, 10, 20 & 30dB

10 Watts

DC – 3.0 GHz

<1.25:1

Specification based on unit properly installed using suggested mounting instructions

and a 50 ohm nominal impedance.

Specifications subject to change.

Outline Drawing

.045

REF.

.045

REF.

SIDE VIEW

.100

REF.

.035

.005

.100

REF.

.025

.100

.030

.035

.005

SIDE VIEW

.100

.045

.025

.175

.182

.140 .080

.175

BOTTOM VIEW

.200

REF.

.090

REF.

.035

.182

.182 .140 .080

.200

.090

.009

.010

.045

.200

REF.

.090

REF.

.200 .190

.090

.009

BOTTOM VIEW

SIDE VIEW

TOP VIEW

.045

SIDE VIEW

TOP VIEW

FOR PART NUMBERS D10AA1Z1 TO D10AA6Z1, D10AA9Z1 AND D10AA10Z1

FOR PART NUMBERS D10AA20Z1 AND D10AA30Z1

Dimensions given in inches.

Rev. 11/07/03

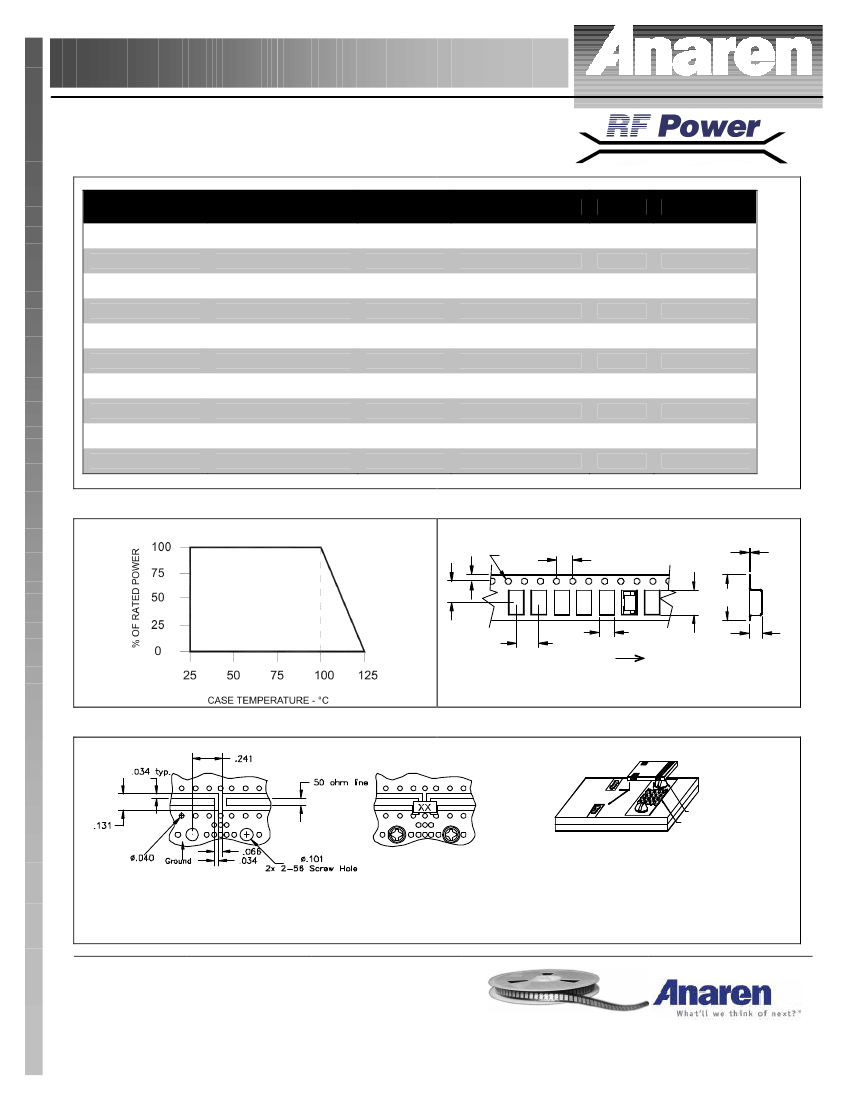

Available on Tape

and Reel For Pick and

Place Manufacturing.

USA/Canada:

Toll Free:

Europe

(315) 432-8909

(800) 544-2414

+44 2392-232392

D10AA10Z1 Related Products

	D10AA10Z1	D10AA5Z1	D10AA6Z1	D10AA2Z1	D10AA3Z1	D10AA1Z1	D10AA9Z1	D10AA20Z1	D10AA4Z1	D10AA30Z1
Description	Fixed Attenuator, 0MHz Min, 3000MHz Max, SURFACE MOUNT PACKAGE	Fixed Attenuator, 0MHz Min, 3000MHz Max, SURFACE MOUNT PACKAGE	Fixed Attenuator, 0MHz Min, 3000MHz Max, SURFACE MOUNT PACKAGE	Fixed Attenuator, 0MHz Min, 3000MHz Max, SURFACE MOUNT PACKAGE	Fixed Attenuator, 0MHz Min, 3000MHz Max, SURFACE MOUNT PACKAGE	Fixed Attenuator, 0MHz Min, 3000MHz Max, SURFACE MOUNT PACKAGE	Fixed Attenuator, 0MHz Min, 3000MHz Max, SURFACE MOUNT PACKAGE	Fixed Attenuator, 0MHz Min, 3000MHz Max, SURFACE MOUNT PACKAGE	Fixed Attenuator, 0MHz Min, 3000MHz Max, SURFACE MOUNT PACKAGE	Fixed Attenuator, 0MHz Min, 3000MHz Max, SURFACE MOUNT PACKAGE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Nominal attenuation	10 dB	5 dB	6 dB	2 dB	3 dB	1 dB	9 dB	20 dB	4 dB	30 dB
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT
Maximum input power (CW)	38.45 dBm	38.45 dBm	38.45 dBm	38.45 dBm	38.45 dBm	38.45 dBm	38.45 dBm	38.45 dBm	38.45 dBm	38.45 dBm
Maximum operating frequency	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25
