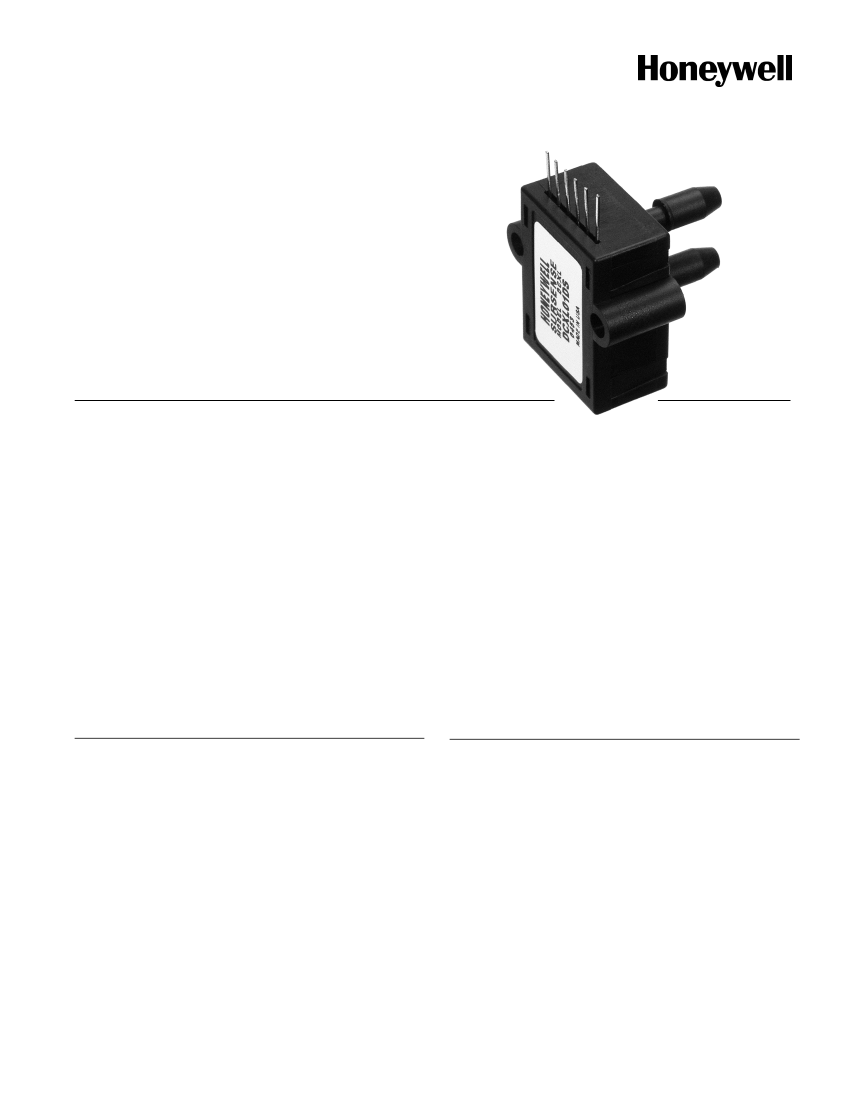

DCXL-DS Series
SURSENSE™ Ultra Low
Pressure Sensor
Silicon Pressure Sensors
DESCRIPTION
The SURSENSE line of ultra low pressure sensors is
based upon a proprietary technology designed to reduce
output offset or common mode errors.
These sensors use a silicon micromachined sensing
element which features a unique stress concentration-
enhanced structure to provide a highly stable linear
output that is proportional to applied pressure. Output
offset errors due to changes in temperature, warm-up,
long-term stability and position sensitivity have all been
significantly reduced when compared to conventional
sensors.
FEATURES
The DCXL-DS Series provides a precision calibrated,
ratiometric mV output with SURSENSE-enhanced
stability. Each sensor features calibrated offset, full scale
span and thermal error calibration to promote accuracy
for flow pressure measurement. These highly stable
sensors feature an industry-standard, ported package
with improved stress isolation for printed circuit board
mount applications. The housing design incorporates a
snap together cover and housing leading to improved
quality and performance.
Product is patented by US patent 6023978.
TYPICAL APPLICATIONS
•
Temperature compensated
0
°C
to 50
°C
[32
°F
to
122
°F]
•
Available in gage and differential pressure ranges
•
Combined linearity and hysteresis error <
±0.25
%
span
•
•
•
•
Medical
HVAC
Industrial instrumentation
Environmental controls
DCXL-DS Series SURSENSE™ Ultra Low Pressure
Sensor
ELECTRICAL SPECIFICATIONS (12 Vdc excitation at 25 °C [77
°F])
Parameter
Excitation voltage
Null offset
Span except DCXL01DS
Span DCXL01DS
Offset temperature shift
0
ºC
to 50
ºC
[32
ºF
to 122
ºF]
1
except DCXL01DS
Offset temperature shift
0
ºC
to 50
ºC
[32
ºF
to 122
ºF]
1
DCXL01DS
Span temperature shift
0
ºC
to 50
ºC
[32
ºF
to 122
ºF]
1
Linearity, hysteresis error
2
Compensated temperature
Operating temperature
Storage temperature
Offset warm-up shift
3
except DCXL01DS
Offset warm-up shift
3
DCXL01DS
Offset position sensitivity (±1 g) DCXL01DS
Offset position sensitivity (±1 g) DCXL05DS, DCXL10DS
Offset position sensitivity (±1 g) DCXL20DS, DCXL30DS
Notes:
1. Shift is relative to 25 °C [77 °F].
2. Measured at ½ full scale rated pressure using BFSL.
3. Shift is within the first hour of excitation applied to the device.
Min.
3.0
-500
19.0
9.0
-150
-250
-200
–
0 [32]
-25 [-13]
-40 [-40]
–
–
–
–
–
Typ.
12.0
0
20.0
10.0
–
0
0
0.05
–
–
–
±50
±100
±50
±10
±5
Max.
16.0
500
21.0
11.0
150
250
200
0.25
50 [122]
85 [185]
125 [257]
–
–
–
–
–
Unit
Vdc
µV
mV
mV
µV
µV
µV
% span
°C
[°F]
°C
[°F]
°C
[°F]
µV
µV
µV
µV
µV
SERIES PRESSURE RATINGS
Parameter
Operating pressure range
Maximum overpressure
Common mode
01D
1.0
5
50
05D
5.0
5
50
10D
10.0
5
50
20D
20.0
5
50
30D
30.0
5
50
Unit
IN H
2
O
PSI
PSI
DCXL-DS SERIES TYPICAL RESISTANCE VALUES (by catalog listing)
Parameter
Input resistance
Output resistance
01D
4.5
1.5
05D
10
1.5
10D
13
1.5
20D
10
2
30D
12
1.5
Unit
kΩ
kΩ
2
www.honeywell.com/sensing
Silicon Pressure Sensors

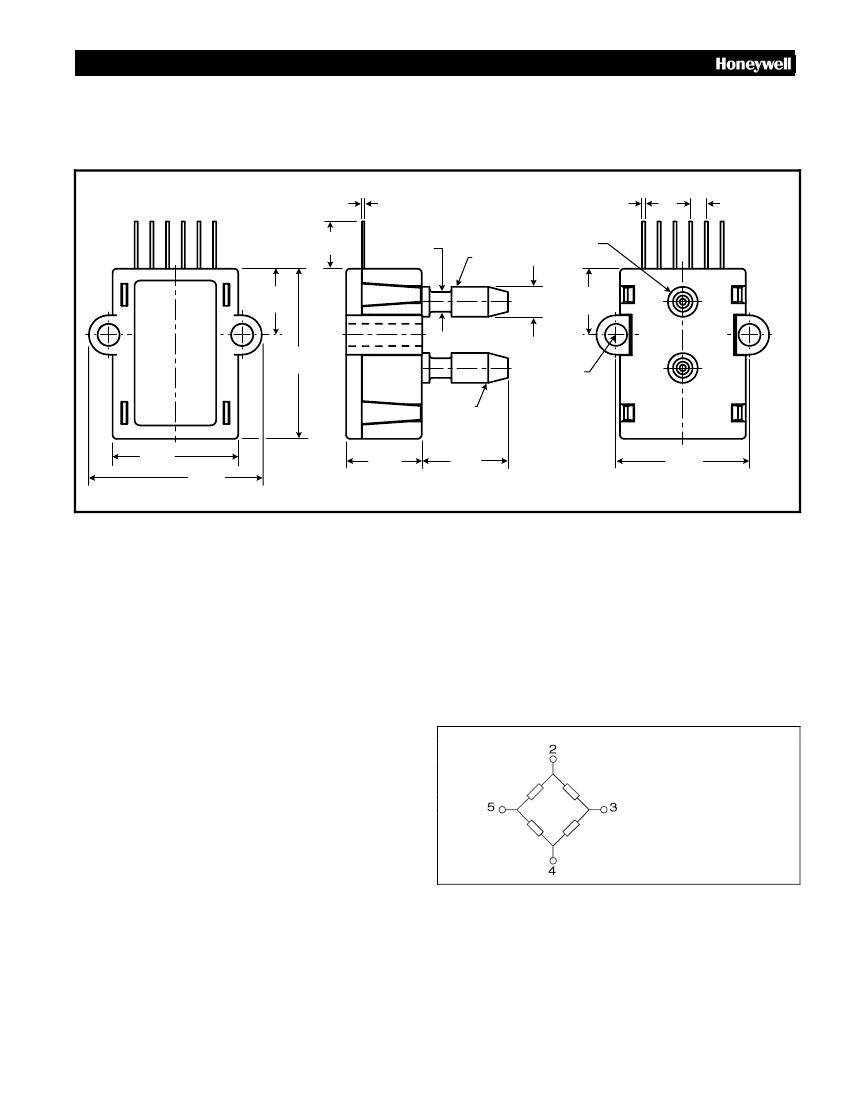

MOUNTING DIMENSIONS (for reference only mm/[in])
0,25
[0.01]
6 5 4 3 2 1
7,62
[0.30]
Ø 3,30
[0.13]
Ø 2,03
[0.08]
0,51
[0.02]
1 2 3 4 5 6
2,54
[0.10]
PORT 1
16,67
[0.42]
Ø 4,83
[0.19]
5,33
[0.21]
27,43
[1.08]
PORT 2
Ø 3,56
[0.14]
20,32
[0.80]
1,10
[27,94]
12,19
[0.48]
14,0
[0.55]
21,6
[0.85]
MEDIA COMPATIBILITY (wetted materials)
Ports 1 and 2: Dry gases only. Media must be
compatible with epoxy-based adhesive, silicon,
silicone, gold, nylon and alumina.
PRESSURE COMPATIBILITY
Measures differential or gage pressure and vacuum.
Pressure may be applied to either port. For pressure to
the low pressure port, the output polarity is reversed.
RATIOMETRIC OUTPUT
The output voltage of the sensor is ratiometric
(proportional) to the excitation voltage. All specifications
will change proportionally to any changes in the excitation
voltage, which may vary between 3 Vdc to 16 Vdc. All
specifications will nominally be changed by a ratio of
V Excitation/12.0 Vdc. For example: if the excitation
voltage is 5.0 Vdc, then both the full scale output voltage
and the offset voltage nominal would be 5/12th the
specified value.
EQUIVALENT CIRCUIT
PINOUT
1. N/C
2. +V Supply
3. +V Output
4. –V Supply
5. –V Output
6. N/C
Honeywell Sensing and Control
3
ORDER GUIDE
DCXL
Series
DCLX Compensated and calibrated, mV
05
Pressure Range
01, 05, 10, 20, 30 in H
2
0
D
Pressure Reference
D - Differential
S
Package Type
S - Snap cover
WARNING
PERSONAL INJURY
DO NOT USE these products as safety or emergency stop
devices or in any other application where failure of the
product could result in personal injury.
Failure to comply with these instructions could result in
death or serious injury.
WARRANTY/REMEDY
Honeywell warrants goods of its manufacture as being free of
defective materials and faulty workmanship. Honeywell’s
standard product warranty applies unless agreed to otherwise
by Honeywell in writing; please refer to your order
acknowledgement or consult your local sales office for specific
warranty details. If warranted goods are returned to Honeywell
during the period of coverage, Honeywell will repair or replace,
at its option, without charge those items it finds defective.
The
foregoing is buyer’s sole remedy and is in lieu of all other
warranties, expressed or implied, including those of
merchantability and fitness for a particular purpose. In no
event shall Honeywell be liable for consequential, special,
or indirect damages.
While we provide application assistance personally, through
our literature and the Honeywell web site, it is up to the
customer to determine the suitability of the product in the
application.
Specifications may change without notice. The information we
supply is believed to be accurate and reliable as of this
printing. However, we assume no responsibility for its use.
•
WARNING
MISUSE OF DOCUMENTATION
The information presented in this product sheet is for
reference only. Do not use this document as a product
installation guide.
•
Complete installation, operation, and maintenance
information is provided in the instructions supplied with
each product.
Failure to comply with these instructions could result in
death or serious injury.
SALES AND SERVICE
Honeywell serves its customers through a worldwide network
of sales offices, representatives and distributors. For
application assistance, current specifications, pricing or name
of the nearest Authorized Distributor, contact your local sales
office or:
E-mail:
info.sc@honeywell.com
Internet:
www.honeywell.com/sensing
Phone and Fax:
Asia Pacific
+65 6355-2828
+65 6445-3033 Fax
Europe
+44 (0) 1698 481481
+44 (0) 1698 481676 Fax
Latin America
+1-305-805-8188
+1-305-883-8257 Fax
USA/Canada
+1-800-537-6945
+1-815-235-6847
+1-815-235-6545 Fax
Automation and Control Solutions
Sensing and Control
Honeywell
11 West Spring Street
Freeport, Illinois 61032
www.honeywell.com/sensing
008139-2-EN IL50 GLO Printed in USA
August 2005
© 2005 Honeywell International Inc.
