12-WAY
DIVIDER, POWER
800-2000 MHZ
ELECTRICAL SPECIFICATIONS
Frequency Range:
Insertion Loss:
Isolation:
VSWR:
Amplitude Balance:
Phase Balance:
Power:
800–2000 MHz
1.5 dB
18 dB
In:
Out::
±0.3 dB
±6˚
+30 dBm typ. as divider
1.5 • 1 typ.
1.3 • 1 typ.

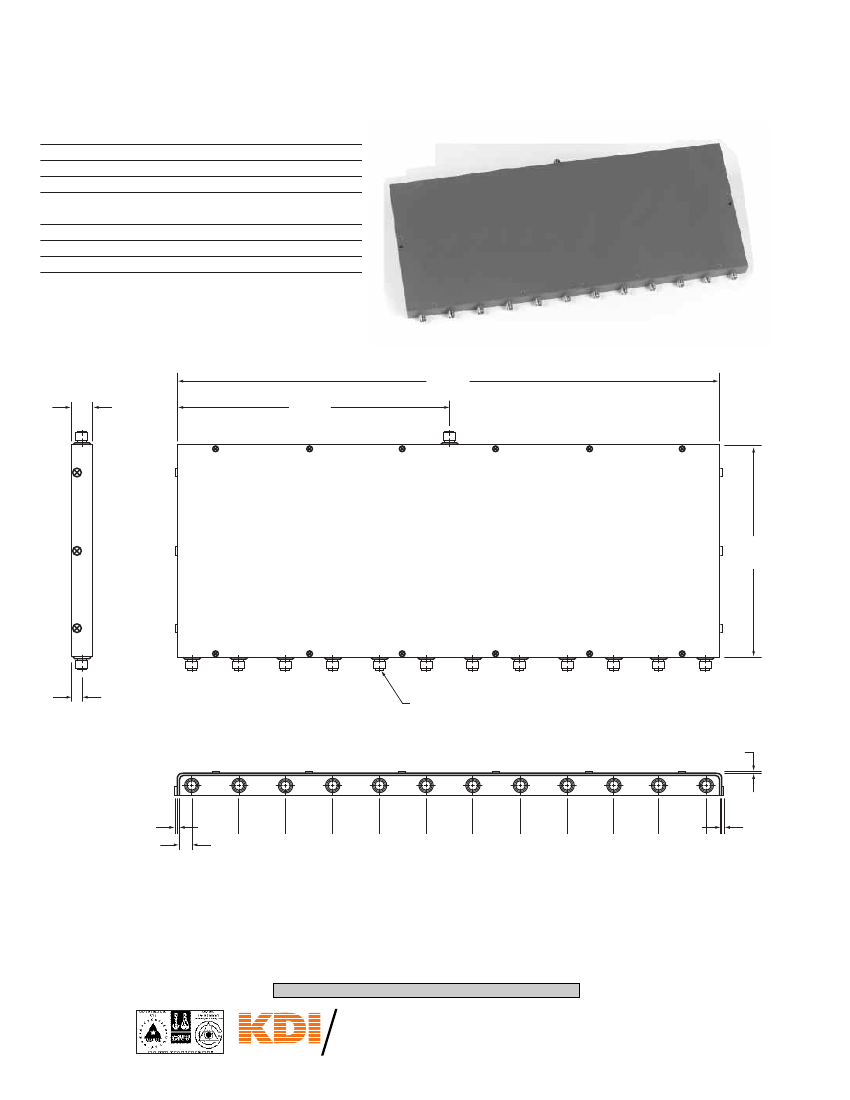

MODEL D311NS
11.56
[293,6]
.47
[11,9]
5.78
[146,8]
KDI
64537
D311NS
B/C
4.50
[114,3]
.23
[5,8]
SMA FEMALE CONNECTOR
RECEPTACLE PER MIL-C-39012
13 PLS.
.07
[1,8]
.08
[2,0]
.25
[6,4]
1.00
[25,4]
2.00
[50,8]
3.00
[76,2]
4.00
[101,6]
5.00
[127,0]
6.00
[152,4]
7.00
[177,8]
8.00
[203,2]
9.00
[228,6]
10.00
[254,0]
11.00
[279,4]
.08
[2,0]
KEY:
Inches[Millimeters] .XX ±.03 .XXX ±.010 [.X ±0.8 .XX ±0.25]
