RoHS
Compliant
Model D30A20Y4
Surface Mount Attenuator
30 Watts
General Specifications
Resistive Element
Substrate
Terminals:
Thick film
Alumina
Matte Tin over Nickel
Electrical Specifications
Attenuation Range:
Frequency Range;
Power:
VSWR
20 dB ± .75 dB
DC – 2.0 GHz
30 Watts
1.20:1 to 2 GHz
Features:
•
DC –2.0 GHz
•
30 Watts
•
Alumina Ceramic
•
Non-Nichrome Resistive
Element
•
Low VSWR
•
100% Tested
•
RoHS Compliant
Note:
Tolerance is
±0.010”,
unless otherwise specified. Designed to meet of
exceed applicable portions of MIL-E-5400. Operating temperature is -55ºC to
150ºC (see chart for derating temperatures).
All dimensions in inches.
Specifications subject to change with out notice.

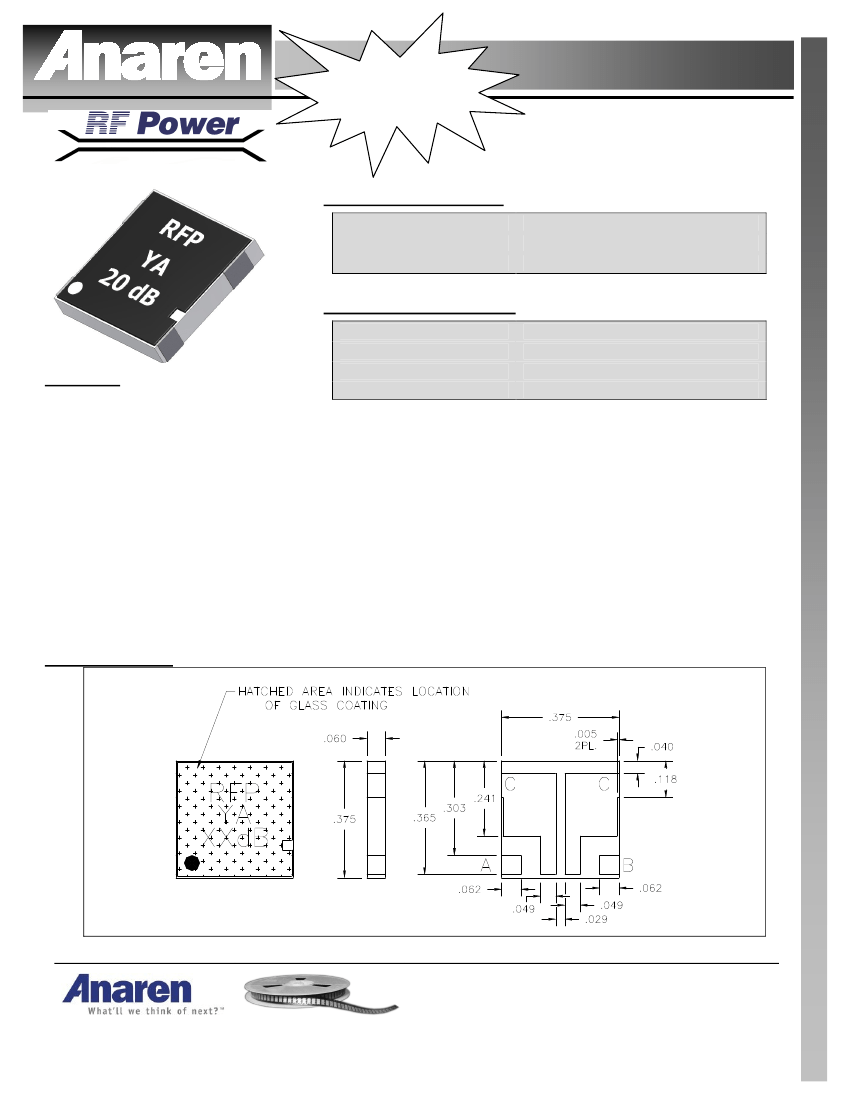

Outline Drawing
D30A20Y4 (097) Rev A
Available on Tape
and Reel For Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe
:
(315) 432-8909
(800) 544-2414
+44 2392-232392
Model D30A20Y4

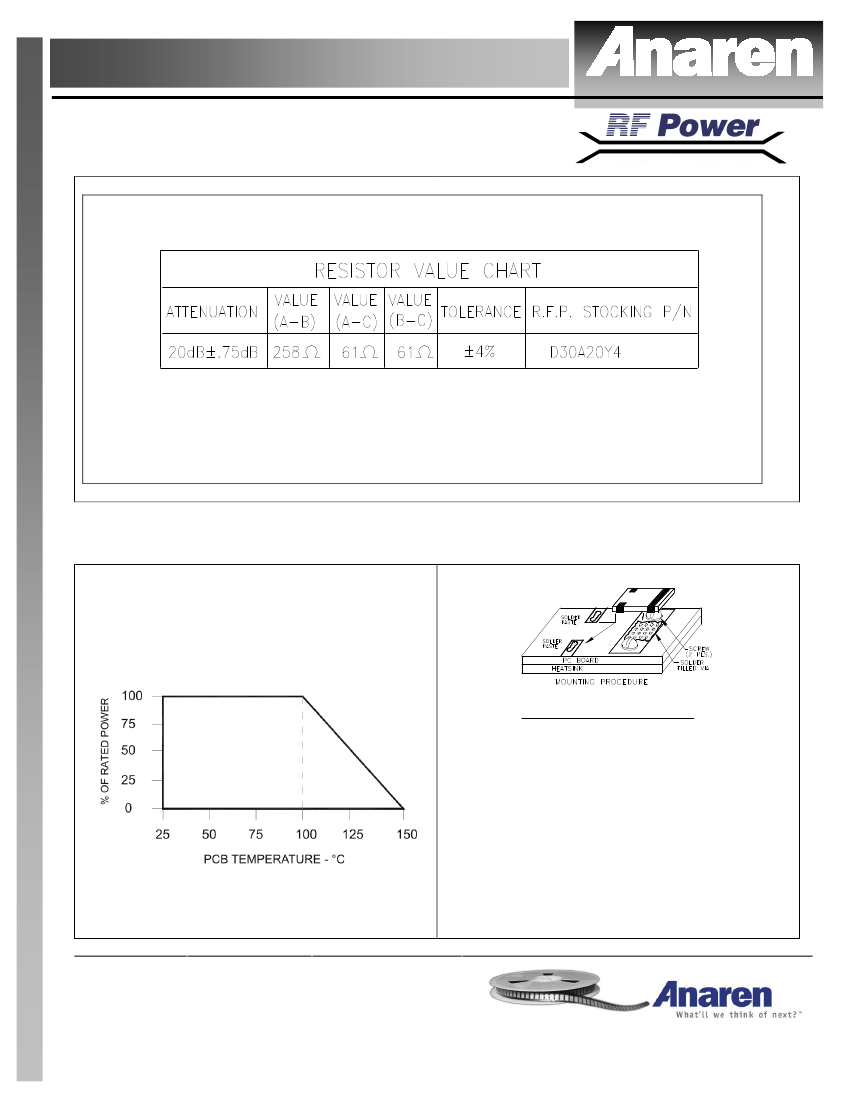

Typical Performance:
Power De-rating:
Mounting Footprint and Procedure:
SUGGESTED MOUNTING PROCEDURES:
1.
2.
3.
4.
MAKE SURE THAT THE DEVICES ARE MOUNTED ON
FLAT SURFACES (.001" UNDER THE DEVICE) TO
OPTIMIZE THE HEAT TRANSFER.
DRILL & TAP THE HEATSINK FOR THE APPROPRIATE
THREAD SIZE TO BE USED.
COAT HEATSINK WITH A MINIMUM AMOUNT OF HIGH
QUALITY SILICONE GREASE (.001" MAX. THICKNESS).
POSITION DEVICE ON MOUNTING SURFACE & SECURE
USING SOCKET HEAD SCREWS, FLAT & SPLIT WASHER.
TORQUE SCREWS TO THE APPROPRIATE VALUE. MAKE
SURE THAT THE DEVICE IS FLAT AGAINST THE HEATSINK.
(CARE SHOULD BE TAKEN TO AVOID UPWARD PRESSURE OF
THE LEADS TOWARDS THE LID).
SOLDER LEADS IN PLACE USING APPROPROATE SOLDER WITH
A CONTROLLED TEMPERATURE IRON.
** FOR MORE DETAILS CONTACT FACTORY **
5.
D30A20Y4 (097) Rev A
USA/Canada:
Toll Free:
Europe:
(315) 432-8909
(800) 544-2414
+44 2392-232392
Available on Tape and
Reel For Pick and Place
Manufacturing.
