SURSENSE
®
Ultra Low Pressure Sensors
Millivolt Output
High Accuracy Compensation
Full Scale Pressure Ranges
FEATURES
•
Position Sensitivity to
±
5 mV/g, typical
•
Offset Warm-up Drift
<
±
10 mV, typical
•
Operating Temperature
Range –25
°
C to +85
°
C
•
Available in Gage and
Differential Pressure
Ranges
•
Long Term Stability
<
±
100 µV, typical
DUXL Series
TYPICAL APPLICATIONS
•
Handheld Instrumentation
•
Airflow Controllers
•
Medical Monitors
•
Smart Microvalves and
Switches
•
Level Indicators

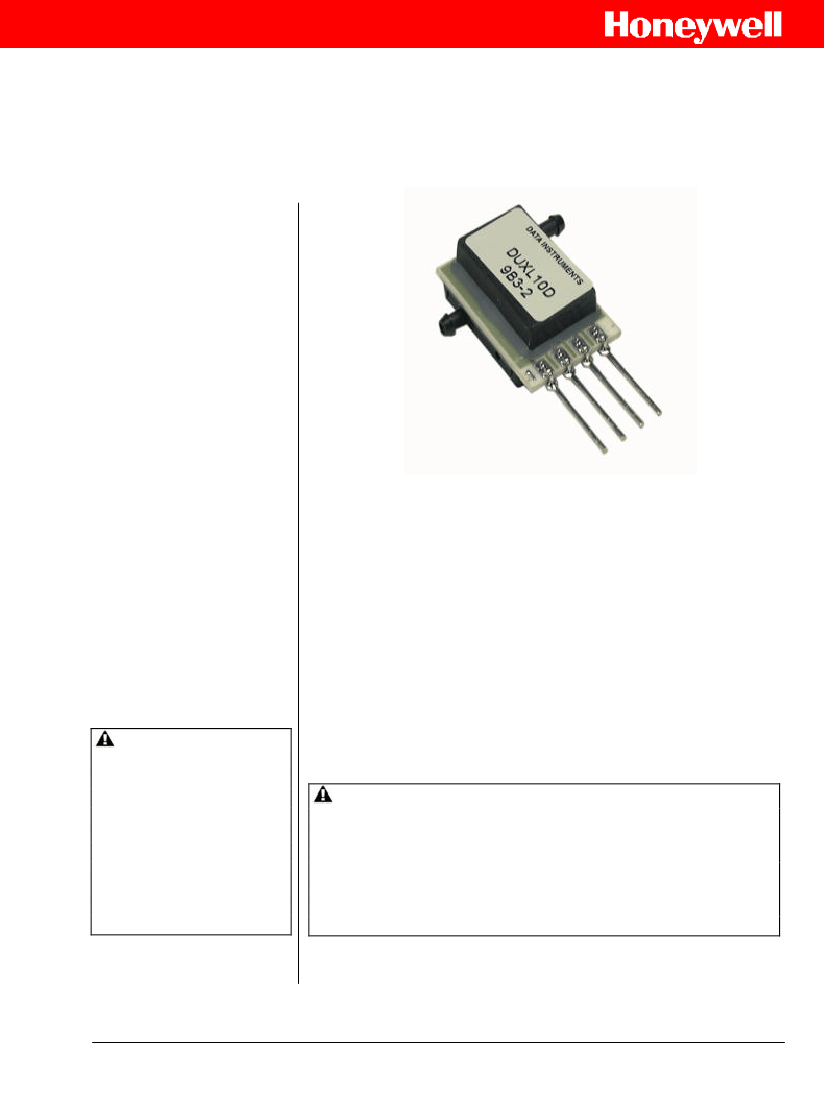

The DUXL line of ultra low pressure sensors is based upon
®
SURSENSE , a proprietary technology, which reduces all output offset or
common mode errors.
These sensors use a silicon, micromachined sensing element which
features a unique stress concentration enhanced structure to provide a
highly stable linear output that is proportional to applied pressure. Output
offset errors due to changes in temperature, warm-up, long term stability
and position sensitivity have all been significantly reduced when compared
to conventional sensors.
The DUXL Series sensors provide a ratiometric millivolt output and are
housed in a low profile miniature ported package. These sensors are
intended for those applications where customized external signal
conditioning is required or available from other sources. The low profile
outline is ideal for portable applications where small size is critical.
Product is patented by US patent 6023978.
WARNING
PERSONAL INJURY
DO NOT USE these products
as safety or emergency stop
devices or in any other
application where failure of the
product could result in
personal injury.
Failure to comply with these
instructions could result in
death or serious injury.
WARNING
MISUSE OF DOCUMENTATION
•
The information presented in this product sheet is for reference only. Do
not use this document as product installation information.
•
Complete installation, operation, and maintenance information is
provided in the instructions supplied with each product.
Failure to comply with these instructions could result in death or serious
injury.
Sensing and Control
SURSENSE
®
Ultra Low Pressure Sensors
Millivolt Output
DUXL Electrical Specifications at 4.5 Vdc Excitation, 25
°C
Min.
Excitation Voltage
Span*except DUXL01D, DUXL05D
Span*DUXL01D
Span*DUXL05D
Null
Offset Temperature Shift (0 °C to +50 °C [+32 °F to +122 °F])**
Span Temperature Shift (0 °C to +50 °C [+32 °F to +122 °F])**
Linearity, Hysteresis Error***
Temperature Coefficient of Resistance
Temperature Coefficient of Sensitivity
Storage Temperature
Storage Temperature
Offset Warm-up Shift****
Offset Position Sensitivity (±1g) DUXL01D, DUXL05D
Offset Position Sensitivity (±1g) DUXL10D
Offset Position Sensitivity (±1g) DUXL20D, DUXL30D
Offset Long Term Stability ( 1 year)
Input Resistance
*Note
1:
**Note 2:
***Note 3:
****Note 4:
DUXL Series
Typ.
4.5
30
6.0
22.5
0
100
100
0.1
2600
-2200
--
--
+10
+15
+10
+5
±100
+2.0
Max.
8.0
45
8.0
30
+10
--
--
+0.5
--
--
+85
+125
--
--
--
--
--
--
Units
V
mV
mV
mV
mV
µ
V
µ
V
%Span
ppm/°C
ppm/°C
°C
°C
µ
V
3.0
15
4.0
15
-10
--
--
-0.5
--
--
-25
-40
--
--
--
--
--
--
µ
V
µ
V
µ
V
µ
V
K
O
The voltage added to the offset voltage at full scale pressure. Nominally the output voltage range is 1.0 V to 6.0 V.
Shift is relative to 25
°C
Measured at ½ full scale rated pressure using BFSL
Shift is within the first hour of excitation applied to the device.
DUXL SERIES Pressure Ratings—inches H
2
O
(by Catalog Listing)
DUXL-
Operating Pressure Range
Proof
Burst
Common Mode
01D
05D
10D
20D
30D
1.0
100
200
50
5.0
100
200
50
10.0
150
300
50
20.0
200
400
50
30.0
300
600
50
Equivalent Circuit
Pinout
1. -V Supply
2. +V Output
3. +V Supply
4. -V Output
2
Honeywell
•
Sensing and Control
SURSENSE
®
Ultra Low Pressure Sensors
Millivolt Output

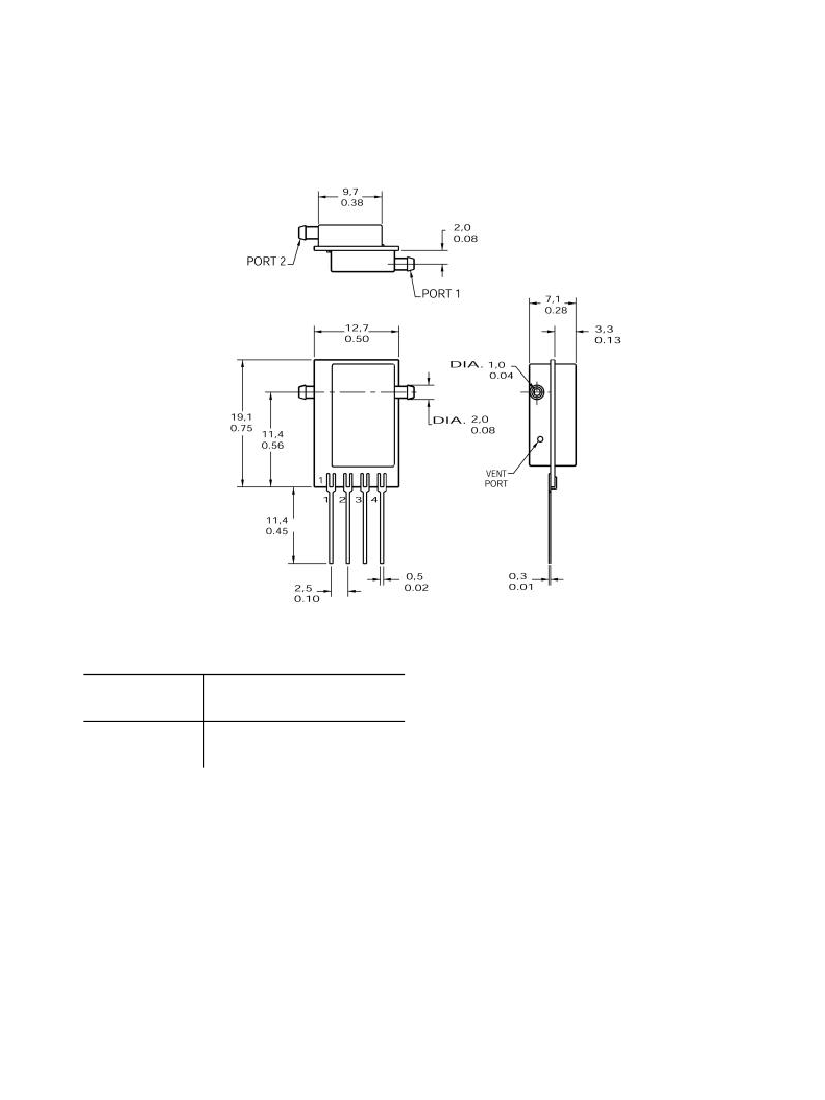

MOUNTING DIMENSIONS
(for reference only) mm/in
DUXL SERIES, DUXL CERAMIC PACKAGE
DUXL Series
APPLICATION INFORMATION
MEDIA COMPATIBILITY, WETTED MATERIALS
Port 2
P2 Port:
Media must be
compatible with nylon housing,
epoxy adhesive and silicon.
Port 1
P1 Port: Dry Gases Only.
Media
must be compatible with epoxy
based adhesive.
Pressure Compatibility:
Measures differential or gage
pressure and vacuum. Pressure m ay be applied to
either port. For pressure to the low pressure port, the
output polarity is reversed.
Honeywell
•
Sensing and Control
3
SURSENSE
®
Ultra Low Pressure Sensors
Millivolt Output
DUXL SERIES ORDER GUIDE
(
Not all product combinations are released.)
DUXL Series
DUXL
Series
DUXL Compensated and calibrated, mV
05
D
Pressure Range
01, 05, 10, 20, 30 inches H
2
O
Pressure Reference
G - Gage
D - Differential
WARRANTY/REMEDY
Honeywell warrants goods of
its manufacture as being free of
defective materials and faulty
workmanship. Contact your local
sales office for warranty
information. If warranted goods
are returned to Honeywell during
the period of coverage,
Honeywell will repair or replace
without charge those items it
finds defective. The foregoing is
Buyer’s sole remedy and is
in
lieu of all other warranties,
expressed or implied,
including those of
merchantability and fitness for
a particular purpose.
Specifications may change
without notice. The information
we supply is believed to be
accurate and reliable as of this
printing. However, we assume
no responsibility for its use.
While we provide application
assistance personally, through
our literature and the Honeywell
web site, it is up to the customer
to determine the suitability of the
product in the application.
For application assistance,
current specifications, or name of
the nearest Authorized
Distributor, contact a nearby
sales office. Or call:
1-800-537-6945 USA
1-800-737-3360 Canada
1-815-235-6847 International
FAX
1-815-235-6545 USA
INTERNET
www.honeywell.com/sensing
info.sc@micro.honeywell.com
Sensing and Control
Honeywell
11 West Spring Street
Freeport, Illinois 61032
Printed with Soy Ink
on 50% Recycled Paper
008052-2-EN IL50 GLO 0801 Printed in USA
Copyright
©
1997- 2001 by Honeywell Data Instruments Inc. All rights reserved.
www.honeywell.com/sensing
