Programmable dynamic output voltage positioning for better
load transient response
Choice of 500KHz switching for highest efficiency or 1MHz for
lowest ripple noise.
Flexible Fault Response features
Multiple turn-on/off slew rates and delays
Digital Filter Compensation
Synchronous operation with other supplies
Real time performance monitoring
GUI based configuration for short development time.
Industry standard size through-hole single-in-line package:
38 x 6.7 x 25.06 mm
UL 60950-1/CSA 22.2 No. 60950-1-07 Second Edition, IEC
60950-1: 2005, and EN 60950-1:2006 (pending)
FEATURES
DESCRIPTION
Power-One’s
DP8110G

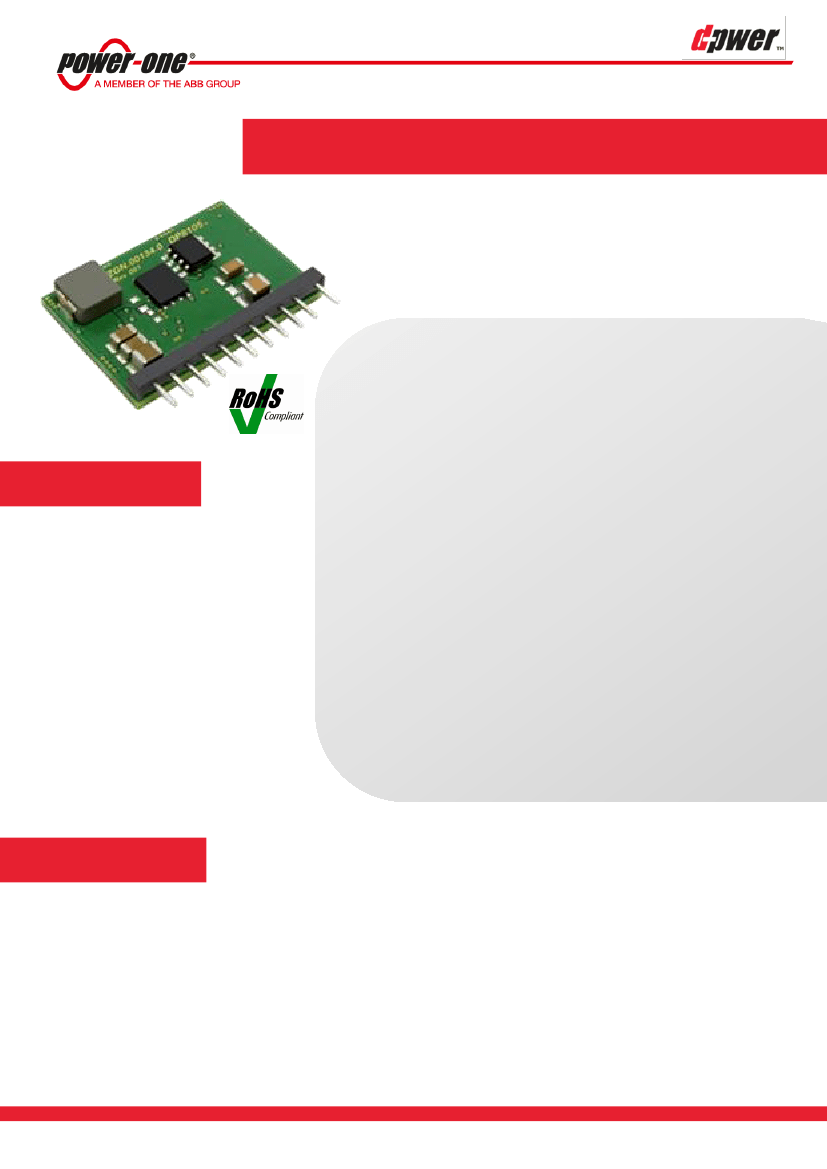

is an intelligent, fully programmable step-down point-of-load DC-DC converter integrating digital power
conversion and intelligent power management. It works with the DM7300 Series Digital Power Managers (DPM) which
provides for synchronizing all system Power-On-Load regulators, for an elegant, flexible, low noise power system solution.
All key parameters, sequencing, tracking, fault protection, and compensation parameters of the DP8110G are programmable
via Power-One's I
2
C based GUI. All settings can be changed by a user at any time during product development and service.
Once programmed, the DPM remembers all settings and configures the DP8110G through a self-clocking single wire
communication bus. FLASH memory in the DPM allows changes to be made without the need to solder or rewire the regulator.
BCD.00262_AA October-11-2013
1
www.power-one.com
DATA SHEET
1
ORDERING INFORMATION
DP
81
Series:
Intelligent
Converter
10
Output Current:
10 A
G
RoHS compliance:
-
zz
Packaging Option
1
T1
- 100pc Tray
Sample quantity orders have no suffix.
Product Family
d-pwer
®
dPOL
G
- RoHS compliant for
all six substances
Dash
Example:
DP8110G-T1:
A 100-piece tray of RoHS compliant dPOL converters. Each dPOL converter is labeled DP8110G.
Reference Documents:
DM7300 Digital Power Manager Data Sheet
DM7300 Digital Power Manager Programming Manual
Power-One I
2
C Graphical User Interface
DM00056-KIT USB to I
2
C Adapter Kit. User Manual
2
ABSOLUTE MAXIMUM RATINGS
Stresses in excess of the absolute maximum ratings may cause performance degradation, adversely affect long-term reliability,
and cause permanent damage to the converter.
PARAMETER
Inductor or Printed Circuit Board
(PCB) Temperature
Input Voltage
Output Current
DESCRIPTION / CONDITION
Input Voltage applied
250 ms Transient
(See Output Current De-rating Curves)
MIN
-40
-8
NOM
MAX
125
15
10
UNIT
C
VDC
ADC
3
ELECTRICAL SPECIFICATIONS
Specifications apply at the input voltage from 8 V to 14 V, output load from 0 to 5 A, ambient temperature from -40° C to 85° C.
Test conditions include an output filter with 2 x 330F 20mΩ solid electrolytic plus 1 x 22F X7R ceramic output capacitors,
unless otherwise noted.
3.1
INPUT SPECIFICATIONS
PARAMETER
Input Voltage (V
IN
)
Input Current (at no load)
Undervoltage Lockout
VLDO Input Current
DESCRIPTION / CONDITION
V
IN
= 14.0 V, V
OUT
= 3.3 V
Ramping Up
Ramping Down
Current drawn from the external low voltage supply at
VLDO = 8 V
MIN
8
NOM
50
MAX
14
7.5
UNIT
VDC
mADC
VDC
VDC
mADC
5
50
1
Packaging option is used only for ordering and not included in the part number printed on the dPOL converter label.
DP8110G 10A DC-DC Intelligent dPOL
2
www.power-one.com
DATA SHEET
3.2
OUTPUT SPECIFICATIONS
PARAMETER
Output Voltage Range (V
OUT
)
Output Voltage Setpoint Resolution
Output Voltage Setpoint Accuracy
Output Current (I
OUT
)
Line Regulation
Load Regulation
Dynamic Regulation
Peak Deviation
Settling Time
Output Voltage Peak-to-Peak
Ripple and Noise
Scope BW=20MHz
Full Load
Temperature Coefficient
Switching Frequency
Duty Cycle Limit
DESCRIPTION / CONDITION
MIN
0.7
NOM
MAX
UNIT
VDC
2
nd
Vo Loop Enabled
V
IN MIN
to V
IN MAX
V
IN MIN
to V
IN MAX
0 to I
OUT MAX
Slew rate 1 A/s, 50 -75% load step
F
SW
= 500 kHz to 10% of peak deviation
See Output Load Transient Section
V
IN
= 8.0 V, V
OUT
= 0.7 V
V
IN
= 8.0 V, V
OUT
= 2.5 V
V
IN
= 8.0 V, V
OUT
= 5.5 V
V
IN
= 14 V, V
OUT
= 0.7 V
V
IN
= 14 V, V
OUT
= 2.5 V
V
IN
= 14 V, V
OUT
= 5.5 V
V
IN
= 12 V, I
OUT
= 0.5 × I
OUT MAX
Default
Programmable to
Default
Programmable, 1.56% steps
-5.5
2
5.5
2.5mV (1LSB)
± (0.6% + 5mV)
7
± 0.3
± 0.2
50
60
10
20
40
18
35
50
20
500
500 / 1,000
90.5
ADC
%V
OUT
%V
OUT
mV
s
mV
mV
mV
mV
mV
mV
ppm/° C
kHz
kHz
%
%
3.125
100
At negative (sink) output current (bus terminator mode) the efficiency of the DP8110 degrades resulting in increased internal power dissipation and
switching noise. Therefore maximum allowable negative current under specific conditions is lower than the current determined from the de-rating curves
shown in paragraph.
2
BCD.00262_AA October-11-2013
3
www.power-one.com
DATA SHEET
3.3
PROTECTION SPECIFICATIONS
PARAMETER
Type
Threshold
Threshold Accuracy
Type
Threshold
Threshold Accuracy
Delay
Turn Off Behavior
3
Output Overvoltage Protection
Default
Programmable
Default
Programmable in 10% steps
Measured at V
O.SET
= 2.5 V
From instant when threshold is exceeded until the
turn-off command is generated
Default
Programmable to
Output Undervoltage Protection
Default
Programmable
Default
Programmable in 5% steps
Measured at V
O.SET
=2.5V
From instant when threshold is exceeded until the
turn-off command is generated
Default
Programmable to
Overtemperature Protection
Default
Programmable
Temperature is increasing
Temperature is decreasing after the module was
shut down by OTP
4
From instant when threshold is exceeded until the
turn-off command is generated
Default
Programmable to
Tracking Protection (when Enabled)
Default
Programmable
Enabled during output voltage ramping up
-50
From instant when threshold is exceeded until the
turn-off command is generated
6
DESCRIPTION / CONDITION
Output Overcurrent Protection
Default
Programmable
Default
Programmable in 11 steps
MIN
NOM
MAX
UNIT
Non-Latching, 130 ms period
Latching / Non-Latching
132
36
132
-20
+20
Non-Latching, 130 ms period
Latching / Non-Latching
130
110
130
-2
+2
6
Emergency Off
Critical Off / Emergency Off
Non-Latching, 130 ms period
Latching / Non-Latching
75
75
90
-2
6
Sequenced Off
Sequenced / Critical Off
Non-Latching, 130 ms period
Latching / Non-Latching
120
110
-5
6
Sequenced Off
Sequenced / Critical Off
Disabled
Latching/Non-Latching,130ms
250
50
5
2
%I
OUT
%I
OUT
%I
OCP.SET
%V
O.SET
%V
O.SET
%V
OVP.SET
μs
Type
Threshold
Threshold Accuracy
Delay
Turn Off Behavior
3
%V
O.SET
%V
O.SET
%V
OVP.SET
μs
Type
Turn Off Threshold
Turn On Threshold
Threshold Accuracy
Delay
Turn Off Behavior
3
C
C
C
μs
Type
Threshold
Threshold Accuracy
Delay
mVDC
mVDC
μs
Sequenced Off: The turn-off follows the turn-off delay and slew-rate settings; Critical Off: At turn-off both low and high switches are immediately disabled;
Catastrophic Off: At turn-off the high side switch is disabled and the low side switch is enabled.
