DAQ6116
Typical Values @ +25 °C
0.1 TO 6.0 GHz
PEAK TO PEAK ANALOG DETECTOR
DAQ6116
Wide Frequency Range
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
0.05 to 8.0 GHz
Wide Power Range
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
–5.0 to +25.0 dBm
Temperature Stability
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
± 0.5 dB
Flatness
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
± 0.5 dB
Low VSWR
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.5:1
Even Order Harmonics Supression.
. . . . . . . . . . . . . . . . . .
40 dB
No Power Supply Required / Zero Bias
Cougar Q Package or Standard SMTO-8 package
DAQ6116
SM-25 for Detectors
SPECIFICATIONS
*
Parameter
Frequency (Min.)
Input Power Range (Min.)
VSWR (Max.)
Sensitivity, Vout (Min.)
Power Flatness (Max.)
Temperature Stability (Max.)
Pulse Response,
Pin > +10 dBm
Pulse Response,
Pin = 0 to +10 dBm
Typical
0.05-8.0 GHz
-5 to +25 dBm
1.5:1
180 mV†
±0.5 dB
—
360 µsec‡
380 µsec‡
Guaranteed
0 to 50 °C
-55 to +85 °C
0.1-6.0 GHz
0 to +20 dBm
2.0:1
120 mV†
±0.75 dB
±0.5 dB^
25/500 µsec‡
500/500 µsec‡
0.1-6.0 GHz
0 to +20 dBm
2.0:1
90 mV†
±0.75 dB
±0.5 dB^
25/500 µsec‡
500/500 µsec‡
DAS6116
* Measured in a 50-Ohm system and R load = 1 MOhm unless otherwise specified.
† Pin = 0 dBm. ^ Vout = 1.0 V. ‡ Tr/Tf, 50% RF to 90% or 10% Video, Rload = 80 KOhms.

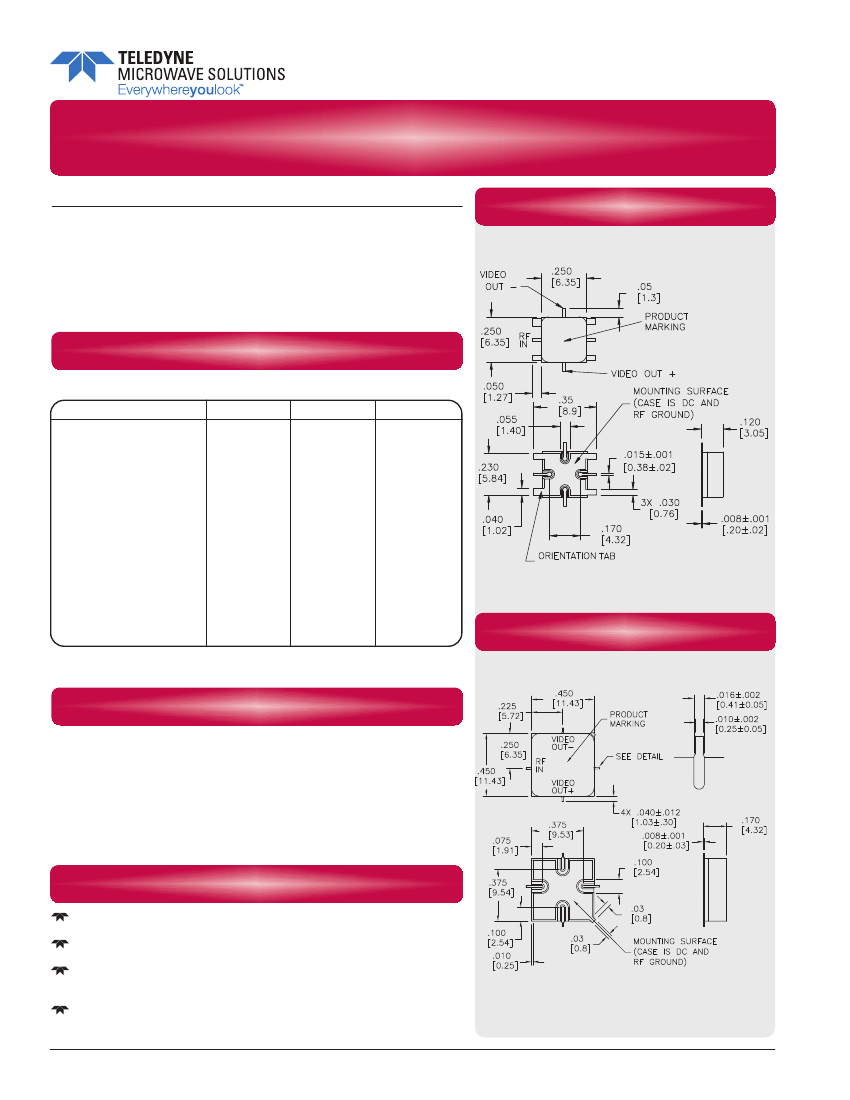

SMTO-8 Package for Detectors
MAXIMUM RATINGS
Continuous RF Input Power
. . . . . . . . . . . . . . . . . . . . .
Operating Case Temperature
. . . . . . . . . . . . . . . . . . . .
Storage Temperature
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Burn-In Temperature
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Detector Thermal Resistance
1
(θjc) . . . . . . . . . . . . . . .
Temperature Rise @ 20 dBm
(Tjc) . . . . . . . . . . . . . . . .
Temperature Rise @ 25 dBm
(Tjc) . . . . . . . . . . . . . . . .
1
Thermal
+25.0 dBm
-55 °C to +150 °C
-65 °C to +150 °C
+125 °C
+1000 °C/Watt
+4 °C
+68 °C
resistance is based on total power dissipation. Ratings based on +25 °C.
APPLICATION NOTES
DAQ6116 is configured using two anti-parallel connected schottky diodes to form an
unbiased peak to peak microwave detector with a differential output voltage.
The harmonic distortion reflected back to the system can be significantly lower than single
ended design because all even order harmonics are suppressed, typically > 40 dB.
The output voltage (differential) is a closer representation of the true rms power of
modulated or distorted signals because both positive and negative waveform peaks are
detected.
The DAQ6116 is intended for higher level detection applications (> 0 dBm) requiring good
temperature stability and harmonic suppression.
DIMENSIONS ARE IN INCHES [MILLIMETERS]
