DBY-3503M datasheet, PDF - EEWORLD Datasheet

DBY-3503M: DescriptionTriple Balanced Mixer, 50MHz Min, 3000MHz Max, 8.4dB Conversion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size75KB，2 Pages; ManufacturerAvantek Inc

Download Datasheet Parametric Compare View All

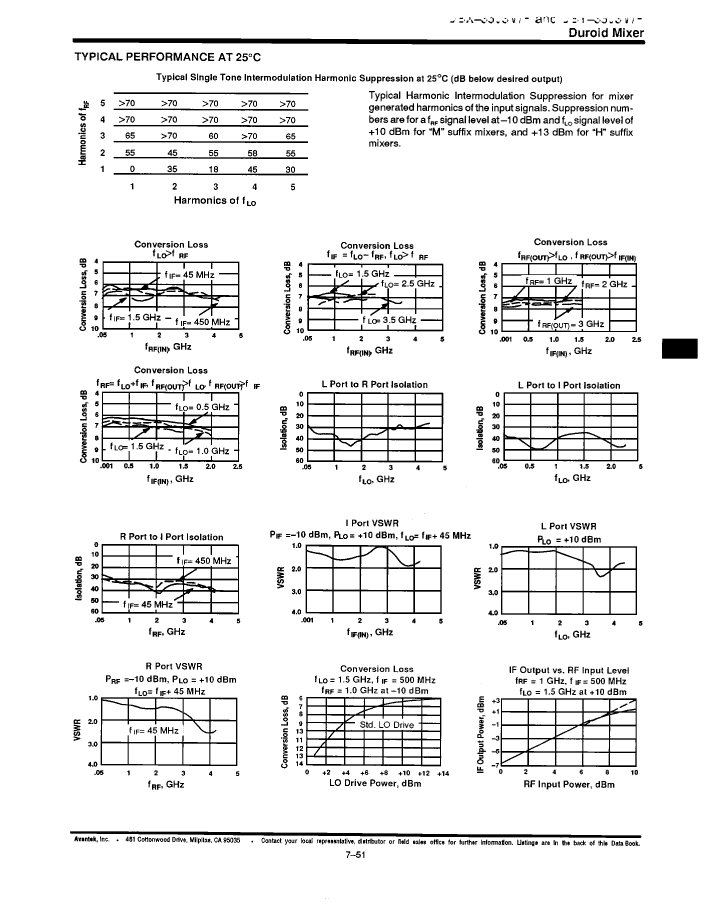

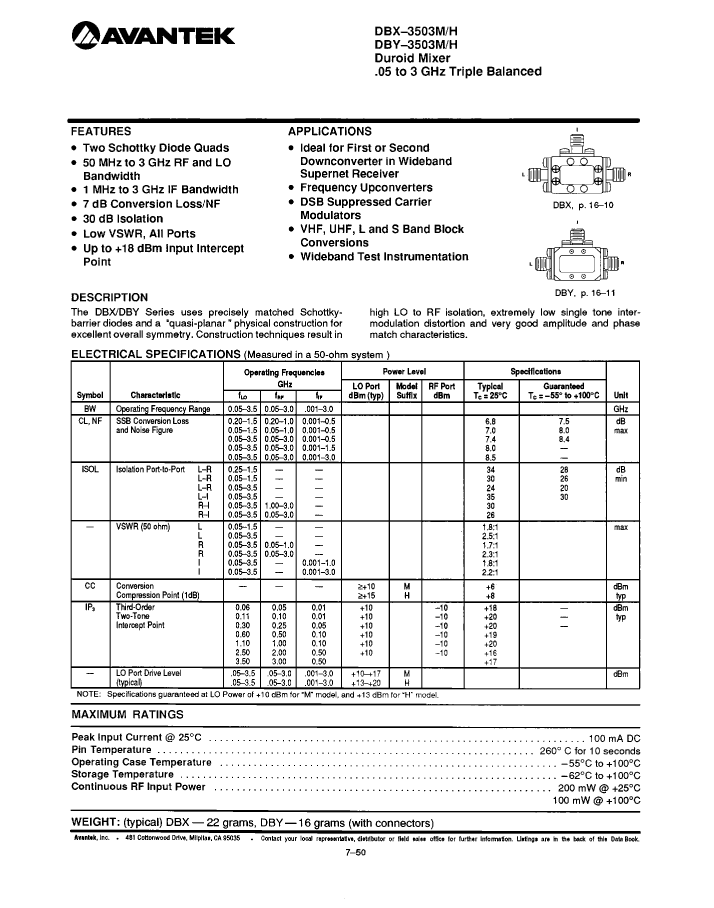

DBY-3503M Overview

Triple Balanced Mixer, 50MHz Min, 3000MHz Max, 8.4dB Conversion Loss-Max

Parameter Name	Attribute value
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	MODULE
Maximum frequency conversion loss	8.4 dB
Maximum input power (CW)	23 dBm
Maximum operating frequency	3000 MHz
Minimum operating frequency	50 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	TRIPLE BALANCED
Base Number Matches	1

	DBY-3503M	DBY-3503H	DBX-3503H	DBX-3503M
Description	Triple Balanced Mixer, 50MHz Min, 3000MHz Max, 8.4dB Conversion Loss-Max	Triple Balanced Mixer, 50MHz Min, 3000MHz Max, 8.4dB Conversion Loss-Max	Triple Balanced Mixer, 50MHz Min, 3000MHz Max, 8.4dB Conversion Loss-Max	Triple Balanced Mixer, 50MHz Min, 3000MHz Max, 8.4dB Conversion Loss-Max
Reach Compliance Code	unknown	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
structure	MODULE	MODULE	MODULE	MODULE
Maximum frequency conversion loss	8.4 dB	8.4 dB	8.4 dB	8.4 dB
Maximum input power (CW)	23 dBm	23 dBm	23 dBm	23 dBm
Maximum operating frequency	3000 MHz	3000 MHz	3000 MHz	3000 MHz
Minimum operating frequency	50 MHz	50 MHz	50 MHz	50 MHz
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	TRIPLE BALANCED	TRIPLE BALANCED	TRIPLE BALANCED	TRIPLE BALANCED
