DFAS1-KHAZ52MHZC1: DescriptionHCMOS/TTL Output Clock Oscillator, 52MHz Nom; CategoryPassive components oscillator; File Size28KB，1 Pages; ManufacturerCTS; Environmental Compliance

Download Datasheet Parametric View All

DFAS1-KHAZ52MHZC1 Overview

HCMOS/TTL Output Clock Oscillator, 52MHz Nom

DFAS1-KHAZ52MHZC1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; SYMMETRY 45/55 POSSIBLE
Ageing	1 PPM/FIRST YEAR
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	1%
Installation features	SURFACE MOUNT
Nominal operating frequency	52 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS/TTL
Output load	2 TTL, 15 pF
physical size	14.8mm x 9.1mm x 5.9mm
longest rise time	5 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

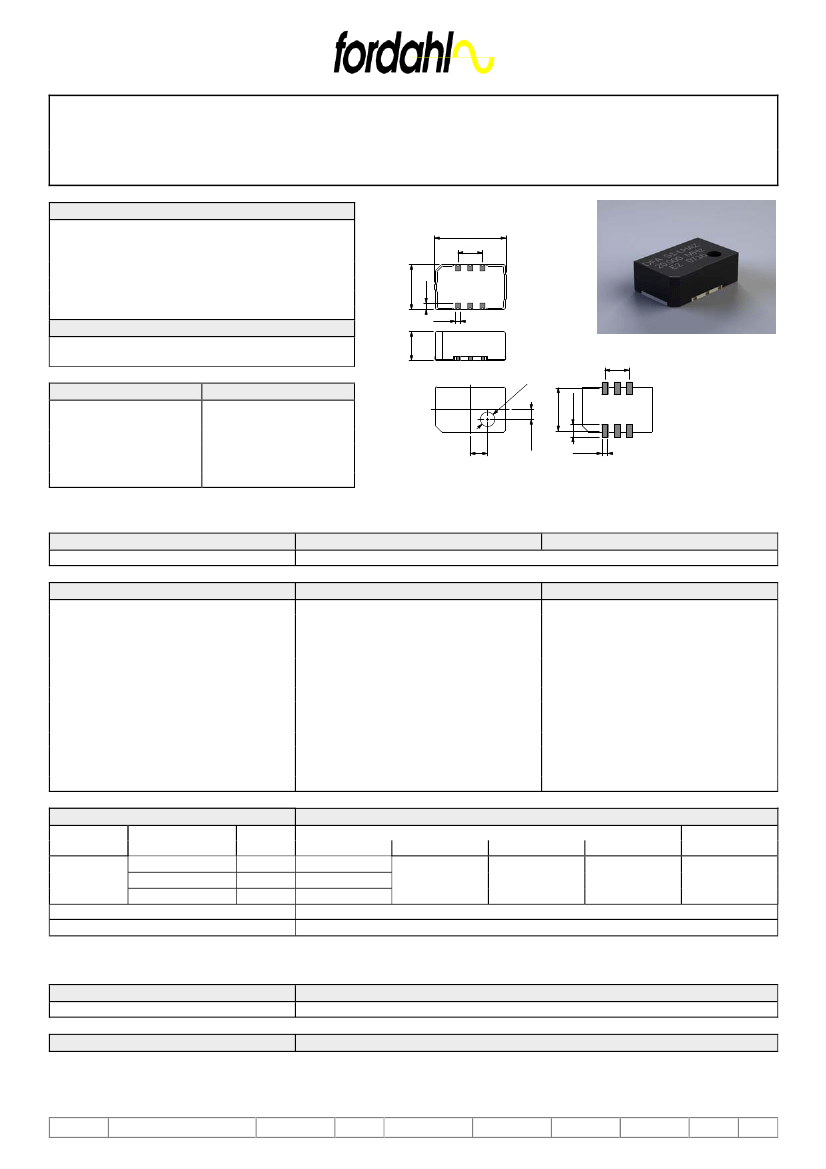

FREQUENCY CONTROL PRODUCTS

SURFACE MOUNT TCXO WITH INTERNAL TRIMMER

DFA S1-KHAZ (5 V) & DFA S1-LHAZ (3.3 V)

KEY FEATURES

5 to 52 MHz

9.1±0.2

14.8±0.3

5.08

Tight stability

Analogue temperature compensation

APPLICATIONS

SDH/Sonet/Microwave

Function

NC

E/D

GND

Output

N/C

Vcc

1.4

1.0

5.9

+0.1

-0.2

5.08

00

3.

2.54

DFA S1

1

2

3

4

5

6

8.9

ø

6

1

5

2

4

PC board footprint

3

2.03

3.56

1.27

TYPE

Frequency Range

DFA S1-KHAZ

5 to 52 MHz

DFA S1-LHAZ

ELECTRICAL SPECIFICATIONS

supply voltage

supply current ( no load)

output load

duty cycle @ 50% level

rise/fall times (10 to 90 %)

high/low levels or output amplitude

start-up

tri-state control on pin 2

5V ±5%

≤

20 mA

HCMOS 15 pF or 2 TTL

45/55...55/45 %

≤

5 ns

≥

4.5 V/

≤

0.5 V

≤

10 ms @ 4.75 V

high or open = enable, low = high Z

3.3 V ± 5 %

≤

10 mA

HCMOS 15 pF or 2 TTL

45/55...55/45 %

≤

5 ns

≥

2.8 V/

≤

0.3 V

≤

10 ms @ 3.15 V

high or open = enable, low = high Z

FREQUENCY STABILITY

type

all types

temperature

range

0 to 70°C

-20 to 70°C

-40 to 85°C

model

code

B0.5

C1

E2

temperature

≤

± 0.5

≤

± 1.0

≤

± 2.0

detailed tolerances [ ppm ]

stability versus:

Vcc ± 5 %

load ± 10 %

≤

± 0.1

≤

± 0.1

ageing is 1

st

year at 25°C

pulling

≥

± 5 ppm

ageing

≤

±1

calibration

@ 25°C

By internal

trimmer

remark

Internal trimmer

ORDERING CODE

Example

type + option code + frequency + model code

DFA S1-LHAZ 19.44 MHz E2

NOTES

not all combinations of stabilities and frequencies are available

TYPE

DFA S1-KHAZ/LHAZ

REVISION

00

CHECKED

NE

DATE

25.06.2007

PAGE

XX
