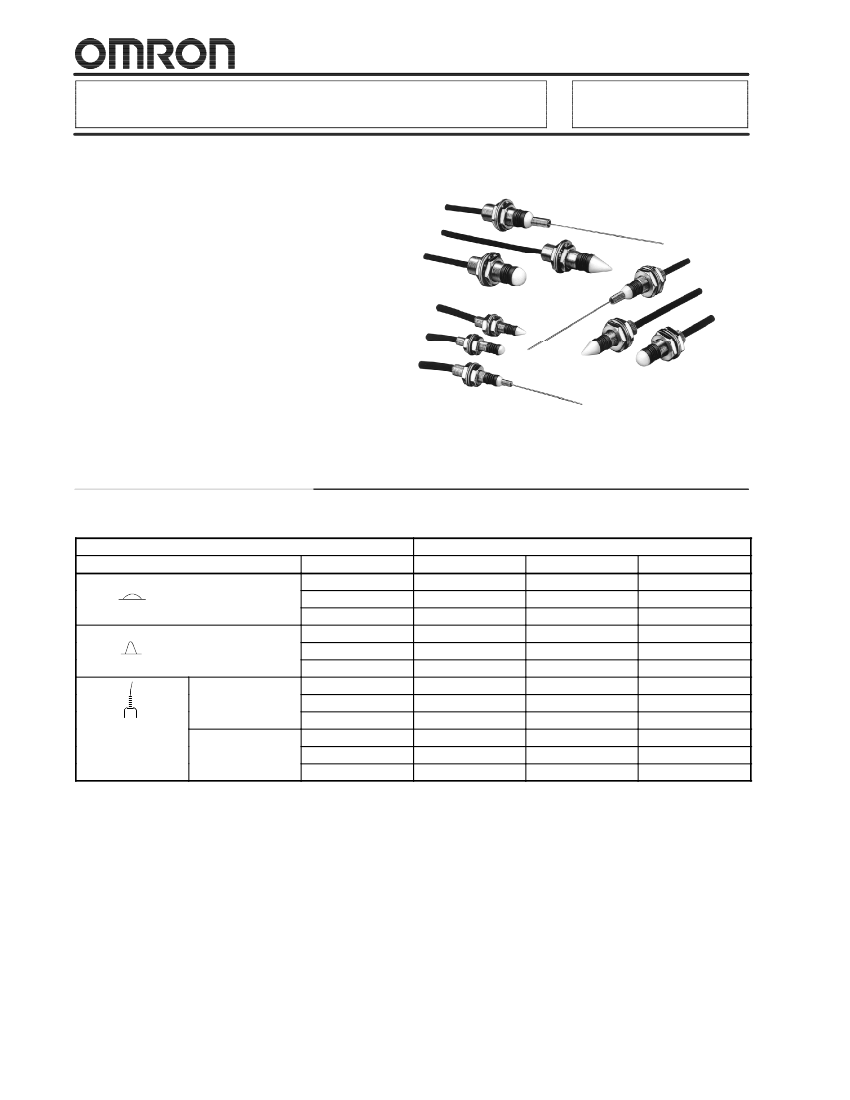

R
Tactile Switch
Detects Objects in Multiple Directions
with High Sensitivity
H
Detects object contact from multiple
H
H
H
H
directions and operates even with a
slight force
Gold-plated contacts capable of
switching micro current/voltage load and
providing high contact reliability
Highly resistant to dust, fine particles
and water or oil splash, conforming to
IP67
Three sizes (M10, M8, and M5)
Three types of actuators: hemispheric,
cone-shaped, and wobble-stick type
D5B
Ordering Information
J
LIMIT SWITCHES
Item
Actuator
Hemispheric p g
p
plunger
Cable length
1m
3m
5m
Cone-shaped plunger
p p g
1m
3m
5m
Short spring
p g
wobble-stick
bbl
i k
Long spring
g p g
wobble-stick
bbl
i k
1m
3m
5m
1m
3m
5m
Part number
M5
D5B-5011
D5B-5013
D5B-5015
D5B-5021
D5B-5023
D5B-5025
D5B-5511
D5B-5513
D5B-5515
---
---
---
M8
D5B-8011
D5B-8013
D5B-8015
D5B-8021
D5B-8023
D5B-8025
D5B-8511
D5B-8513
D5B-8515
---
---
---
M10
D5B-1011
D5B-1013
D5B-1015
D5B-1021
D5B-1023
D5B-1025
D5B-1511
D5B-1513
D5B-1515
D5B-1531
D5B-1533
D5B-1535
2
D5B
D5B
Specifications
J
RATINGS
Switching power
Max. force applicable to actuator
1 mA at 5 VDC to 30 mA at 30 VDC (resistive load)
1.5 kg (3.3 lbf)
J
CHARACTERISTICS
Operating speed
Operating frequency
p
g q
y
Insulation resistance
Contact resistance
Mechanical
Electrical
5 to 500 mm/s (0.19 to 19.68 in/s)
120 operations/min.
60 operations/min.
100 MΩ min. at 250 VDC
With 1 m cable: 700 mΩ max. (initial value)
With 3 m cable: 1.9
Ω
max. (initial value)
With 5 m cable: 3.1
Ω
max. (initial value)
250 VAC, 50/60 Hz for 1 min between terminals of same polarity (TTP)
1,000 VAC, 50/60 Hz for 1 min between current-carrying metal parts
and ground (600 V for M5 model)
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
(Wobble-stick type: 16.7 Hz, 1-mm double amplitude)
Mechanical
Malfunction
Life expectancy
p
y
Enclosure rating
Ambient temperature (See Note.)
Ambient humidity
Weight
Operating
Operating
Switch
Cable
Mechanical
Electrical
1,000 m/s
2
min. (3281 ft/sec
2
) (approx. 100G)
300 m/s
2
min. (984 ft/sec
2
) (approx. 30G)
(Wobble-stick type: 50 m/s
2
164 ft/sec
2
) (approx. 5G)
10,000,000 operations min.
See
Engineering Data.
IEC IP67
-
-10°C to 70°C (14°F to 158°F)
95% max.
M5: approx. 14 g (0.49 oz), M8: approx. 20 g (0.71 oz),
M10: approx. 21 g (0.74 oz)
Approx. 10 g/m
Dielectric strength
Vibration resistance
Shock resistance
Note: Temperature range below 0°C are based on absence freezing moisture or water.
3
D5B
J
OPERATING CHARACTERISTICS
Hemispheric actuator
Z
D5B
Cone-shaped actuator
Z
Wobble-stick actuator
Y
X
Y
X
Y
X
M5
TT (
(max.)
)
(reference value)
( f
l )
OF (max.)
X, Y
Z
X, Y
0.8 mm
0.4 mm
0.49 N
(50 gf)
0.11 lbf
0.74 N
(75 gf)
0.17 lbf
M8
1 mm
0.5 mm
0.74 N
(75 gf)
0.17 lbf
0.98 N
(100 gf)
0.22 lbf
M10
1 mm
0.5 mm
0.98 N
(100 gf)
0.22 lbf
1.47 N
(150 gf)
0.33 lbf
M5
2 mm
0.4 mm
0.20 N
(20 gf)
0.045 lbf
0.74 N
(75 gf)
0.17 lbf
M8
2 mm
0.5 mm
0.20 N
(20 gf)
0.045 lbf
0.74 N
(75 gf)
0.17 lbf
M10
3 mm
0.5 mm
0.39 N
(40 gf)
0.087 lbf
1.47 N
(150 gf)
0.33 lbf
M5
20 mm
---
M8
25 mm
M10
30 mm
0.05 N (5 gf) 0.011 lbf max.
Z
---
Permissible operating
force (max.)
PT (reference value)
X, Y, Z
X, Y
Z
1.96 N (200 gf) 0.44 lbf
0.3 to
0.5 mm
0.1 to
0.2 mm
0.4 to
0.7 mm
0.2 to
0.3 mm
0.4 to
0.7 mm
0.2 to
0.3 mm
1.96 N (200 gf) 0.44 lbf
0.7 to
1.2 mm
0.1 to
0.2 mm
1.0 to
1.5 mm
0.2 to
0.3 mm
1.5 to
2.0 mm
0.2 to
0.3 mm
0.49 N (50 gf) 0.11 lbf
4 to
8 mm
---
8 to
15 mm
---
10 to
18 mm
---
Note: The operating characteristic values shown in the above table are measured at the portions indicated by the downward arrows in
Dimensions.
Engineering Data
J
ELECTRICAL LIFE EXPECTANCY (cosφ = 1)
Life expectancy (x 10
6
operations)
50
30
10
7
5
3
2
1
Switching current (mA)
Operation
J
CONTACT FORM
Brown
Blue
(Normally closed contact)
4
D5B
D5B

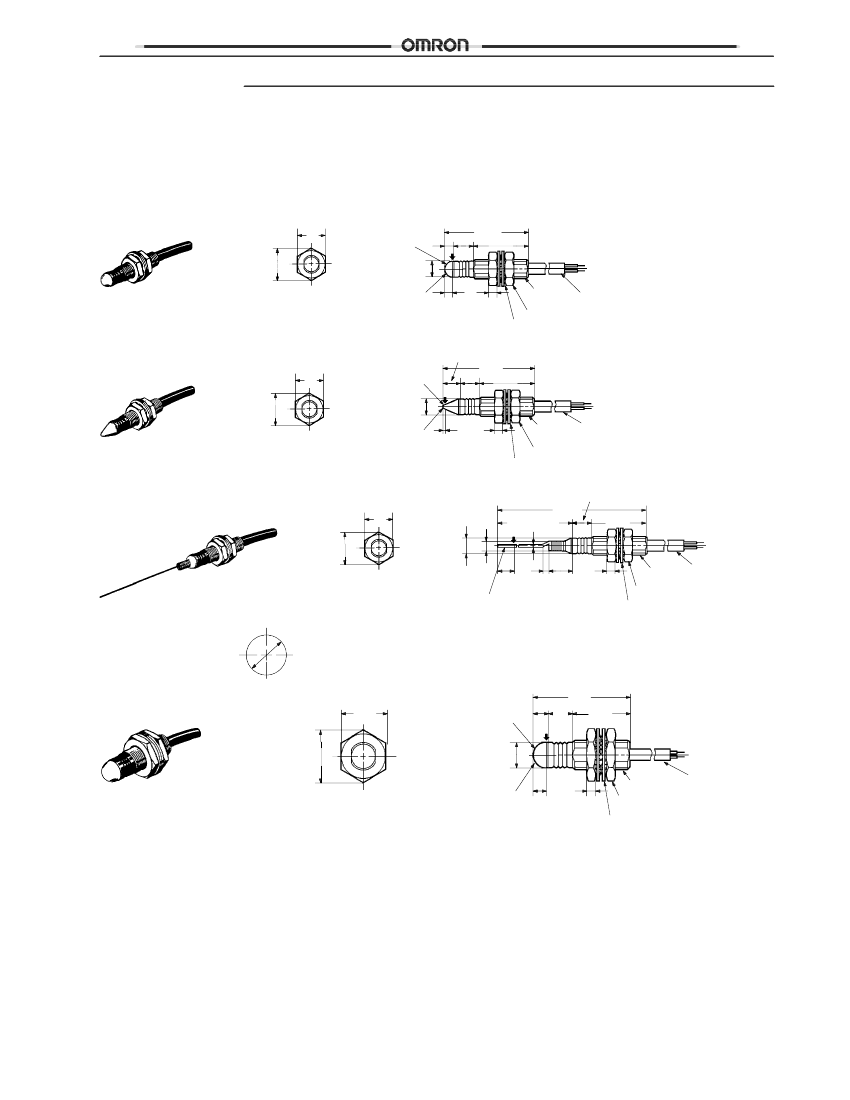

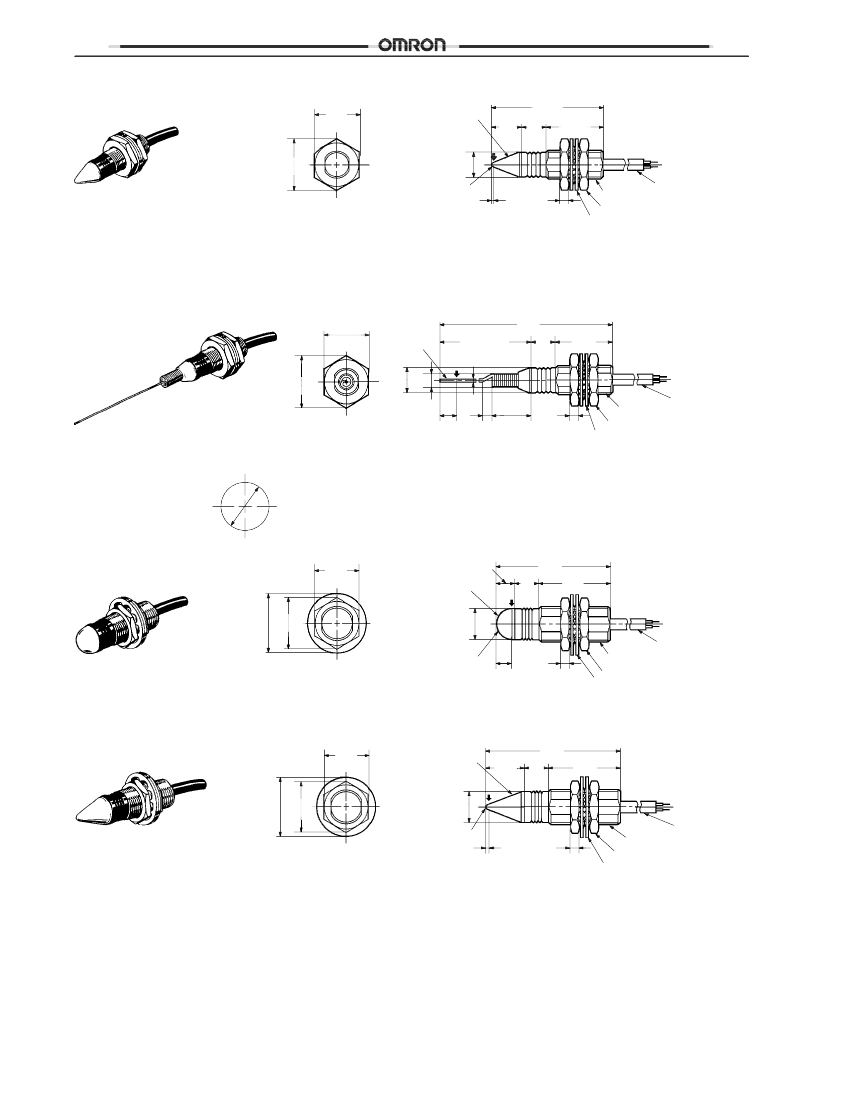

Dimensions
Unit: mm (inch)
Note: 1. Unless otherwise specified, a tolerance of
±0.4
mm applies to all dimensions. Values in parentheses () are cumulative values
and may exceed tolerance of
±0.4
mm.
2. The square
j
in the models represents the cable length. Refer to
Ordering Information.
J
LIMIT SWITCHES
D5B-501j
8
(0.31)
9.2
(0.36)
Resin plunger
4.3 dia.
2.15R
S-FLEX V-HKCVV
M5
×
0.5
equal level, 3 dia.
(See Note 2.) Two cores
Clamping nut
Toothed lock washer
2.5
2.4
24.5
5.9 (0.96)
16.2
(See
Note 1.)
2.15
(0.09)
D5B-502j
8
(0.31)
9.2
(0.36)
Resin
plunger
4.9
(0.19)
(See
Note 1.)
27
5.9 (1.06)
16.2
4.3 dia.
0.5R
S-FLEX V-HKCVV
equal level, 3 dia.
M5
×
0.5
(See Note 2.) Two cores
1
2.5
Clamping nut
Toothed lock washer
5.9
(0.23)
16.2
(0.64)
D5B-551j
8
(0.31)
9.2
(0.36)
4.2 2.3
dia. dia.
5
(See Note 1.)
64.1
41.9±2 (2.52)
(1.65±0.08)
0.4
dia.
2 6.9±2
2.5
S-FLEX V-HKCVV
equal level, 3 dia.
M5
×
0.5
Two cores
(See Note 2.)
Clamping nut
Mounting Holes M5
Stainless steel wire
Toothed lock washer
5
+0.3
dia. hole
-
-0
Note: 1. Operating characteristics (X, Y) measuring position
2. The threads of the case are not standard. Therefore
standard tapping to the case is not possible for mounting.
28
(1.10)
D5B-801j
13
(0.51)
Resin
plunger
4
(See
Note
1.)
7.3
(0.29)
16.7
(0.66)
15
(0.59)
7 dia.
(0.28)
S-FLEX V-HKCVV
M8
×
0.5
equal level, 3 dia.
(See Note 2.) Two cores
Clamping nut
3.5R
3.5
(0.14)
2.5
(0.10)
Toothed lock washer
5
D5B
D5B-802j
13
(0.51)
D5B
Resin
plunger
(See
Note 1.)
32.5
(1.28)
8.5
16.7
7.3
(0.33) (0.29)
(0.66)
15
(0.59)
7 dia.
(0.28)
0.8R
1
2.5
S-FLEX V-HKCVV
equal level, 3 dia.
M8
×
0.5
Two cores
(See Note 2.)
Clamping nut
Toothed lock washer
Note: 1. Operating characteristics (X, Y) measuring position
2. The threads of the case are not standard. Therefore
standard tapping to the case is not possible for mounting.
D5B-851j
13
(0.51)
Stainless
steel wire
68.8±2
(2.71±0.08)
(See Note 1.)
92.8
(3.65)
7.3
(0.29)
16.7
(0.66)
15
(0.59)
7 dia.
(0.28)
3.9 dia.
(0.15)
5
0.6
dia.
3
11.8±2
2.5
M8
×
0.5
(See Note 2.)
Clamping nut
S-FLEX V-HKCVV
equal level, 3 dia.
Two cores
Toothed lock washer
Mounting Holes M8
8
+0.3
dia. hole
-
-0
Note: 1. Operating characteristics (X, Y) measuring position
2. The threads of the case are not standard, so standard
tapping to the case is not possible for mounting.
D5B-101j
13
(0.51)
5.5
(0.22)
Resin
plunger
7.3
(0.29)
33.3
(1.31)
20.5
(0.81)
18 dia.
(0.71)
15
(0.59)
9 dia.
(0.35)
M10
×
0.5
(See Note 2.)
Clamping nut
2.5
Toothed lock washer
4.5R
4.5
(0.18)
S-FLEX V-HKCVV
equal level, 3 dia.
Two cores
D5B-102j
13
(0.51)
Stainless
steel wire
(See
Note 1.)
11.5
(0.45)
39.3
(1.55)
7.3
(0.29)
20.5
(0.81)
18 dia.
(0.71)
15
(0.59)
9 dia.
(0.35)
0.9R
1
(0.04)
2.5
S-FLEX V-HKCVV
equal level, 3 dia.
M10
×
0.5 Two cores
(See Note 2.)
Clamping nut
Toothed lock washer
Note: 1. Unless otherwise specified, a tolerance of
±0.4
mm applies to all dimensions. Values in parentheses () are cumulative values
and may exceed tolerance of
±0.4
mm.
2. The square
j
in the models represents the cable length. Refer to
Ordering Information.
6
