1 Overview
The Rockwell RipTide™ PCI Audio/Comm Device Family
combines audio and communications performance with
built-in PCI and peripheral interfaces into two or three
hardware devices and supporting PC software, depending
on model (see Figure 1 and Table 1). The devices are the
Audio Communications Controller, the Audio Modem
Codec, and the optional Modem DSP.
Audio system operation is supported by the Rockwell
WaveStream™ 64 (WS64) or Mega WaveStream™
software wavetable synthesis.
Rockwell V.90/K56flex™ modem operation is supported by
either SoftK56 MMX-based signal processing or optional
Modem DSP-based signal processing.
The Audio Communications Controller (ACC or Controller)
2
integrates standard PCI Bus, MPU-401, I S, analog/digital
joystick, Audio Modem Codec, and Modem DSP
interfaces into a single 176-pin TQFP (RACC010).
The Audio Modem Codec (AMC or Codec) combines two
coder/decoder functions, compliant to Intel Audio Codec
’97 2.0 extensions for combo audio modem codec
(AMC’97), into an 80-pin PQFP which supports two
telephone lines (RAMC002) or a 64-pin TQFP which
supports one telephone line (RAMC001).
The optional Modem DSP (RDSP20) is packaged in an
80-pin PQFP.
2 General Features
•
Microsoft PC’98 compliant
•
AC ’97 Codec V2.0 compliant (AMC’97)
•
Supports applications for Windows 98 (WDM),
Windows 95, Windows NT 4.0, Sound Blaster Pro,
Adlib/OPL3, MS DOS, DOS box
•
V.90/K56flex Modem
•
Patented PCI Sound Blaster emulation
•
FM synthesis
•
WaveStream 64-voice software wavetable synthesis
•
Mega WaveStream software wavetable synthesis
•
Soft DVD Support
•
3D spatialization and bass boost
•
MMX-accelerated HRTF-3D (A3D)
•
High quality sample rate converter (1 Hz resolution)
•
PCI Bus master interface with Scatter/Gather DMA
•
PME# signal support ACPI, PCI-PM, OnNow®
•
Vaux and Caller ID storage in D3 state
•
Advanced Power Management
•
Digital mixer and volume control
•
DirectSound™ acceleration
•
Analog/digital joystick interface
2
•
Two sample rate tracking (I S) ports
•
MPU-401 Interface
•
Packaging
−
ACC: 176-pin TQFP
−
AMC: 80-pin PQFP or 64-pin TQFP
−
DSP: 80-pin PQFP
RipTide System Device Set
RING
TELEPHONE
LINE/
TELEPHONE
HANDSET
INTERFACE
(DAA)
TELEPHONE
LINE 1
TELEPHONE
LINE 2 *
TEL HANDSET
AC-LINK
PCI BUS
AC '97
Audio
Commmunications
Controller (ACC)
[RACC010:
176-Pin TQFP]
SERIAL
CHANNELS
PARALLEL
BUS
Modem DSP
[RDSP020:
80-Pin PQFP]
(Optional)
EEPROM
AMC '97
Audio Modem
Codec (AMC)
[RAMC001:
64-Pin TQFP]
[RAMC002:
80-Pin PQFP]
LINE (R,L), CD (R,L), AUX (R,L),
VIDEO AUDIO (L,R), MIC (1 OR 2), PC BEEP
LOUT (R,L), HP (L,R), MONO_OUT
I 2 S (0 AND 1)
MIDI (IN AND OUT)
JOYSTICK (A AND B)
* REQUIRES RAMC002
1167F1 BD
Figure 1. RipTide™ PCI Audio/Comm System Block Diagram
3URGXFW 'HVFULSWLRQ
2UGHU 1R
52&.:(// 35235,(7$5< ,1)250$7,21
5HY $XJXVW
',66(0,1$7,21 25 86( 2) 7+,6 ,1)250$7,21 ,6 127 3(50,77(' :,7+287 7+( :5,77(1 3(50,66,21 2) 52&.:(// ,17(51$7,21$/
RipTide™ PCI Audio/Comm Device Family Product Description
2.1
Modem Features
2.3
Controller Features
•
Data modem
−
V.90, K56flex, V.34 (33.6 kbps), V.32 bis, V.32, V.22
bis, V.22, V.23, and V.21; Bell 212A and 103
−
V.42 LAPM and MNP 2-4 error correction
−
V.42 bis and MNP 5 data compression
−
V.25 ter (Annex A) and EIA/TIA 602 command set
•
Fax modem
−
Send and receive rates up to 33.6 kbps using V.34 fax
−
V.17, V.29, V.27 ter, and V.21 ch 2
−
EIA/TIA 578 Class 1 and T.31 Class 1.0 commands
•
Digital Simultaneous Voice and Data (V.70 DSVD)
−
G.729 Annex A with interoperable G.729 Annex B
−
Voice/silence detection and handset echo cancellation
−
Handset, headset, or full-duplex speakerphone with
acoustic echo cancellation (AEC)
•
Full-duplex speakerphone (FDSP)
−
Over PSTN
−
Switching to/from data, fax, and DSVD
−
Digital Speakerphone (speakerphone over Internet)
−
Microphone gain and muting
−
Speaker volume control and muting
−
Adaptive acoustic, line, and handset echo cancellation
−
Loop gain control, transmit and receive path AGC
−
Acoustic echo cancellation concurrent with DSVD
•
Video Conferencing Support
−
V.80 synchronous access mode supports host-
controlled communication protocols
−
H.324 interface support
•
V.8/V.8bis and AT commands (V.25 ter with Annex A)
•
Multiple country support
−
Call progress and blacklisting options
•
Data/Fax/Voice call discrimination
•
Caller ID and distinctive ring detect
•
Single profile stored in host
•
Voice, telephony, audio
−
TIA-695 command set
−
8-bit linear and 8-bit
µ-Law/A-Law
record/playback
−
8 kHz sample rate
−
Handset, acoustic, line echo cancellation
−
Music on hold from host or any digital or analog input
−
TAM support with concurrent DTMF detect, ring detect
and caller ID
•
Modem and audio paths concurrent across PCI Bus
•
System Compatibilities
−
Unimodem V compliant
•
PCI Bus Interface
•
PCI Bus Power Management
−
ACPI Power Management Registers
−
PME# and APM support
•
Audio interfaces
−
MPU-401 MIDI interface
2
−
I S bus digital interface
−
Volume control inputs (up, down, mute)
•
Simultaneous sample rate conversion (SRC)
−
Up to 15 audio and modem sample data streams
−
Interpolation:1 kHz to 48 kHz in; 48 kHz out
−
Decimation: 48 kHz in; 48 kHz to 8 kHz out
•
48 kHz Mixer
−
Twelve 36-bit inputs; one 18-bit output
•
Other interfaces
−
Analog/digital joystick game port interface
−
Ring signal inputs (ring frequency, ring detect)
−
Programmable GPIO pins (2 unassigned I/O lines)
−
Serial EEPROM interface
−
AC-link to Codec
−
Modem DSP serial and parallel interface
•
176-pin TQFP
•
+3.3V operation with +5V tolerant inputs
2.4
Codec Features
2.2
Optional Modem DSP Features
•
Reduces host processing load by up to 50 MHz
•
80-pin PQFP
•
+3.3V operation with +5V tolerant inputs
•
Combined Audio/Modem Codec (AMC)
−
AC ’97 Codec V2.0 compliant (AMC ’97)
•
Advanced Power Management
•
Audio codec and interface
−
Stereo full-duplex codec with 18-bit resolution
−
Six audio analog input channels
Four stereo line-level inputs: Line_In, CD, Video,
and AUX
Mono mic level input switchable from two external
sources: Mic_1 and Mic_2
Mono PC Beep input
−
Three audio analog output channels
Two stereo line-level outputs: Line_Out and
Headphone_Out
Mono output: Mono_Out
−
3D spatialization and bass boost
•
Modem codec and interface
−
Full-duplex codec with 16-bit resolution
−
1-line telephone line Interface (64-pin TQFP)
−
2-line telephone line Interface (80-pin PQFP)
−
Dedicated handset ADC/DAC
−
Dedicated microphone ADC
•
GPIO lines
−
7 unassigned I/O lines (64-pin TQFP)
−
13 unassigned I/O lines (80-pin PQFP)
•
64-pin TQFP and 80-pin PQFP
+3.3V operation with +5V tolerant inputs or +5V
operation
2
ROCKWELL PROPRIETARY INFORMATION
1167
RipTide™ PCI Audio/Comm Device Family Product Description
2.5
Ordering Information

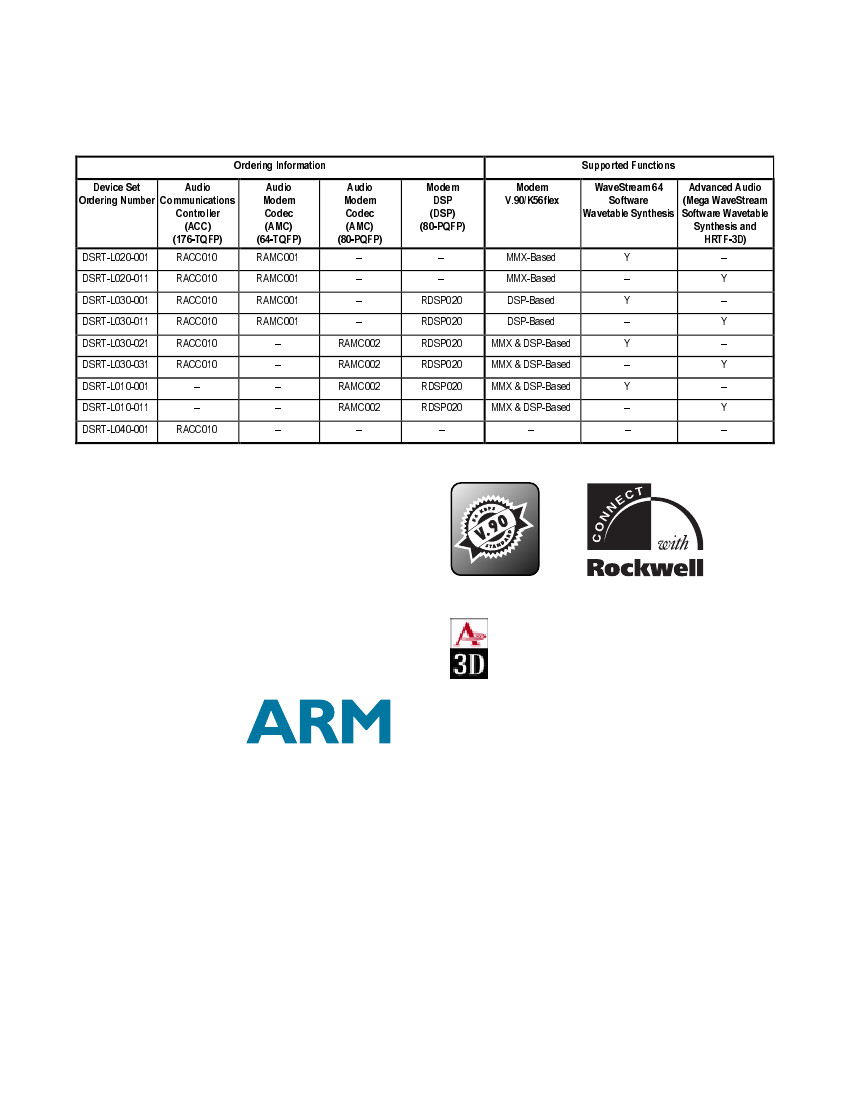

Table 1. RipTide™ PCI Audio/Comm Device Family Models and Options
2UGHULQJ ,QIRUPDWLRQ
'HYLFH 6HW
$XGLR
$XGLR
0RGHP
&RGHF
$XGLR
0RGHP
&RGHF
0RGHP
'63
0RGHP
9 .IOH[
6XSSRUWHG )XQFWLRQV
:DYH6WUHDP
6RIWZDUH
:DYHWDEOH 6\QWKHVLV
$GYDQFHG $XGLR
0HJD :DYH6WUHDP
6RIWZDUH :DYHWDEOH
6\QWKHVLV DQG
2UGHULQJ 1XPEHU &RPPXQLFDWLRQV
&RQWUROOHU
'657/
'657/
'657/
'657/
'657/
'657/
'657/
'657/
'657/
5$&&
5$&&
5$&&
5$&&
5$&&
5$&&
5$&&
5$0&
5$0&
5$0&
5$0&
5$0&
5$0&
5$0&
5$0&
5'63
5'63
5'63
5'63
5'63
5'63
00;%DVHG
00;%DVHG
'63%DVHG
'63%DVHG
00; '63%DVHG
00; '63%DVHG
00; '63%DVHG
00; '63%DVHG
<
<
<
<
<
<
<
<

RipTide and WaveStream are trademarks of Rockwell
International.
K56flex is a trademark of Rockwell International and Lucent
Technologies.
MNP is a trademark of Compaq Computer Corporation.
Sound Blaster and Sound Blaster Pro are registered trademarks
of Creative Laboratories, Inc.
MS-DOS, Windows, Windows NT 4.0, Windows 98 (WDM),
DirectSound, and DirectX are trademarks of Microsoft Corp.
Microsoft and OnNow are registered trademarks of Microsoft
Corp.
A3D is a trademark of Aureal Semiconductor Inc.
ARM is a trademark of ARM Ltd.
1167
ROCKWELL PROPRIETARY INFORMATION
3
RipTide™ PCI Audio/Comm Device Family Product Description
PCI Bus
Controller
PCI Audio/Modem/Joystick Interface
External EEPROM
PCI Target Interface
EEPROM
I/F
On-Chip Processor
PCI Master Mode Arbiter
Processor Bus
RAM
ROM
Processor
to HSPB
bridge
PCI
DMA
Buffer
Modem
DMA/
Interface
Controller
PCI to
LSPB
Bridge
Reset/
Clock
Gen
PCI
DMAC
CMD
I/F
PIC
Sample
Buffer
OPL3
(FM
Synth)
Counter/
Timers
SB
Regs
SRC
Mixer
SR 1,2,3,4
Modem
DSP
I/F
Power
Cntl
SR8 Serial Bus
& Modem A
Modem
Serial Data
(Modem A)
I/F
Modem
DSP
(optional)
MPU
401
UART
Scratch
Pad I/F
High Speed Peripheral Bus (HSPB)
DAA/
GPIO/
HW
Vol
Cntl
Low Speed Peripheral Bus (LSPB)
AMC'
97
I/F
AC
Link
AMC'97
Codec
24.576 MHz
Sample Bus
Analog/
Digital
Joystick
I
2
S
I/F
I
2
S
Low Speed Peripheral Bus
Figure 2. RipTide System Block Diagram
4
ROCKWELL PROPRIETARY INFORMATION
1167
RipTide™ PCI Audio/Comm Device Family Product Description
3 General Description
3.1
3.1.1
System Overview
RipTide System Hardware Components
The RipTide system hardware components are:
•
Audio Communications Controller (ACC or Controller) device in a 176-pin TQFP.
•
Audio Modem Codec (AMC or Codec) device in an 80-pin PQFP or a 64-pin TQFP.
•
Optional Modem DSP device in an 80-pin PQFP.
Audio Communications Controller (ACC or Controller).
The Controller provides the processing core and interfaces for a
complete system featuring audio and communications. On-chip processor code may be downloaded into internal Controller
RAM using supplied utility software. The Controller connects to the host PC via a PCI Bus interface and implements 3 PCI
logical devices: Audio, Modem and Joystick functions. The Controller conforms to the PCI Local Bus Specification, Production
Version, Revision 2.1 with a 32-bit PCI Local Bus interface and 33MHz PCI clock support.
Communication between the Controller and the Codec is via an AC ‘97 AC-link.
Communication between the Controller and optional Modem DSP is via a parallel control and status interface and a serial
data transfer interface.
The Controller is packaged in a 176-pin TQFP (RACC010) and operates on +3.3V power with +5V tolerant inputs.
Audio Modem Codec (AMC or Codec).
The Codec combines two coder/decoder functions, compliant to Intel Audio Codec
’97 2.0 Extensions for combo audio modem codec (AMC’97), into an 80-pin PQFP which supports two telephone lines
(RAMC002) or a 64-pin TQFP which supports one telephone line (RAMC001).
The Codec operates on +3.3V power with +5V tolerant inputs or on +5V power.
Optional Modem DSP.
The optional Modem DSP (RDSP20) performs hardware modem and voice signal processing thus
reducing the host CPU processing requirements by about 50 MHz. The DSP is packaged in an 80-pin PQFP.
The DSP operates on +3.3V power with +5V tolerant inputs.
3.1.2
•
•
•
RipTide System Software Components
The RipTide system software components are:
Audio system software that supports applications for Windows 98 (WDM), Windows 95, Windows NT 4.0, Sound
Blaster Pro, Adlib/OPL3, MS DOS, or DOS box.
WaveStream 64-voice software wavetable synthesis or optional Mega WaveStream software wavetable synthesis.
V.90/K56flex modem system software that provides modem controller functions with either MMX-based modem signal
processing or support for optional modem DSP signal processing.
RipTide PC System Requirements
3.1.3
•
•
•
•
3.1.4
The minimum PC system requirements for a RipTide System solution is:
Pentium 200 MMX or compatible
Windows 98, Windows 95 and Windows NT4.0
32 MB RAM
50 MB hard disk space.
System Advantages
The RipTide solution moves both audio and communications functions from the 8 MHz ISA bus to the higher performance 33
MHz PCI Bus, leading to measurable CPU loading advantages and enhanced system reliability. The PCI Bus provides much
improved I/O bus loading and power management capabilities as compared to the ISA bus.
The scaleable RipTide architecture is designed to support:
•
•
•
1167
Motherboard (desktop or notebook)
Custom form factor module (notebook)
PCI add-in card
ROCKWELL PROPRIETARY INFORMATION
5
