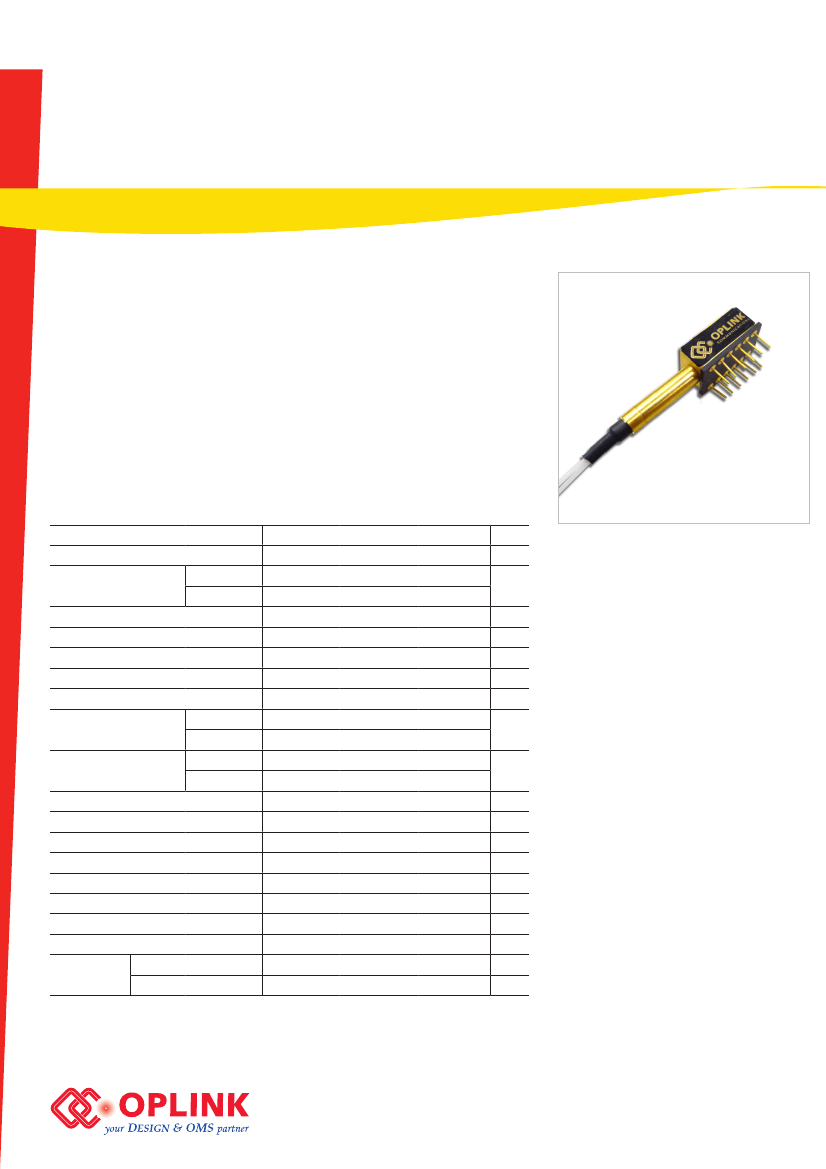

Multi-mode Ultra-mini 1x1, 1x2, 2x2
(Add/Drop) Fiber-optic Switch
OFMSMM Series
Product Description
Oplink OFMS ultra-mini fiber-optic switches are ideal for module and system integration
where the unique unilateral input and output fiber configuration is preferred. These
switches are designed for use in re-configurable optical add/drop multiplexers, optical
cross-connect systems, and network switching for fault protection applications.
The opto-mechanical ultra-mini switch can be directly mounted on printed circuit board
(PCB) and offer the same excellent performance characteristics of Oplink’s standard
OFMS series switch products. The OFMS miniature switches are designed to exceed Tel-
cordia standards GR-1221 and GR-1073.
Oplink provides customized design to meet special control and applications. Also, Oplink
offers modular assemblies that integrate other components to form a full function mod-
ule or subsystem.
Performance Specificationns
Parameters
Min
1x1, 1x2
2x2AD
Typ.
Max
Unit
Wavelength Range (λ
Op
)
Insertion Loss
Return Loss
Channel Cross-talk
Repeatability
Switching Speed
Operating Voltage
Driving Current
3
Coil Resistance
Cycle Rate
Durability
Operating Power Handling
Operating Temperature (T
Op
)
Storage Temperature
Humidity
Fiber Type
Nominal
Package Size
Bare Fiber Pigtail
900μm Loose Tube Pigtail
4
2
1
770 ~ 860 and/or 1260 or 1360
< 0.5
< 0.6
> 30
> 35
±0.05
<4
5 ± 10%
Latching
Non-latching
Latching
Non-latching
nm
dB
dB
dB
dB
ms
VDC
Features
Miniature Size
Unilateral Input/output Fiber
Configuration
Bi-directional Operation
1x1, 1x2 latching or non-latching
configurations
Wide Operating Wavelength Range
Seam-seal Package
Highly Stable & Reliable
22
31
205.5 ± 10%
145 ± 10%
32
46
mA
Ω
≤10
10
7
500
0
-40
70
80
Hz
cycle
mW
°C
°C
Applications
<85% RH, or <90%RH for short term
latching or non-latching, single coil
Network Switching
Network Protection and Restoration
mm
mm
Switch Relay Type
50μm or 62.5μm core multi-mode fiber
29 (L) x 10.5 (W) x 8.0 (H)
38.5 (L) x 10.5 (W) x 8.0 (H)
Instrumentation, Testing and
Measurement
Notes:
1) Excluding connectors; add 0.3 dB within λ
Op
and T
Op
. Based on FOTP-34 method A, steady state equilibrium
launch conditions. Measured using 850nm and 1310nm muti-mode light source.
2) Switching time is defined as the time interval between electrical trigger and 90% of stable optical output.
3) A >20ms DC pulse is recommended for latching type of switch.
4) Short term is defined as less than 96 consecutive hours and less than a total of 15 days over a one year period.
R01.20090525
Multi-mode Ultra-mini 1x1, 1x2, 2x2
(Add/Drop) Fiber-optic Switch
OFMSMM Series
Function Diagram
1x1 On/Off Switch
1x2 Switch
2x2 Add/Drop Switch
46335 Landing Pkwy Fremont, CA 94538 Tel: (510) 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com • www.oplink.com
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink’s OEM
design team or account manager for your requirements and ordering information (510) 933-7200.
OFMS
M
I
M
2
Type
Ultra-mini
Switch Type
Latching = 0
Non-latching = 1
1x1 = 11
1x2 = 12
2x2 Add/Drop = 22
Fiber Length
0.5 meter = H
1.0 meter = 1
1.5 meter = 5
2.0 meter = 2
Connector
Type
None = 1
FC/PC = 2
FC/SPC = 3
FC/APC = 4
SC/PC = 5
SC/SPC = 6
SC/APC = 7
ST = 8
LC = 9
MU = A
Wavelength
850/1310nm = D
850nm = 8
1310nm = 3
Multi-mode
Fiber Type
MMF 50/125 fiber = 1
MMF 62.5/125 fiber = 2
Package Type
P2 = 2 (Ultra-mini)
R01.20090525
