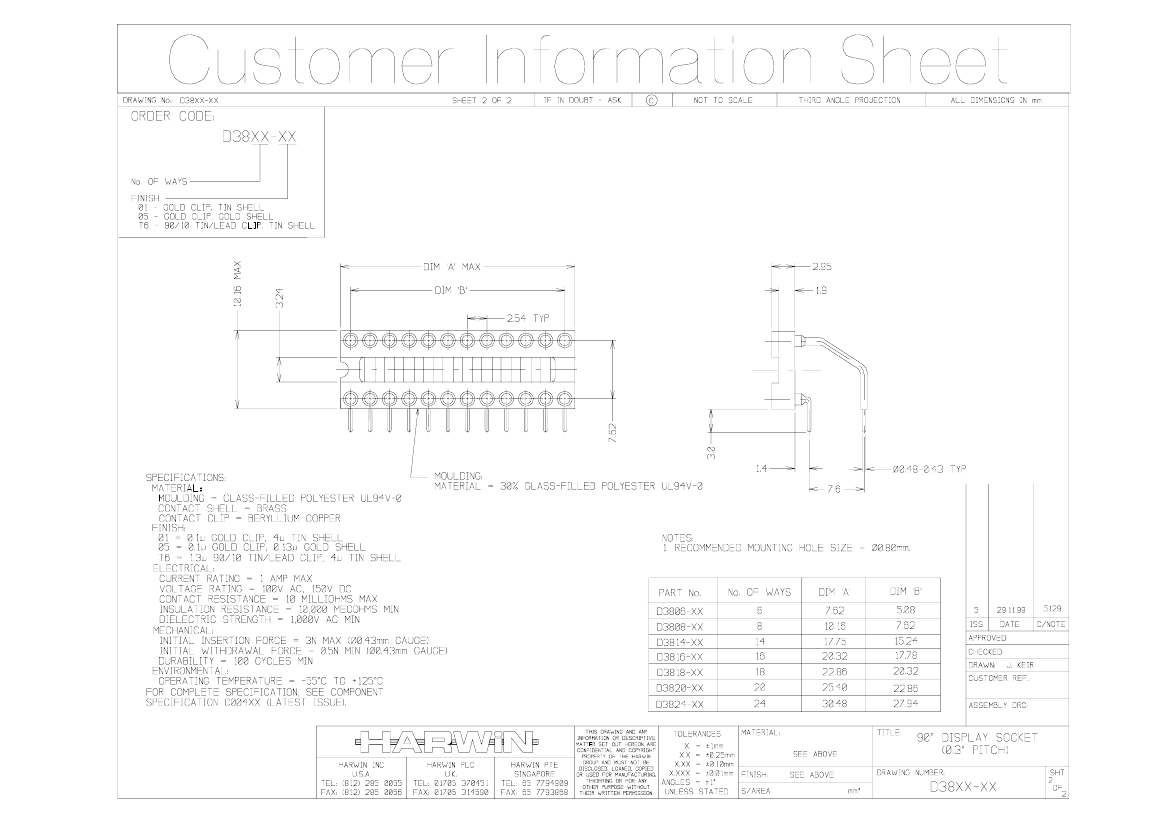

D3806-T6: DescriptionIC Socket, DIP6, 6 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder; CategoryThe connector socket; File Size117KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

D3806-T6 Overview

IC Socket, DIP6, 6 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder

D3806-T6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	DISPLAY
body width	0.4 inch
subject depth	0.482 inch
body length	0.3 inch
Contact to complete cooperation	TIN LEAD (51)
Contact completed and terminated	TIN (157)
Contact material	BE-CU
Contact style	RND PIN-SKT
current rating	1.8 A
Device slot type	IC SOCKET
Type of equipment used	DIP6
Shell material	POLYESTER
JESD-609 code	e3
Manufacturer's serial number	D38
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Number of contacts	6
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

D3806-T6 Related Products

	D3806-T6	D3808-05	D3806-05	D3808-01	D3814-T6	D3808-T6	D3816-01	D3806-01
Description	IC Socket, DIP6, 6 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP8, 8 Contact(s)	IC Socket, DIP6, 6 Contact(s)	IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP14, 14 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP8, 8 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder	IC Socket, DIP6, 6 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	compliant	compliant	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Contact to complete cooperation	TIN LEAD (51)	GOLD (4)	GOLD (4)	GOLD (4)	TIN LEAD (51)	TIN LEAD (51)	GOLD (4)	GOLD (4)
Contact completed and terminated	TIN (157)	GOLD (5)	GOLD (5)	TIN (157)	TIN (157)	TIN (157)	TIN (157)	TIN (157)
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP6	DIP8	DIP6	DIP8	DIP14	DIP8	DIP16	DIP6
Shell material	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
JESD-609 code	e3	e4	e4	e3	e3	e3	e3	e3
Manufacturer's serial number	D38	D38	D38	D38	D38	D38	D38	D38
Number of contacts	6	8	6	8	14	8	16	6
Other features	DISPLAY	-	-	DISPLAY	DISPLAY	DISPLAY	DISPLAY	DISPLAY
body width	0.4 inch	-	-	0.4 inch	0.4 inch	0.4 inch	0.4 inch	0.4 inch
subject depth	0.482 inch	-	-	0.482 inch	0.482 inch	0.482 inch	0.482 inch	0.482 inch
body length	0.3 inch	-	-	0.3 inch	0.7 inch	0.4 inch	0.8 inch	0.3 inch
Contact material	BE-CU	-	-	BE-CU	BE-CU	BE-CU	BE-CU	BE-CU
Contact style	RND PIN-SKT	-	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
current rating	1.8 A	-	-	1.8 A	1.8 A	1.8 A	1.8 A	1.8 A
Plug contact pitch	0.1 inch	-	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	RIGHT ANGLE	-	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Maximum operating temperature	125 °C	-	-	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.3 mm	-	-	0.3 mm	0.3 mm	0.3 mm	0.3 mm	0.3 mm
Terminal pitch	2.54 mm	-	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	-	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1	1	-	-
