D5BT-16/32-5-N/N-GRI-LP datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> D5BT-16/32-5-N/N-GRI-LP

D5BT-16/32-5-N/N-GRI-LP: DescriptionTunable BPF, 5 Section(s) Min, 5 Section(s) Max, 16MHz Min, 32MHz Max,; CategoryAnalog mixed-signal IC filter; File Size286KB，3 Pages; ManufacturerK&L Microwave Inc

Download Datasheet Parametric Compare View All

D5BT-16/32-5-N/N-GRI-LP Overview

Tunable BPF, 5 Section(s) Min, 5 Section(s) Max, 16MHz Min, 32MHz Max,

D5BT-16/32-5-N/N-GRI-LP Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
3dB bandwidth	5%
filter type	TUNABLE BPF
input connector	N FEMALE
Input/output impedance	50 OHM
Maximum insertion loss	1.8 dB
Installation type	PANEL MOUNT
Number of partitions-max	5
Number of partitions - minimum	5
Output connector	N FEMALE
tuning control	GPIB CONTROL
maximum tuning frequency	32 MHz
minimum tuning frequency	16 MHz
voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

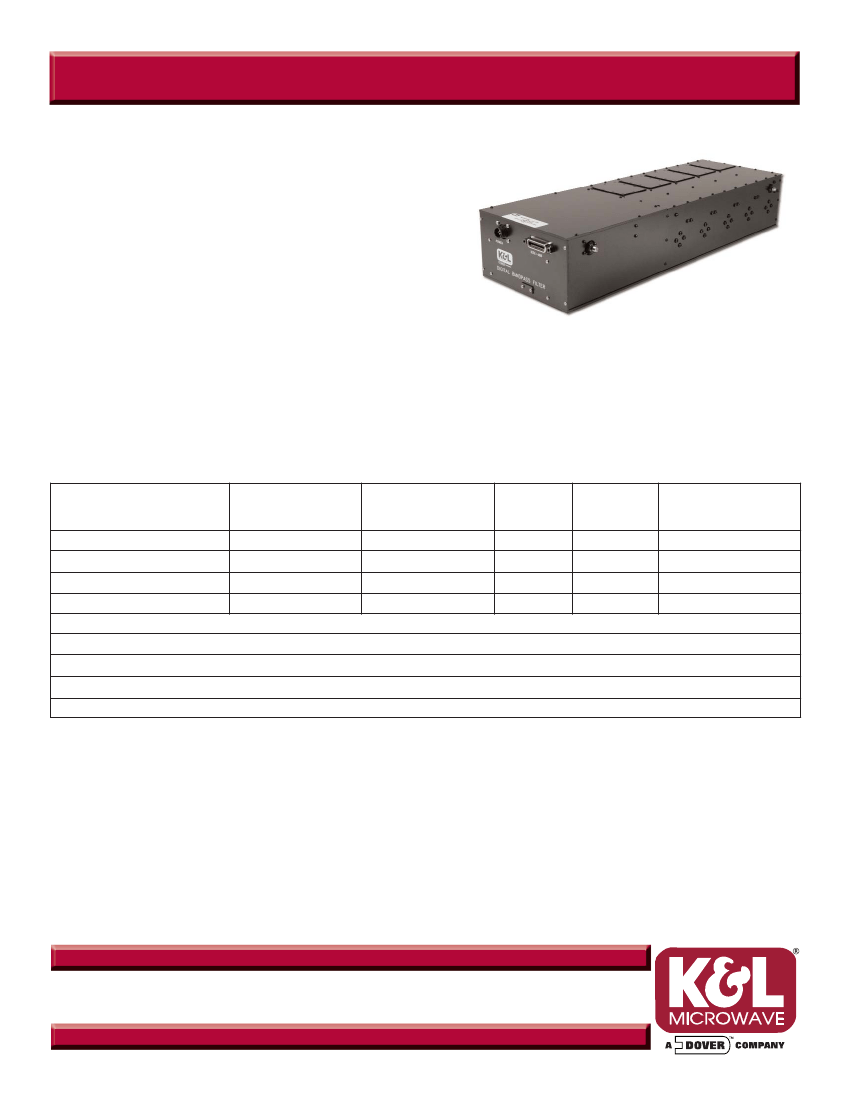

Low Frequency Digitally Controlled Tunable Filters

◆

Features:

• Digitally Controlled

• Optional Internal Lowpass Filter Providing 60 dB min.

Attenuation out to 700 MHz

• High Performance Cavity Design

• Octave Tuning Ranges

• Drive Voltages Include 24 VDC (standard), 12 VDC and

110 VAC

• Remote Interfaces Include GPIB (standard), RS-232

and RS-422

◆

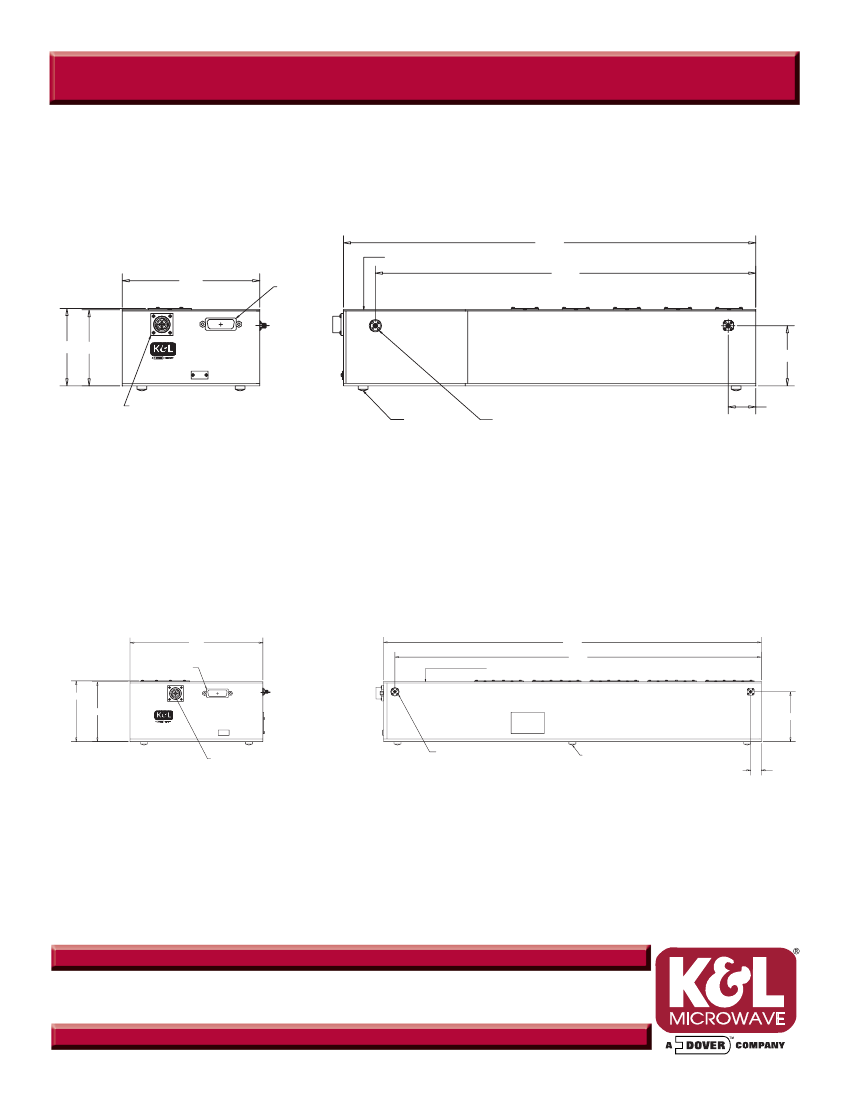

Specifications:

K&L Model

Bandpass

D5BT-2/4-5-N/N-GRI-LP

D5BT-4/8-5-N/N-GRI-LP

D5BT-8/16-5-N/N-GRI-LP

D5BT-16/32-5-N/N-GRI-LP

Filter Type:

Impedance:

RF Connectors:

Digital Interface:

Control Power:

50 Ohms

Type N Standard, SMA / TNC / BNC Optional

GPIB Standard, RS-232 / RS-422 / BCD Optional

24 VDC Standard, 12 VDC / 110 VAC Optional

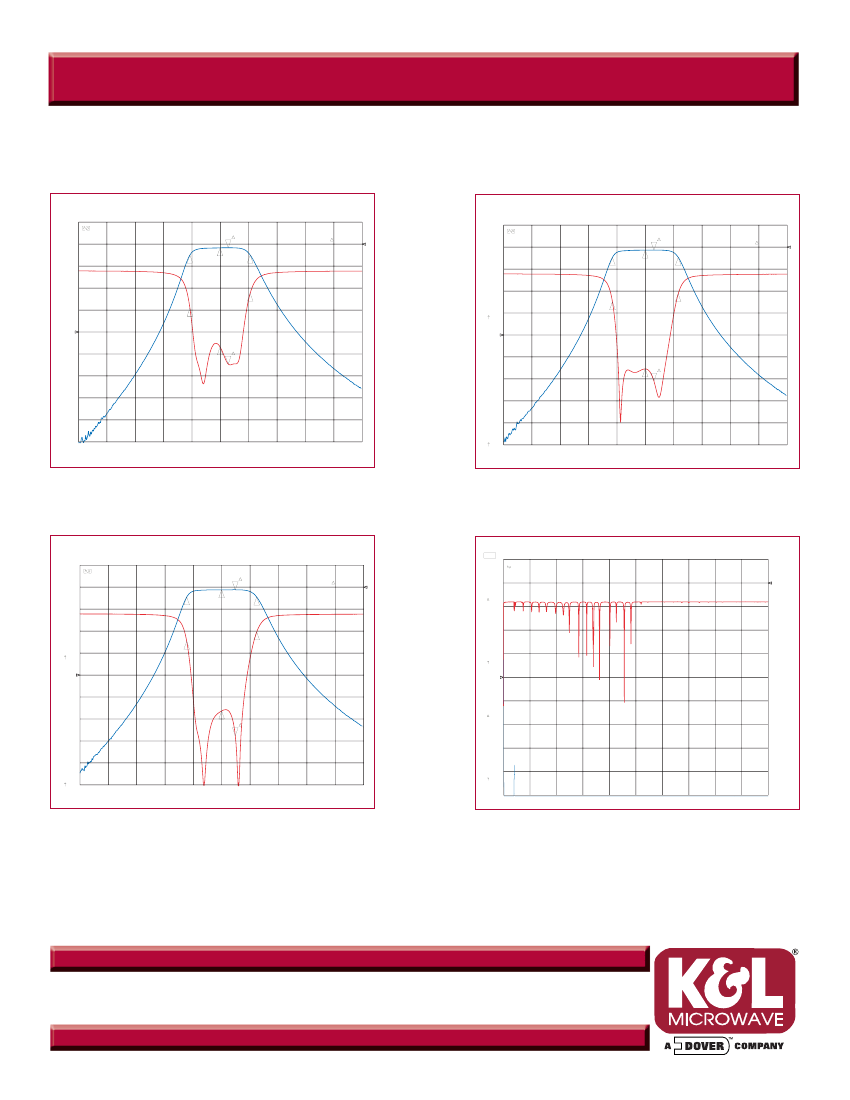

Frequency Range

(MHz)

2-4

4-8

8 - 16

16 - 32

Passband Insertion

Loss

2.8 dB max.

1.8 dB max.

3 dB BW

VSWR

Shape Factor

30 dB to 3 dB/

50 dB tp 3 dB

2.2:1 / 3.5:1

1.5:1

5 Section Bandpass

◆

Applications:

• Automated Test and Measurement Facilities

• Trouble Shooting Co-location Environments

• Military Communications

• Wireless Communications

Filtering Solutions for Your Global Market

USA

Phone: 410-749-2424

FAX:

410-749-5725

Email: sales@klmicrowave.com

EUROPE

Phone: +44-(0)-1908-547920

FAX:

+44-(0)-1908-695284

Email: sales@kleurope.com

Order On-Line @ www.klmicrowave.com

D5BT-16/32-5-N/N-GRI-LP Related Products

	D5BT-16/32-5-N/N-GRI-LP	D5BT-8/16-5-N/N-GRI-LP	D5BT-4/8-5-N/N-GRI-LP	D5BT-2/4-5-N/N-GRI-LP
Description	Tunable BPF, 5 Section(s) Min, 5 Section(s) Max, 16MHz Min, 32MHz Max,	Tunable BPF, 5 Section(s) Min, 5 Section(s) Max, 8MHz Min, 16MHz Max,	Tunable BPF, 5 Section(s) Min, 5 Section(s) Max, 4MHz Min, 8MHz Max,	Tunable BPF, 5 Section(s) Min, 5 Section(s) Max, 2MHz Min, 4MHz Max,
Reach Compliance Code	compliant	compliant	compliant	compliant
3dB bandwidth	5%	5%	5%	5%
filter type	TUNABLE BPF	TUNABLE BPF	TUNABLE BPF	TUNABLE BPF
input connector	N FEMALE	N FEMALE	N FEMALE	N FEMALE
Input/output impedance	50 OHM	50 OHM	50 OHM	50 OHM
Maximum insertion loss	1.8 dB	1.8 dB	1.8 dB	2.8 dB
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Number of partitions-max	5	5	5	5
Number of partitions - minimum	5	5	5	5
Output connector	N FEMALE	N FEMALE	N FEMALE	N FEMALE
tuning control	GPIB CONTROL	GPIB CONTROL	GPIB CONTROL	GPIB CONTROL
maximum tuning frequency	32 MHz	16 MHz	8 MHz	4 MHz
minimum tuning frequency	16 MHz	8 MHz	4 MHz	2 MHz
voltage standing wave ratio	1.5	1.5	1.5	1.5
Base Number Matches	1	1	1	1
