TDK RF Products for Wireless LAN
for 2.4GHz & 5GHz
Diplexer
Start Freq. Stop Freq. Ins. Loss
MHz
MHz
dB (MAX)
2300
2500
0.7
2300
2500
0.7
2300
2500
1.0
Start Freq.
MHz
4900
4900
5150
Stop Freq.
MHz
5950
5950
5350
Ins. Loss
dB (MAX)
1.2
1.2
1.5
6/5/2003
Size
Part No.
mm (typ.)
3.2x1.6x1.3
DPX315850DT-5004A1
3.2x1.6x1.3
DPX315850DT-5005A1
2.0x1.2x0.95
DPX205350DT-9003A1
Sample Available
Under Developing
Jun. /2003 Ver.5
TDK Corporation
3216 TYPE MULTILAYER DIPLEXER FOR 2.4GHz 5GHz W-LAN
P/N
:
DPX315950DT-5004A1
3.2+/-0.2
7
6
1.3+/-0.1
[MECHANICAL DIMENSIONS]
8
5
1.6+/-0.2
MARK
1
2
3
4
0.15min.
0.4+/-0.15 0.8+/-0.1 0.8+/-0.1
UNIT: mm
1. LOW (2.4GHz)
2. GND
3. GND
4. HIGH (5.0GHz)
5. GND
6. GND
7. ANT (COMMON)
8. GND
[ELECTRICAL CHARACTERISTICS]
No. PARAMETER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Insertion loss (25±5 C )
Insertion loss (-40 to +85 C )
Insertion loss (25±5 C )
Insertion loss (-40 to +85 C )
Attenuation
Attenuation
Attenuation
Attenuation
Attenuation
Attenuation
Return Loss
Return Loss
Return Loss
Return Loss
Operating temperature
Storage temperature
o
o
o
o
PORT
ANT-LOW
ANT-LOW
ANT-HIGH
ANT-HIGH
ANT-LOW
ANT-LOW
ANT-HIGH
ANT-HIGH
ANT-HIGH
ANT-HIGH
ANT
ANT
LOW
HIGH
FREQ (MHz)
2300-2500
2300-2500
4900-5950
4900-5950
4600-5000
6900-7500
2300-2500
9800-10700
10700-11700
11700-11900
2300-2500
4900-5950
2300-2500
4900-5950
MIN
-
-
-
-
25
18
30
15
10
-
10
9
10
9
-40
-40
TYP
0.55
-
0.7
-
29
25
38
25
22
20
15
13
15
13
+85
+85
MAX
0.7
0.85
1.2
1.4
-
-
-
-
-
-
-
-
-
-
o
o
UNIT
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
C
C
*Note: This document is PRELIMINARY. All specifications are subject to change without notice and are not guaranteed.
Jun. /2003 Ver.5
TDK Corporation

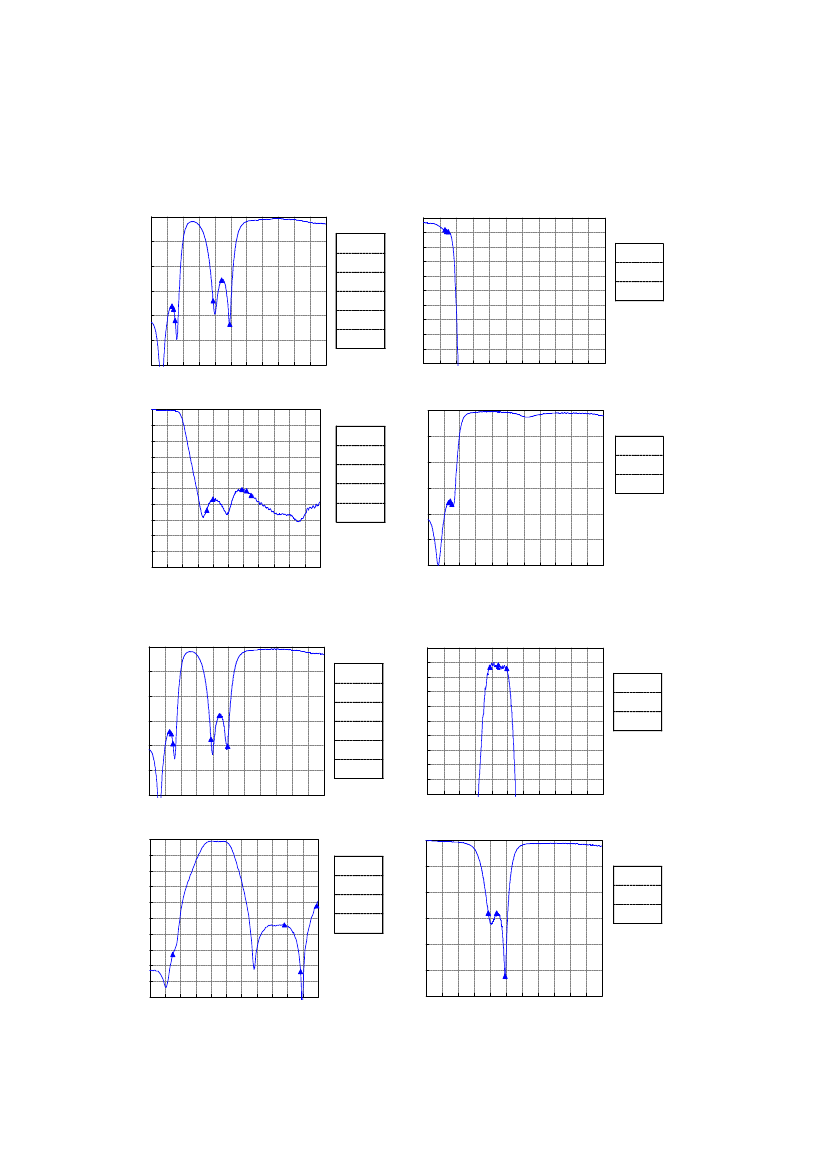

[FREQUENCY RESPONSE]
ANT-LOW
0
-5
-10
Atten.
-15
-20
-25
-30
1
2
3
4
5
6
7
8
9
10 11 12
Freq.[GHz]
S11
Return Loss
2.3 GHz
-18.1 dB
2.4 GHz
-18.8 dB
2.5 GHz
-21.1 dB
4.9 GHz
-17 dB
5.425 GHz
-12.9 dB
5.95 GHz
-21.8 dB
0
-0.5
-1
-1.5
Atten.
-2
-2.5
-3
-3.5
-4
-4.5
-5
1
2
3
4
5
6 7 8
Freq.[GHz]
9
10 11 12
S21
Insertion Loss
2.3 GHz
-0.42 dB
2.4 GHz
-0.48 dB
2.5 GHz
-0.48 dB
0
-5
-10
-15
Atten.
-20
-25
-30
-35
-40
-45
-50
1
2
3
4
5
6 7 8
Freq.[GHz]
9 10 11 12
S21
Attenuation
4.6 GHz
-32.01 dB
5.0 GHz
-28.5 dB
6.9 GHz
-25.5 dB
7.2 GHz
-25.8 dB
7.5 GHz
-27.3 dB
0
-5
-10
Atten.
-15
-20
-25
-30
1
2
3
4
5
6
7
8
9
10 11 12
Freq.[GHz]
S22
Return Loss
2.3 GHz
-17.9 dB
2.4 GHz
-17.5 dB
2.5 GHz
-18.2 dB
ANT-HIGH
0
-5
-10
Atten.
-15
-20
-25
-30
1
2
3
4
5
6
7
8
9
10 11 12
Freq.[GHz]
S11
Return Loss
2.3 GHz
-17.2 dB
2.4 GHz
-17.7 dB
2.5 GHz
-19.7 dB
4.9 GHz
-18.8 dB
5.425 GHz
-14 dB
5.95 GHz
-20.2 dB
0
-0.5
-1
-1.5
Atten.
-2
-2.5
-3
-3.5
-4
-4.5
-5
1
2
3
4
5
6 7 8
Freq.[GHz]
9
10 11 12
S21
Insertion Loss
4.9 GHz
-0.68 dB
5.425 GHz
-0.59 dB
5.95 GHz
-0.71 dB
0
-5
-10
-15
Atten.
-20
-25
-30
-35
-40
-45
-50
1
2
3
4
5
6 7 8
Freq.[GHz]
9 10 11 12
S21
Attenuation
2.5 GHz
-36.5 dB
9.8 GHz
-27.2 dB
10.85 GHz
-42 dB
11.9 GHz
-21.2 dB
0
-5
-10
Atten.
-15
-20
-25
-30
1
2
3
4
5
6
7
8
9
10 11 12
Freq.[GHz]
S22
Return Loss
4.9 GHz
-14.1 dB
5.425 GHz
-14.1 dB
5.95 GHz
-26.2 dB
*Note: This document is PRELIMINARY. All specifications are subject to change without notice and are not guaranteed.
Jun. /2003 Ver.5
TDK Corporation
[RECOMMENDED LAND PATTERN]
2.85
0.125
0.125
0.2
2.2
0.65
0.8
0.45
*Note: This document is PRELIMINARY. All specifications are subject to change without notice and are not guaranteed.
Jun. /2003 Ver.3
TDK Corporation
3216 TYPE MULTILAYER DIPLEXER FOR 2.4GHz 5GHz W-LAN
P/N
:
DPX315950DT-5005A1
3.2+/-0.2
7
6
1.3+/-0.1
[MECHANICAL DIMENSIONS]
8
5
1.6+/-0.2
MARK
1
2
3
4
0.15min.
0.4+/-0.15 0.8+/-0.1 0.8+/-0.1
UNIT: mm
1. HIGH (5.0GHz)
2. GND
3. GND
4. LOW (2.4GHz)
5. GND
6. ANT (COMMON)
7. GND
8. GND
[ELECTRICAL CHARACTERISTICS]
No. PARAMETER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Insertion loss (25±5 C )
Insertion loss (-40 to +85 C )
Insertion loss (25±5 C )
Insertion loss (-40 to +85 C )
Attenuation
Attenuation
Attenuation
Attenuation
Attenuation
Attenuation
Return Loss
Return Loss
Return Loss
Return Loss
Operating temperature
Storage temperature
o
o
o
o
PORT
ANT-LOW
ANT-LOW
ANT-HIGH
ANT-HIGH
ANT-LOW
ANT-LOW
ANT-HIGH
ANT-HIGH
ANT-HIGH
ANT-HIGH
ANT
ANT
LOW
HIGH
FREQ (MHz)
2300-2500
2300-2500
4900-5950
4900-5950
4600-5000
6900-7500
2300-2500
9800-10700
10700-11700
11700-11900
2300-2500
4900-5950
2300-2500
4900-5950
MIN
-
-
-
-
25
18
30
15
10
-
10
9
10
9
-40
-40
TYP
0.55
-
0.8
-
29
25
38
24
22
20
15
13
15
13
+85
+85
MAX
0.7
0.85
1.2
1.4
-
-
-
-
-
-
-
-
-
-
o
o
UNIT
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
C
C
*Note: This document is PRELIMINARY. All specifications are subject to change without notice and are not guaranteed.
