DD50SDSL30 datasheet, PDF - EEWORLD Datasheet

DD50SDSL30: DescriptionD Type Connector, 50 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Plug,; CategoryThe connector The connector; File Size234KB，2 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

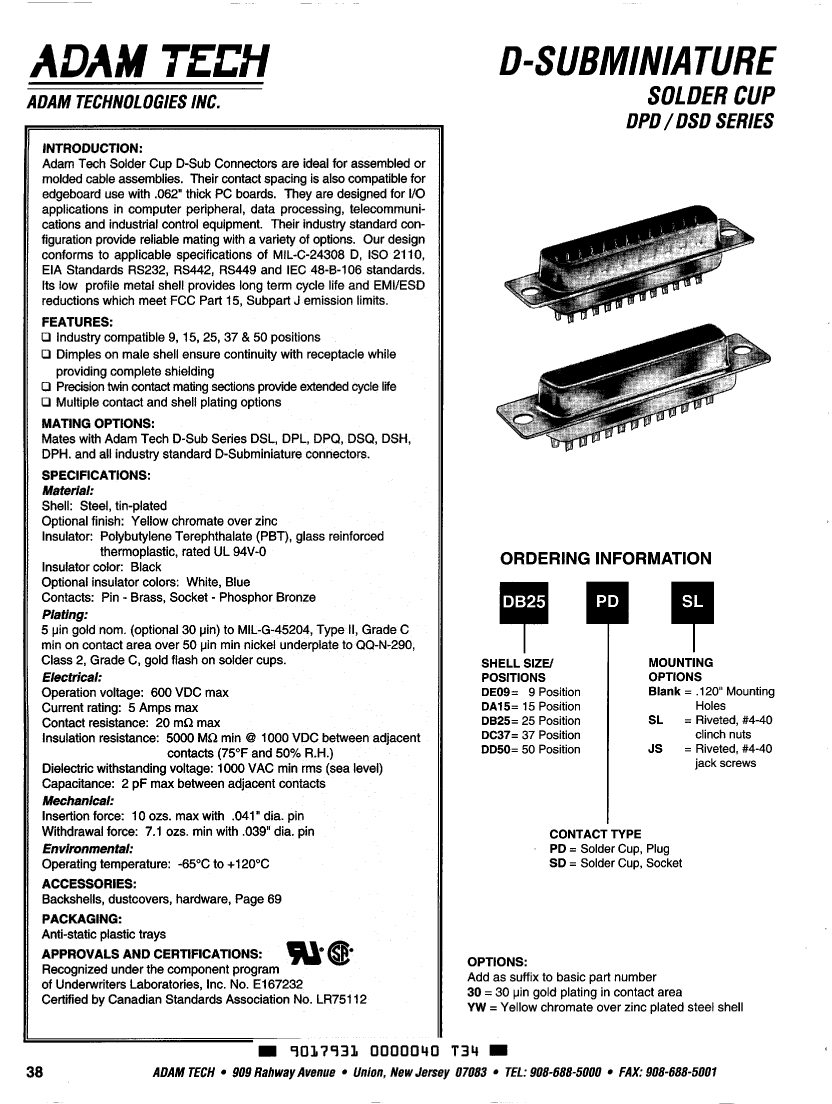

DD50SDSL30 Overview

D Type Connector, 50 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Plug,

Parameter Name	Attribute value
Reach Compliance Code	unknown

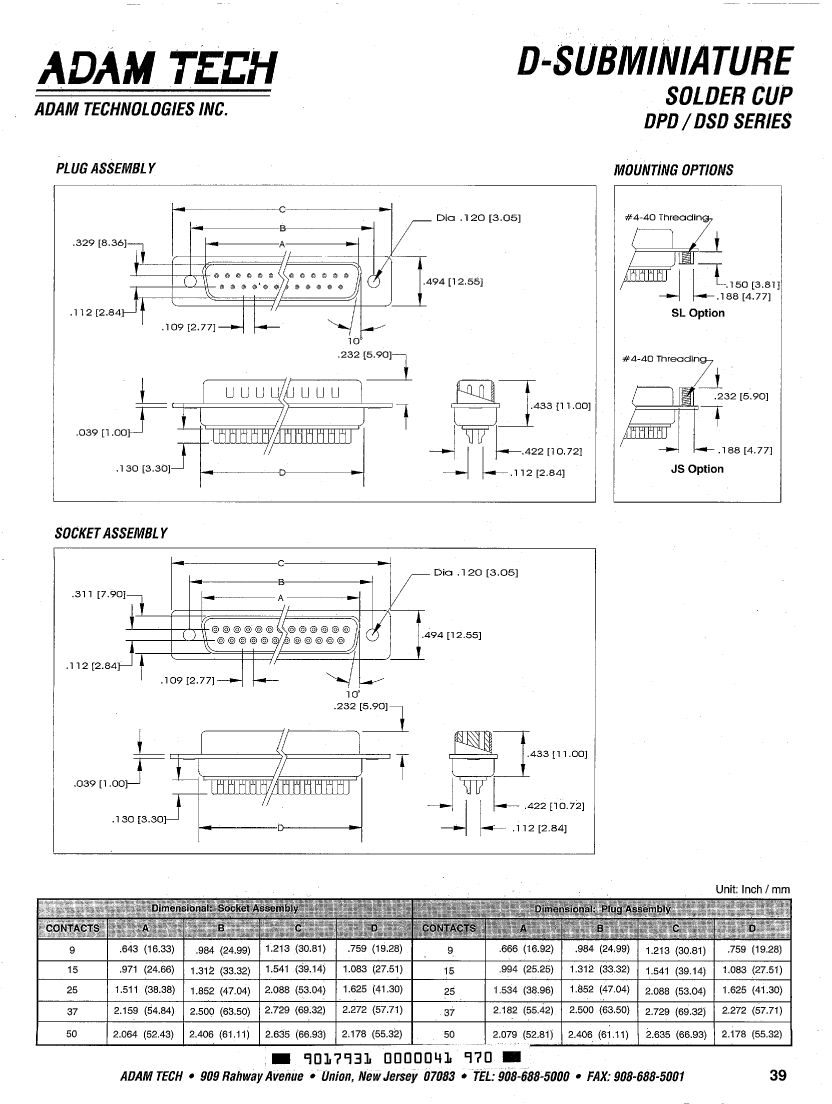

body width	0.494 inch
subject depth	0.201 inch
body length	2.635 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	YES
Manufacturer's serial number	DSD
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	CLINCH NUT
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	120 °C
Minimum operating temperature	-65 °C
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	MIL-C-24308
Shell surface	TIN
Shell material	STEEL
Terminal length	0.13 inch
Termination type	SOLDER LUG
Total number of contacts	50
Evacuation force-minimum value	1.946 N
Base Number Matches	1
