DBMV13X3PNK127-A220 datasheet, PDF

DBMV13X3PNK127-A220: DescriptionD Type Connector, 13 Contact(s), Male, Solder Terminal, #4-40, Receptacle,; CategoryThe connector The connector; File Size539KB，5 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/; Environmental Compliance

Download Datasheet Parametric View All

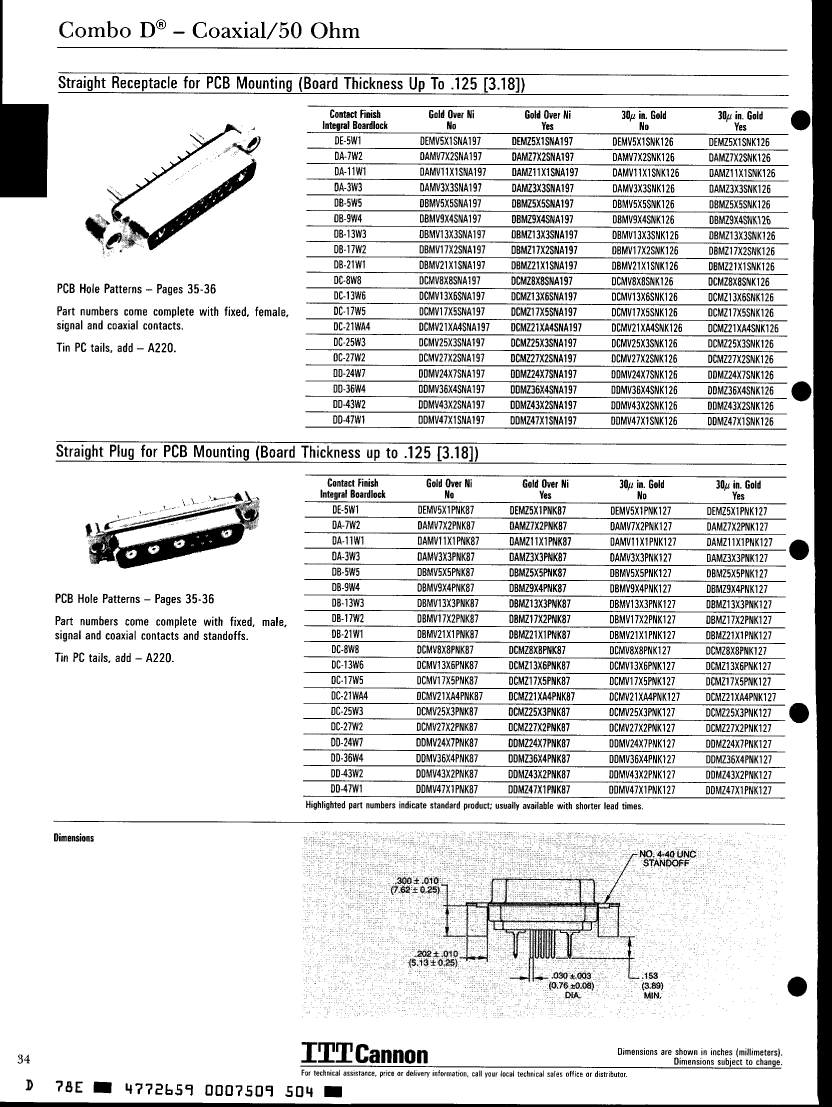

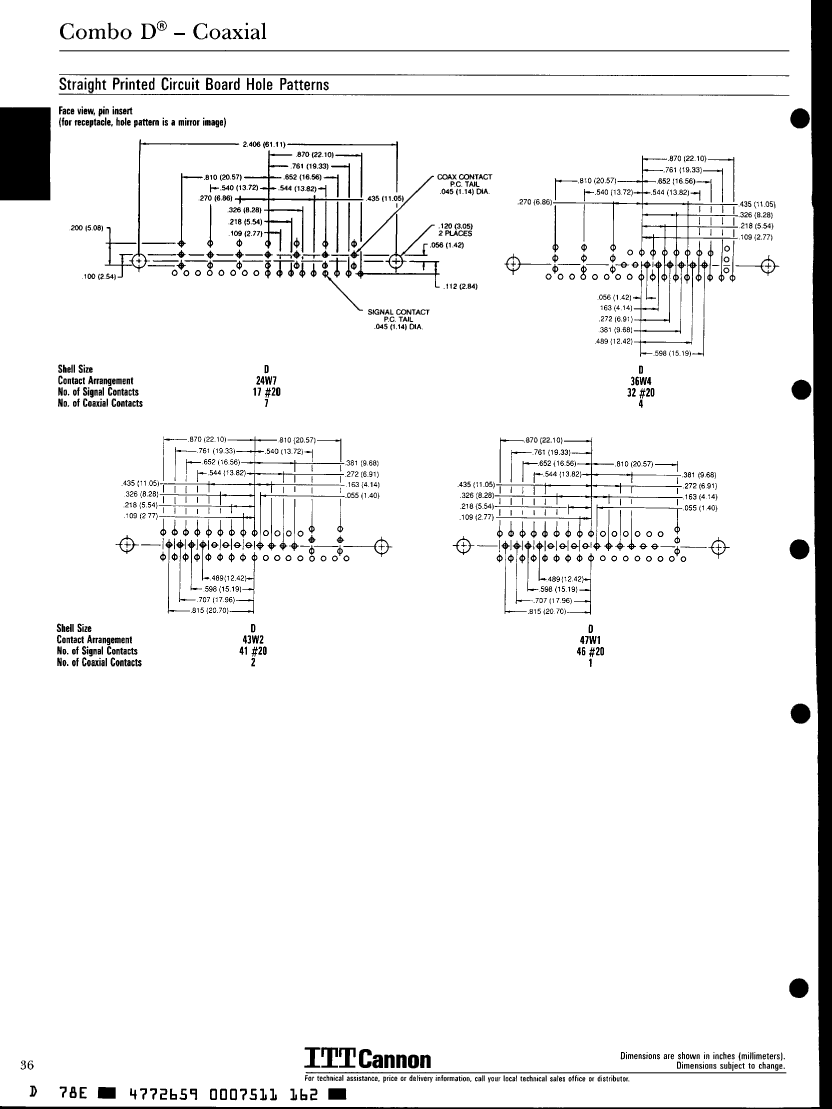

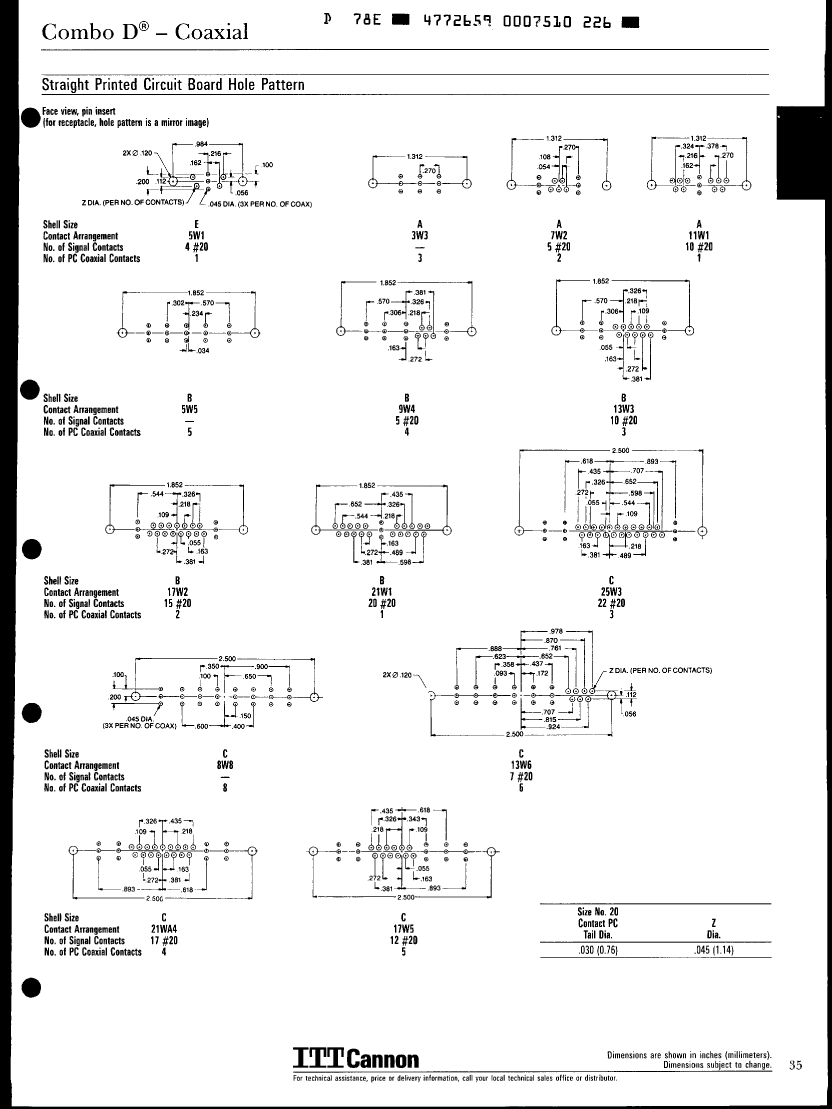

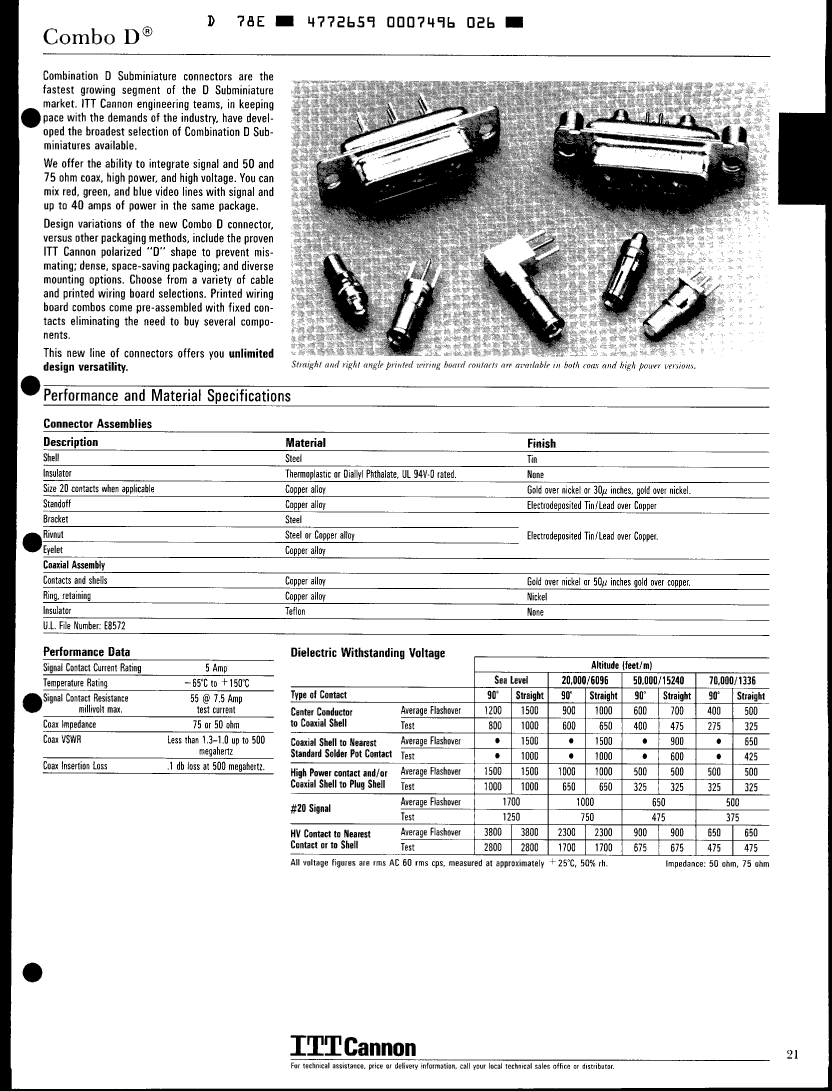

DBMV13X3PNK127-A220 Overview

D Type Connector, 13 Contact(s), Male, Solder Terminal, #4-40, Receptacle,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.268 inch
body length	2.087 inch
Body/casing type	RECEPTACLE

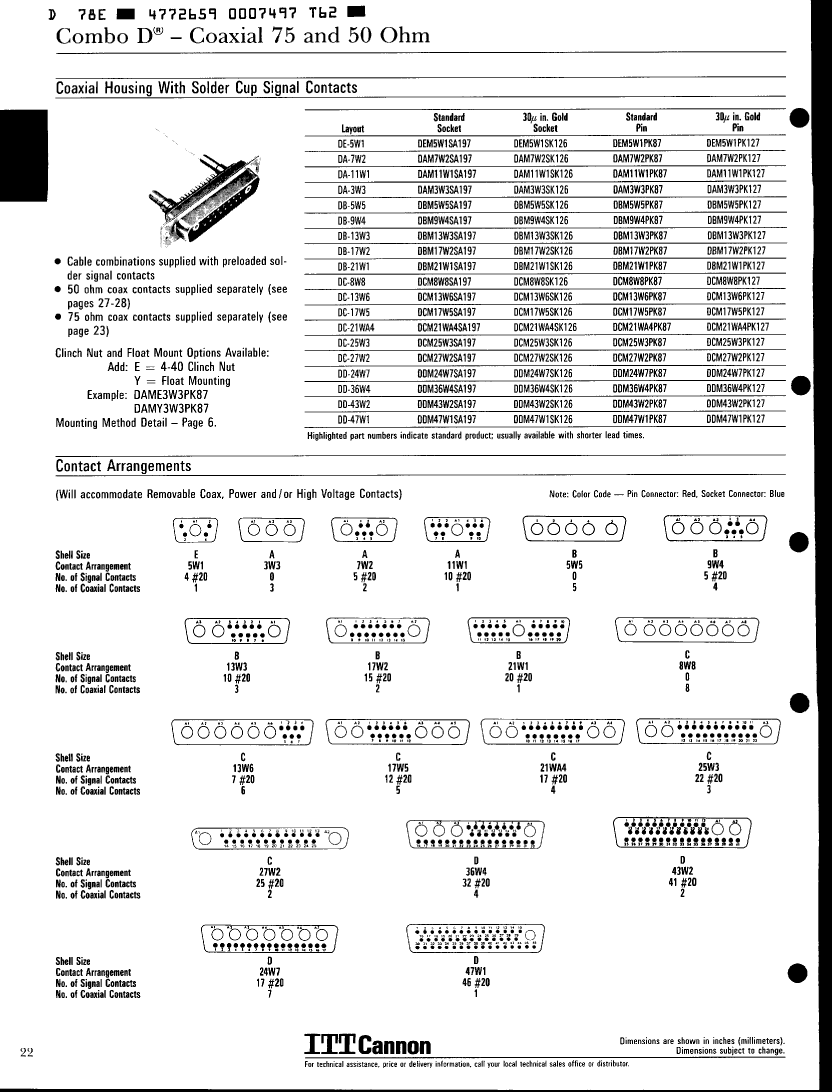

Contact arrangement	S10C3
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	7.5 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	D*M
Mixed contacts	YES
Installation option 1	#4-40
Installation option 2	ROUND STANDOFF
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.153 inch
Termination type	SOLDER
Total number of contacts	13
Base Number Matches	1
