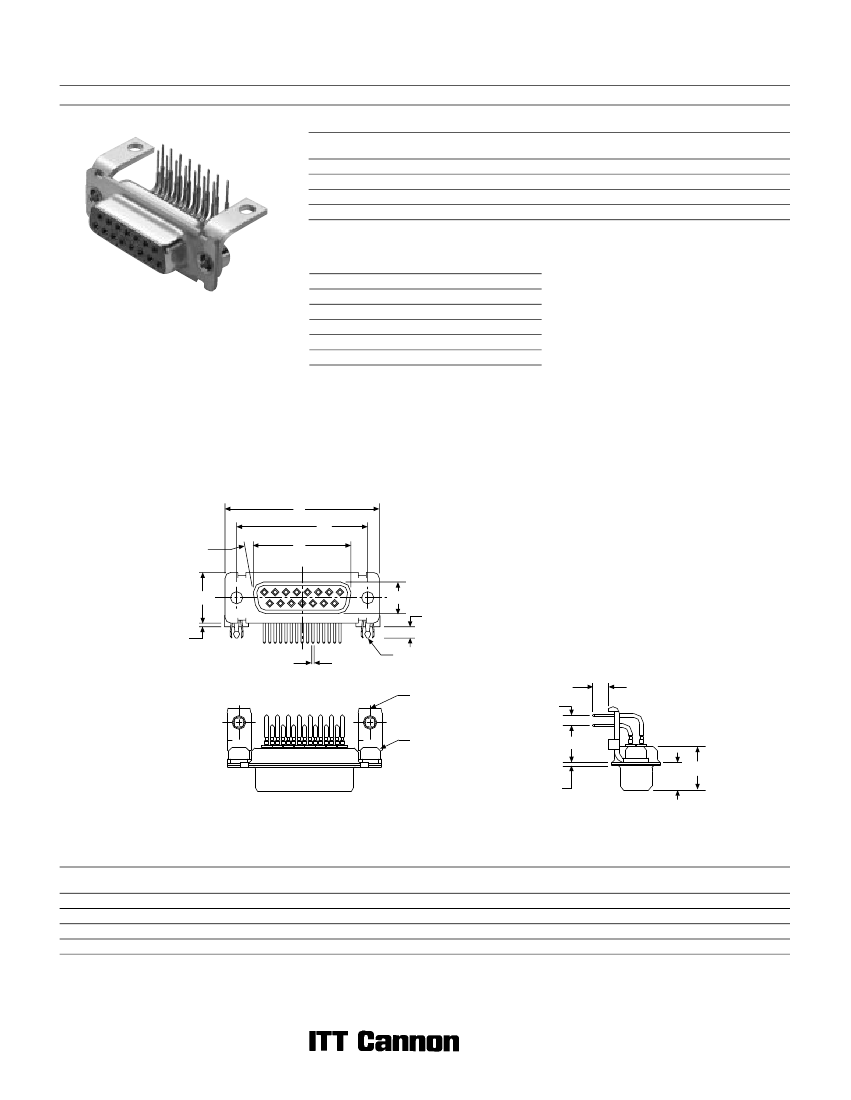

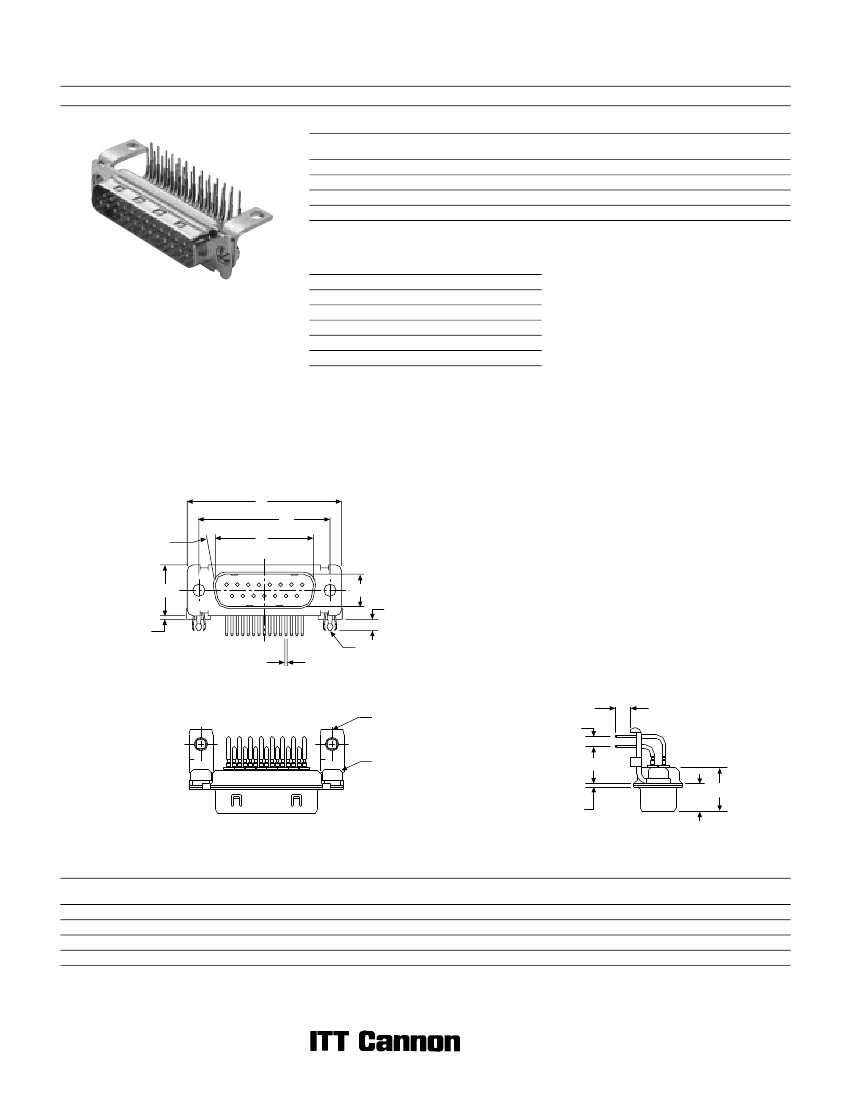

D Subminiature
D*JK — 90° PC Tails and Metal Brackets — European Footprint 10,2 or 9,4 mm
Plug
Part Numbers
Bushing with
Through Hole
DEJK9P*-1AFN
DAJK15P*-1AFN
DBJK25P*-1AFN
DCJK37P*-1AFN
Captive Nut
#4-40 UNC
DEJK9P*-1A7N
DAJK15P*-1A7N
DBJK25P*-1A7N
DCJK37P*-1A7N
Captive Nut
M3
DEJK9P*-1A9N
DAJK15P*-1A9N
DBJK25P*-1A9N
DCJK37P*-1A9N
Post
#4-40 UNC
DEJK9P*-1A8N
DAJK15P*-1A8N
DBJK25P*-1A8N
DCJK37P*-1A8N
Filter D
Post
M3
DEJK9P*-1AHN
DAJK15P*-1AHN
DBJK25P*-1AHN
DCJK37P*-1AHN
* Insert filter designator. Example: DEJK9P4-1A7N (For 1000 pF capacitance)
Notes: For performance class 1 add -A190. Example: DEJK9P1-1AFN-A190
For pushfit/boardlocks add -146. Example: DEJK9P1-1AFN-A190-146
Reader’s Resource
For contact cavity arrangements,
see page 224.
For P.C. hole patterns, see page 273.
For panel cutouts, see page 221.
For hardware views (European),
see page 227.
For alternate bracket configuration (when
connectors are supplied without boardlocks),
see page 226.
For pushfit/boardlock configuration,
see page 225.
Engaging Face
A
C
10°
B
Filter Designator*
1
2
3
4
5
For electrical data, see page 106.
Filter Capacitance
330 pF
470 pF
680 pF
1000 pF
1500 pF
1
8
E
9
15
D
2,89 (.114)
1,00 (.039)
BOARDLOCK
Ø 0,60 (.024)
BRACKET,
METAL
3,70 (.146)
2,54 (.100)
BUSHING
9,40 (.370)
F
W
L
Boardlock removed for clarity
Dimensions
Shell Size
DE
DA
DB
DC
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
B
±0,13
(.005)
16,92 (.666)
25,25 (.994)
38,96 (1.534)
55,42 (2.182)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
D
±0,13
(.005)
8,36 (.329)
8,36 (.329)
8,36 (.329)
8,36 (.329)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
F
±0,25
(.010)
10,72 (.422)
10,72 (.422)
10,82 (.426)
10,82 (.426)
W
±0,368
(.0145)
6,693 (.2635)
6,693 (.2635)
—
—
W
±0,41
(.016)
—
—
6,84 (.269)
6,84 (.269)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,99 (.039)
0,99 (.039)
Connector footprint measured from the front shell.
Connector footprint measured from the rear shell.
114
Dimensions are shown in mm (inch)
Dimensions subject to change
D Subminiature
D*JK — 90° PC Tails and Metal Brackets — European Footprint 10,2 or 9,4 mm
Receptacle
Part Numbers
Bushing with
Through Hole
DEJK9S*-1AFN
DAJK15S*-1AFN
DBJK25S*-1AFN
DCJK37S*-1AFN
Captive Nut
#4-40 UNC
DEJK9S*-1A7N
DAJK15S*-1A7N
DBJK25S*-1A7N
DCJK37S*-1A7N
Captive Nut
M3
DEJK9S*-1A9N
DAJK15S*-1A9N
DBJK25S*-1A9N
DCJK37S*-1A9N
Post
#4-40 UNC
DEJK9S*-1A8N
DAJK15S*-1A8N
DBJK25S*-1A8N
DCJK37S*-1A8N
Filter D
Post
M3
DEJK9S*-1AHN
DAJK15S*-1AHN
DBJK25S*-1AHN
DCJK37S*-1AHN
* Insert filter designator. Example: DEJK9S4-1A7N (For 1000 pF capacitance)
Notes: For performance class 1 add -A190. Example: DEJK9S1-1AFN-A190
For pushfit/boardlocks add -146. Example: DEJK9S1-1AFN-A190-146
Reader’s Resource
For contact cavity arrangements,
see page 224.
For P.C. hole patterns, see page 273.
For panel cutouts, see page 221.
For hardware views (European),
see page 227.
For alternate bracket configuration (when
connectors are supplied without boardlocks),
see page 226.
For pushfit/boardlock configuration,
see page 225.
Filter Designator*
1
2
3
4
5
For electrical data, see page 106.
Filter Capacitance
330 pF
470 pF
680 pF
1000 pF
1500 pF
Engaging Face
A
C
10°
B
8
1
9
E
15
D
2,89 (.114)
1,00 (.039)
Ø 0,60 (.024)
BOARDLOCK
3,70 (.146)
2,54 (.100)
BRACKET,
METAL
BUSHING
9,40 (.370)
F
W
L
Boardlock removed for clarity
Dimensions
Shell Size
DE
DA
DB
DC
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
B
±0,13
(.005)
16,33 (.643)
24,66 (.971)
38,38 (1.511)
54,84 (2.159)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
D
±0,13
(.005)
7,90 (.311)
7,90 (.311)
7,90 (.311)
7,90 (.311)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
F
±0,25
(.010)
10,90 (.429)
10,90 (.429)
10,90 (.429)
10,90 (.429)
W
±0,38
(.015)
6,94 (.273)
6,94 (.273)
6,94 (.273)
6,94 (.273)
K
±0,318
(.0125)
1,206 (.0475)
1,206 (.0475)
1,206 (.0475)
1,206 (.0475)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,76 (.030)
0,76 (.030)
Connector footprint measured from the front shell.
Connector footprint measured from the rear shell.
Dimensions are shown in mm (inch)
Dimensions subject to change
115
