DZ11391-H7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DZ11391-H7

DZ11391-H7: DescriptionD Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug,; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

DZ11391-H7 Overview

D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug,

DZ11391-H7 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TRAY PACKGING
body width	0.489 inch
subject depth	0.122 inch
body length	2.088 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	DZ
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYETHYLENE
Housing size	3/B
Terminal length	0.079 inch
Terminal pitch	1.3716 mm
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1

DZ11391-H7 Preview

Download Datasheet

View All

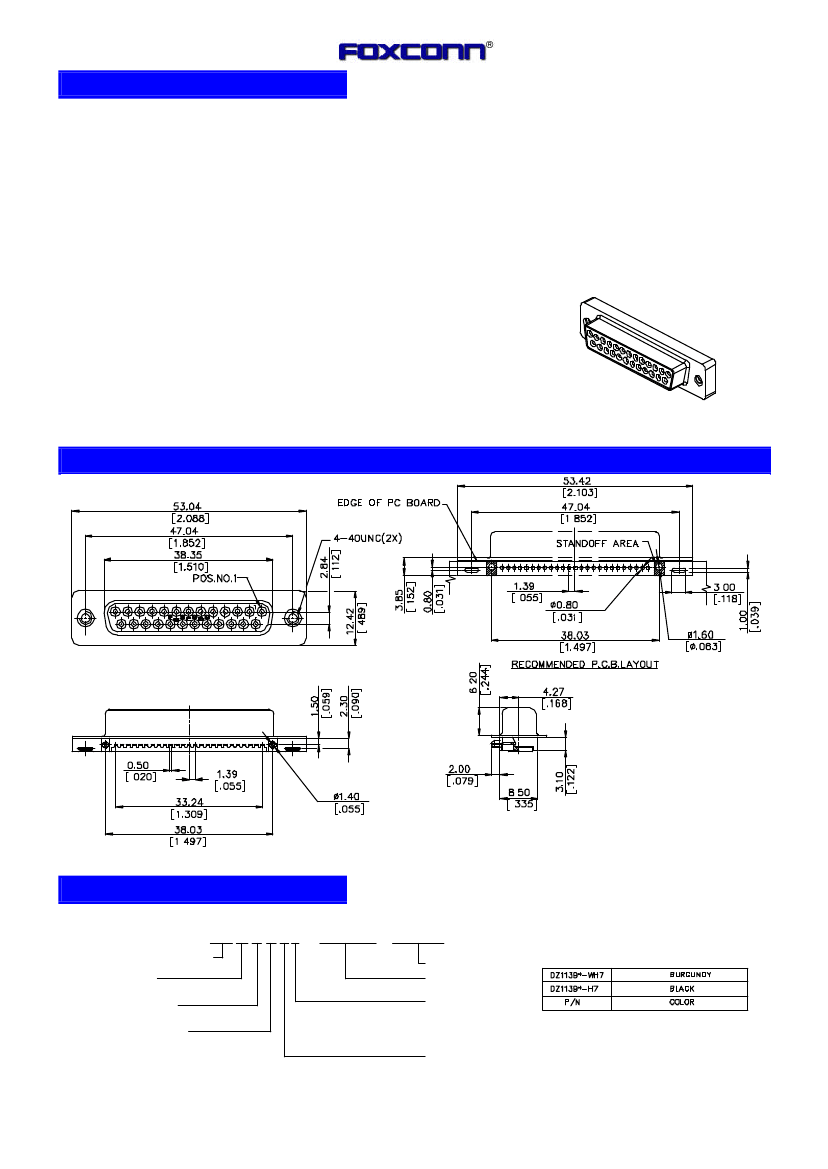

SPECIFICATIONS

D-SUB Connector

DZ Series

Right Angle , T/H, Female

Type

15 Pos.

Center Height 4.27 mm

Recommended PCB’s

Thickness 1.0 or 1.2 mm

Mechanical

Contact Engagement Force :

0.34 Kgf/ Pin max.

Contact Separation Force :

0.021 Kgf/ Pin min.

Durability :

500 Cycles

Electrical

Voltage Rating:

240V

Current Rating:

Contact Resistance:

25 mΩ max.

Dielectric Withstanding Voltage:

750V AC/1 min.

Insulation Resistance:

5000MΩ

Physical

Housing:

Thermoplastic, UL 94V-0 rated in Black/ PC99 Color

Contact:

Copper alloy

Plating:

See “ORDERING INFORMATION”

Solder Pad:

Copper alloy

Operating Temperature:

-55℃ to +105℃

DRAWING

ORDERING I N F O R M A T I O N

PRODUCT NO. : DZ 1 1 3 9 * -- H*,WH*--(HT/TR)

D-SUB Through Hole Series

Terminator Type

1 = Right Angle

Packing Code

Extension Code

Contact Area Plating

1= Gold Flash

6= 10u" Gold

7= 15u" Gold

Contact Design Type

1 = Female

NO. of Contact Position

3 = 25 POS.

Body Length

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
