DELC-J25PAF-21L6E datasheet, PDF

Datasheet> All Categories > The connector> The connector> DELC-J25PAF-21L6E

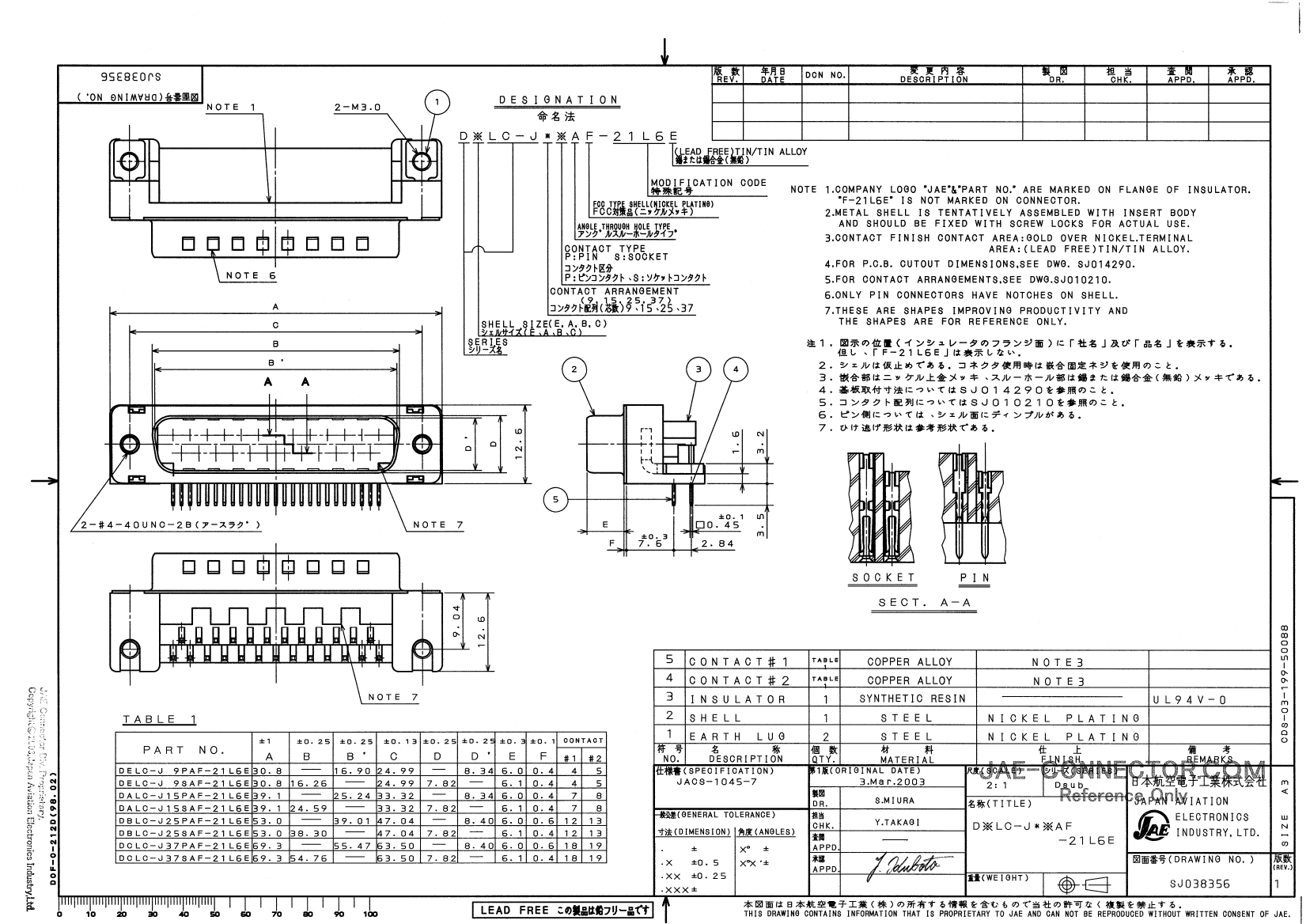

DELC-J25PAF-21L6E: DescriptionD Subminiature Connector, 25 Contact(s), Male, Solder Terminal, LEAD FREE; CategoryThe connector The connector; File Size177KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric Compare View All

DELC-J25PAF-21L6E Overview

D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, LEAD FREE

DELC-J25PAF-21L6E Parametric

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	unknown
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	D
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

DELC-J25PAF-21L6E Related Products

	DELC-J25PAF-21L6E	DELC-J25SAF-21L6E	DELC-J37PAF-21L6E	DELC-J37SAF-21L6E	DELC-J9PAF-21L6E	DELC-J9SAF-21L6E	DELC-J15PAF-21L6E	DELC-J15SAF-21L6E
Description	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, LEAD FREE	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, LEAD FREE	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal, LEAD FREE	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, LEAD FREE	D Subminiature Connector, 9 Contact(s), Male, Solder Terminal, LEAD FREE	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, LEAD FREE	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, LEAD FREE	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, LEAD FREE
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	NOT SPECIFIED	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact point gender	MALE	FEMALE	MALE	FEMALE	MALE	FEMALE	MALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	3/B	3/B	4/C	4/C	1/E	1/E	2/A	2/A
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	25	25	37	37	9	9	15	15
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1
Manufacturer's serial number	D	D	D	D	D	-	D	D
