REVISION AY
DO NOT
SCALE FROM
THIS PRINT
NO OF POS X .050
- .010
[
+.05
]
-.25
02
.096 2.44
REF
03
01
2 MAX SWAY
(EITHER DIRECTION)
C
L
C
+.002

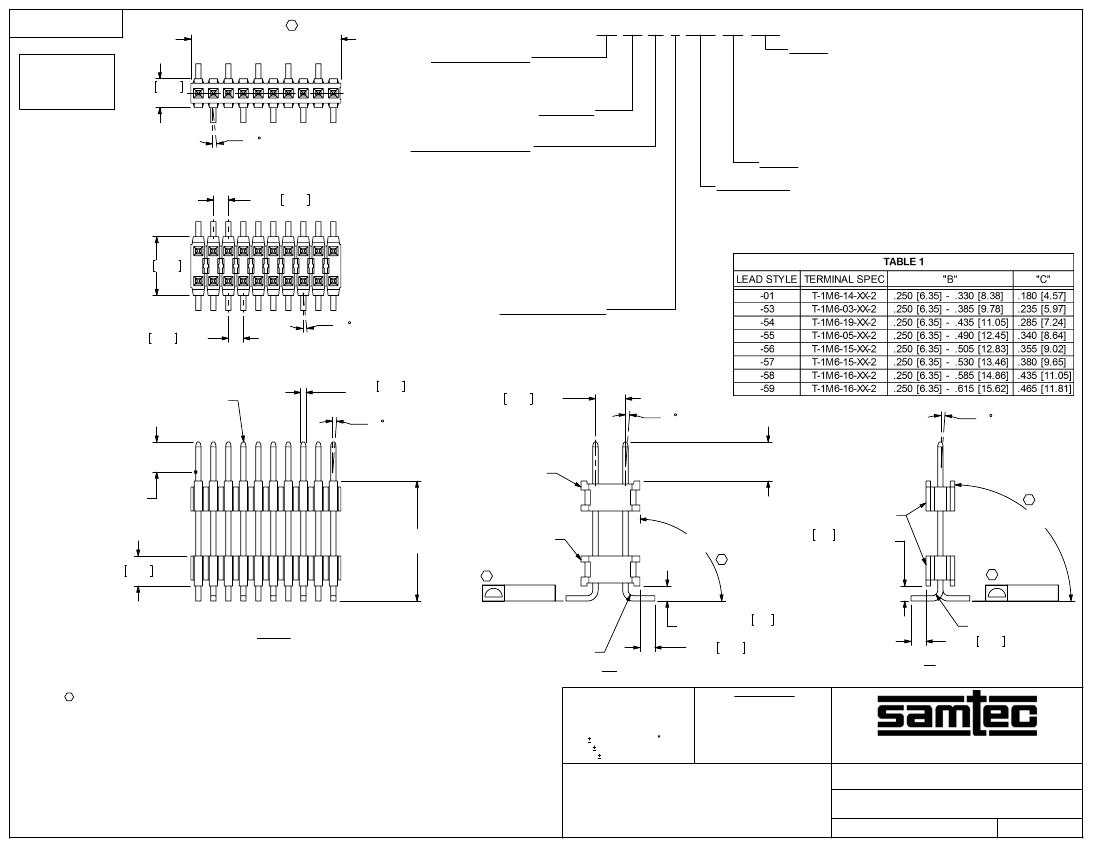

HDWM-XX-XX-XX-X-XXX-SM-XXX
BODY LENGTH SPEC
EXPRESSED IN # POS PER ROW
(-01 THRU -50)
LEAD STYLE
SEE TABLE 1
PLATING SPECIFICATION
-G: 10µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
-T: MATTE TIN CONTACT AND TAIL,
(ONLY AVAILABLE IN LEAD STYLE -01)
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-TM: MATTE TIN CONTACT AND TAIL,
(ONLY AVAILABLE IN LEAD STYLE -01)
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
BODY SPECIFICATION
-S: SINGLE (USE HTMS-XX-S)
-D: DOUBLE (USE HTMS-XX-D)
OPTION
-POLARIZING SPECIFICATION
XXX INDICATES POSITION TO BE OMITTED
-A: STAKED ALIGNMENT PIN (SEE SHT 2, FIG 2)
(6 POS MIN, BODY SPEC -D ONLY, USE SM-A8H)
-LC: STAKED LOCKING CLIP (SEE SHT 2, FIG 3)
(5 POS MIN, BODY SPEC -D ONLY, USE LC-05-TM)
-P: PICK & PLACE PAD (SEE SHT 2, FIG 4)
(FOR SINGLE ROW, 9 POSITION MINIMUM REQUIRED)
(.100 MIN POST HEIGHT)
OPTION
-SM: SURFACE MOUNT
BOARD SPACE
"XXX" = "B"
(SEE TABLE 1)
02
.050 1.27 REF
.196 4.98
01
.050 1.27 REF
2 MAX SWAY
(EITHER DIRECTION)
T-1M6-XX-XX-2
.018 0.46 SQ
REF (TYP)
2 MAX SWAY
(EITHER DIRECTION)
.100 2.54 REF
2 MAX SWAY
(EITHER DIRECTION)
POST DIM = {(C + .150) - B} REF
C
2 MAX SWAY
(EITHER DIRECTION)
HTMS-50-D
CONTACT AREA
HTMS-XX-S
"B"±.008[0.20]
SEE NOTE 8
(MEASURE AT BEND RADIUS)
.100 2.54 REF
C
90°
- 2°
(TYP)
C
+4°
.05 1.3
(MEASURE AT BEND RADIUS)
C
90°
- 2°
+4°
.006[.15]
(SEE NOTE 8)
HDWM-10-57-XX-X-400-SM SHOWN
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAXIMUM COPLANARITY: .006[.15].
3. MAXIMUM HEIGHT VARIATION BETWEEN ANY TWO POSTS: .010[.25].
4. MINIMUM PUSHOUT FORCE: 2 LB.
5. TUBE POSITIONS -07 THRU -50 ONLY; POSITIONS -01 THRU -06 TO BE LAYER PACKAGED.
6. MAXIMUM CUT FLASH: .010[.25].
7. MAXIMUM BURR ALLOWANCE: .003[.08] MAX.
8. USE DWM-50-D WHEN RAN ON BOARD STACKER AUTOMATION, USE HTMS-50-D FOR HAND FILL
AND SINGLE BODY AUTOMATION.
9. NOTE DELETED.
10. FOR ADDED MECHANICAL STABILITY, SAMTEC RECOMMENDS MECHANICAL BOARD SPACERS
BE USED IN APPLICATIONS WITH GOLD OR SELECTIVE GOLD PLATED CONNECTORS. CONTACT
IPG@SAMTEC.COM FOR MORE INFORMATION.
FIG 1
R.028 [.71] REF
-D
.05 1.3
(MEASURE AT BEND RADIUS)
.050 1.27 (TYP)
.006[.15]
(SEE NOTE 2)
R.028 [.71] REF
.050 1.27 (TYP)
-S
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
PROPRIETARY NOTE
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
TERMINAL: PHOS BRONZE
BOARD SPACING SM MICRO STRIPS
F:\DWG\MISC\MKTG\HDWM-XX-XX-XX-X-XXX-SM-XXX-MKT.SLDDRW
BY:
BRYAN T
HDWM-XX-XX-XX-X-XXX-SM-XXX
07/09/1992
SHEET
1
OF
3
REVISION AY
"N"
.400 10.16
REF
"Q"
.160 4.06
REF
.270 6.86
REF
.100 2.54
MIN
PPP-07
.090 2.29
.040 1.02 REF
SM-A8H
.105 2.67
.0430 1.092 REF
LC-05-TM
"N"
SINGLE ROW
.250 6.35
REF
(No OF POS - 2) X .0500 [1.270]
(No OF POS - 2) X .0500 [1.270]
.390 9.91
REF
"Q"
.270 6.86
REF
.100 2.54
MIN
PPP-06

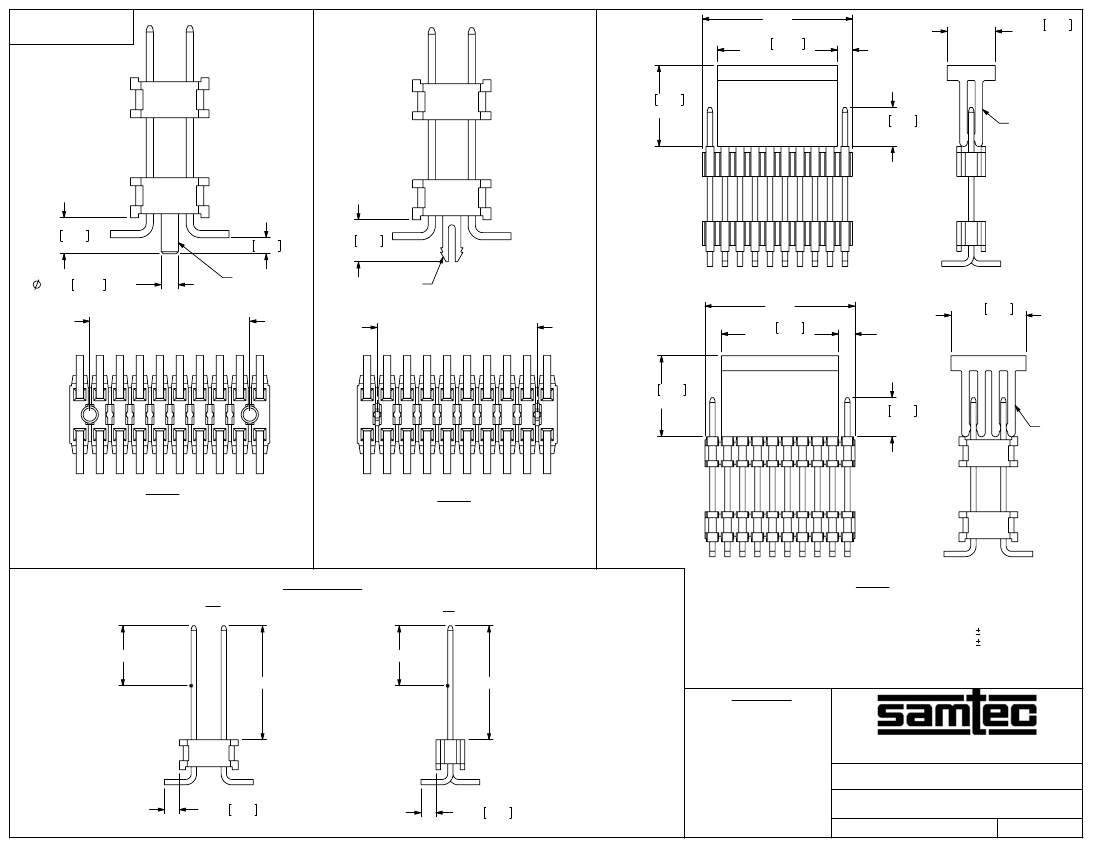

FIG 2
-A OPTION: STAKED ALIGNMENT PIN
(6 POSITIONS MINIMUM)
[BODY SPEC -D ONLY]
HDWM-10-57-XX-X-400-SM-A SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 3
-LC OPTION: STAKED LOCKING CLIP
(5 POSITIONS MINIMUM)
[BODY SPEC -D ONLY]
HDWM-10-57-XX-X-400-SM-LC SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
-D
IN-PROCESS
-S
CONTACT AREA
"C"
"C"
DOUBLE ROW
CONTACT AREA
-P OPTION: PICK & PLACE PAD
(MIN POST HEIGHT .100 [2.54])
"N" = USE MEASURED DIMENSION
FOR DOUBLE ROW: "Q" = {("N" - .390 [9.91]) /2} .020 [.51]
FOR SINGLE ROW: "Q" = {("N" - .400 [10.16]) /2} .020 [.51]
HDWM-10-57-XX-X-400-SM-P SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
*
PROPRIETARY NOTE
*
FIG 4
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
BOARD SPACING SM MICRO STRIPS
.050 1.27 (TYP)
F:\DWG\MISC\MKTG\HDWM-XX-XX-XX-X-XXX-SM-XXX-MKT.SLDDRW
.050 1.27 (TYP)
HDWM-XX-XX-XX-X-XXX-SM-XXX
07/09/1992
SHEET
2
OF
3
BY:
BRYAN T
REVISION AY
PT-1-24-04-44
PT-1-24-02-44
PT-1-24-01-48
-S: SINGLE
LEAD STYLES -01, -53, -54,
-55, -56, -57, -58, -59
-D: DOUBLE
LEAD STYLES -54, -55,-56, -57, -58

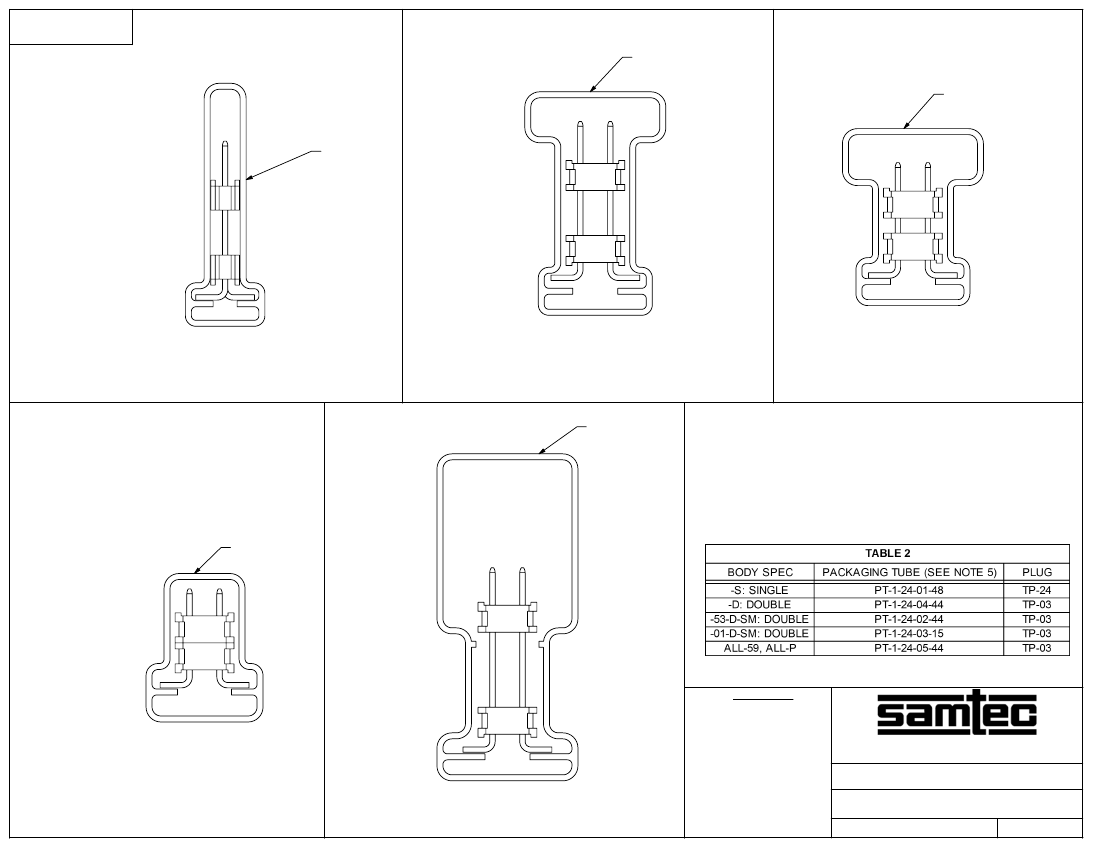

-53-D-SM: DOUBLE
PT-1-24-05-44
PT-1-24-03-15
ALL TUBES WORK FOR THE ALIGNMENT PIN OPTION.
*
PROPRIETARY NOTE
*
-01-D-250-SM: DOUBLE
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
BOARD SPACING SM MICRO STRIPS
ALL -59-D, ALL -P
F:\DWG\MISC\MKTG\HDWM-XX-XX-XX-X-XXX-SM-XXX-MKT.SLDDRW
SHEET SCALE: 3:1
HDWM-XX-XX-XX-X-XXX-SM-XXX
07/09/1992
SHEET
3
OF
3
BY:
BRYAN T
