PRODUCT DATA SHEET
LOW DISTORTION
LINE MATCHING TRANSFORMER
Features
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
∗
Lead-free (Pb-free)
RoHS compliant
Low Distortion
10.4mm (0.41”) Seated Height
Industry Standard Pinout
IEC 60950 and UL 60950 Certified
Supplementary Insulation for a Primary
Circuit
Extended Frequency Response
Flat TX and RX Responses
High Thermal Stability
Directly replaces 2811B, ATS-273 and
LCT0035A
P5273
Applications
∗
V.90 and V.92 Modems
∗
V.34 Modems
DESCRIPTION
P5273 is intended for low cost V.90 and V.92
(56kbps)
modems
and
other
high-speed
applications where low distortion at moderate
power levels and very low voiceband frequencies is
required.
P5273 is offered as a direct replacement for
2811B, ATS-273/ATS-273B and LCT0035A in
existing circuits without changes to matching
components.
P5273 uses patented design and construction
methods to achieve excellent signal performance
and safety isolation to international standards.
P5273 is certified to IEC 60950 and UL 60950.
P5273 is a UL Recognized Component and is
supported by an IEC CB certificate. The part is
completely lead-free, compliant with RoHS
Directive 2002/95/EC, and suitable for lead-free
and conventional processing.
FOR NEW DESIGNS
P5233 IS RECOMMENDED
Patented
ETALDOC 852/4
Page 1 of 4
June 2005
P5273
SAFETY
Constructed in accordance with IEC 60950-1,
EN 60950-1, and UL 60950-1, supplementary
insulation for a primary circuit, 250Vrms maximum
working voltage, flammability class V-1.
Components should be installed in such a way that
the core is separated from accessible conductive
parts by a creepage of 2.5mm, clearance of 2mm,
or by solid insulation of minimum thickness 0.4mm,
or by appropriate thin film.
CERTIFICATION
Certified under the IEC CB scheme (Certificate
GB597W) to IEC 60950 Third Edition 1999 sub-
clauses 1.5, 1.5.1, 1.5.2, 2.9, 2.9.1, 2.9.2, 2.9.4,
2.9.5, 2.10, 2.10.1, 2.10.3, 2.10.3.1, 2.10.3.2,
2.10.4, 2.10.5, 2.10.5.1, 2.10.5.2, 2.10.5.4, 4.5.2,
4.7, 4.7.3, 4.7.3.1, 4.7.3.4, (Flammability Class
V-1) ,5.2, 5.2.1, and 5.2.2 for a maximum
working voltage of 250Vrms, nominal mains
supply voltage not exceeding 250Vrms and a
maximum operating temperature of +85ºC in
Pollution Degree 2 environment, supplementary
insulation for a primary circuit.
Recognized under the Component Recognition
Program of Underwriters Laboratories Inc. to US and
Canadian
requirements
CAN/CSA
C22.2
No. 60950-1-03/UL 60950-1, First Edition, based on
IEC 60950-1, First Edition, maximum working
voltage
250Vrms,
Pollution
Degree
2,
supplementary insulation.
UL File number E203175
Additionally, Profec Technologies certifies all
transformers as providing voltage isolation of
2.12kVrms, 3kV DC minimum. All shipments are
supported by a certificate of conformity to current
applicable safety standards.
ABSOLUTE MAXIMUM RATINGS
(Ratings of components independent of circuit).
Short term isolation voltage (1s)
DC current
Storage temperature
Lead temperature, 10s
2.12kVrms,
3.0 kVDC
100μA
-40ºC to
+85ºC
260ºC

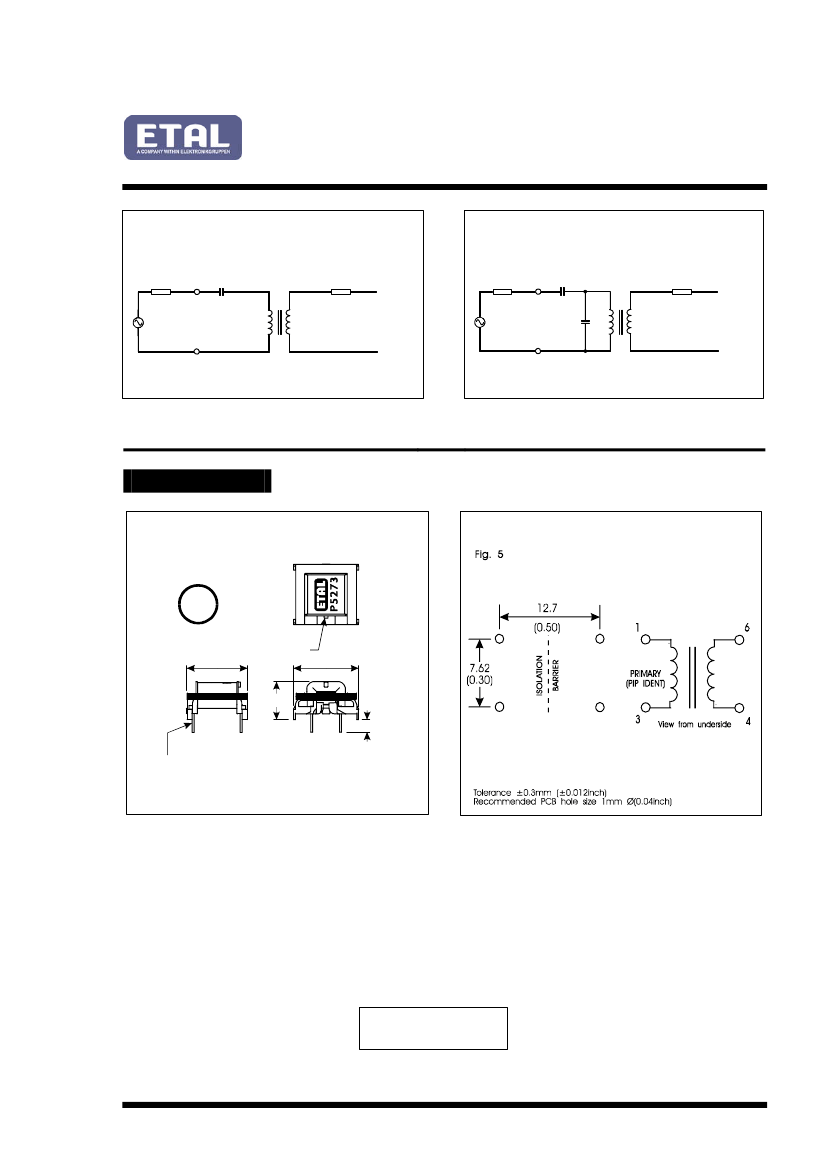

INTELLECTUAL PROPERTY RIGHTS
ETAL and P5273 are Trade Marks of Profec
Technologies Ltd.
The Trade Mark ETAL is registered at the UK
Trade Marks Registry.
Profec Technologies Ltd. is the owner of the
design right under the Copyright Designs and
Patents Act 1988 and no rights or licences are
hereby granted or implied to any third party.
P5273 design and construction are protected by patents.
British Patent No. 2333646.
US Patent No. 6,344,787
European Patent No. 1082734
China Patent No. ZL99806739.3
© 1998 - 2005 Profec Technologies Ltd.
Reproduction prohibited.
E203175
ISO 9001
FM 25326
ETAL Group Oy, Kuormatie 14, FIN-03101, Nummela
Telephone: +358 (0)20 7500 330
Fax: +358 (0)20 7500 333
Website: www.etalgroup.com
Email: etalgroup@egruppen.com
ETALDOC 852/4
Page 4 of 4
June 2005
